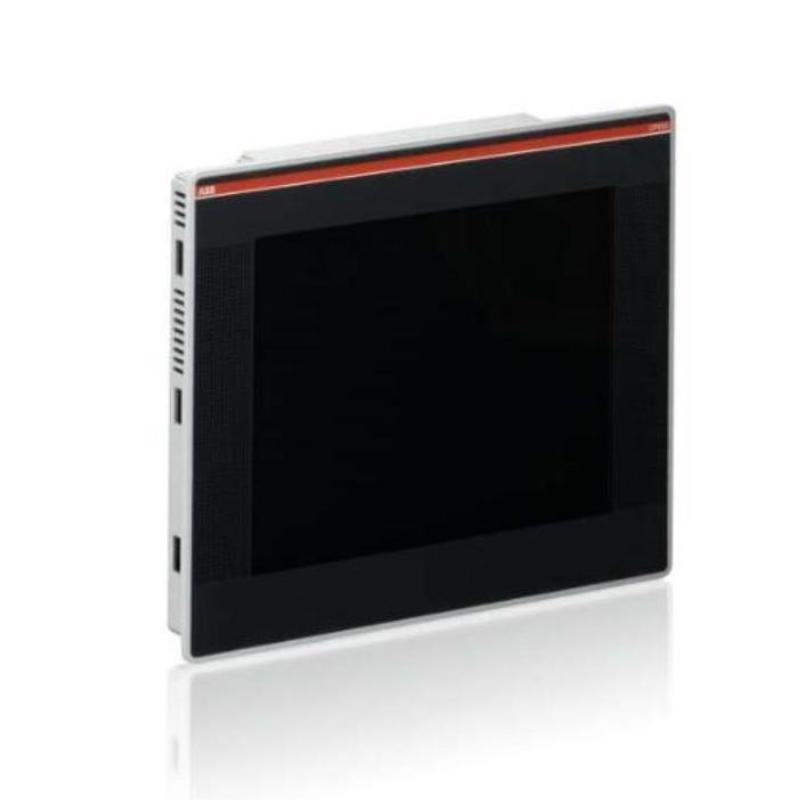

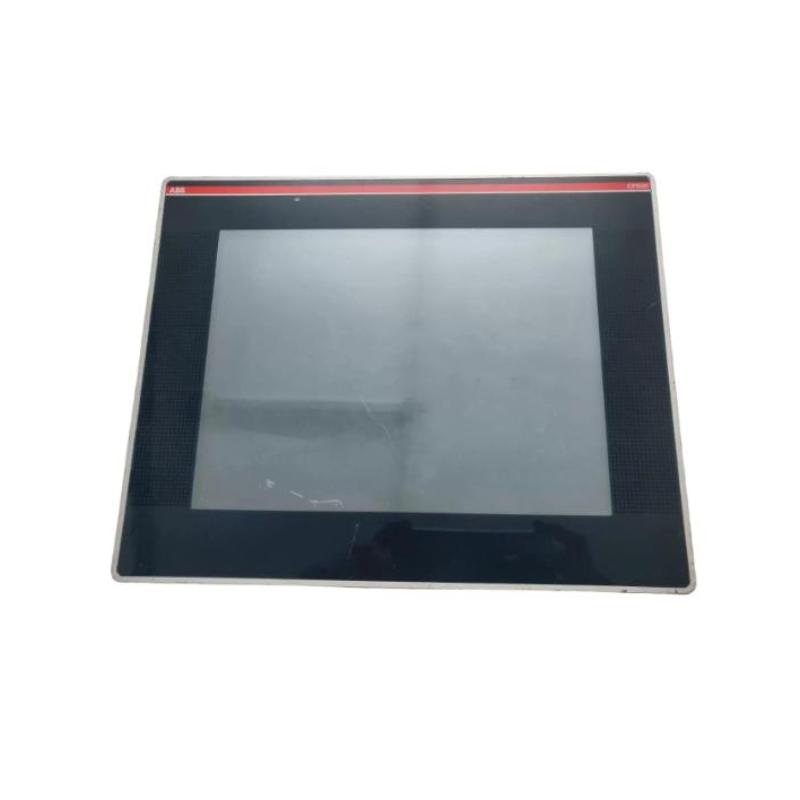

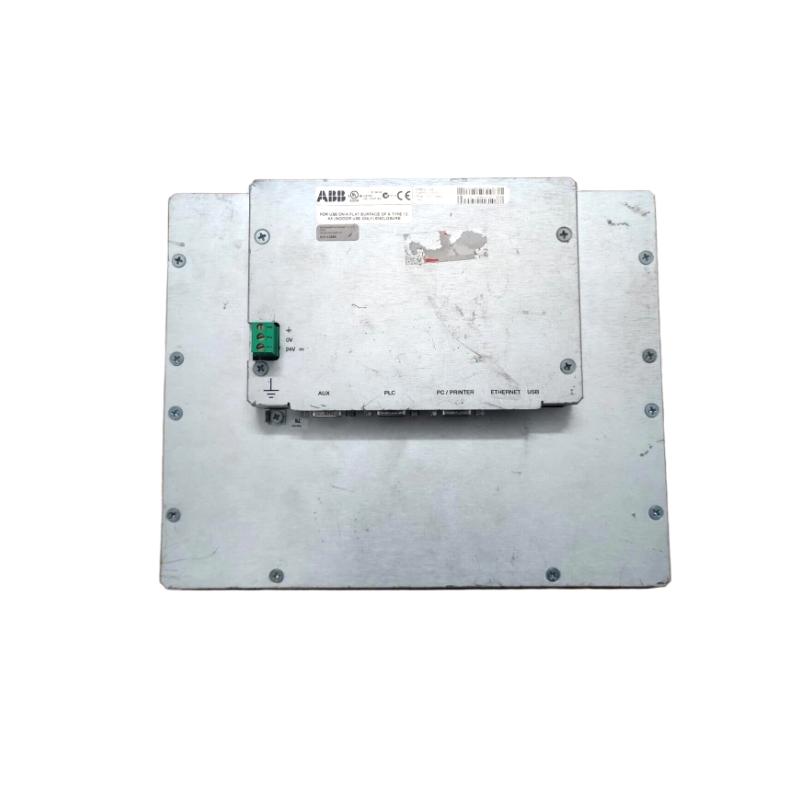

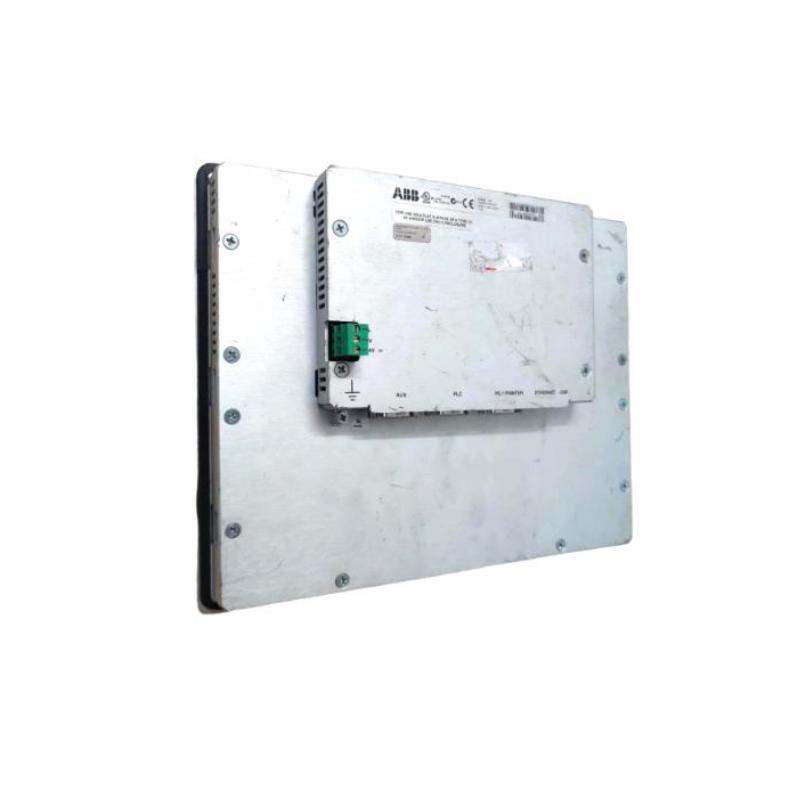

ABB CP650 1SAP550100R0001 Touch Screen Trusted supplier

Brand:ABB PLC
Item No.:CP650 1SAP550100R0001
Product Origin:Sweden
Product Dimensions:287 × 232 × 60 mm
Product Weight:2.1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

ABB CP650 1SAP550100R0001-1CP650 1SAP550100R0001ABB CP650 1SAP550100R0001-3ABB CP650 1SAP550100R0001-4

Product Overview

The ABB CP650 1SAP550100R0001 Touch Screen Panel is a robust industrial Human‑Machine Interface (HMI) designed for clear visualization and effective operator interaction in automation systems. As part of ABB’s CP600 series, the CP650 combines a high‑quality 10.4‑inch color TFT touchscreen with versatile connectivity and industrial‑grade design. Its large, high‑resolution display and responsive controls empower operators to monitor processes, adjust parameters, and respond to system events efficiently in manufacturing, packaging, energy, and building automation environments.

Technical Specifications & Physical Data

FeatureSpecification
Module TypeTouch Screen Display Panel (HMI)
Model NumberCP650
Order Number1SAP550100R0001
Display Type10.4″ TFT color touch screen
Display Resolution800 × 600 pixels
Color Depth64K colors
ConnectivityEthernet; RS‑232/422/485; USB 2.0 host; auxiliary interface
Software SupportPB610 Panel Builder 600 runtime
Supply Voltage24 V DC (18–30 V range)
Operating Temp.0 °C to +50 °C
Storage Temp.–20 °C to +70 °C
Protection ClassIP66 (front); IP20 (rear)
MountingPanel mount
Dimensions (W × H × D)Approx. 287 × 232 × 60 mm
Net WeightApprox. 2.1 kg


Applications

The CP650 Touch Screen Panel is tailored for industrial automation projects where rich visualization and interactive control are crucial. Common applications include:

  • Machine control and production line interfaces

  • Real‑time process monitoring and diagnostics

  • Alarm visualization and system status dashboards

  • Parameter configuration for PLCs, drives, and I/O systems

  • Operator workstations in discrete and continuous manufacturing

The combination of a large display and intuitive touch control enhances situational awareness and operator efficiency in demanding industrial settings.


Advantages

  • Large, High‑Resolution Display
    A 10.4‑inch layout with 800 × 600 resolution delivers clear, detailed visual feedback, reducing operator errors.

  • Industrial‑Ready Design
    Front IP66 protection and rear IP20 class make the panel suitable for harsh factory environments without compromising durability.

  • Versatile Connectivity
    Multiple communication ports including Ethernet, serial, and USB interfaces support seamless system integration.

  • Responsive Touch Interaction
    Analog resistive touchscreen provides dependable control even in industrial conditions.

  • Flexible Software Support
    Compatible with PB610 Panel Builder 600, enabling flexible interface design and rapid deployment.


Technical FAQs

  1. What is the display size and resolution of the CP650?
    10.4″ TFT color screen with 800 × 600 pixel resolution.

  2. Which connectivity options are available?
    Ethernet, RS‑232/422/485, USB 2.0 host, and auxiliary ports.

  3. What supply voltage does the CP650 require?
    Standard 24 V DC with a range of 18–30 V.

  4. Is the front panel protected against dust and water?
    Yes, it has IP66 front protection and IP20 rear housing rating.

  5. What software is used to configure the interface?
    PB610 Panel Builder 600 runtime and engineering software.

  6. Can it handle alarm visualization and trend display?
    Yes, supports dynamic visualization including alarms and trends when configured.

  7. What is the operating temperature range?
    0 °C to +50 °C.

  8. Does it support external storage?
    Yes — USB host port allows connection to external storage devices.

  9. Is the screen suitable for industrial operator use?
    Yes, with responsive touch and clear graphics optimized for factory applications.

  10. How heavy is the panel?
    Approx. 2.1 kg, balancing robustness with manageable installation
