ABB CP635 1SAP535100R0001 Touch Screen Unbelievable Prices!

Brand:ABB PLC
Item No.:CP635 1SAP535100R0001
Product Origin:Sweden
Product Dimensions:187 × 147 × 51 mm
Product Weight:0.76kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

CP635 1SAP535100R0001 2CP635 1SAP535100R0001 1CP635 1SAP535100R0001 3CP635 1SAP535100R0001 4

Product Overview

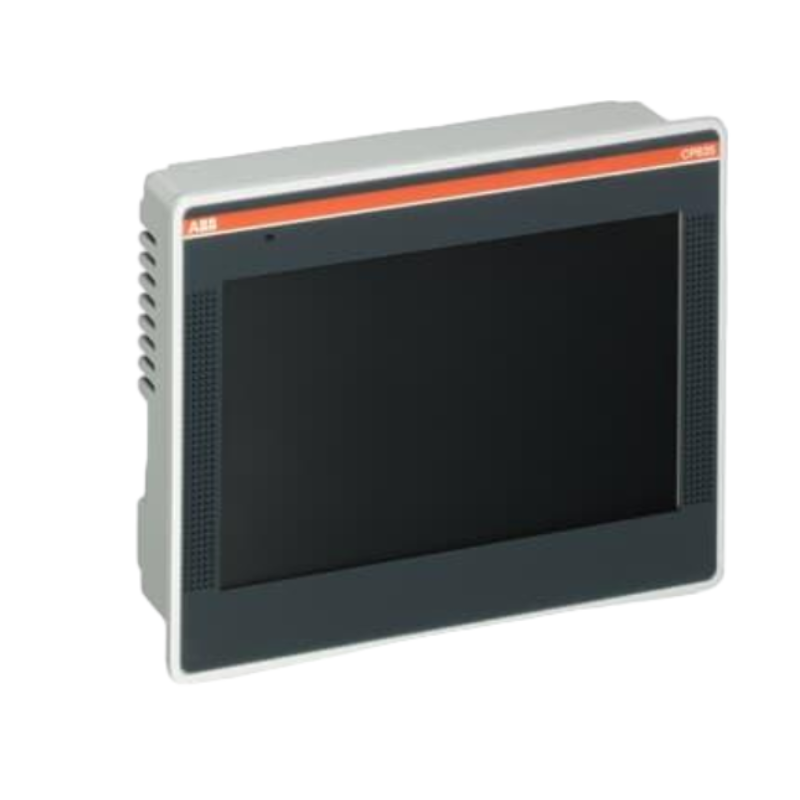

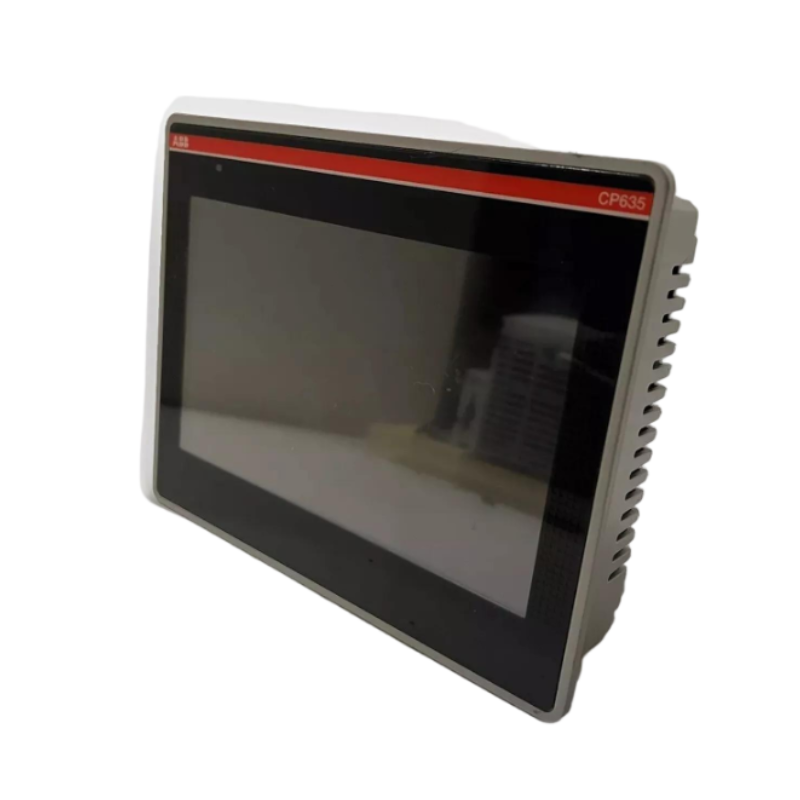

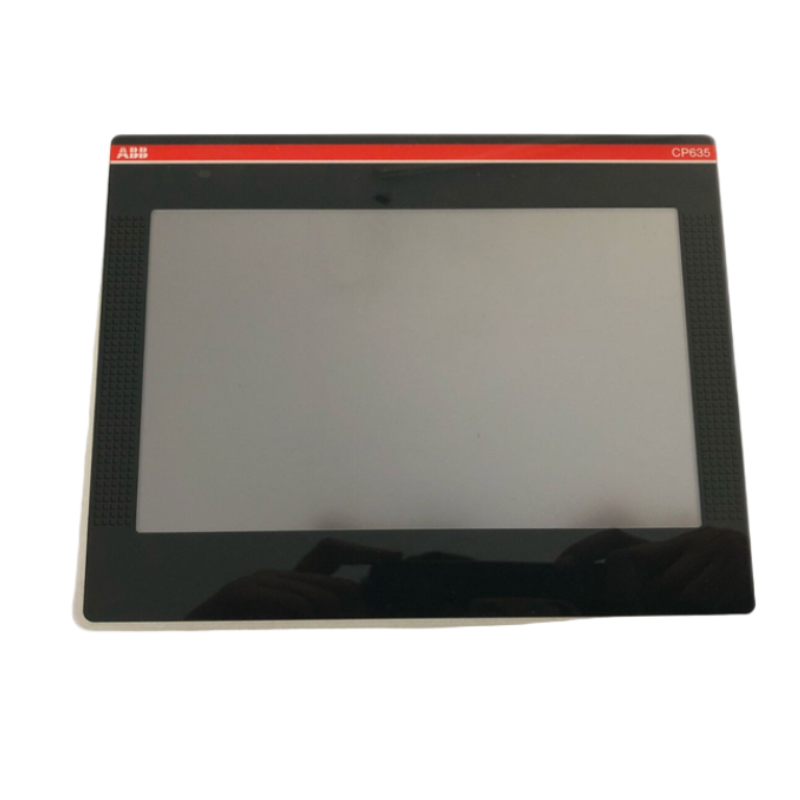

The ABB CP635 1SAP535100R0001 Touch Screen Display is an industrial Human‑Machine Interface (HMI) engineered for intuitive visualization and reliable operator control in automation systems. Part of ABB’s CP600 series, the CP635 combines a high‑clarity 7‑inch TFT touchscreen with robust connectivity and durable industrial design. It enables operators to monitor live data, adjust parameters, and diagnose system status, enhancing productivity and situational awareness on the factory floor.

Technical Specifications & Physical Details

FeatureSpecification
Module TypeTouch Screen Display Panel (HMI)
Model NumberCP635
Order Number1SAP535100R0001
Display TypeTFT LCD color touch screen
Display Size7.0 inches (wide 16:9)
Resolution800 × 480 pixels
Color Depth64K colors

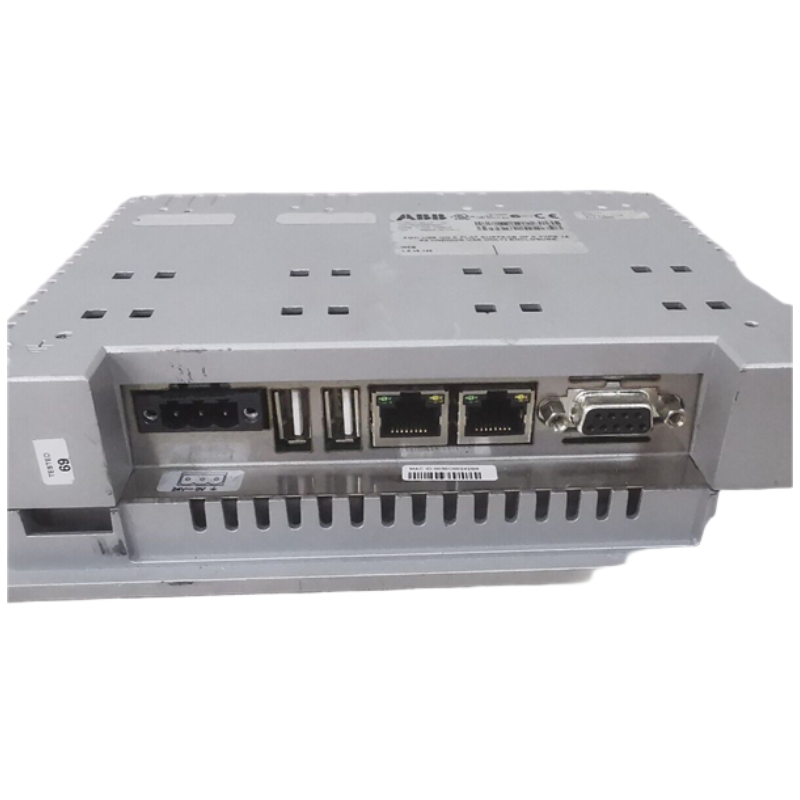

Connectivity2 × Ethernet 100 Mbit, 1 × RS232/422/485, 2 × USB Host, 1 × SD slot
Software SupportPB610 Panel Builder 600
Supply Voltage24 V DC (18–30 V DC)
Operating Temp.0 °C to +50 °C
Storage Temp.–20 °C to +70 °C
Protection ClassIP66 (front) / IP20 (rear)
MountingPanel mount
Dimensions (W × H × D)Approx. 187 × 147 × 51 mm
Net WeightApprox. 0.76 kg


Applications

Designed for medium‑complexity automation environments, the CP635 excels where clear operator interaction and dependable display performance are required. Typical use cases include:

  • Machine control and process monitoring panels

  • Visualization of production line status and alarms

  • Parameter configuration for drives, PLCs, and I/O modules

  • Energy and utility automation interfaces

  • Material handling and packaging system control

Its versatile connectivity and visual interface make it a valuable HMI solution for integrators and system engineers.


Advantages

  • Intuitive Touch Interaction
    A responsive 7‑inch touchscreen provides straightforward navigation for operators.

  • Clear Industrial‑Grade Display
    800 × 480 resolution and wide color range support effective data visualization.

  • Versatile Connectivity
    Multiple Ethernet, USB, serial, and SD interfaces support broad integration options.

  • Robust Industrial Construction
    IP66‑rated front protection and industrial‑strength housing ensure reliable performance in harsh environments.

  • Field‑Ready Software Support
    Compatible with PB610 Panel Builder 600 for rapid project setup and configuration.


Technical FAQs

  1. What is the screen size and resolution of the CP635?
    7‑inch wide TFT display with 800 × 480 pixel resolution.

  2. Which communication interfaces does this panel support?
    Ethernet, USB, serial (RS232/422/485), and an SD card interface.

  3. What software is used for programming the CP635?
    PB610 Panel Builder 600.

  4. What supply voltage range does it require?
    Operates on 24 V DC with tolerance from 18 V to 30 V DC.

  5. Is the display suitable for harsh industrial environments?
    Yes — IP66 front protection and IP20 rear protection.

  6. What is the operating temperature range?
    0 °C to +50 °C.

  7. Can the CP635 interface with non‑ABB systems?
    Yes — via standard Ethernet and serial protocols.

  8. How is the panel mounted?
    Designed for panel mount installations in control cabinets.

  9. Does it support external storage or program backup?
    Yes — SD card slot facilitates storage of programs, logs, and backups.

  10. Is user protection available on the panel?
    Yes — includes user‑level password protection.
