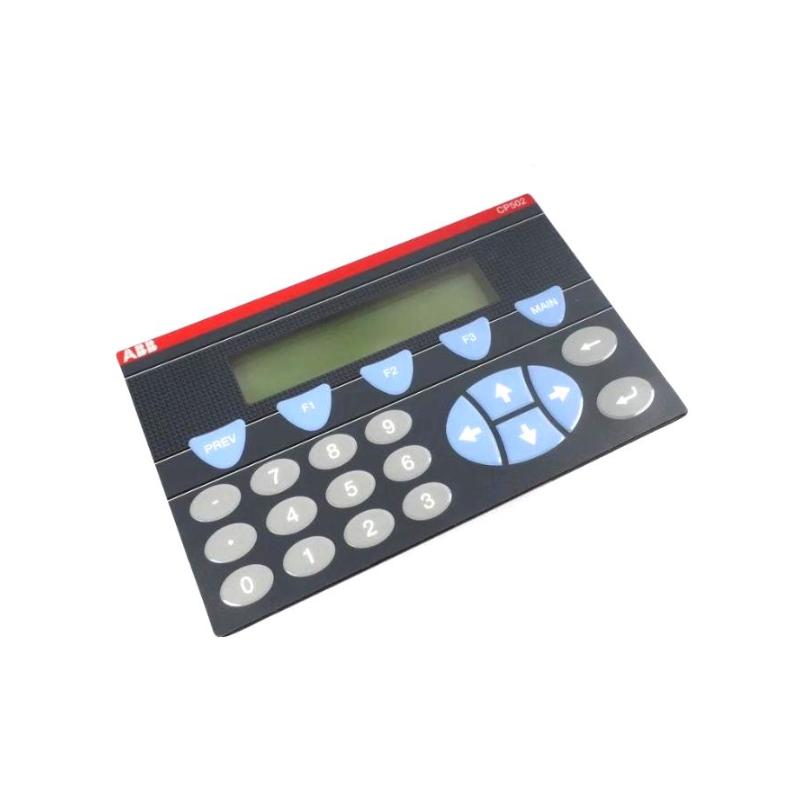

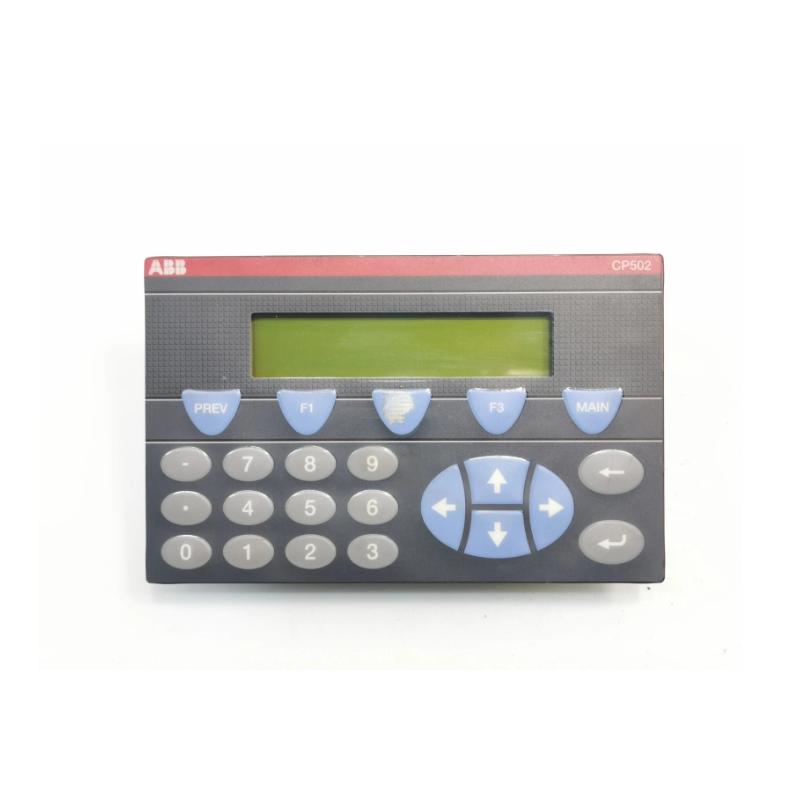

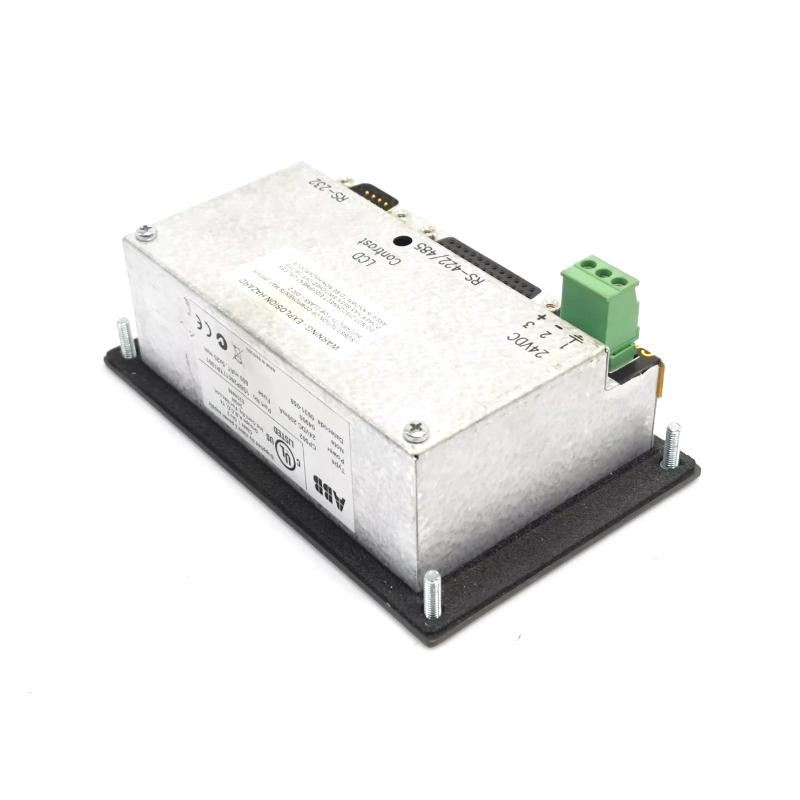

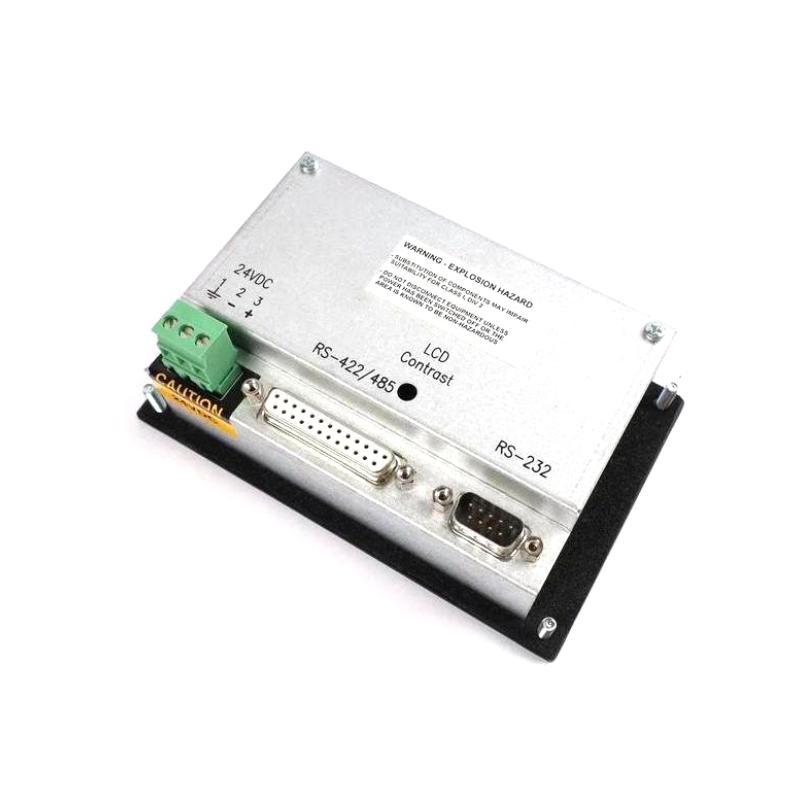

ABB CP502 1SBP260171R1001 Touch Screen Panel

Name: ABB CP502 1SBP260171R1001 Touch Screen Panel
Brand: ABB PLC
SKU: 1682
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CP502 1SBP260171R1001
Product Origin:Sweden
Product Dimensions:192 × 144 × 40 mm
Product Weight:0.65kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB CP502 1SBP260171R1001 Touch Screen Panel is a high-performance human-machine interface (HMI) designed for seamless interaction with ABB automation systems. Offering intuitive touch operation, vibrant display, and robust industrial construction, the CP502 enables operators to monitor and control complex processes with ease. Its versatile interface supports efficient data visualization, parameter adjustments, and alarm management, making it an essential component for modern industrial control applications.

Technical Specifications & Physical Data

Feature	Specification
Module Type	Touch Screen Panel (HMI)
Model Number	CP502
Order Number	1SBP260171R1001
Display Type	TFT LCD, Color Touch Screen
Display Size	5.7 inch (diagonal)
Resolution	320 × 240 pixels
Input/Output	USB, Ethernet, Serial Ports
Supply Voltage	24 V DC
Operating Temperature	0–55 °C
Protection Class	IP65 (front)
Mounting	Panel mount
Dimensions (W × H × D)	192 × 144 × 40 mm
Net Weight	0.65 kg

Applications

The CP502 Touch Screen Panel is ideal for industrial environments where operator interaction with automation systems is essential. Common applications include:

Machine and process control interfaces
Data visualization and process monitoring
Alarm management and logging systems
Parameter configuration for drives and I/O modules
Compact control panels in manufacturing, packaging, and material handling

Its intuitive touch interface allows operators to respond quickly to system events, improving operational efficiency.

Advantages

Intuitive Touch Operation
Simplifies operator interaction with ABB automation systems.
High-Quality Display
Clear TFT color display ensures excellent visibility even in challenging industrial environments.
Robust Industrial Design
IP65-rated front panel protects against dust and splashes.
Versatile Connectivity
Supports USB, Ethernet, and serial connections for flexible integration.
Enhanced Monitoring & Control
Enables real-time process visualization, parameter adjustments, and alarm handling.

Technical FAQs

What is the primary function of the CP502?
It serves as a human-machine interface for monitoring and controlling ABB automation systems.
What is the screen size and resolution?
5.7-inch diagonal, 320 × 240 pixels.
Which connectivity options are available?
USB, Ethernet, and serial ports.
What supply voltage is required?
24 V DC.
What is the protection rating?
IP65 for the front panel.
Can it be panel-mounted?
Yes, designed for easy panel installation.
What is the operating temperature range?
0–55 °C.
Is it suitable for industrial environments?
Yes, with robust housing and front panel protection.
Can it manage alarms and logs?
Yes, it supports real-time alarm management and data logging.
Does it integrate with ABB drives and I/O modules?
Yes, fully compatible with ABB automation devices for seamless operation.
