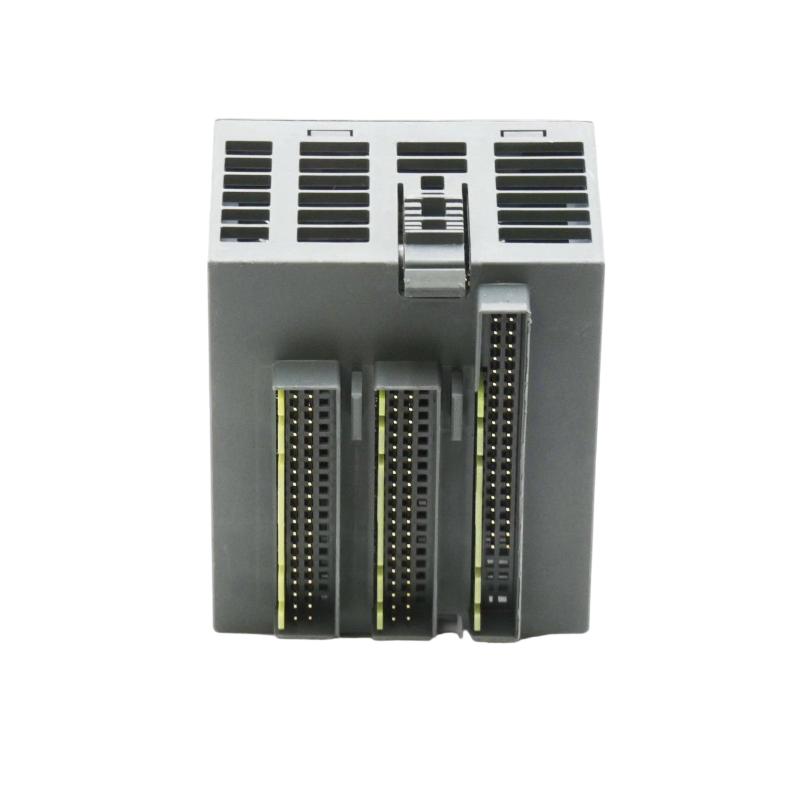

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB CD522 1SAP260300R0001 Encoder Module

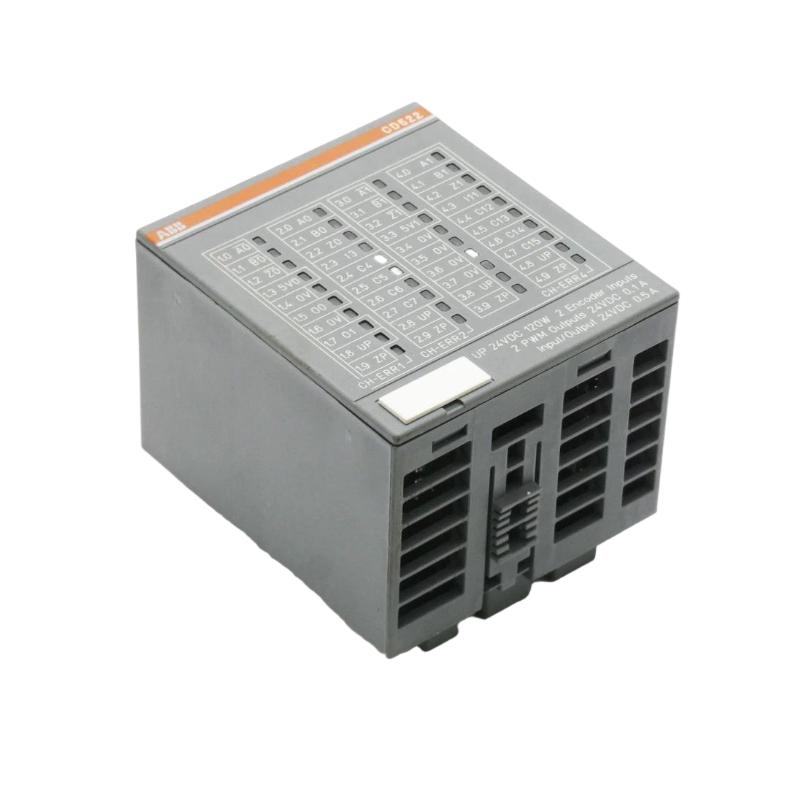

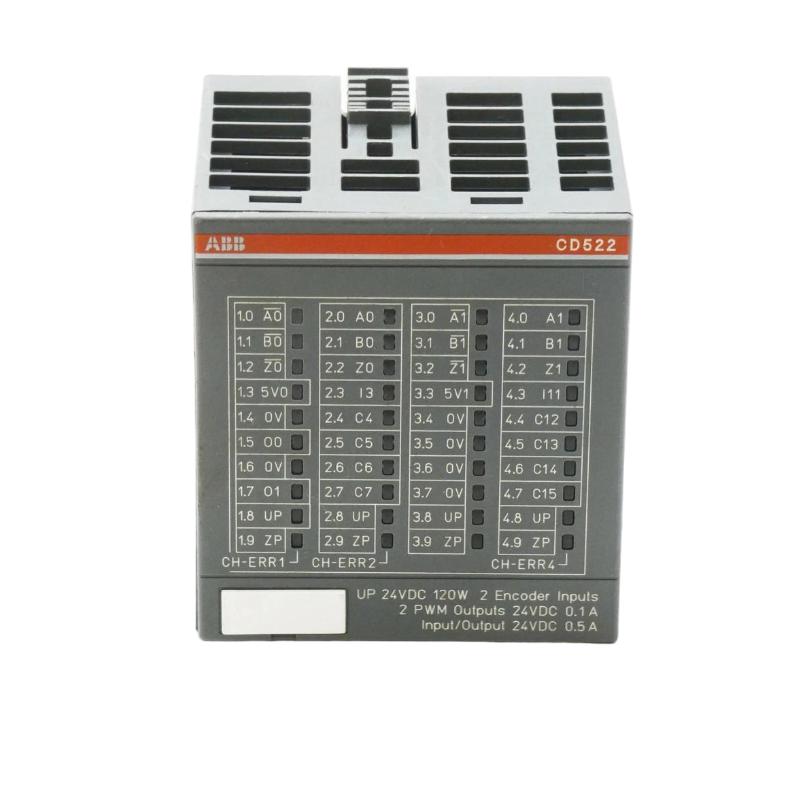

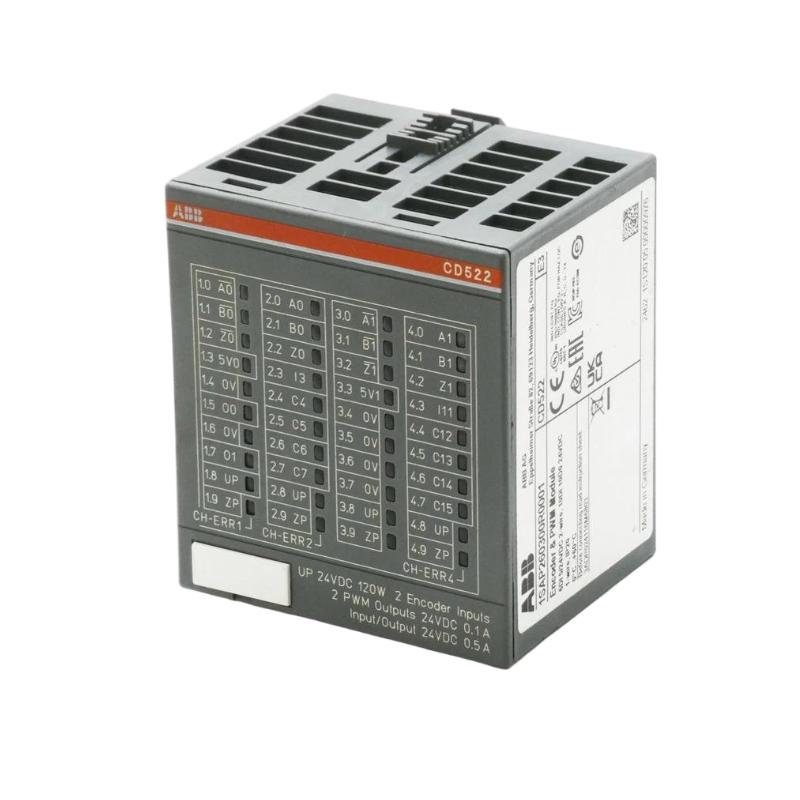

Name: ABB CD522 1SAP260300R0001 Encoder Module
Brand: ABB PLC
SKU: 1666
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CD522 1SAP260300R0001
Product Origin:Sweden
Product Dimensions:67 × 76 × 62 mm
Product Weight:0.14kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Overview

The ABB CD522 1SAP260300R0001 Encoder Module is engineered for precise speed and position feedback in industrial automation systems. As part of ABB’s modular I/O series, the CD522 offers high-resolution signal acquisition for both incremental and absolute encoders, enabling accurate motor control and process synchronization. Its compact and robust design ensures reliable operation in demanding environments, making it an ideal solution for drives, conveyor systems, and automated machinery requiring precise motion feedback.

Technical Specifications & Physical Data

Feature	Specification
Module Type	Encoder Module
Model Number	CD522
Order Number	1SAP260300R0001
Encoder Type	Incremental / Absolute
Input Channels	2 encoder inputs
Resolution	Up to 17-bit
Supply Voltage	24 V DC
Protection Class	IP20
Mounting	DIN rail / Module base
Dimensions (W × H × D)	67 × 76 × 62 mm
Net Weight	0.14 kg

Applications

The CD522 Encoder Module is ideal for automation scenarios requiring precise position or speed feedback. Common applications include:

AC and DC motor drives for speed control
Conveyor systems and material handling
Packaging and processing machines
Robotics and motion control applications
PLC-integrated motion monitoring and control

Its ability to interface with multiple encoder types makes it versatile across various industrial environments.

Advantages

High-Precision Feedback
Supports high-resolution incremental and absolute encoders for accurate speed and position monitoring.
Dual Input Channels
Can connect two encoders simultaneously, increasing system flexibility.
Compact Industrial Design
Slim and lightweight module fits efficiently into control panels without sacrificing performance.
Reliable Operation
Industrial-grade construction ensures long-term stability and reduced downtime.
Seamless Integration
Fully compatible with ABB drives and distributed I/O systems, simplifying installation.

Technical FAQs

What types of encoders can the CD522 support?
Both incremental and absolute encoders are supported.
How many encoder inputs does it have?
Two independent inputs.
What is the maximum resolution supported?
Up to 17-bit resolution for precise motion feedback.
What supply voltage does the module require?
24 V DC.
What is the protection class of the module?
IP20, suitable for standard industrial environments.
How is the module mounted?
DIN rail or module base mounting.
What are the dimensions and weight?
67 × 76 × 62 mm; net weight approximately 0.14 kg.
Can it improve motor control accuracy?
Yes, by providing high-resolution encoder feedback.
Is the CD522 suitable for harsh industrial conditions?
Designed for standard industrial environments with robust construction.
Can it be integrated into existing ABB drive systems?
Yes, it integrates seamlessly with ABB drives and distributed I/O architectures.
