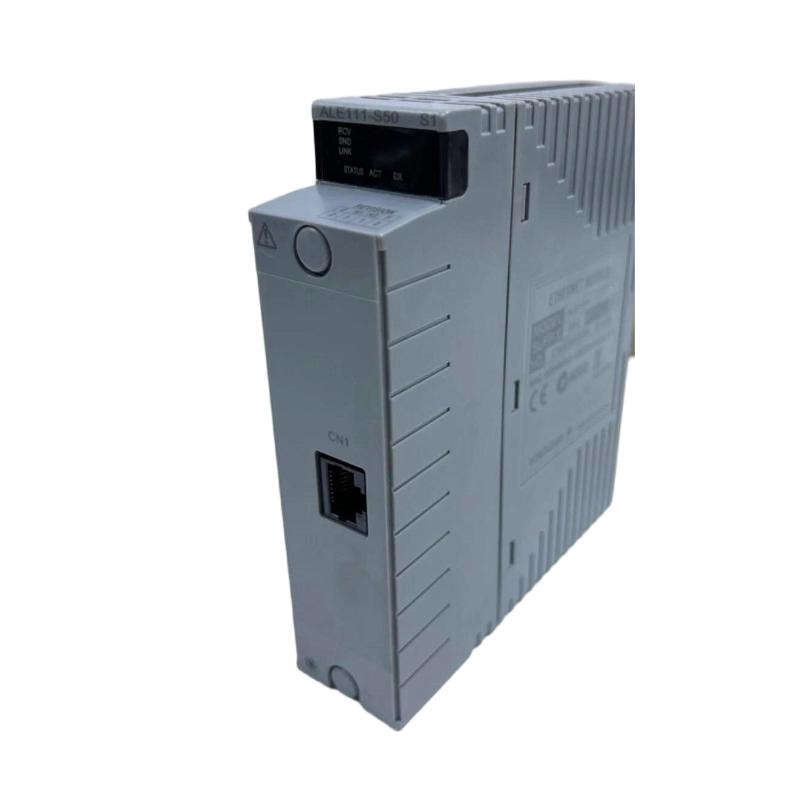

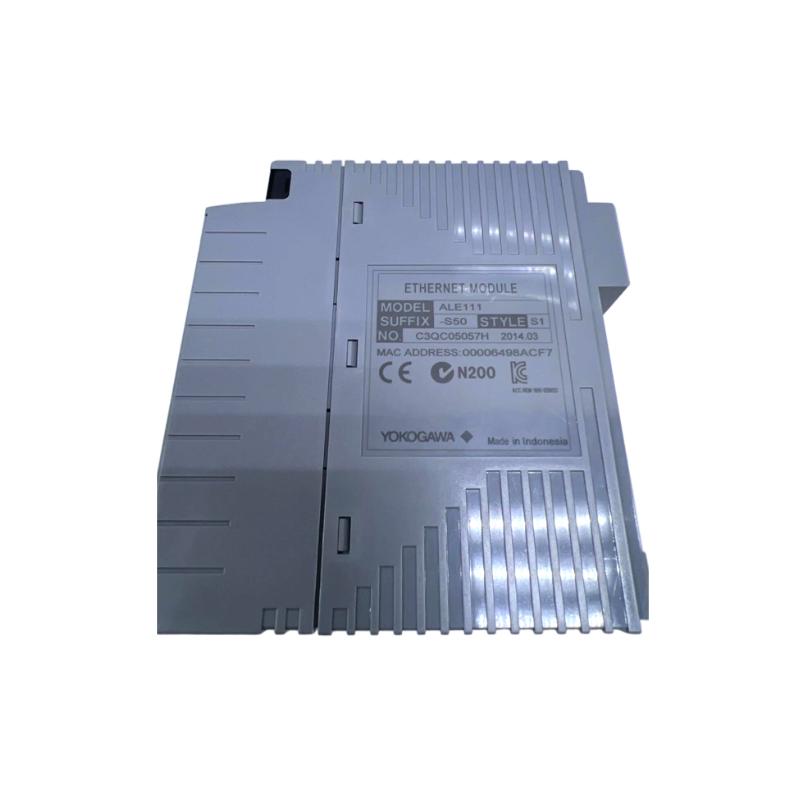

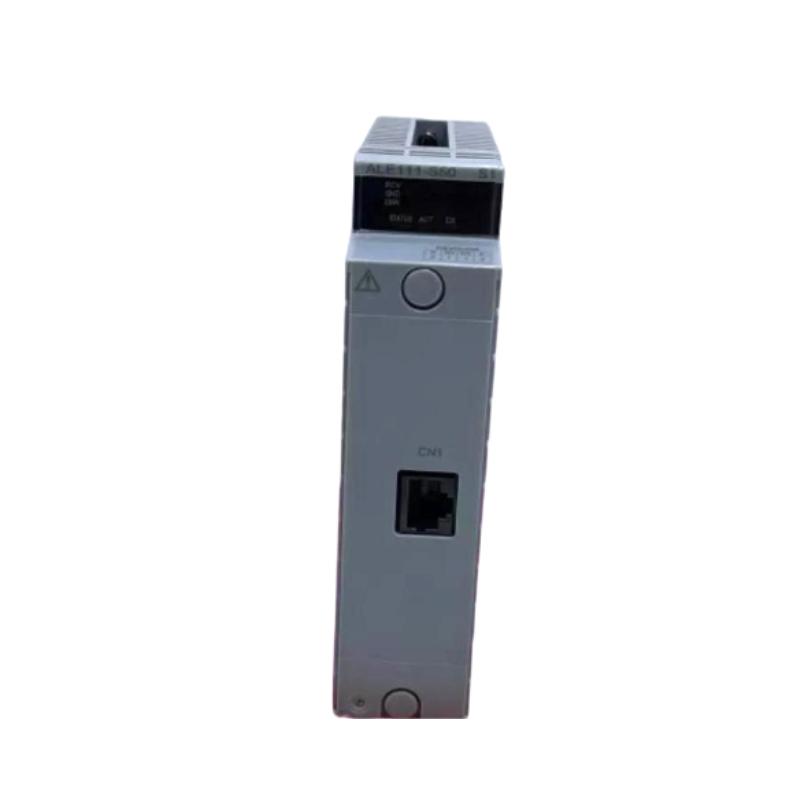

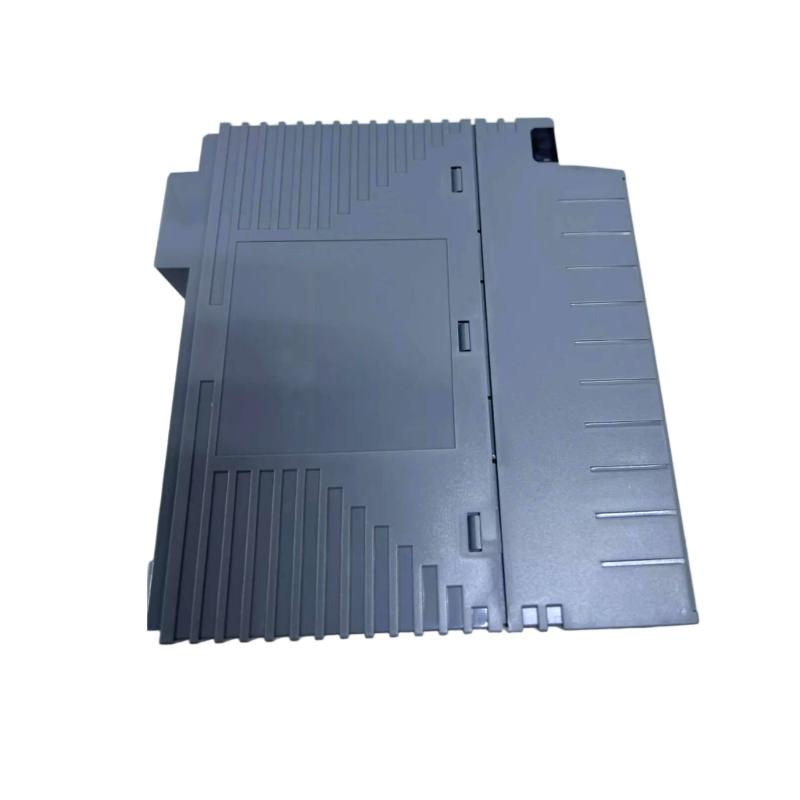

Yokogawa ALE111-50 Ethernet Communication Module

Brand:Yokogawa Electric
Item No.:ALE111-50
Product Origin:Japan
Product Dimensions:130 x 125.5 x 32.8 mm
Product Weight:0.3 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Yokogawa ALE111-50 Ethernet Communication Module is a highly efficient and versatile communication interface designed for seamless integration into industrial automation systems. With compact dimensions of 130 x 125.5 x 32.8 mm and a lightweight of just 0.3 kg, the ALE111-50 is engineered to facilitate reliable and high-speed data transfer across Ethernet networks. This module plays a crucial role in enabling remote communication and monitoring for control systems, process automation, and distributed control systems (DCS).

Its robust design and reliable performance make it an ideal solution for connecting Yokogawa's control systems with Ethernet-based networks, providing enhanced connectivity, flexibility, and data exchange capabilities. Whether used in industrial control panels, remote monitoring, or process management, the ALE111-50 ensures efficient communication and real-time data transfer across systems.

Technical Specifications

Parameter Specification
Model ALE111-50
Type Ethernet Communication Module
Dimensions 130 x 125.5 x 32.8 mm
Weight 0.3 kg (0.66 lbs)
Operating Voltage 24 V DC
Data Transfer Rate High-Speed Ethernet Communication (10/100 Mbps)
Ethernet Port 1 x 10/100 Base-T Ethernet Port
Communication Protocol TCP/IP, UDP
Mounting Type Rack-Mountable or Panel-Mountable
Temperature Range -10°C to 60°C
Environmental Rating IP20 (Dust protected)
Compliance CE, RoHS

Applications
The Yokogawa ALE111-50 Ethernet Communication Module is designed for use in a wide range of industrial automation applications, particularly in environments where reliable communication between control systems and external networks is required. Typical applications include:

  • Distributed Control Systems (DCS): Facilitates communication between various devices and subsystems in DCS networks, improving data sharing and process control.

  • Remote Monitoring: Enables remote access to critical control systems via Ethernet, allowing operators to monitor and manage systems from virtually anywhere.

  • Automation Systems: Used in industrial automation setups for connecting programmable logic controllers (PLCs), human-machine interfaces (HMIs), and other devices to Ethernet-based networks.

  • Process Automation: Facilitates communication between process control systems and networked devices, improving the efficiency of industrial processes.

  • Data Acquisition Systems: Transmits real-time data from field devices and sensors to central monitoring systems, enhancing operational insights and decision-making.

  • Factory and Facility Management: Connects industrial equipment and machines to Ethernet networks for centralized monitoring and control of factory operations.


Advantages

  • High-Speed Communication: With a data transfer rate of 10/100 Mbps, the ALE111-50 supports fast and efficient communication across Ethernet networks, enabling real-time data exchange between systems.

  • Compact and Lightweight: Measuring only 130 x 125.5 x 32.8 mm and weighing just 0.3 kg, this module is easy to install and can be integrated into systems where space is limited.

  • Robust Design: The module’s IP20 rating provides protection against dust ingress, making it suitable for indoor industrial environments.

  • Wide Temperature Range: The unit can operate in environments with temperatures ranging from -10°C to 60°C, ensuring reliable performance in diverse conditions.

  • Versatile Mounting Options: The ALE111-50 can be rack-mounted or panel-mounted, offering flexible installation options to suit different system configurations.

  • Seamless Integration: Easily integrates with existing Yokogawa control systems and other Ethernet-enabled devices, ensuring smooth operation within automation and control environments.

  • Remote Communication: Ideal for remote monitoring and diagnostics, enabling operators to access system data from anywhere over the network.


Technical FAQs

  1. What is the primary function of the Yokogawa ALE111-50 Ethernet Communication Module?
    The ALE111-50 module facilitates Ethernet communication between Yokogawa control systems and external networks, ensuring real-time data transfer and remote connectivity.

  2. What are the dimensions of the ALE111-50 module?
    The module has dimensions of 130 x 125.5 x 32.8 mm, allowing for easy integration into control panels and automation systems.

  3. How much does the ALE111-50 weigh?
    The module weighs 0.3 kg (0.66 lbs), making it lightweight and easy to install in various setups.

  4. What voltage does the ALE111-50 operate on?
    The module operates on 24 V DC, making it compatible with a wide range of industrial automation systems.

  5. What is the data transfer rate of the ALE111-50 module?
    The module supports 10/100 Mbps Ethernet communication, enabling high-speed data exchange for real-time applications.

  6. What type of communication protocol does the ALE111-50 support?
    The ALE111-50 supports TCP/IP and UDP communication protocols, allowing it to interface with various network devices.

  7. What is the environmental rating of the ALE111-50 module?
    The module has an IP20 rating, meaning it is dust protected but not suitable for exposure to liquids.

  8. Can the ALE111-50 module be used for remote monitoring?
    Yes, the module enables remote monitoring of control systems, allowing operators to access data and control systems from any location via Ethernet.

  9. What is the operating temperature range of the ALE111-50 module?
    The module operates effectively in a temperature range of -10°C to 60°C, ensuring it performs reliably in various industrial environments.

  10. What are the mounting options for the ALE111-50 module?
    The module can be rack-mounted or panel-mounted, offering flexibility in its installation within different control system setups.
