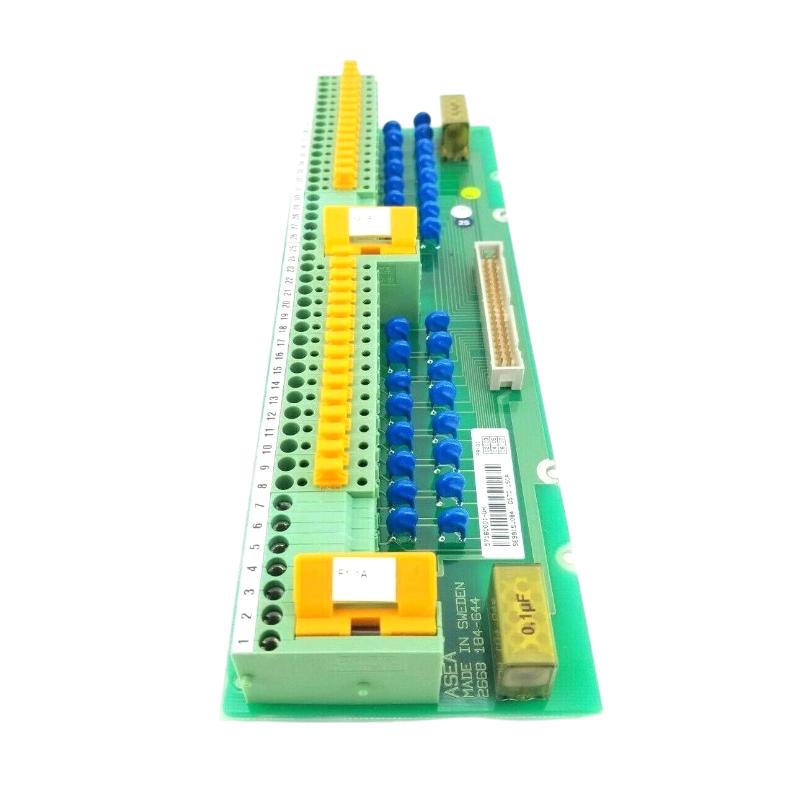

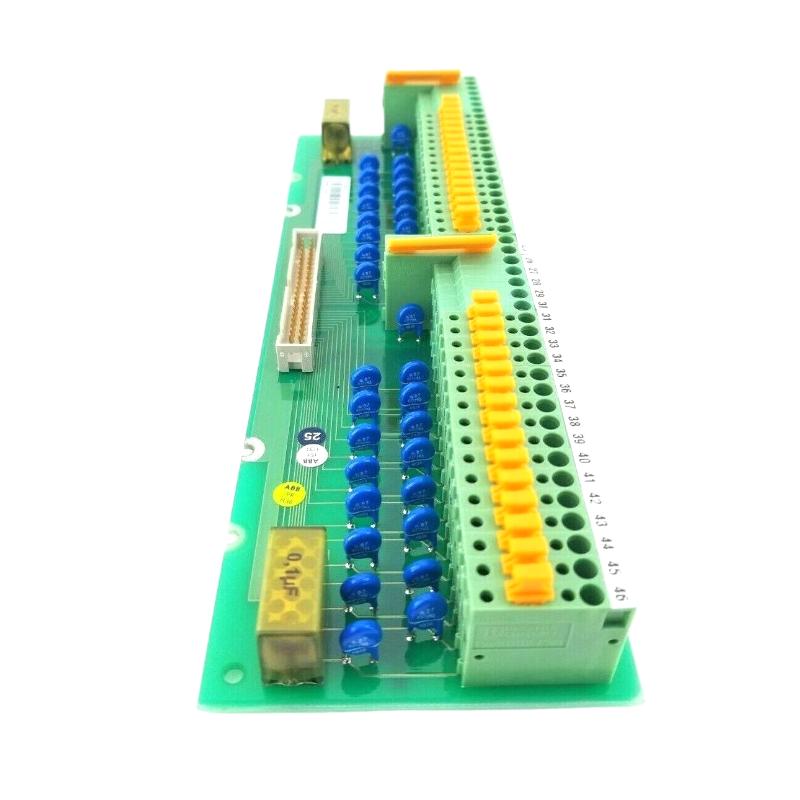

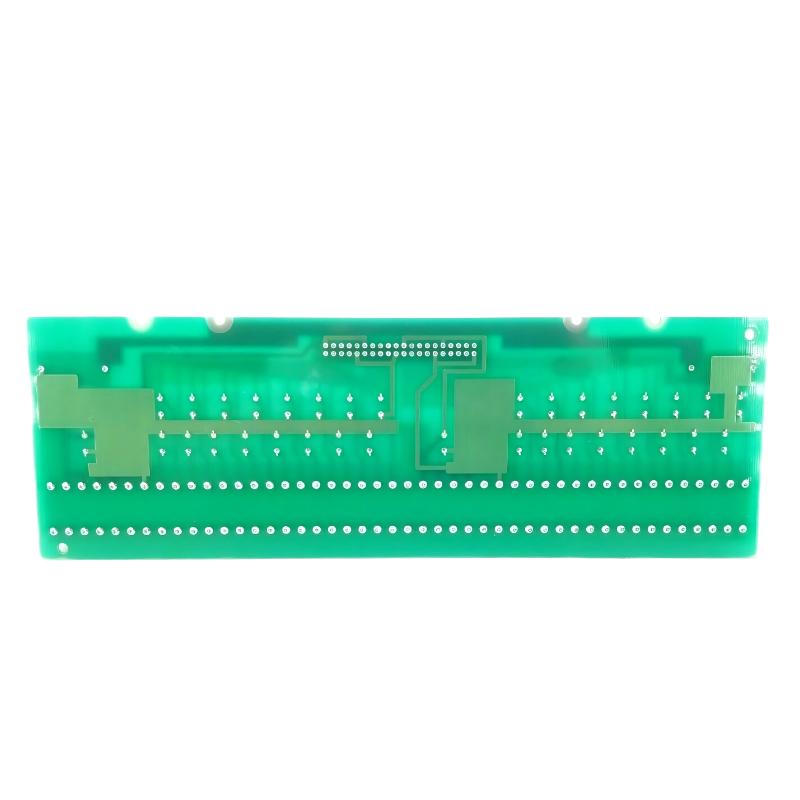

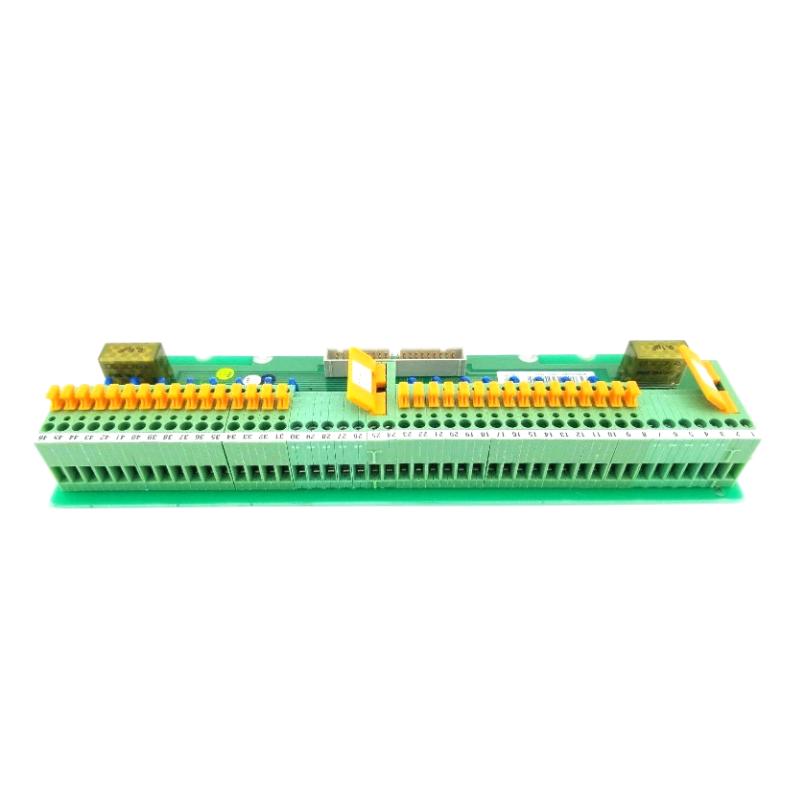

ABB DSTD 150A 57160001-UH Digital Input Board Connection Unit

Brand:ABB PLC
Item No.:DSTD 150A
Product Origin:Sweden (SE)
Product Dimensions:255 ×25 ×90 mm
Product Weight:0.135 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The ABB DSTD 150A 57160001-UH Digital Input Board Connection Unit is an integral component of ABB’s control systems, enabling seamless integration and communication between digital input boards and the main control system. Designed to handle a wide range of industrial applications, this unit ensures reliable data transfer and communication, essential for real-time monitoring and control. The unit is suitable for industries such as manufacturing, process control, and automation, providing efficient connectivity and robust performance.

Technical Specifications

SpecificationValue
ModelDSTD 150A 57160001-UH
Module TypeDigital Input Board Connection Unit
Dimensions (W x H x D)255 mm x 25 mm x 90 mm
Weight0.135 kg
Input TypeDigital
Connection TypeBoard-to-Board Connection
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
Power Supply Voltage24 VDC
Power Consumption1 W
Mounting TypeDIN Rail
Compliance StandardsCE, UL, RoHS


Applications

  • Industrial Automation: The DSTD 150A facilitates communication between digital input boards and control systems, making it a crucial component in automation processes.

  • Process Control: Used in applications where real-time monitoring of digital signals is critical, such as in chemical, pharmaceutical, and food processing industries.

  • Building Management Systems: Enables integration of sensors and other digital input devices for monitoring and controlling building systems like HVAC and security.

  • Manufacturing: Provides reliable digital input processing for automated manufacturing systems, ensuring efficient operation and minimal downtime.


Advantages

  • Reliable Communication: Ensures stable and reliable communication between digital input boards and control systems, minimizing data transfer errors and ensuring smooth operation.

  • Compact Design: The unit's compact size allows it to be easily integrated into control panels and systems with limited space, without compromising on performance.

  • Energy-Efficient: Operating at just 1W of power consumption, this connection unit provides an energy-efficient solution for industrial automation systems.

  • Flexible Integration: Easily integrates with existing control systems and digital input boards, offering flexibility for system expansion and future upgrades.

  • Durable Construction: Designed to perform reliably in demanding industrial environments, ensuring long-lasting operation with minimal maintenance.


Technical FAQs

  1. What is the purpose of the DSTD 150A 57160001-UH?

    • The DSTD 150A is used to connect digital input boards to the control system, enabling communication and reliable data transfer between components.

  2. What is the operating temperature range of the DSTD 150A?

    • The unit operates in temperatures ranging from -10°C to 60°C, suitable for most industrial environments.

  3. What is the power consumption of the DSTD 150A?

    • The DSTD 150A consumes just 1W, offering an energy-efficient solution for digital input connectivity.

  4. How is the DSTD 150A mounted?

    • The unit is designed for DIN rail mounting, providing a secure and convenient installation method.

  5. Can the DSTD 150A support wireless communication?

    • No, the DSTD 150A is designed for wired communication and does not support wireless connectivity.

  6. What compliance standards does the DSTD 150A meet?

    • The DSTD 150A complies with CE, UL, and RoHS standards, ensuring safety and environmental compliance.

  7. Can the DSTD 150A be used in hazardous environments?

    • The unit is suitable for industrial environments but may require additional certifications (such as ATEX) for use in hazardous zones.

  8. What types of signals does the DSTD 150A process?

    • The DSTD 150A processes digital input signals, facilitating the communication of on/off states between input boards and control systems.

  9. What is the input voltage required for the DSTD 150A?

    • The unit operates on a 24 VDC power supply, providing stable and efficient operation.

  10. Is the DSTD 150A compatible with all ABB control systems?

    • Yes, the DSTD 150A is designed to work with ABB's industrial control systems, offering seamless integration with existing setups.
