Technical FAQs

1. What types of analog signals does this module support?
   It supports standard industrial 4–20 mA current loop signals from field transmitters.

2. How many input channels are provided by the module?

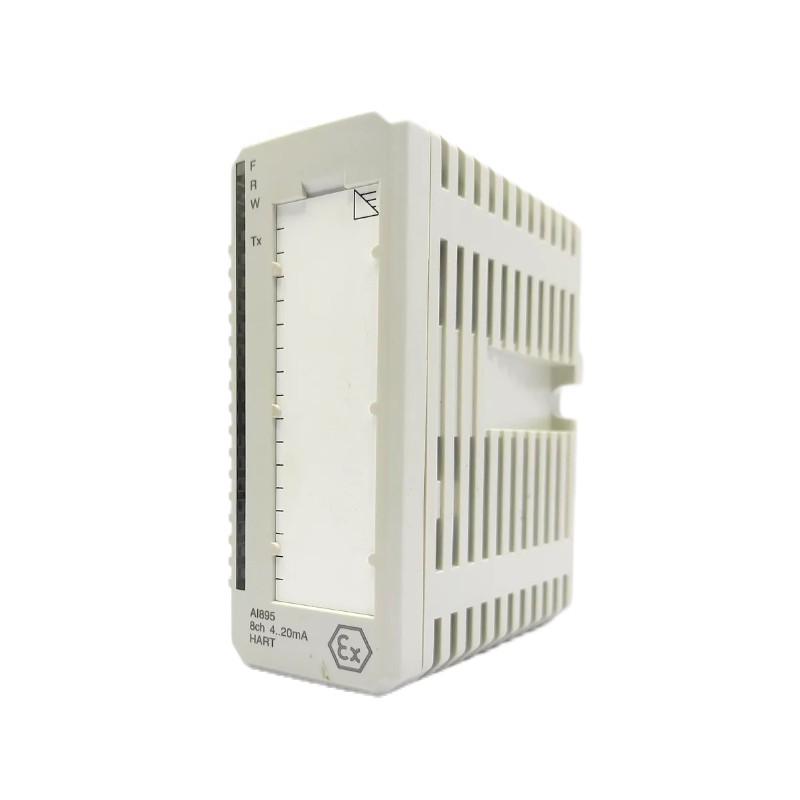

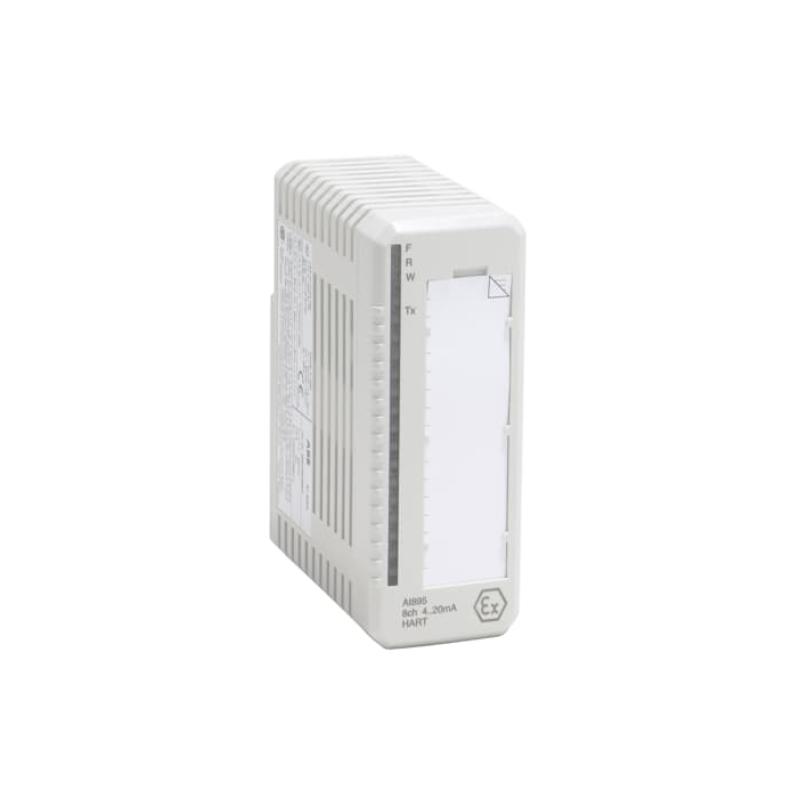

   The AI895 provides eight independent analog input channels.

3. What resolution does the module use?
   It uses 12-bit analog-to-digital conversion for precise and stable measurement.

4. Does the module include protection against wiring faults?
   Yes — PTC-protected input shunt resistors help protect against wiring shorts and overvoltage.

5. Can it handle long field cable runs?
   Yes — the module supports maximum field cable lengths up to approximately 600 m without significant signal loss.

6. Is electrical isolation provided?
   Yes — channels are isolated as a group from the ground reference to improve noise immunity.

7. What is the typical update cycle time?
   The analog update time is approximately 1 ms per channel group.

8. Where is this module installed?
   It mounts on DIN-rails or within S800 I/O racks inside control cabinets.

9. Which industries commonly use this module?
   It is widely used in manufacturing, utilities, chemical processing, water/wastewater, and energy sectors.

10. Why choose the AI895 module?
    It combines robust industrial protection, precise analog conversion, and seamless integration with ABB automation systems for reliable control and monitoring.
