Technical FAQs

1. What analog signal types does this module support?
   It supports 4–20 mA current loop signals commonly used in industrial sensors.

2. How many analog channels are available?

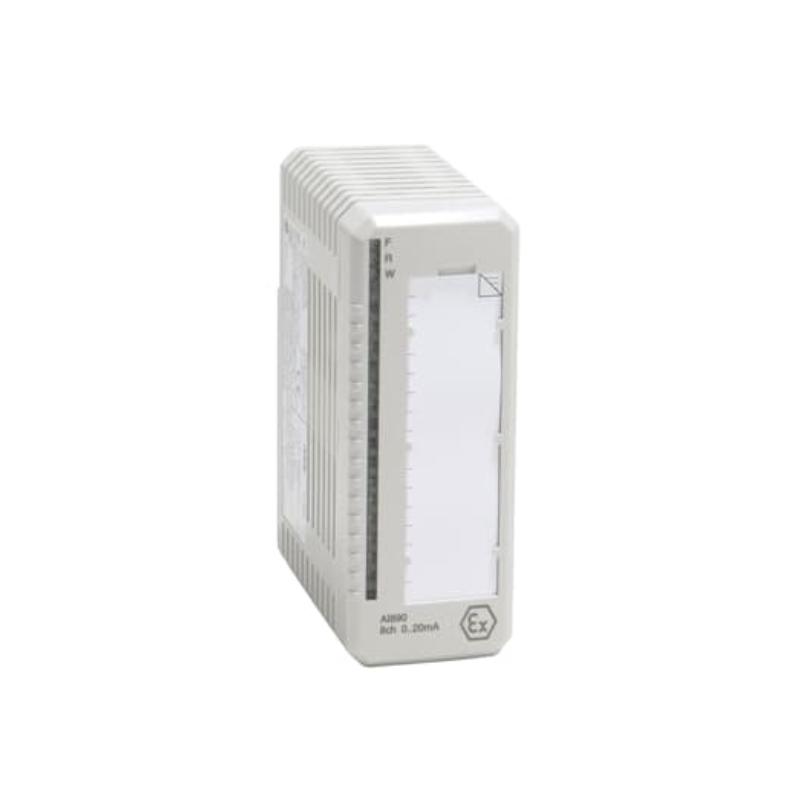

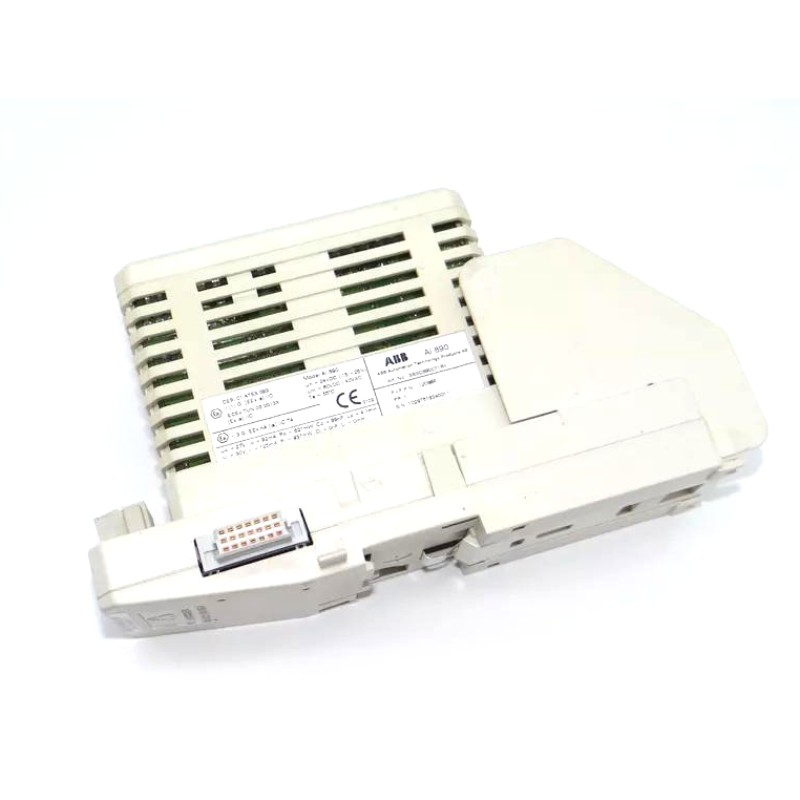

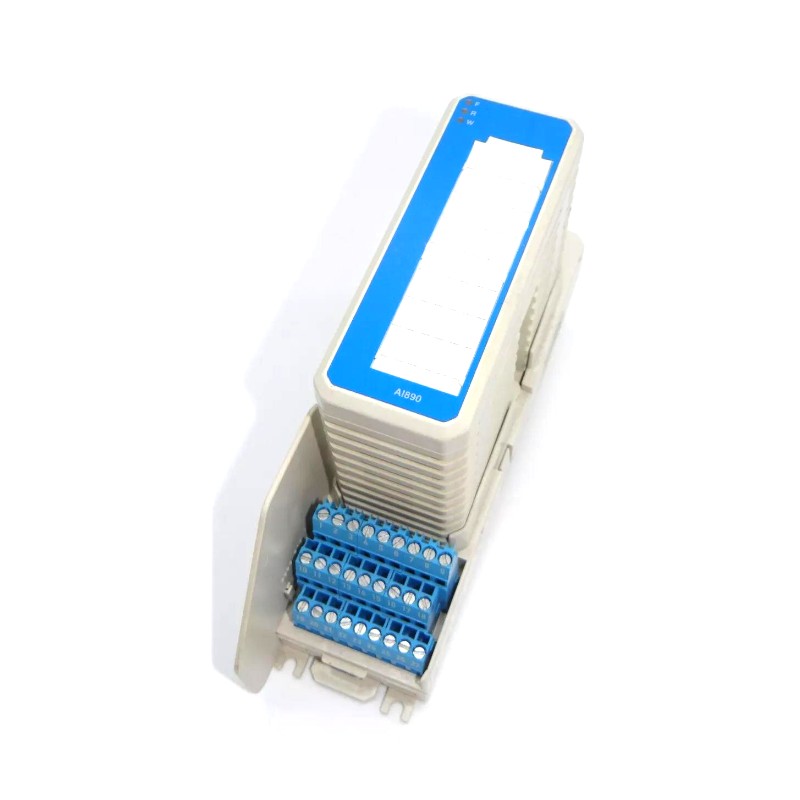

   The AI890 provides eight independent analog input channels.

3. What resolution is used for analog conversion?
   It uses 12‑bit analog‑to‑digital conversion for accurate and stable measurements.

4. Does the module include input protection?
   Yes — PTC‑protected shunt resistors provide protection against wiring faults and overvoltage events.

5. Can it handle long field cable runs?
   Yes — it supports field wiring up to approximately 600 m with maintained signal integrity.

6. Does it provide electrical isolation?
   Yes — group‑wise isolation from the ground reference improves noise immunity and signal stability.

7. What is the typical update time for measurements?
   The analog update cycle is approximately 1 ms per channel group.

8. Where is this module typically installed?

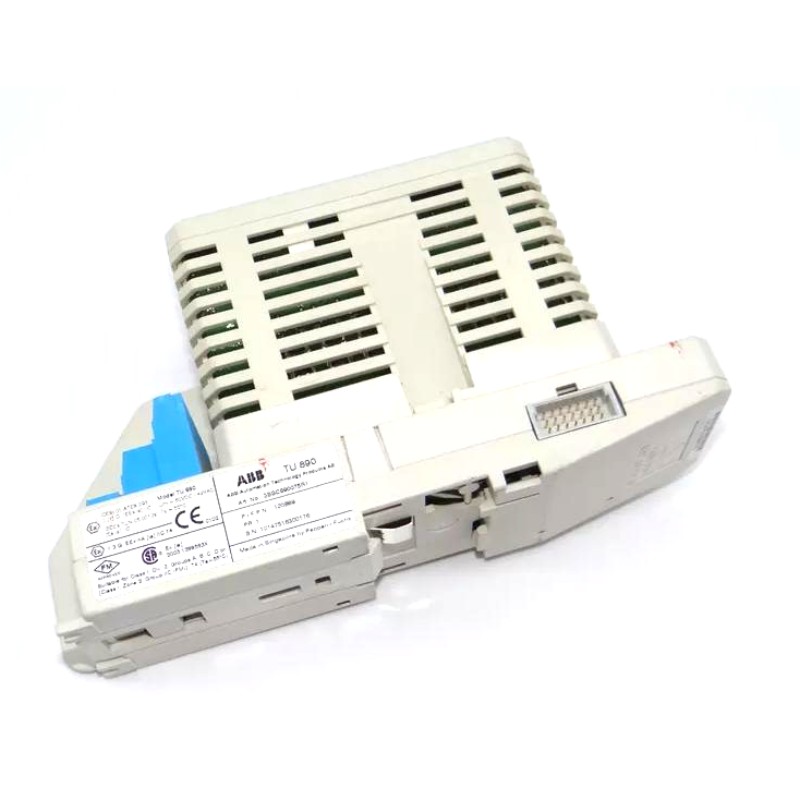

   It mounts on DIN‑rails or S800 I/O racks inside control cabinets.

9. Which industries commonly use this module?
   It is widely used in manufacturing, water/wastewater, power generation, chemical processing, and utilities.

10. Why choose this ABB analog input module?
    It combines precise measurement, robust protection, and seamless integration into S800 automation systems for reliable process control data.
