Technical FAQs

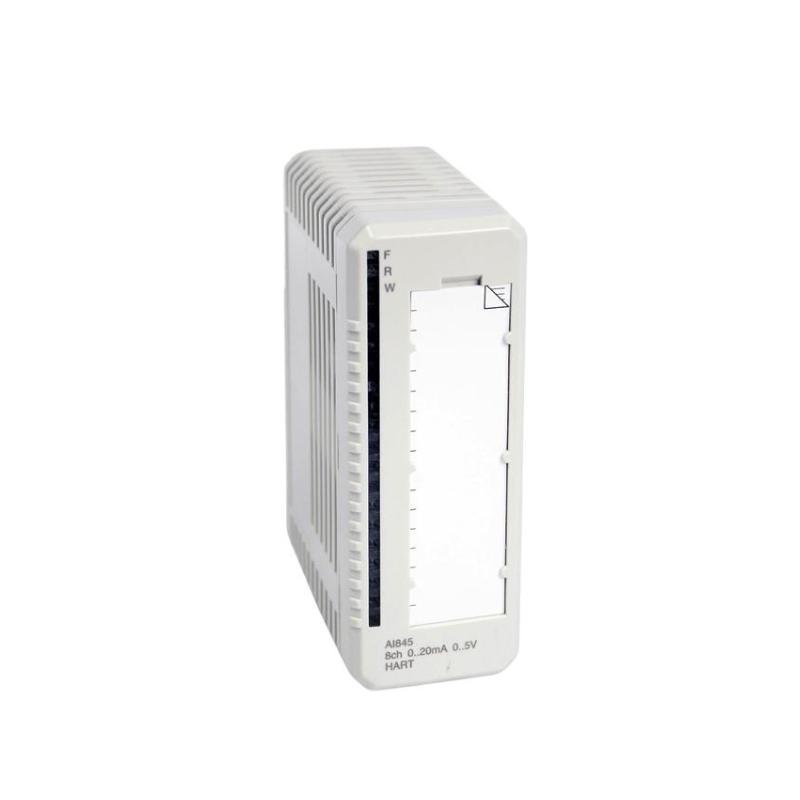

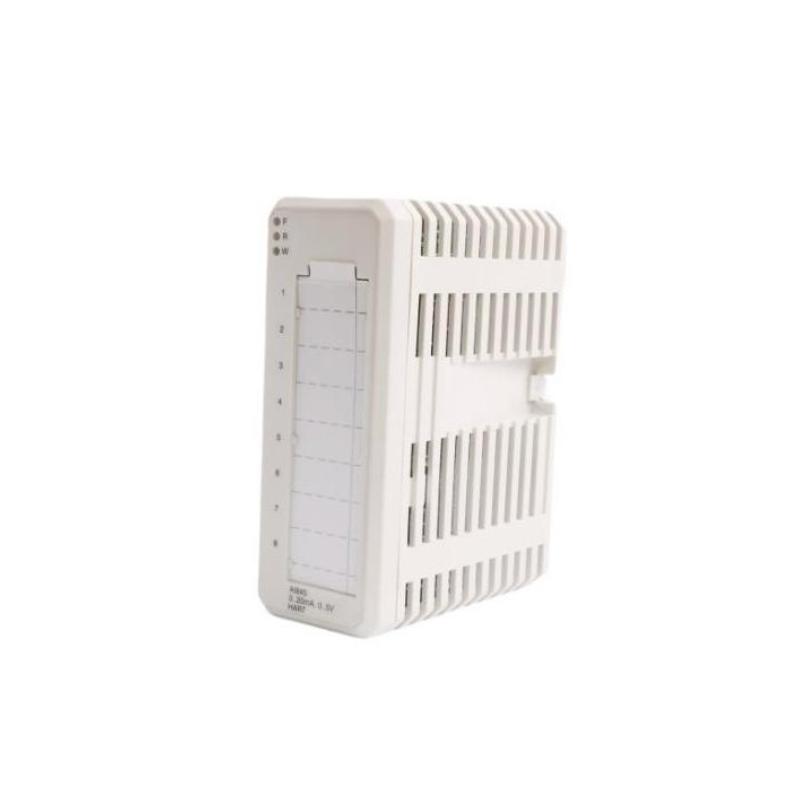

1. What analog signal range does the AI845 support?
   It supports standard industrial 4–20 mA current‑loop signals.

2. How many channels are available on this module?
   The module provides eight independent analog input channels.

3. What is the resolution of the analog conversion?
   It uses 12‑bit analog‑to‑digital conversion for accurate measurement.

4. Does the module include protection against wiring faults?
   Yes — PTC‑protected shunt resistors enhance resistance to short circuits and overvoltage.

5. Can the module handle long field cables?
   Yes — field wiring up to approximately 600 m is supported without major signal loss.

6. Is electrical isolation provided?
   Yes — group‑wise isolation from the ground reference improves noise resilience.

7. What is the typical update time for measurements?
   The update cycle is approximately 1 millisecond per channel group.

8. Where is this module mounted?
   It fits into S800 I/O racks or mounts on DIN‑rails in control cabinets.

9. Which industries commonly use this module?
   It is widely used in manufacturing, power generation, water/wastewater treatment, chemical processing, and utilities.

10. Why choose the AI845 module?
    It provides reliable analog acquisition, robust protection, and seamless integration with ABB automation systems.
