Introduction

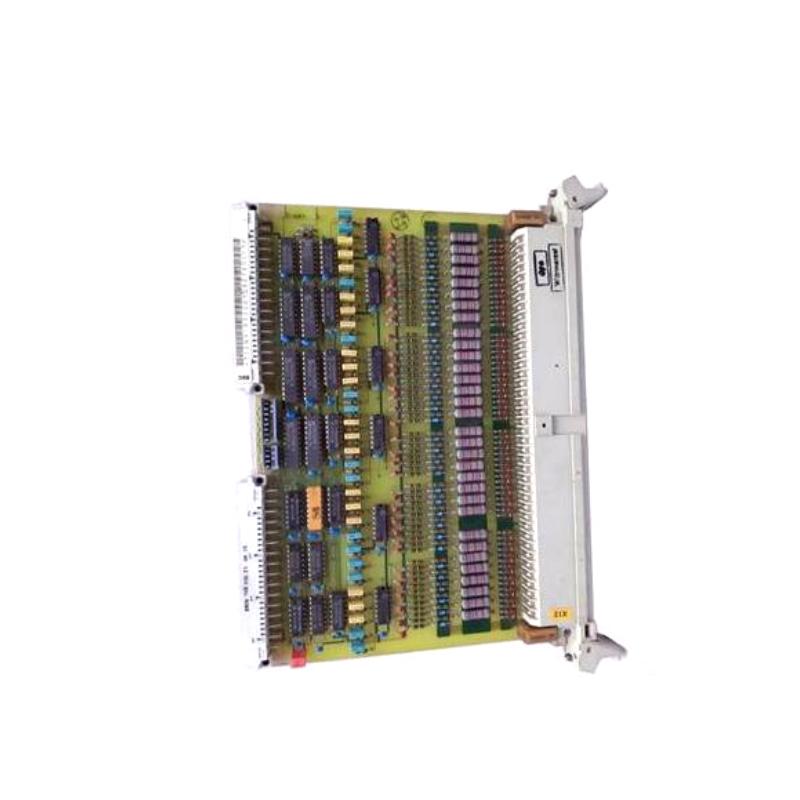

The ABB 35EK90 GJR5143100R0001 Bus Coupler Unit is a high‑performance communication interface designed for industrial automation networks. It acts as a bridge between distributed control components, enabling efficient and reliable data exchange across system buses. This module supports multiple industrial communication protocols and facilitates scalable, robust system architectures in process, manufacturing, and utility automation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 35EK90 (GJR5143100R0001) |
| Product Type | Bus Coupler Unit |
| Manufacturer | ABB |
| Function | System bus interface / coupler |
| Communication Protocols | PROFINET, EtherCAT, POWERLINK (protocol support varies by system) |
| Data Transfer Rate | Up to 100 Mbps |
| Number of Ports | 2 |
| Input Power | 24 V DC nominal |
| Power Consumption | ≤ 2 W |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Protection Class | IP65 (industrial rating) |
| Mounting | DIN‑rail or panel mount capable |
| Dimensions | Approx. 203 mm × 51 mm × 27.9 mm |
| Weight | ~0.32 kg |
