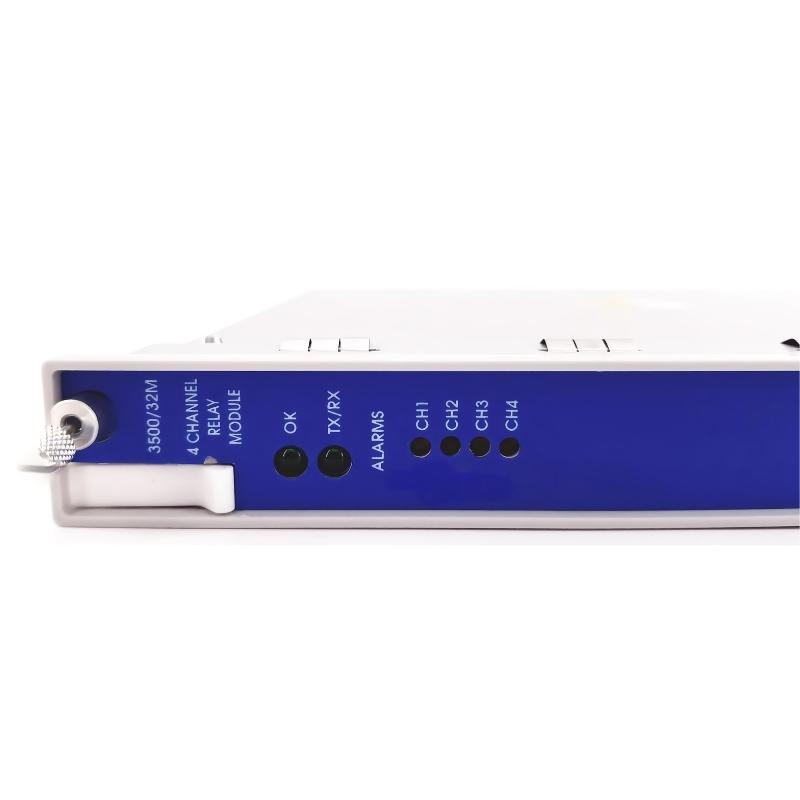

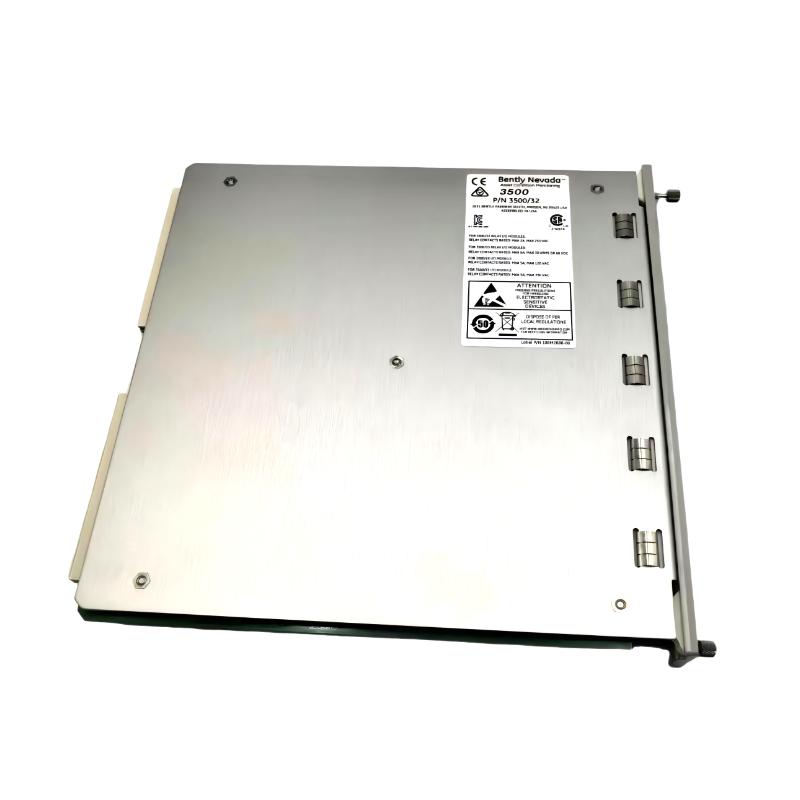

Bently Nevada 3500/32M 184704-01 4-Channel Relay Module

Brand:Bently Nevada PLC
Item No.:3500/32M
Product Origin:USA
Product Dimensions:241 x 24.4 x 242mm
Product Weight:0.7 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/32M 184704-01 4-Channel Relay Module is an essential component within the Bently Nevada 3500 Series designed for machinery protection and real-time fault detection. This 4-channel relay module is perfect for systems that require independent relay control for alarms, emergency shutdowns, and status monitoring of critical machinery. Used extensively in industries such as oil & gas, power generation, and industrial automation, it provides immediate response to abnormalities in machinery conditions, thereby reducing the risk of equipment damage, improving system reliability, and enhancing operational safety.

Technical Specifications

SpecificationDetails
ModelBently Nevada 3500/32M 184704-01
Type4-Channel Relay Module
Dimensions241 x 24.4 x 242 mm
Weight0.7 kg
Power Supply24V DC (Nominal)
Relay Output Channels4 Channels
Relay TypeSPDT (Single-Pole Double-Throw)
Relay Switching Capacity1 A @ 30V DC / 0.5 A @ 125V AC
Operating Temperature Range-20°C to 60°C
Storage Temperature Range-40°C to 85°C
Mounting TypeRack or Panel Mounting
CertificationsCE, UL, RoHS


Applications

The Bently Nevada 3500/32M 184704-01 4-Channel Relay Module is ideal for applications where continuous machinery monitoring and fault detection are critical. Key uses include:

  • Machinery Protection: Provides four independent relay channels to protect turbines, motors, compressors, and other critical machinery, triggering alarms and shutdowns when necessary.

  • Condition Monitoring: Continuously monitors machinery conditions and detects faults early, activating alarms or emergency shutdowns to prevent system failures and equipment damage.

  • Oil & Gas: Commonly used in drilling, pipeline, and refinery operations to monitor and protect essential equipment like pumps, compressors, and turbines.

  • Power Generation: Provides protection and diagnostics for key assets in power plants, ensuring the safety and longevity of turbines, generators, and other critical infrastructure.

  • Industrial Automation: Used in manufacturing environments to provide real-time fault detection and control over automated systems, minimizing downtime and protecting sensitive machinery.

  • Process Control Systems: Plays a critical role in industrial processes, ensuring equipment remains operational and safe by detecting abnormal conditions and initiating corrective actions.


Advantages

  • Four Independent Relay Channels: Offers four isolated relay channels for flexible control and monitoring of multiple systems, ensuring precise and reliable protection.

  • SPDT Relay Type: Features SPDT (Single-Pole Double-Throw) relays, allowing versatile control for alarm management and shutdown processes.

  • High Switching Capacity: Each relay can handle 1 A at 30V DC or 0.5 A at 125V AC, ensuring reliable operation in demanding industrial environments.

  • Durability in Harsh Conditions: The module operates efficiently in environments ranging from -20°C to 60°C, making it ideal for use in extreme industrial conditions.

  • Compact and Space-Saving: The compact design enables installation in rack or panel configurations, making it a space-efficient solution for control systems.

  • Energy Efficient: Powered by a 24V DC nominal supply, it provides energy-efficient performance without compromising on functionality or reliability.

  • Certified for Safety: The module complies with CE, UL, and RoHS certifications, ensuring that it meets rigorous safety and environmental standards.

  • Seamless Integration: Easily integrates with the Bently Nevada 3500 system, providing additional relay output and fault detection capabilities to enhance overall system performance.


Technical FAQs

  1. How many relay channels does the Bently Nevada 3500/32M 184704-01 module have?
    The module provides four independent relay channels, allowing for flexible control and protection of multiple systems.

  2. What type of relays are used in the Bently Nevada 3500/32M 184704-01 module?
    The module uses SPDT (Single-Pole Double-Throw) relays, providing versatile switching for alarms, shutdowns, and fault detection.

  3. What is the power supply requirement for this module?
    The module operates with a 24V DC nominal power supply, providing energy-efficient performance.

  4. What is the relay switching capacity of this module?
    Each relay can switch 1 A at 30V DC or 0.5 A at 125V AC, making it suitable for a wide range of control and monitoring applications.

  5. What is the operating temperature range for this module?
    The module operates within a temperature range of -20°C to 60°C, ensuring reliable performance even in challenging industrial environments.

  6. How is the Bently Nevada 3500/32M 184704-01 module mounted?
    This module can be mounted in either a rack or panel configuration, providing flexibility for installation in control systems.

  7. What certifications does the module hold?
    The module is certified for CE, UL, and RoHS, ensuring compliance with international safety, quality, and environmental standards.

  8. What industries benefit from using this module?
    The Bently Nevada 3500/32M 184704-01 module is used in industries like oil & gas, power generation, industrial automation, and process control, where machinery protection and real-time monitoring are critical.

  9. How does this module contribute to machinery protection?
    It provides real-time fault detection, triggering alarms or shutdowns to protect equipment from potential damage and minimize system downtime.

  10. Is the Bently Nevada 3500/32M 184704-01 module suitable for extreme environments?
    Yes, the module operates within an -20°C to 60°C temperature range, suitable for most industrial environments. For extreme conditions, additional environmental control may be necessary.
