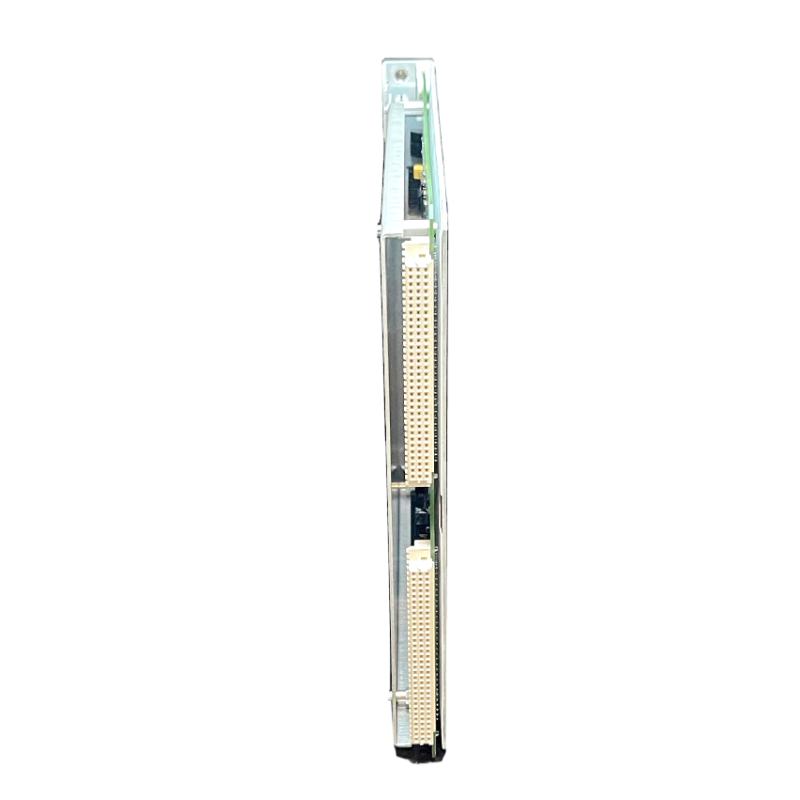

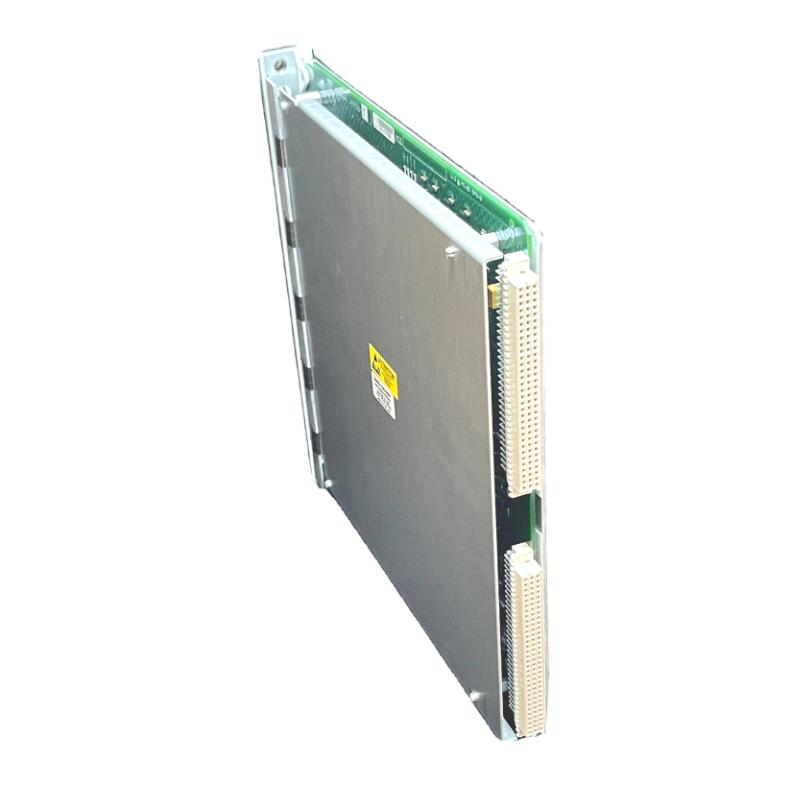

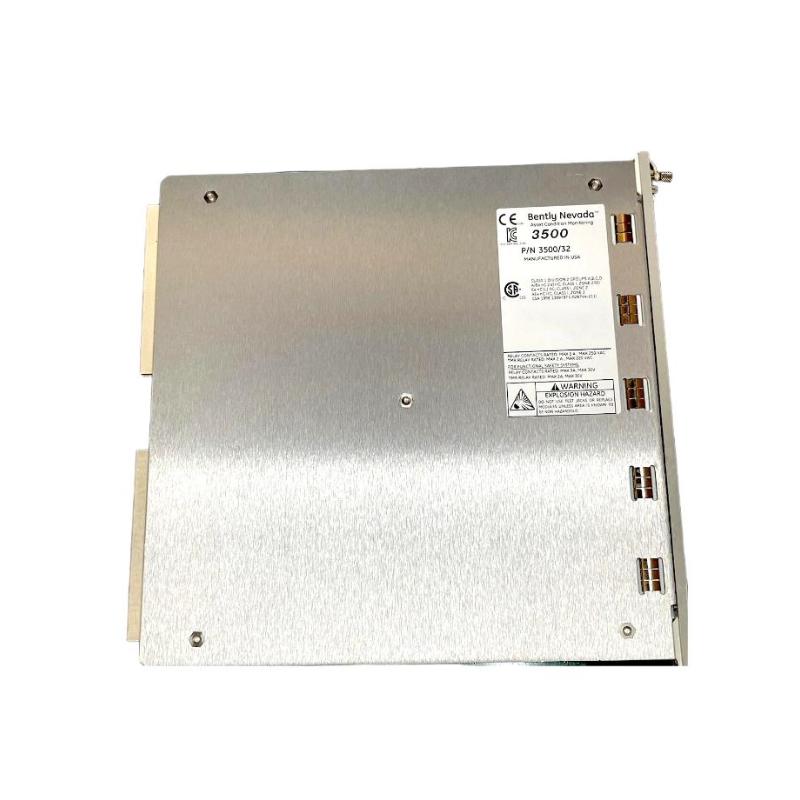

Bently Nevada 3500/32M 184631-02 4-Channel Relay Module

Brand:Bently Nevada PLC
Item No.:3500/32M
Product Origin:USA
Product Dimensions:241 x 24.4 x 242 mm
Product Weight:0.7 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/32M 184631-02 4-Channel Relay Module is a highly reliable and versatile component of the Bently Nevada 3500 Series, designed to provide four independent relay channels for critical machinery protection, alarm systems, and emergency shutdown control. This module is essential for industries where real-time monitoring and fault detection are vital, such as oil & gas, power generation, and manufacturing. By integrating this module into your system, you ensure continuous monitoring of industrial equipment, enabling immediate response to faults, thus preventing damage, reducing downtime, and ensuring operational safety.

Technical Specifications

SpecificationDetails
ModelBently Nevada 3500/32M 184631-02
Type4-Channel Relay Module
Dimensions241 x 24.4 x 242 mm
Weight0.7 kg
Power Supply24V DC (Nominal)
Relay Output Channels4 Channels
Relay TypeSPDT (Single-Pole Double-Throw)
Relay Switching Capacity1 A @ 30V DC / 0.5 A @ 125V AC
Operating Temperature Range-20°C to 60°C
Storage Temperature Range-40°C to 85°C
Mounting TypeRack or Panel Mounting
CertificationsCE, UL, RoHS


Applications

The Bently Nevada 3500/32M 184631-02 4-Channel Relay Module is designed for use in a variety of applications where continuous machinery protection, fault detection, and alarm management are required. Some key applications include:

  • Machinery Protection: Provides four independent relay channels to monitor critical machinery like turbines, motors, and compressors, ensuring immediate response to potential failures.

  • Condition Monitoring: Ideal for monitoring abnormal conditions in industrial equipment, triggering alarms or shutdowns to prevent damage and minimize downtime.

  • Oil & Gas: Used in upstream, midstream, and downstream operations to protect vital equipment such as pumps and compressors from unexpected faults.

  • Power Generation: Protects key assets in power plants, including turbines and generators, ensuring safe and efficient operation by responding quickly to potential failures.

  • Industrial Automation: Provides real-time control over automated systems, ensuring that alarms and shutdown processes are triggered based on abnormal readings.

  • Process Control Systems: Ensures the safety and stability of industrial processes by providing real-time fault detection and alarm management in processing industries.


Advantages

  • Four Independent Relay Channels: The four isolated relay channels enable flexible control of multiple pieces of equipment or processes, enhancing monitoring capabilities.

  • SPDT Relay Type: SPDT (Single-Pole Double-Throw) relays offer versatile switching for various control needs, including alarms, shutdowns, and fault management.

  • High Switching Capacity: Each relay can handle 1 A at 30V DC or 0.5 A at 125V AC, making it suitable for controlling a variety of industrial devices.

  • Reliability in Harsh Environments: Built to withstand extreme industrial conditions, the module operates reliably in environments ranging from -20°C to 60°C, ensuring durability and performance even in challenging environments.

  • Compact and Space-Efficient: The compact design and rack or panel mounting options make it ideal for systems with limited space, while still delivering powerful protection and monitoring capabilities.

  • Energy Efficient: Powered by a 24V DC supply, the module offers efficient operation with minimal power consumption, reducing the overall energy footprint.

  • Safety and Compliance: The module is certified for CE, UL, and RoHS, ensuring that it meets global standards for safety, quality, and environmental responsibility.

  • Easy Integration: Designed to integrate seamlessly into the Bently Nevada 3500 system, the module enhances system reliability and provides scalable protection for critical assets with minimal configuration required.


Technical FAQs

  1. How many relay channels does the Bently Nevada 3500/32M 184631-02 module have?
    The module provides four independent relay channels, offering flexibility for controlling multiple pieces of equipment or systems.

  2. What type of relays are used in this module?
    The module features SPDT (Single-Pole Double-Throw) relays, which offer versatile switching capabilities for a wide range of applications.

  3. What power supply does the module require?
    The module operates with a 24V DC nominal power supply, ensuring reliable and efficient performance.

  4. What is the relay switching capacity of this module?
    Each relay in this module can handle 1 A at 30V DC or 0.5 A at 125V AC, providing robust control capabilities for alarms and shutdowns.

  5. What is the operating temperature range for this module?
    The module operates effectively in temperatures ranging from -20°C to 60°C, making it suitable for use in diverse industrial environments.

  6. How is the Bently Nevada 3500/32M 184631-02 module mounted?
    The module can be mounted in either a rack or panel configuration, providing installation flexibility in industrial control systems.

  7. What certifications does this module hold?
    The module is certified for CE, UL, and RoHS, ensuring compliance with international safety, environmental, and performance standards.

  8. What industries benefit from using the Bently Nevada 3500/32M 184631-02 module?
    This module is ideal for use in industries such as oil & gas, power generation, industrial automation, and process control, where continuous monitoring and machinery protection are vital.

  9. How does this module contribute to machinery protection?
    The module provides real-time fault detection, allowing for the triggering of alarms or shutdowns to protect machinery from potential damage.

  10. Can this module be used in extreme environmental conditions?
    The module operates effectively in environments ranging from -20°C to 60°C. For use in more extreme conditions, additional cooling or heating may be necessary.
