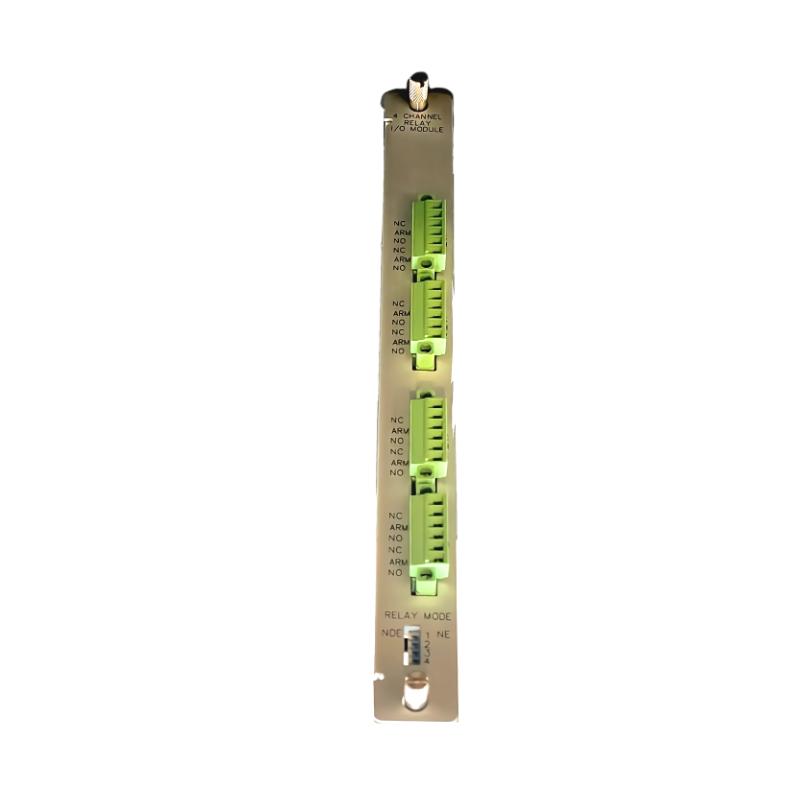

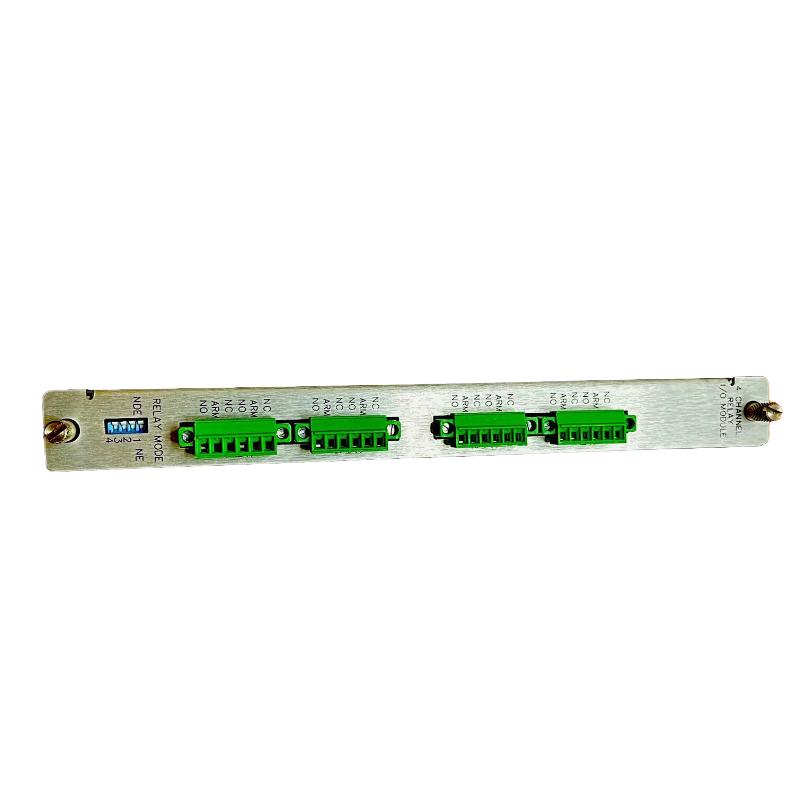

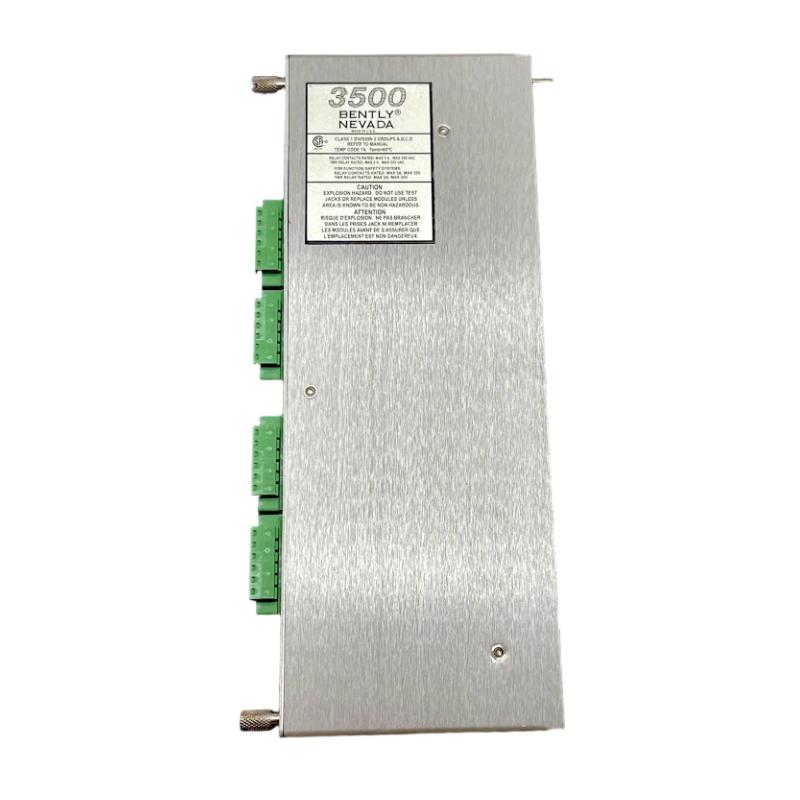

Bently Nevada 3500/32M 125720-01 4-Channel Relay Output Module

Brand:Bently Nevada PLC
Item No.:3500/32M
Product Origin:USA
Product Dimensions:241 x 24.4 x 99.1mm
Product Weight:0.4 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/32M 125720-01 4-Channel Relay Output Module is a key component in the Bently Nevada 3500 Series, providing reliable relay outputs for industrial machinery protection, alarm management, and emergency shutdown systems. This module is designed to work seamlessly within monitoring systems, providing four independent relay channels that allow for precise control of alarms, shutdowns, and fault detection in critical machinery such as turbines, motors, and compressors. It is ideal for industries like power generation, oil & gas, and manufacturing, where uptime and system reliability are essential.

Technical Specifications

SpecificationDetails
ModelBently Nevada 3500/32M 125720-01
Type4-Channel Relay Output Module
Dimensions241 x 24.4 x 99.1 mm
Weight0.4 kg
Power Supply24V DC (Nominal)
Relay Output Channels4 Channels
Relay TypeSPDT (Single-Pole Double-Throw)
Relay Switching Capacity1 A @ 30V DC / 0.5 A @ 125V AC
Operating Temperature Range-20°C to 60°C
Storage Temperature Range-40°C to 85°C
Mounting TypeRack or Panel Mounting
CertificationsCE, UL, RoHS


Applications

The Bently Nevada 3500/32M 125720-01 4-Channel Relay Output Module is widely used in industries where continuous machinery monitoring, alarm systems, and emergency shutdown functionalities are vital. Some key applications include:

  • Machinery Protection: Provides four relay outputs to control alarms and emergency shutdowns, ensuring protection for critical machinery like turbines, motors, and compressors.

  • Condition Monitoring: Ideal for real-time monitoring, triggering shutdowns or alarms based on abnormal conditions or failures detected in machinery.

  • Oil & Gas: Used in upstream, midstream, and downstream operations, protecting equipment such as pumps, compressors, and motors from damage.

  • Power Generation: In power plants, the module provides relay outputs for emergency shutdowns and alarms in turbines, generators, and other essential infrastructure.

  • Industrial Automation: Offers critical relay control for automated manufacturing processes, ensuring protection against system failures and maintaining operational continuity.

  • Process Control Systems: Facilitates reliable control of alarms and shutdowns in process industries, enhancing safety and preventing downtime.


Advantages

  • Independent Relay Channels: The module features four isolated relay channels, providing versatile control and alarm points for multiple industrial systems.

  • SPDT Relay Type: Each relay is SPDT (Single-Pole Double-Throw), offering flexible switching options for various control devices and ensuring robust system functionality.

  • High Switching Capacity: Relays are capable of handling 1 A at 30V DC or 0.5 A at 125V AC, making the module suitable for a wide range of industrial devices.

  • Reliable and Rugged: Built for harsh industrial environments, the module performs reliably within an operating temperature range of -20°C to 60°C.

  • Compact Design: The module's compact dimensions allow for easy rack or panel mounting, saving valuable space in control panels and making installation efficient.

  • Energy Efficient: Powered by a 24V DC nominal supply, the module offers energy-efficient operation while maintaining high performance.

  • Certified for Safety and Compliance: The module is CE, UL, and RoHS certified, ensuring it meets international safety, quality, and environmental standards.

  • Seamless Integration: Easily integrates into the Bently Nevada 3500 system, enhancing the protection and monitoring capabilities of the overall system without complex configurations.


Technical FAQs

  1. How many relay channels does the Bently Nevada 3500/32M 125720-01 module have?
    The module provides four independent relay output channels, offering versatile control for alarm systems and emergency shutdowns.

  2. What type of relays are used in this module?
    The module uses SPDT (Single-Pole Double-Throw) relays, offering flexibility for switching control devices in industrial systems.

  3. What power supply is required for this module?
    The module operates with a 24V DC nominal power supply.

  4. What is the relay switching capacity of this module?
    Each relay can handle 1 A at 30V DC or 0.5 A at 125V AC, making it suitable for various industrial control applications.

  5. What is the operating temperature range of this module?
    The module operates within a temperature range of -20°C to 60°C, ensuring reliable performance in a wide variety of industrial environments.

  6. How is the Bently Nevada 3500/32M 125720-01 module mounted?
    The module can be mounted in rack or panel configurations, providing flexibility for installation in control systems.

  7. What certifications does this module hold?
    The module is certified for CE, UL, and RoHS, ensuring it adheres to international safety, quality, and environmental standards.

  8. How does the Bently Nevada 3500/32M 125720-01 module contribute to machinery protection?
    It provides four relay outputs for controlling alarms and emergency shutdowns, ensuring machinery protection and minimizing the risk of system failures.

  9. Can the Bently Nevada 3500/32M module be used in extreme temperature environments?
    The module is designed to operate in harsh environments within the -20°C to 60°C temperature range. For extreme conditions, additional environmental controls may be necessary.

  10. What industries benefit most from this module?
    The Bently Nevada 3500/32M 125720-01 module is ideal for industries such as oil & gas, power generation, industrial automation, and process control, where machinery protection and real-time monitoring are critical.
