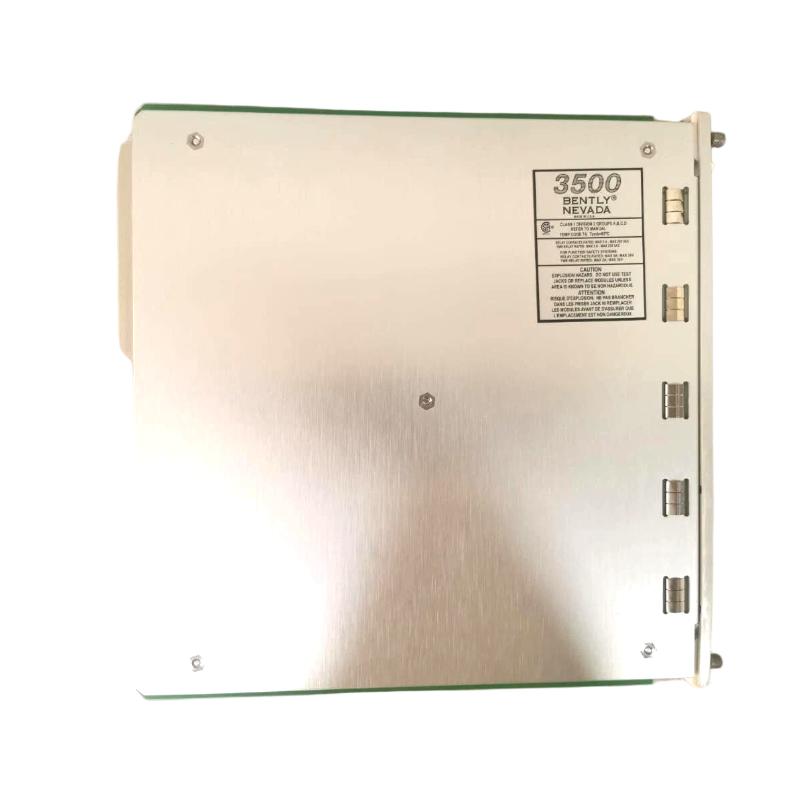

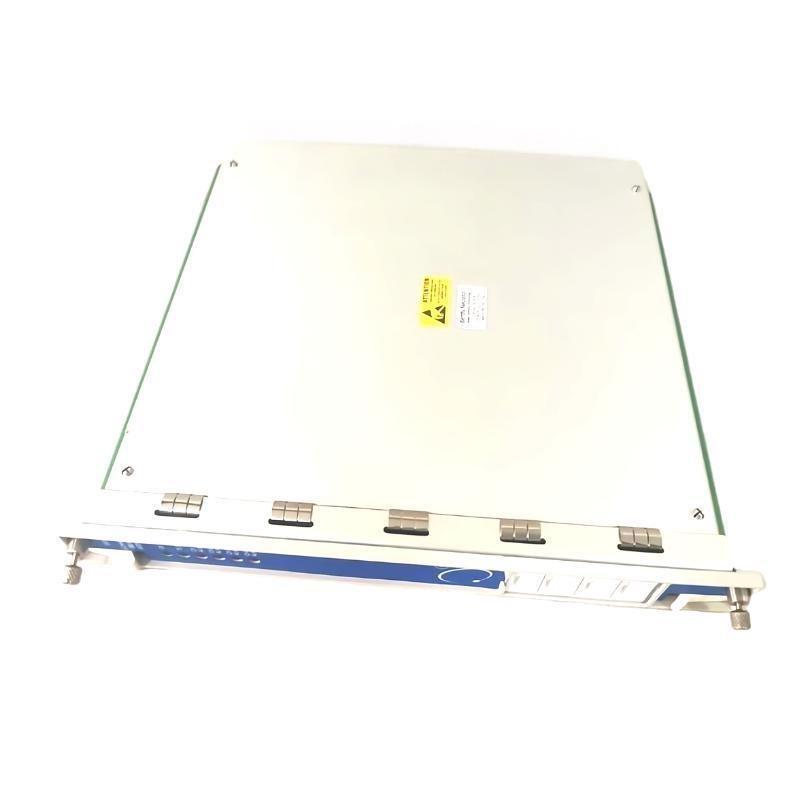

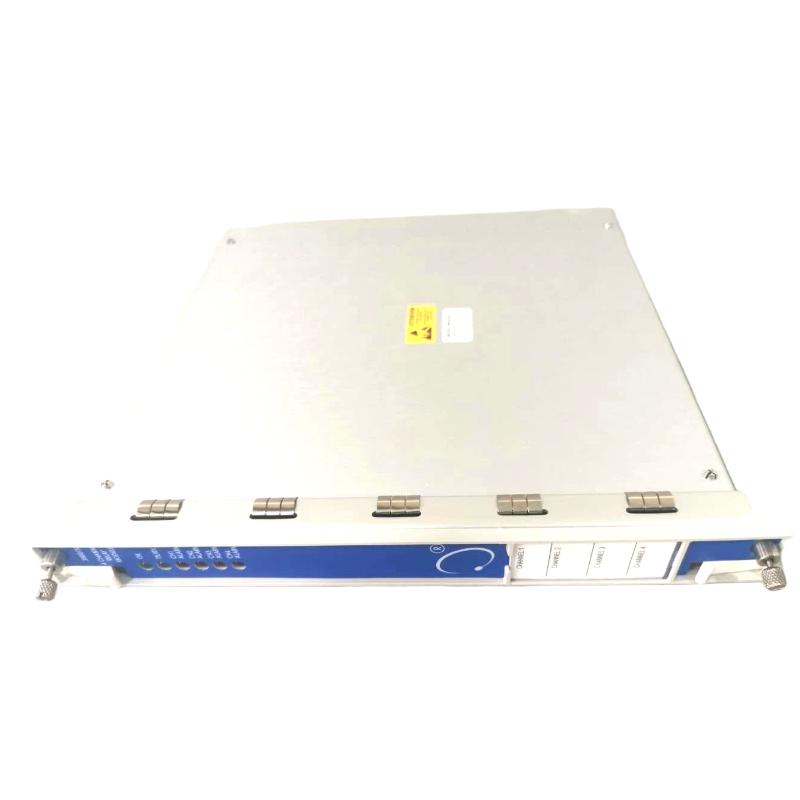

Bently Nevada 3500/32 149986-02 4-Channel Relay Control Module

Brand:Bently Nevada PLC
Item No.:3500/32
Product Origin:USA
Product Dimensions:241 x 24.4 x 242 mm
Product Weight:0.7 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/32 149986-02 4-Channel Relay Control Module is a backup relay control module designed to complement the Bently Nevada 3500 Series, which is widely used in machinery protection and condition monitoring applications. This module features four independent relay channels, each capable of performing critical control functions such as alarm management, shutdown triggering, and system diagnostics. Ideal for use in safety-critical industrial systems, the 3500/32 149986-02 module ensures that if the primary system fails, the backup module can take over seamlessly, maintaining continuous protection for critical machinery such as turbines, compressors, and motors.

Technical Specifications

SpecificationDetails
ModelBently Nevada 3500/32 149986-02
Type4-Channel Relay Control Module
Dimensions241 x 24.4 x 242 mm
Weight0.7 kg
Power Supply24V DC (Nominal)
Relay Output Channels4 Channels
Relay TypeSPDT (Single-Pole Double-Throw)
Relay Switching Capacity1 A @ 30V DC / 0.5 A @ 125V AC
Control Module FunctionalityBackup control and system diagnostics
Operating Temperature Range-20°C to 60°C
Storage Temperature Range-40°C to 85°C
Mounting TypeRack or Panel Mounting
CertificationsCE, UL, RoHS


Applications

The Bently Nevada 3500/32 149986-02 4-Channel Relay Control Module is primarily used as a backup control module in industrial environments where continuous machinery protection and monitoring are critical. Key applications include:

  • Backup Control for Machinery Protection: The 3500/32 module ensures that critical machinery such as turbines, motors, and compressors remain protected even in the event of a primary system failure.

  • Condition Monitoring: This module can trigger alarms and shutdowns based on real-time equipment conditions, ensuring minimal damage in case of faults.

  • Oil & Gas: Used in oil rigs, pipelines, and refineries to protect equipment and prevent costly downtime due to failures.

  • Power Generation: The module provides backup functionality in power plants, helping protect turbines, generators, and other critical infrastructure.

  • Industrial Automation: Provides backup relay functions in automated manufacturing systems, ensuring that control functions continue uninterrupted in the event of a system failure.


Advantages

  • Backup Functionality: The 3500/32 149986-02 module serves as a backup control system, ensuring that machinery remains protected and operational even if the primary control module fails.

  • Four Independent Channels: With four isolated relay channels, the module can manage multiple control points and alarm systems for various equipment.

  • SPDT Relay Type: The module features SPDT (Single-Pole Double-Throw) relays, offering flexible switching for control devices in safety-critical systems.

  • High Switching Capacity: Each relay channel supports 1 A at 30V DC or 0.5 A at 125V AC, providing robust control capabilities for a wide range of industrial devices.

  • System Diagnostics: The control module is designed to provide system diagnostics, ensuring that potential issues are detected early and allowing for preventive maintenance.

  • Compact and Space-Efficient: The module’s compact design allows for easy rack or panel mounting, saving valuable space in control panels and ensuring neat installation.

  • Reliable Performance: Built to operate reliably in harsh industrial environments, the module functions effectively in temperatures ranging from -20°C to 60°C.

  • Energy Efficient: Powered by a 24V DC nominal supply, the module ensures energy-efficient operation, helping to reduce operational costs while delivering reliable performance.

  • Certified for Safety: Certified with CE, UL, and RoHS, ensuring that the module meets global safety and environmental standards.

  • Seamless Integration: Easily integrates with other components of the Bently Nevada 3500 system, providing enhanced protection, monitoring, and control capabilities.


Technical FAQs

  1. How many relay channels does the Bently Nevada 3500/32 149986-02 module have?
    The module offers four independent relay output channels, each capable of controlling and monitoring multiple devices in industrial systems.

  2. What type of relays does the Bently Nevada 3500/32 149986-02 module use?
    The module uses SPDT (Single-Pole Double-Throw) relays, allowing for flexible control of various devices.

  3. What power supply is required for this module?
    The Bently Nevada 3500/32 149986-02 operates on a 24V DC nominal power supply.

  4. What is the switching capacity of the relays in this module?
    Each relay can handle 1 A at 30V DC or 0.5 A at 125V AC, making it suitable for various industrial control applications.

  5. What is the role of the control module in this system?
    The control module acts as a backup control system, ensuring that machinery protection continues in case the primary control module fails. It also provides system diagnostics for maintenance and operational health.

  6. How is the Bently Nevada 3500/32 149986-02 mounted?
    The module can be mounted in rack or panel configurations, offering flexibility for installation in control systems.

  7. What is the operational temperature range for this module?
    The Bently Nevada 3500/32 149986-02 module operates within a temperature range of -20°C to 60°C, ensuring reliable performance in most industrial environments.

  8. What certifications does the module have?
    The Bently Nevada 3500/32 149986-02 is certified with CE, UL, and RoHS, meeting international standards for safety and environmental compliance.

  9. Can the Bently Nevada 3500/32 149986-02 module be used in extreme temperature environments?
    This module operates within -20°C to 60°C. For higher or lower temperatures, additional cooling or heating may be required.

  10. How does the Bently Nevada 3500/32 149986-02 module contribute to machinery protection?
    It provides backup relay control and continuous monitoring, ensuring that equipment remains protected and operational even during system failures.
