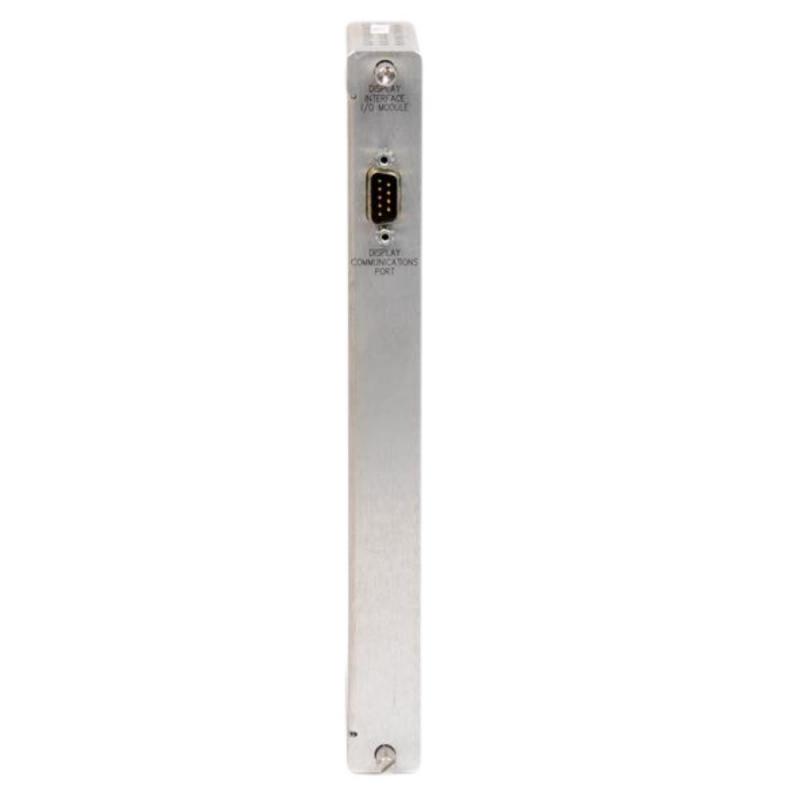

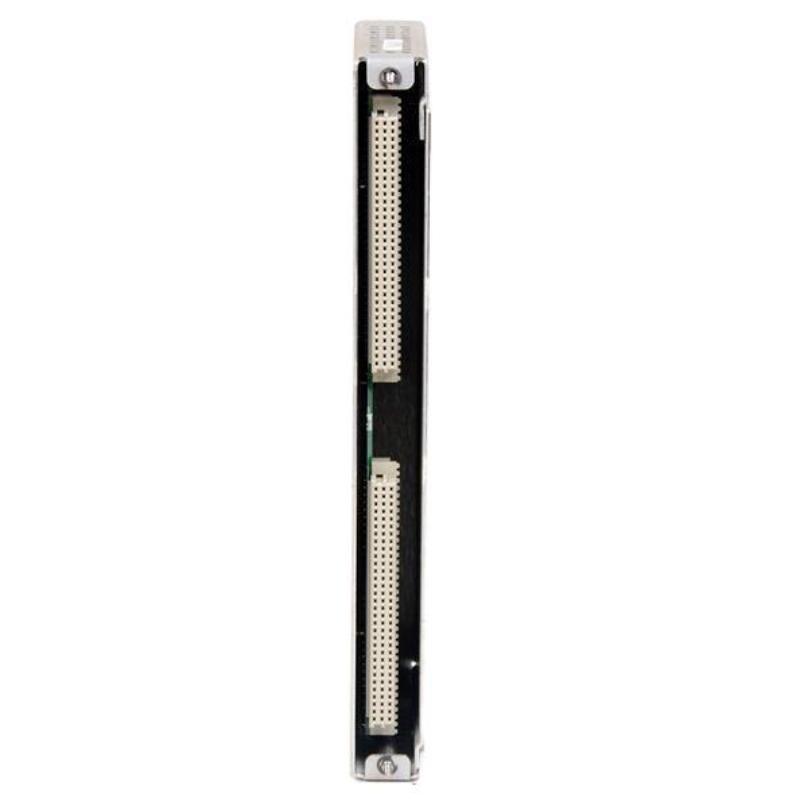

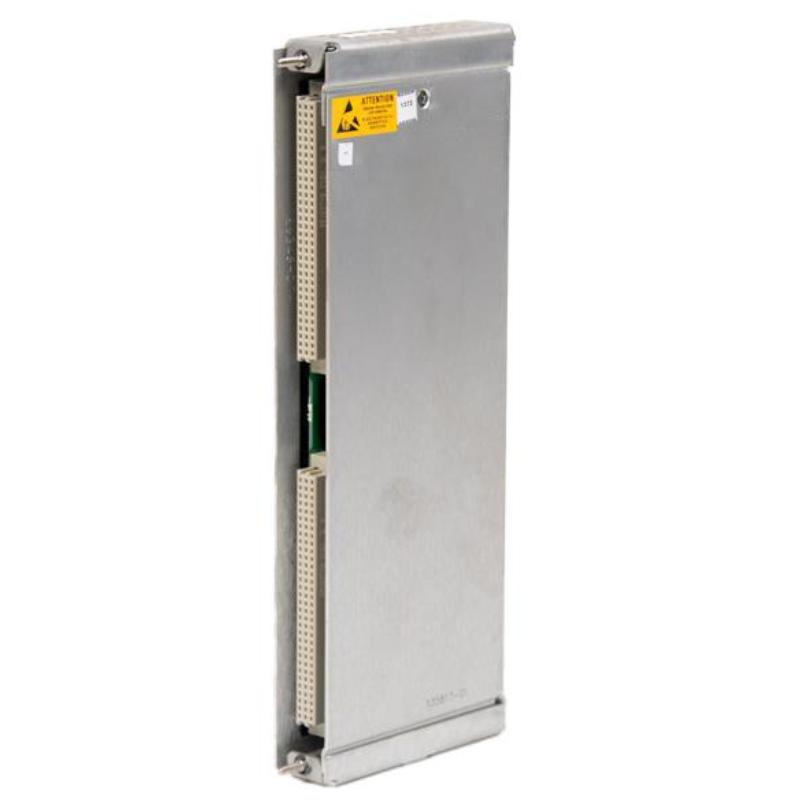

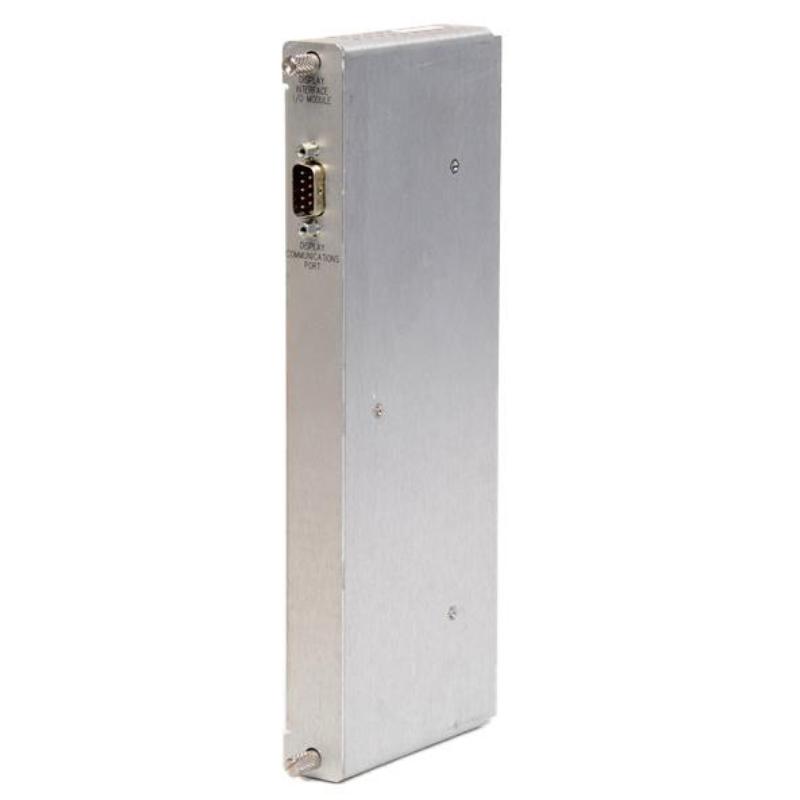

Bently Nevada 3500/93 135813-01 Display Module

Brand:Bently Nevada PLC
Item No.:3500/93 135813-01
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 99.1 mm
Product Weight:0.38 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/93 135813-01 is a high-reliability Display Module designed for use with the 3500 Machinery Protection System. It provides operators and maintenance personnel with clear, real-time visualization of vibration, status, and alarm conditions from all modules installed in the 3500 rack.
Its rugged design, intuitive interface, and fast data refresh help ensure accurate monitoring of critical rotating equipment in demanding industrial environments.

Technical Specifications

Specification Description
Module Type Display/Operator Interface Module
Function Provides real-time viewing of machinery parameters and alarms
Display Type High-brightness LCD with multi-page navigation
Data View Overall values, alarms, status, channel details
Rack Compatibility Bently Nevada 3500 Series racks
User Interface Front-panel buttons for configuration and navigation
Power Source Draws power directly from 3500 rack
Dimensions 241.3 × 24.4 × 99.1 mm (H × W × D)
Weight 0.38 kg
Operating Mode Continuous 24/7 industrial use
Installation Front panel of the 3500 rack

Applications

  • Local real-time visualization of vibration and condition data

  • Monitoring of alarms and system statuses directly at the rack

  • Quick diagnostics during maintenance or troubleshooting

  • Turbomachinery, compressor, pump, and generator installations

  • Industrial plants requiring on-site operator visibility

Advantages

  • Immediate on-rack access to key machine health data

  • Simplifies troubleshooting and routine inspections

  • Clear visualization of vibration readings and alarm states

  • Supports safe and efficient maintenance workflows

  • Compact and lightweight design fits seamlessly into a 3500 rack

  • Highly reliable for continuous operation in harsh environments


Technical FAQs

  1. What does the 3500/93 module do?
    It provides real-time display of data and alarms from the 3500 rack.

  2. What kind of information can it show?
    Overall vibration levels, channel data, alarm conditions, and status information.

  3. Is it required for system operation?
    No, but it is extremely useful for local monitoring and diagnostics.

  4. How is it powered?
    It receives power directly from the 3500 rack backplane.

  5. Is configuration done through the display?
    Limited configuration; detailed configuration is typically done via System 1 or dedicated tools.

  6. Is it suitable for 24/7 operation?
    Yes, it is designed for continuous industrial use.

  7. Where is it installed?
    On the front of a standard Bently Nevada 3500 rack.

  8. Does it integrate with control systems?
    No, it is for local display only; communication modules handle DCS/SCADA integration.

  9. What are the dimensions?
    241.3 × 24.4 × 99.1 mm (H × W × D).

  10. What is the weight?
    0.38 kg.
