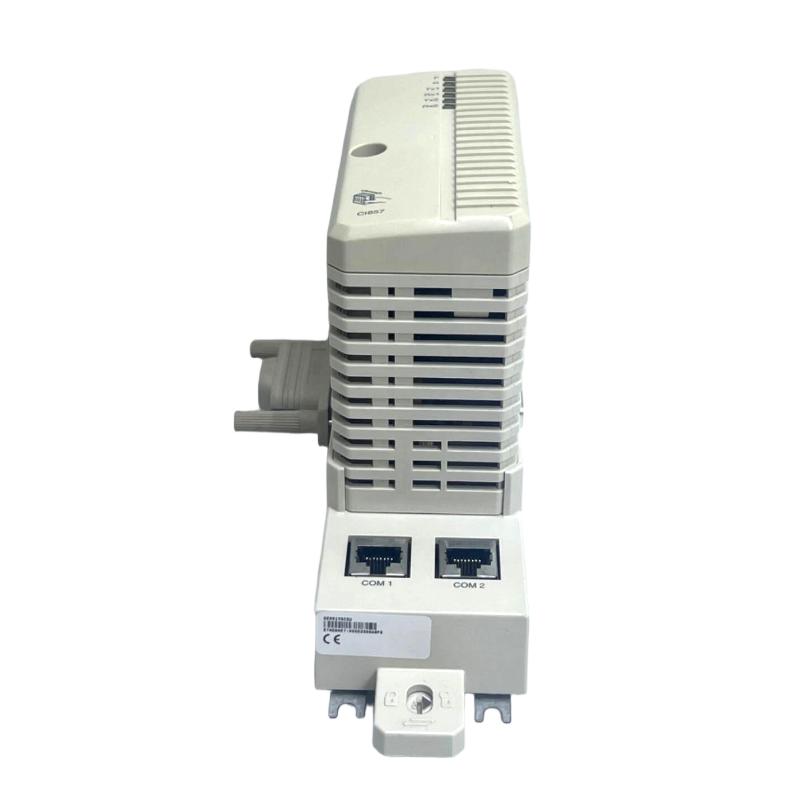

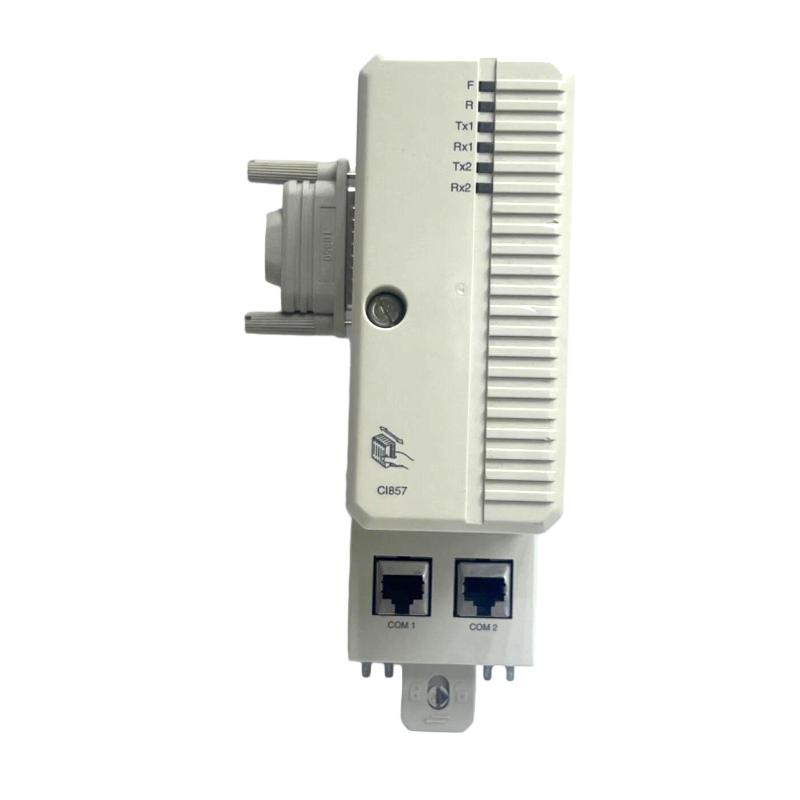

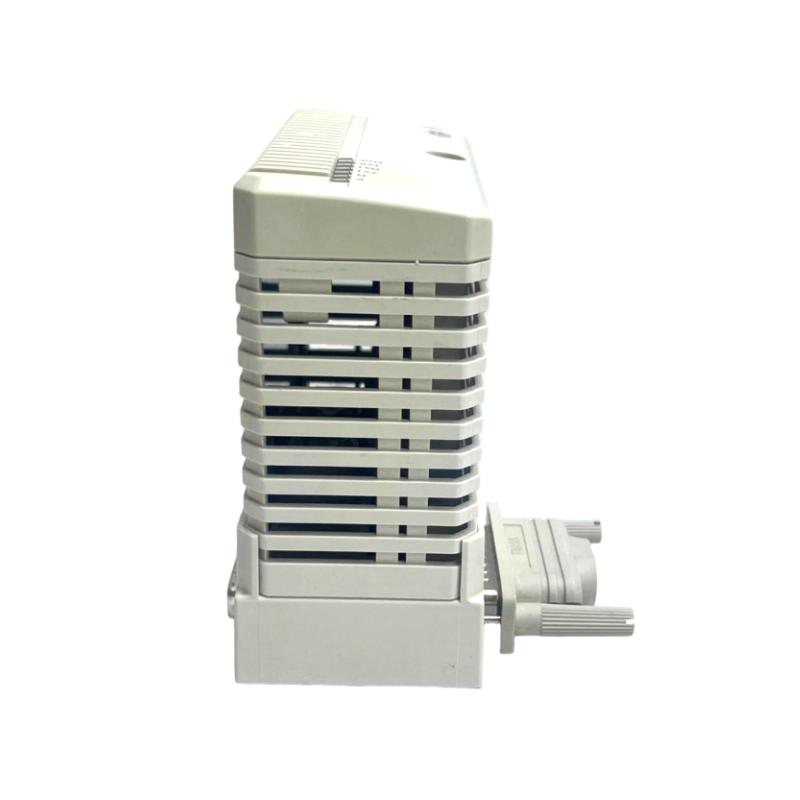

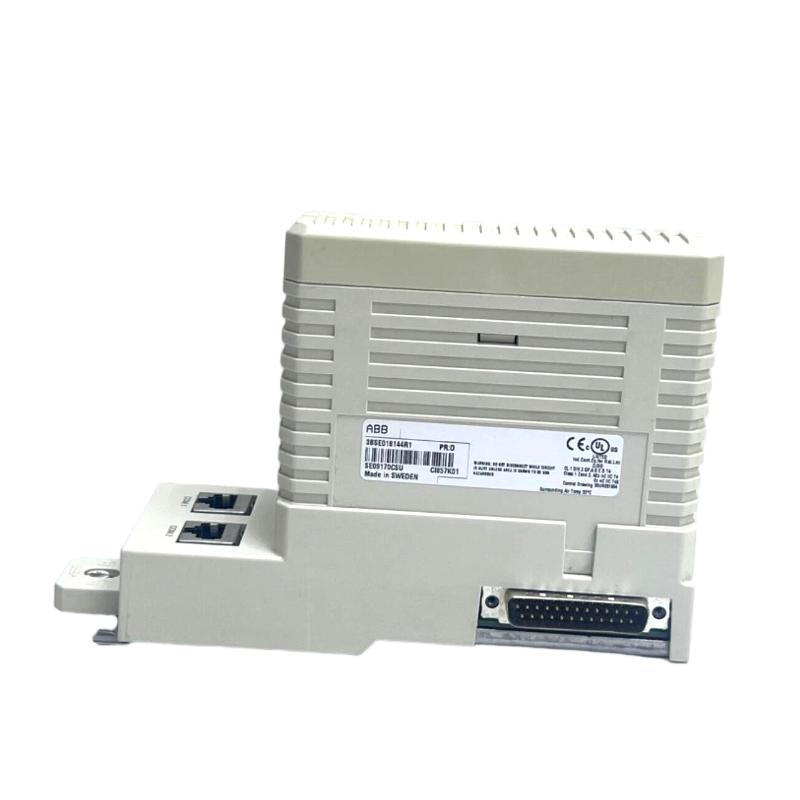

ABB CI857K01/CI857 3BSE018144R1 Ethernet Interface Module

Brand:ABB PLC
Item No.:CI857K01/CI857
Product Origin:Sweden (SE)
Product Dimensions:59 × 185 × 127.5 mm
Product Weight:0.7 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The ABB CI857K01/CI857 3BSE018144R1 Ethernet Interface Module is designed to provide high-performance Ethernet communication for ABB control systems. This module enables seamless integration and communication between control systems and external field devices, offering high reliability and fault tolerance in demanding industrial environments. Supporting the Ethernet protocol, the CI857K01/CI857 module ensures real-time data transfer and facilitates easy system integration, making it ideal for automation, energy management, and process control applications where fast, stable communication is critical.

Technical Specifications

SpecificationDetails
ModelABB CI857K01/CI857 3BSE018144R1
TypeEthernet Interface Module
Dimensions59 × 185 × 127.5 mm
Weight0.7 kg
Power Supply24V DC (Nominal)
Communication InterfaceEthernet
I/O Channels2 x Digital Inputs, 2 x Digital Outputs
Operating Temperature Range-20°C to 60°C
Storage Temperature Range-40°C to 85°C
Mounting TypeDIN Rail Mounting
CertificationsCE, UL, RoHS


Applications

The ABB CI857K01/CI857 3BSE018144R1 Ethernet Interface Module is widely used in applications that require reliable Ethernet communication between control systems and field devices. Typical uses include:

  • Industrial Automation: Facilitating seamless Ethernet communication between PLCs, controllers, and remote I/O devices in large-scale automation systems.

  • Energy Management: Enabling communication within power generation and distribution systems, supporting real-time monitoring and control for efficient energy management.

  • Manufacturing Systems: Connecting production equipment and control systems to ensure smooth operation and minimize downtime in manufacturing processes.

  • Process Control: Ensuring real-time communication in industries like chemical, pharmaceutical, and food processing, where accurate data exchange is critical for control and monitoring.

  • Building Automation: Enabling integration within building management systems (BMS), providing real-time control of HVAC, lighting, and security systems for efficiency and reliability.


Advantages

  • Ethernet Communication: The CI857K01/CI857 uses Ethernet for communication, ensuring fast, reliable data transfer and seamless integration with modern industrial networks.

  • High Reliability: Built to provide stable, continuous communication even in harsh industrial conditions, the module supports real-time data exchange with minimal interruptions.

  • Compact and Space-Efficient: The module’s compact design allows for integration in space-constrained environments without compromising on performance or functionality.

  • Versatile Application: Suitable for a variety of industrial applications, including automation, energy management, and process control, making it a highly flexible communication solution.

  • Wide Operating Temperature Range: With an operational temperature range of -20°C to 60°C, the module performs reliably in a wide range of industrial environments.

  • DIN Rail Mounting: Designed for DIN rail mounting, making it easy to install and secure in control panels, while saving space.

  • Global Certifications: The module is CE, UL, and RoHS certified, ensuring compliance with global safety and environmental standards.

  • Energy Efficient: Powered by 24V DC, the CI857K01/CI857 offers energy-efficient operation, helping reduce operational costs while maintaining excellent communication performance.

  • Diagnostic Features: The CI857K01/CI857 includes built-in diagnostic tools that provide real-time feedback, enabling quick issue identification and minimizing downtime.


Technical FAQs

  1. What communication protocol does the CI857K01/CI857 module use?
    The module uses Ethernet for communication, providing fast and reliable data transfer between control systems and field devices.

  2. How many I/O channels are available on the CI857K01/CI857 module?
    The module offers 2 digital inputs and 2 digital outputs, enabling integration with a variety of field devices.

  3. What is the power supply requirement for the CI857K01/CI857 module?
    The module requires a 24V DC nominal power supply for operation.

  4. How is the CI857K01/CI857 module mounted?
    The module is designed for DIN rail mounting, making installation quick and easy while ensuring a secure fit in control panels.

  5. What is the operational temperature range for the CI857K01/CI857 module?
    The module operates within a temperature range of -20°C to 60°C, making it suitable for a wide range of industrial environments.

  6. What certifications does the CI857K01/CI857 module have?
    The module is certified with CE, UL, and RoHS, ensuring it meets international safety and environmental standards.

  7. Can the CI857K01/CI857 module operate in extreme temperatures?
    The module is designed for use in environments up to 60°C. However, additional cooling may be necessary in environments exceeding this temperature range.

  8. How does the CI857K01/CI857 module contribute to system integration?
    By using Ethernet for communication, the module integrates easily with modern industrial systems, improving overall flexibility and system performance.

  9. How does the CI857K01/CI857 module assist in energy management?
    The CI857K01/CI857 module enables real-time communication in power distribution systems, ensuring efficient monitoring and control of energy usage.

  10. What diagnostic features are available with the CI857K01/CI857 module?
    The module includes diagnostic tools that provide real-time feedback, allowing operators to identify and resolve issues promptly, minimizing downtime and optimizing performance.
