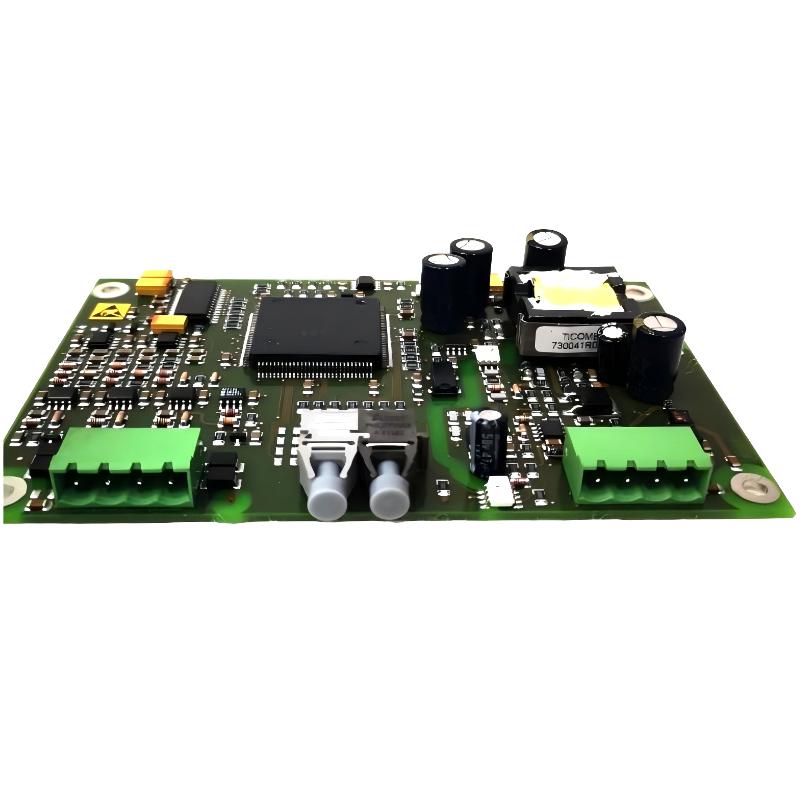

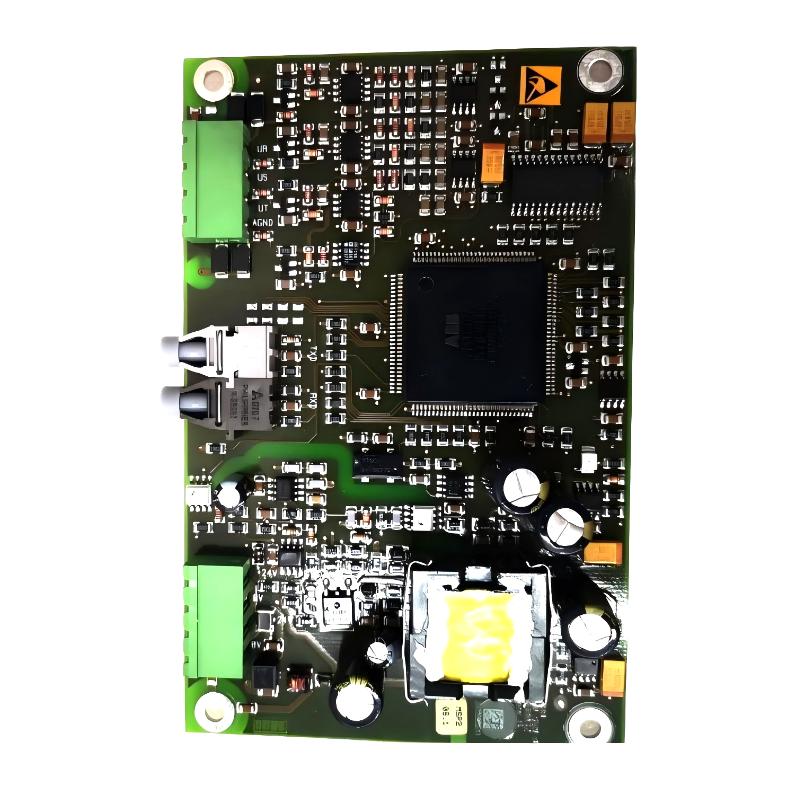

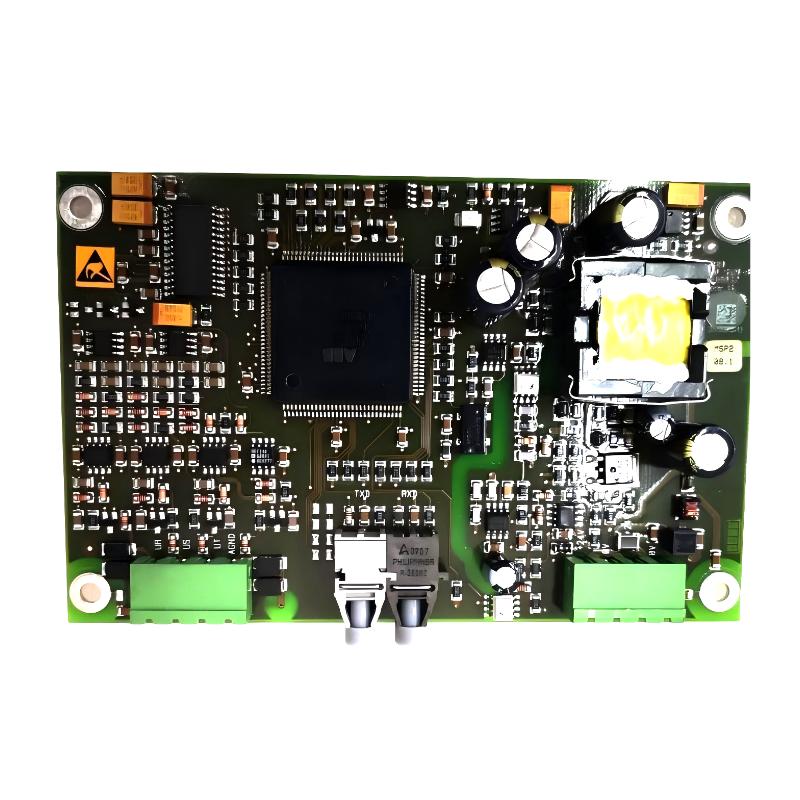

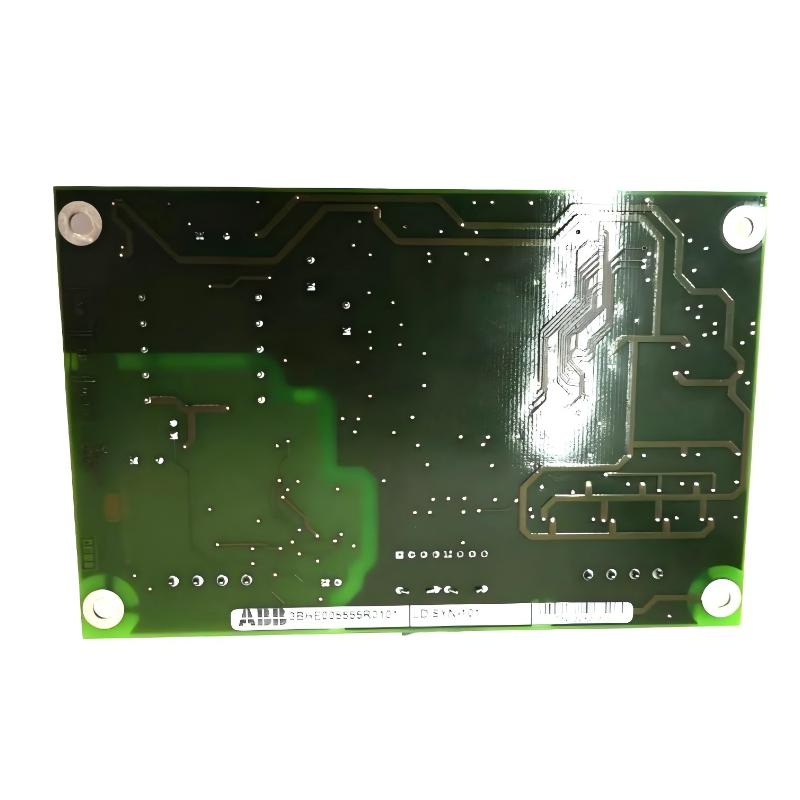

ABB UA C375 AE103 3BHB006621R0103 Anti-saturation Board

Name: ABB UA C375 AE103 3BHB006621R0103 Anti-saturation Board
Brand: ABB PLC
SKU: 1485
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:UA C375 AE103 3BHB006621R0103
Product Origin:Sweden
Product Dimensions:220 × 160 × 25 mm
Product Weight:0.6 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB UA C375 AE103 Anti-saturation Board is a specialized control board developed for precise magnetic control in high-power industrial drive and excitation systems. From a technical evaluation standpoint, this board plays a critical role in protecting current transformers and magnetic circuits from saturation effects, ensuring stable and linear signal behavior even under transient or overload conditions.

Rather than acting as a general-purpose control module, this board is clearly engineered for niche but mission-critical applications where measurement accuracy directly affects system stability and equipment safety.

Technical Specifications

Item	Description
Manufacturer	ABB
Model	UA C375 AE103
Order Code	3BHB006621R0103
Module Type	Anti-saturation Board
Functional Role	Magnetic saturation prevention and signal conditioning
System Compatibility	ABB drive and excitation control platforms
Mounting	Panel or rack-based installation
Electrical Interface	Internal control system connections
Dimensions	220 × 160 × 25 mm (H x W x D)
Weight	Approx. 0.6 kg

Applications

Used in excitation systems to prevent transformer saturation during dynamic load changes
Applied in high-power drive systems requiring accurate current feedback
Integrated into industrial power control cabinets for stable magnetic performance
Suitable for generator control systems with fast response requirements
Employed in protection schemes where signal linearity is essential
Utilized in retrofit projects to improve legacy system stability
Supports reliable operation of converters under transient conditions

Advantages

Effectively limits magnetic saturation in demanding electrical environments
Enhances measurement accuracy for current and voltage signals
Contributes to overall system stability during transient events
Designed specifically for ABB high-power control architectures
Robust construction suitable for continuous industrial operation
Improves protection of downstream control and power components
Reduces the risk of control instability caused by distorted feedback

Technical FAQs

What is the primary function of the UA C375 AE103 board?
It prevents magnetic saturation effects that could compromise signal accuracy and control stability.
Is this board intended for general control applications?
No, it is a specialized module designed for excitation and high-power drive systems.
Can it be used in generator excitation systems?
Yes, it is commonly applied in generator and excitation control environments.
Does the board actively protect control signals?
It conditions and stabilizes signals to prevent distortion caused by saturation.
Is it suitable for continuous operation?
The board is engineered for long-term, uninterrupted industrial use.
Can it be integrated into existing ABB systems?
It is designed for compatibility with established ABB control platforms.
Does it improve system reliability?
Yes, by maintaining linear feedback behavior, overall system reliability is improved.
Is the board used in retrofit projects?
It is often selected to enhance performance in upgraded or modernized systems.
Does it require complex configuration?
Configuration is typically minimal and aligned with ABB system standards.
Is this module critical for system protection?
In high-power applications, it plays an important role in maintaining safe and stable operation.
