Introduction

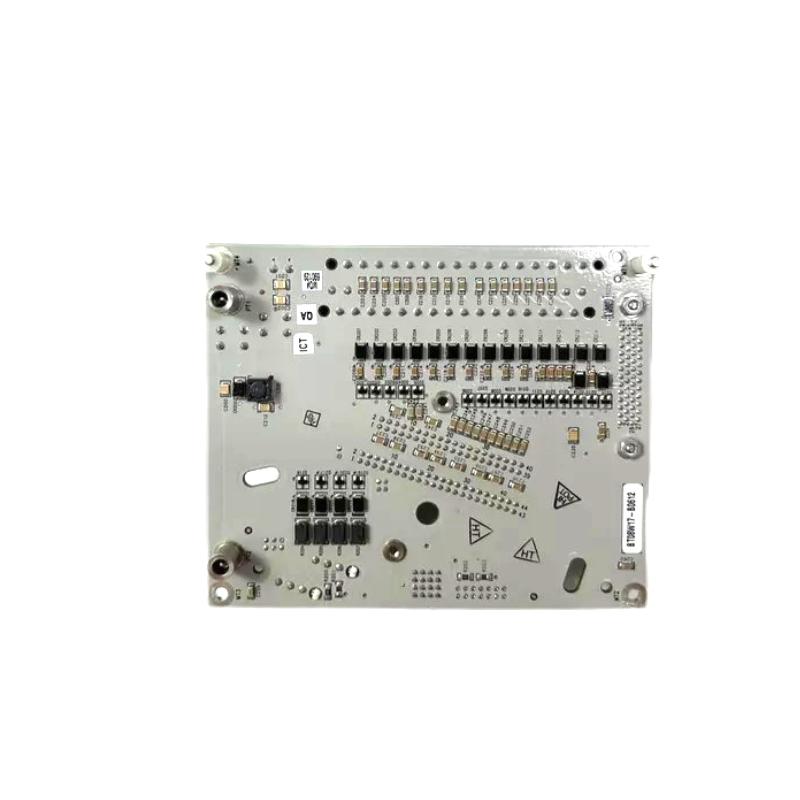

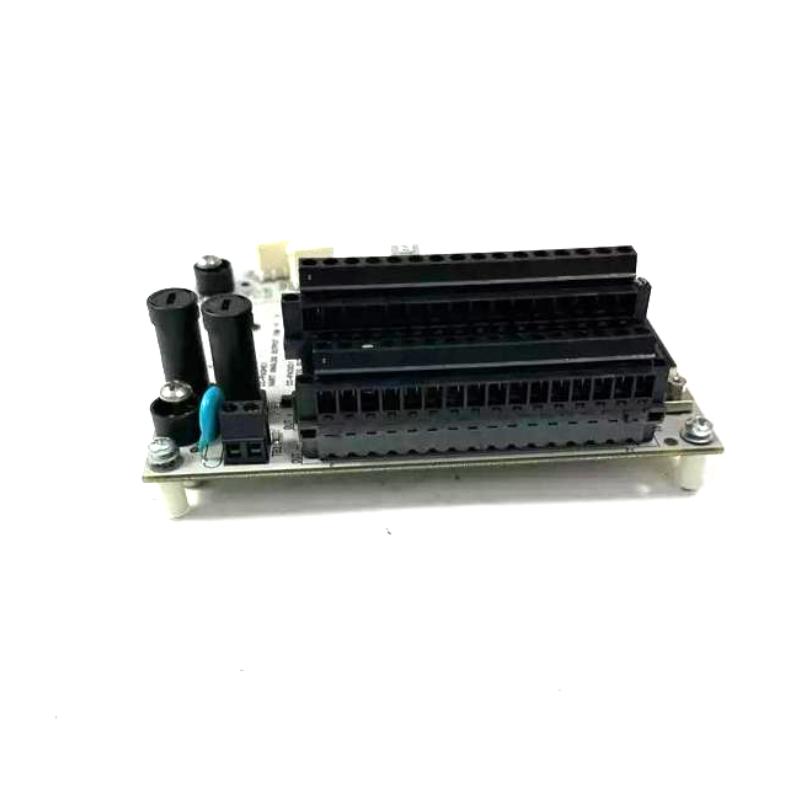

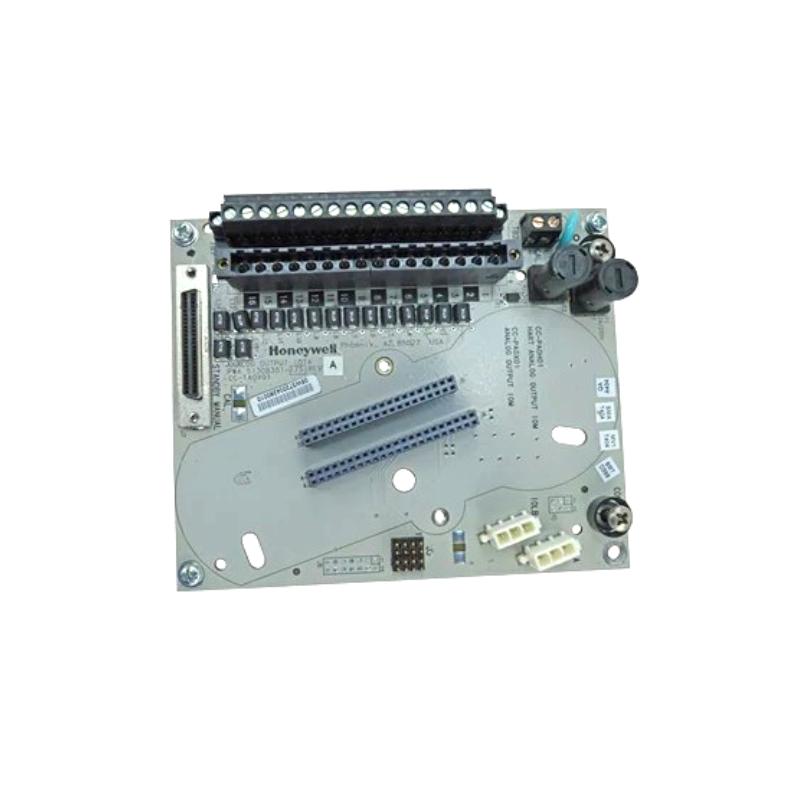

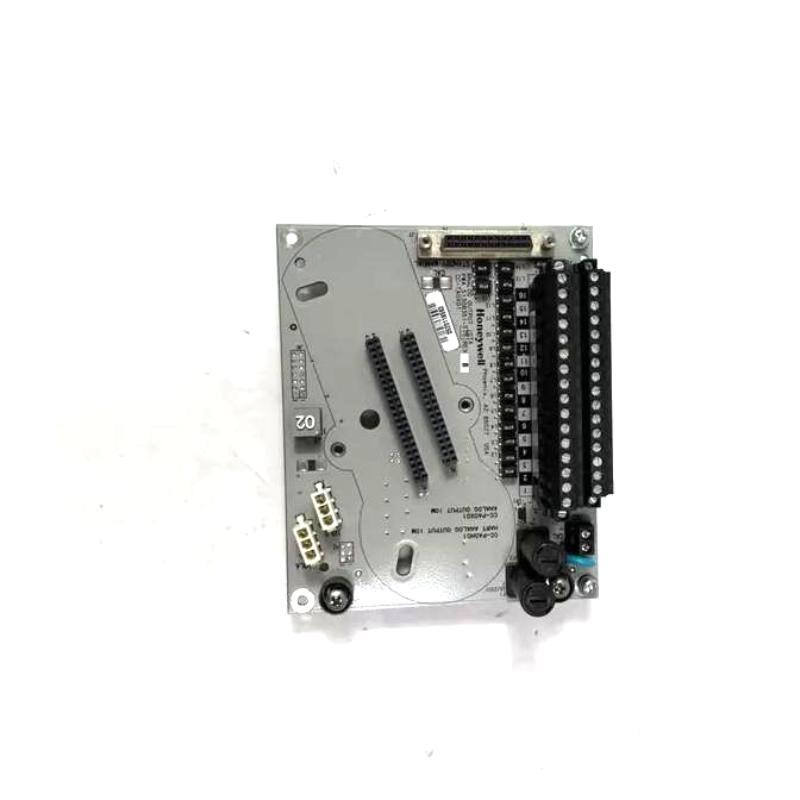

The Honeywell CC‑TAOX01 51308351‑175 Analog Output Module is a precision signal control component engineered for Honeywell C300 distributed control systems (DCS). It converts digital control data from the C300 controller into accurate analog output signals that drive field devices such as valves, actuators, and process instrumentation. Designed for industrial automation environments, this module delivers stable, high‑resolution output performance that supports real‑time control, regulatory loops, and advanced process strategies.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAOX01 (51308351‑175) |
| Product Type | Analog Output Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Output Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog output channels |
| Output Resolution | 16‑bit digital‑to‑analog conversion |
| Accuracy | ±0.1 % of full scale |
| Load Capacity | Up to 500 Ω per channel (current mode) |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.45 kg |
