Introduction

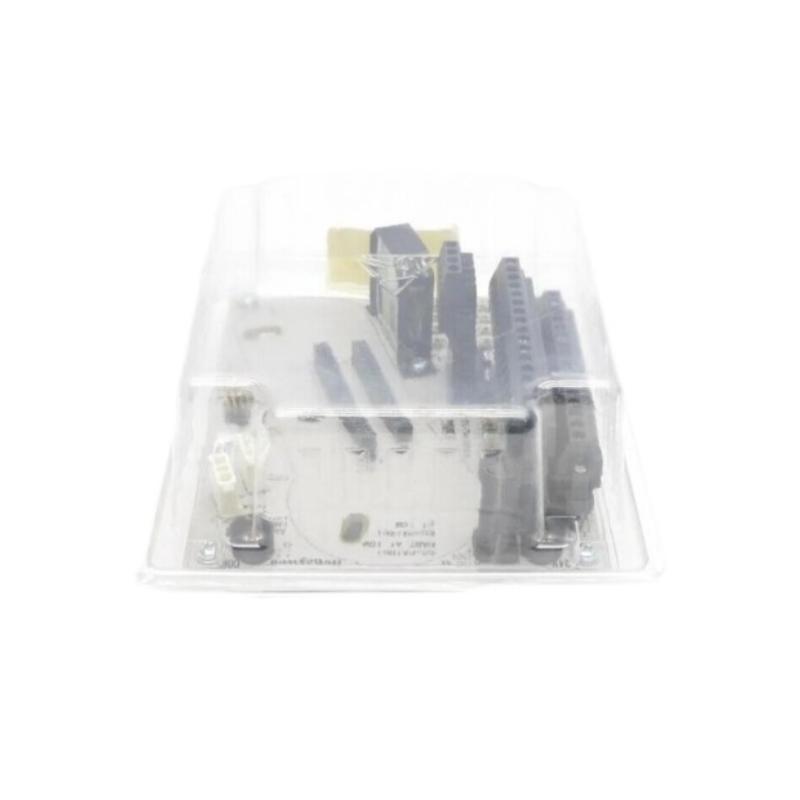

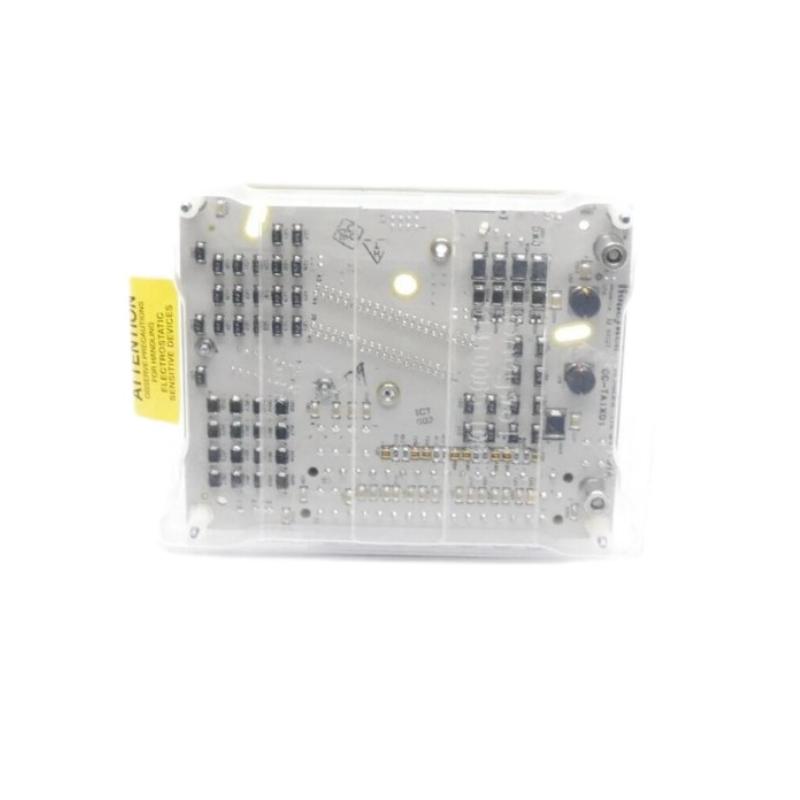

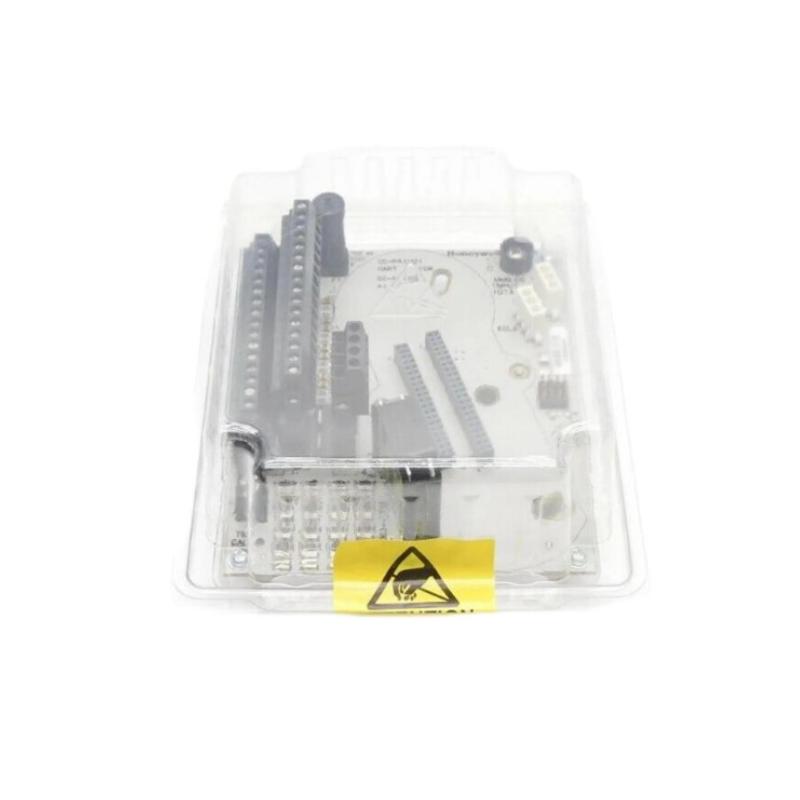

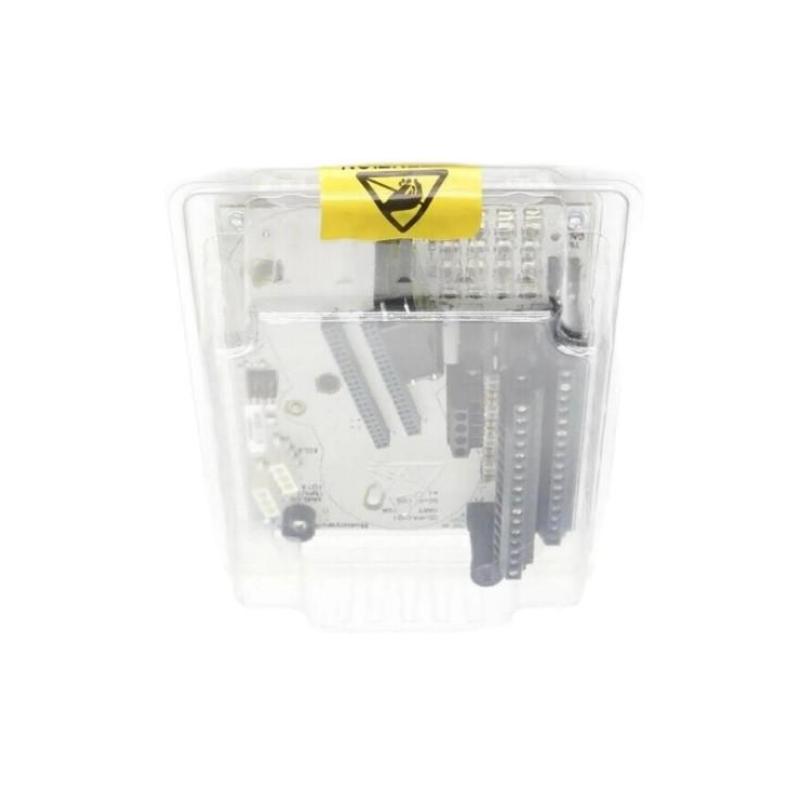

The Honeywell CC‑TAIX61 51307077‑175 Analog Input Module is a high‑performance signal acquisition component engineered for the Honeywell C300 distributed control system (DCS). It reliably measures and converts analog signals from field instruments—such as pressure, temperature, level, and flow sensors—into digital data for real‑time monitoring, process control, and automation logic. Built for industrial reliability, this module supports accurate data capture and seamless integration into the C300 architecture, enabling stable control and enhanced operational visibility.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAIX61 (51307077‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Signal Types | Analog (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω (current mode) |
| Resolution | 16‑bit analog‑to‑digital conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
