Introduction

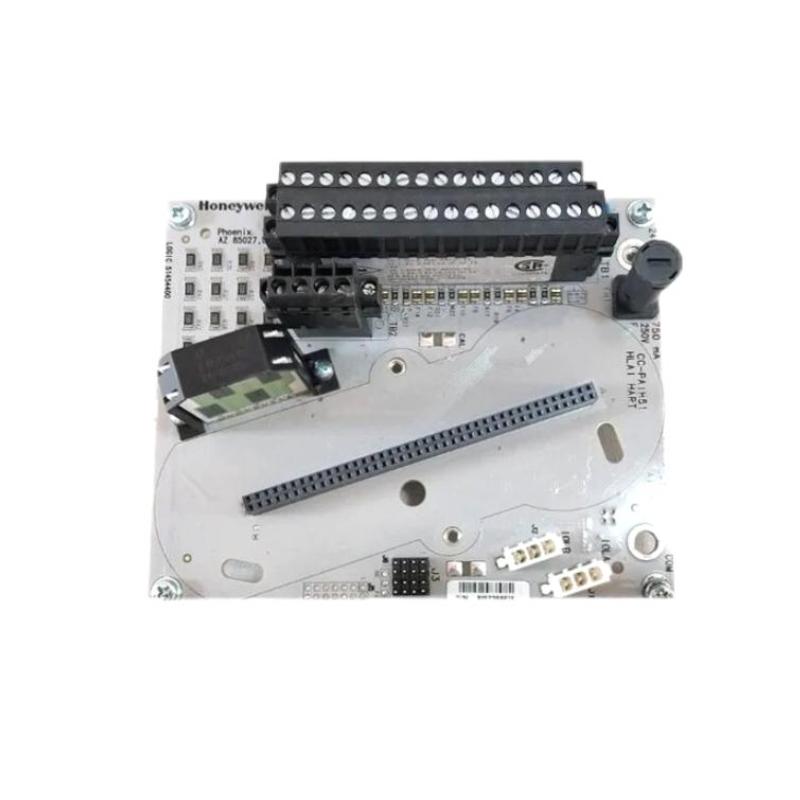

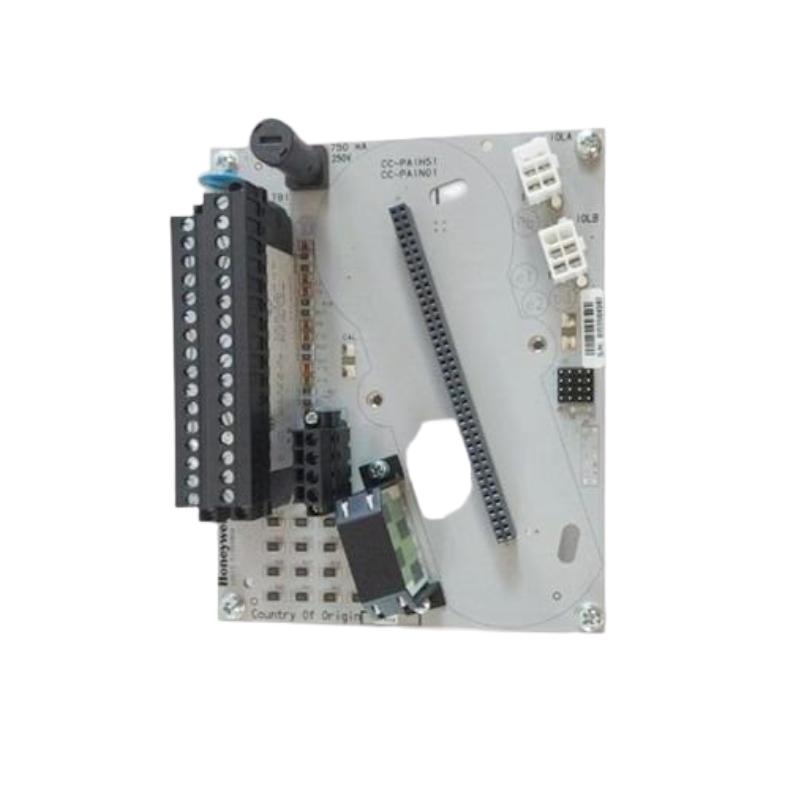

The Honeywell CC‑TAIX51 51307075‑175 Analog Input Module is a precision signal acquisition component designed for use in Honeywell C300 distributed control systems (DCS). It reliably captures analog signals from field transmitters, sensors, and industrial instrumentation, converting them into high‑resolution digital data for use in process monitoring, control logic, and automation functions. Built for demanding industrial environments, this module supports accurate process measurement and contributes to robust, real‑time control system performance.
Technical Specifications
| Specification | Details |
|---|---|

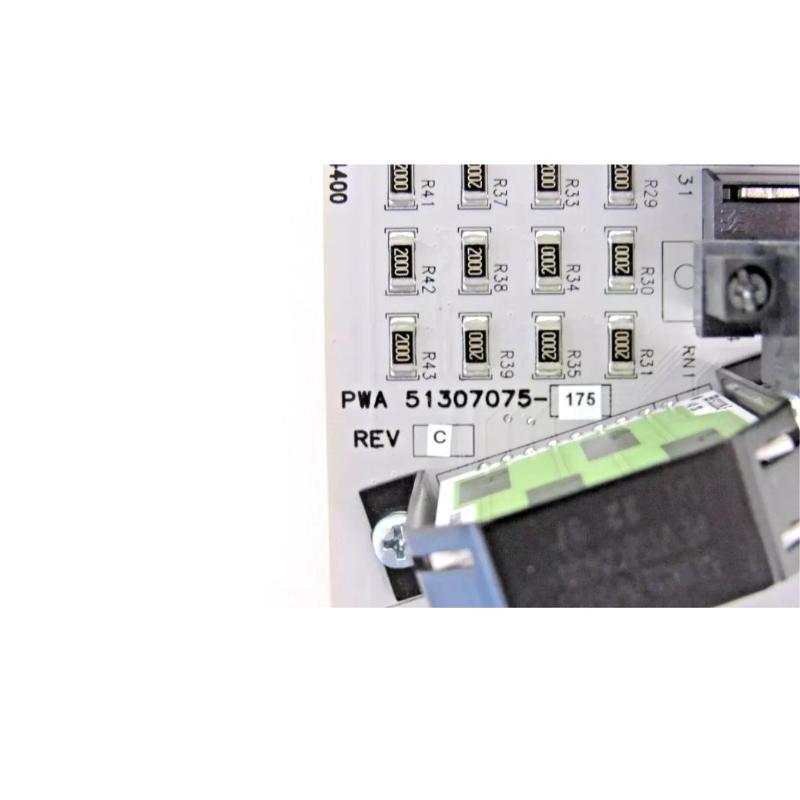

| Model | CC‑TAIX51 (51307075‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Signal Types | Analog (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω (current inputs) |
| Resolution | 16‑bit analog‑to‑digital conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
