Introduction

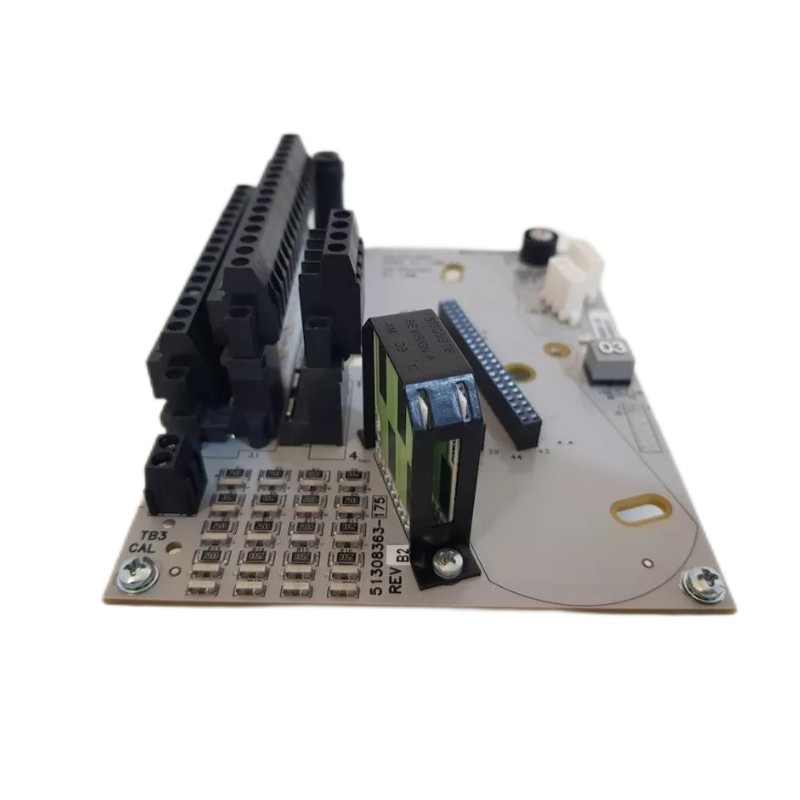

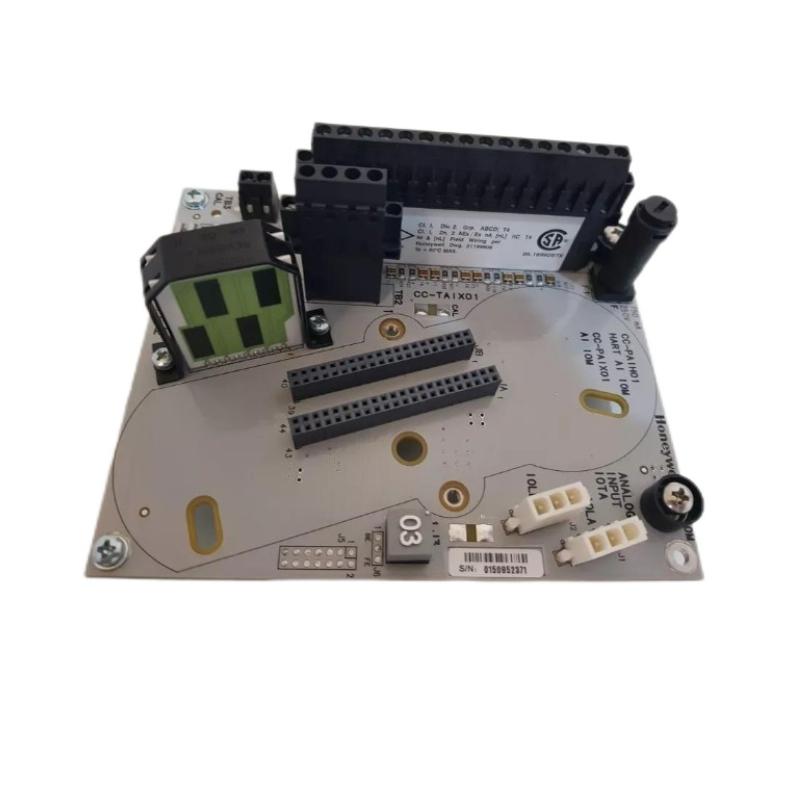

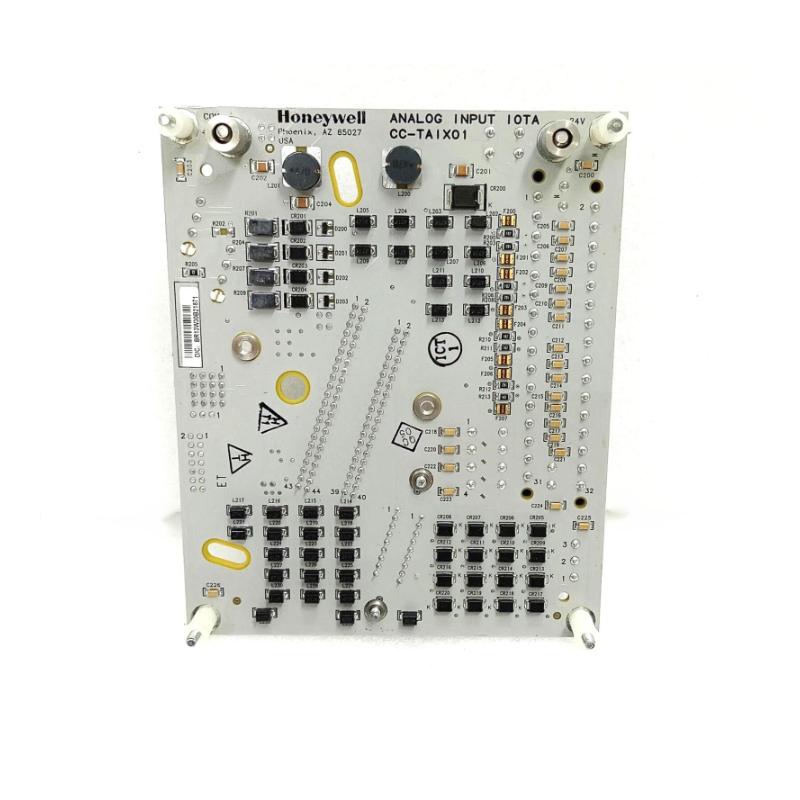

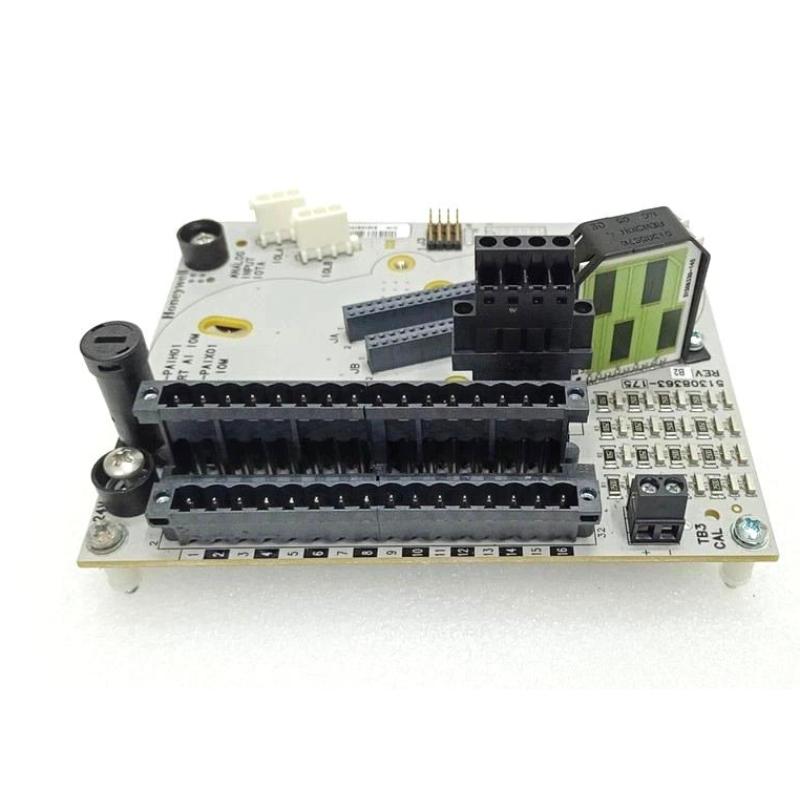

The Honeywell CC‑TAIX01 51306513‑175 Analog Input Module is a reliable data acquisition unit designed for seamless integration into the Honeywell C300 distributed control system (DCS). It provides accurate analog signal conversion from a variety of field instruments into digital values that the C300 controller uses for real‑time monitoring and process control. Built with industrial robustness in mind, this module supports precise measurement and stable system performance in demanding automation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAIX01 (51306513‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω (current mode) |
| Resolution | 16‑bit analog‑to‑digital conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approximately 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
