Introduction

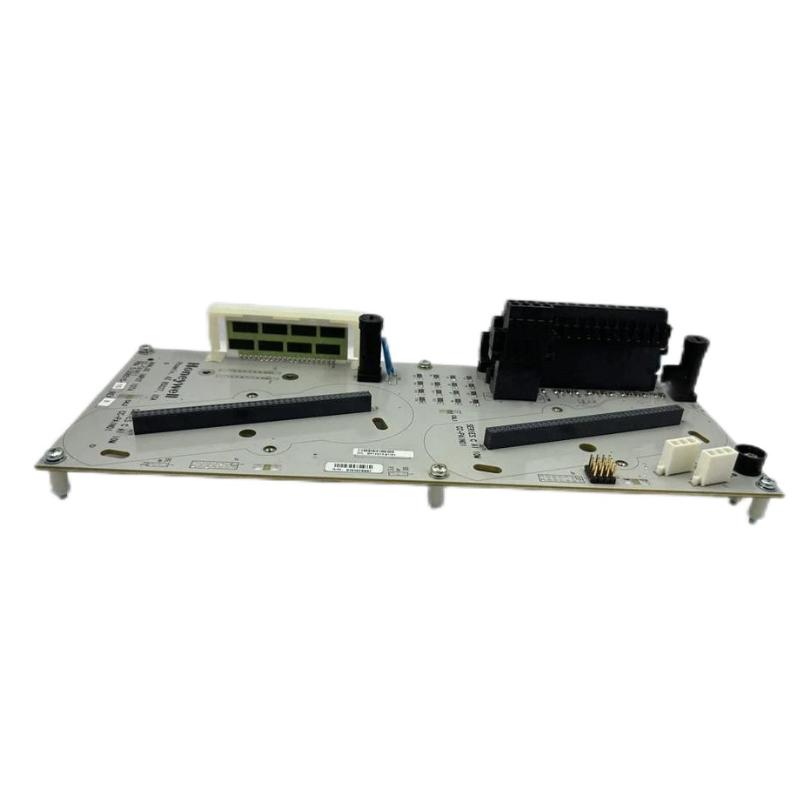

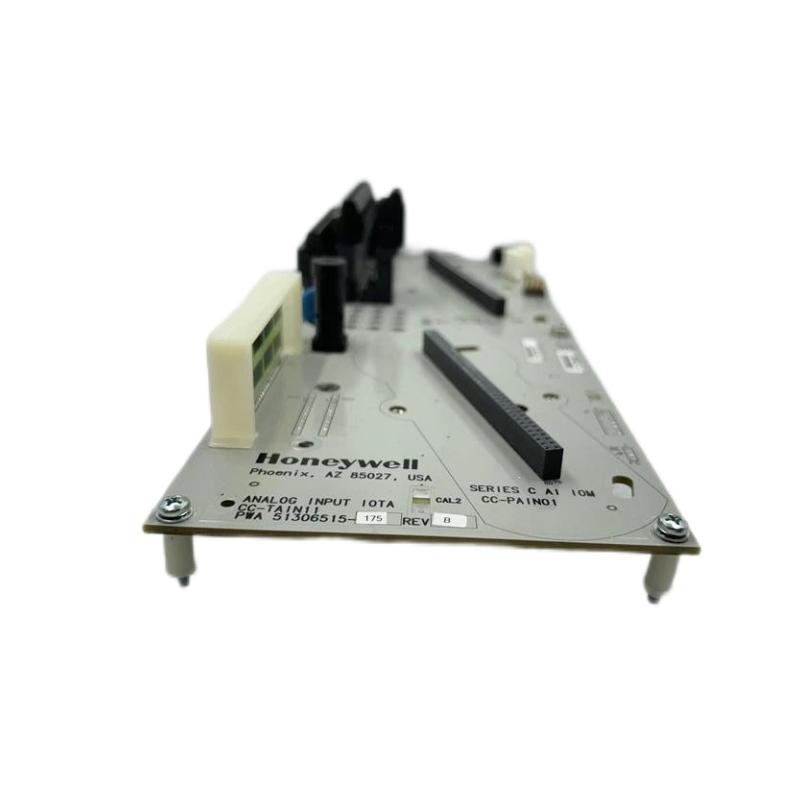

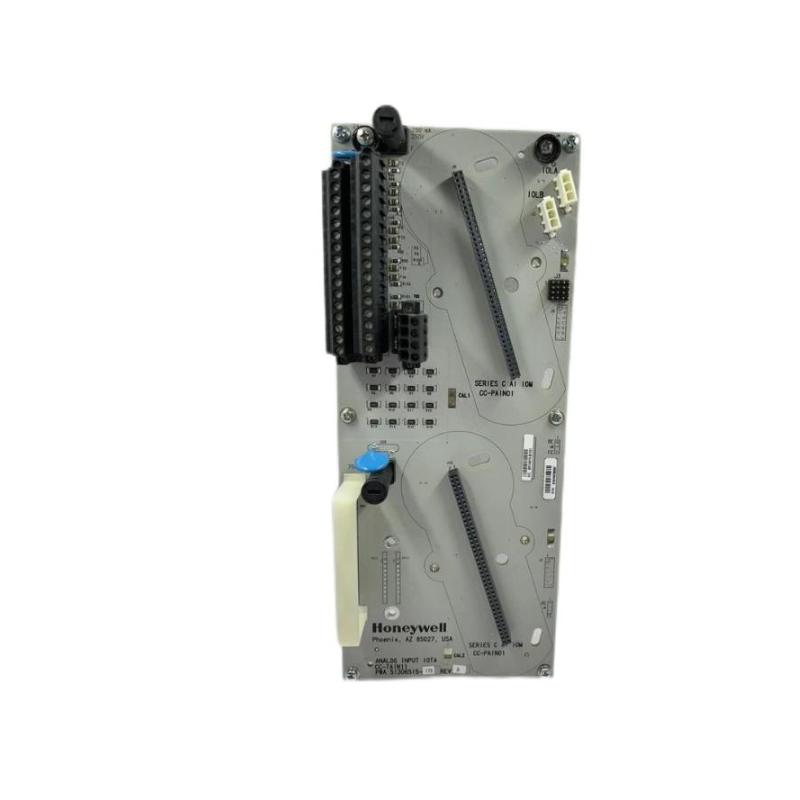

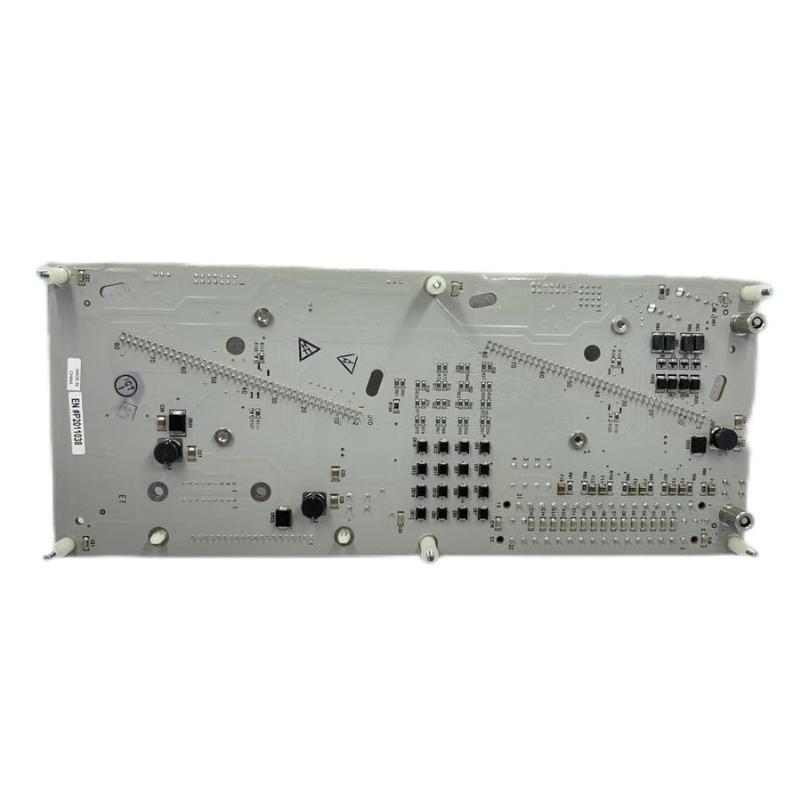

The Honeywell CC‑TAIN11 51306515‑175 Analog Input Module is a precision signal acquisition unit purpose‑built for the Honeywell C300 distributed control system (DCS). It captures analog signals from field instruments such as transmitters, sensors, and process devices, converting them into high‑resolution digital data for control, monitoring, and automation logic. Engineered for demanding industrial environments, the CC‑TAIN11 delivers dependable performance, ensuring accurate process measurements that support efficient control loop execution and informed operational decisions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAIN11 (51306515‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω (current mode) |
| Resolution | 16‑bit ADC conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
