Introduction

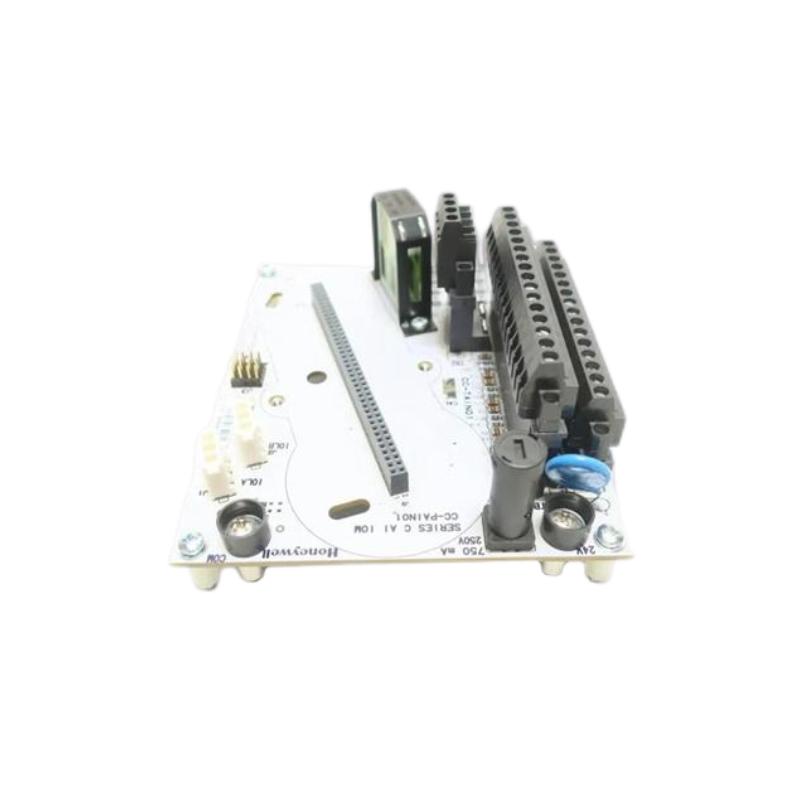

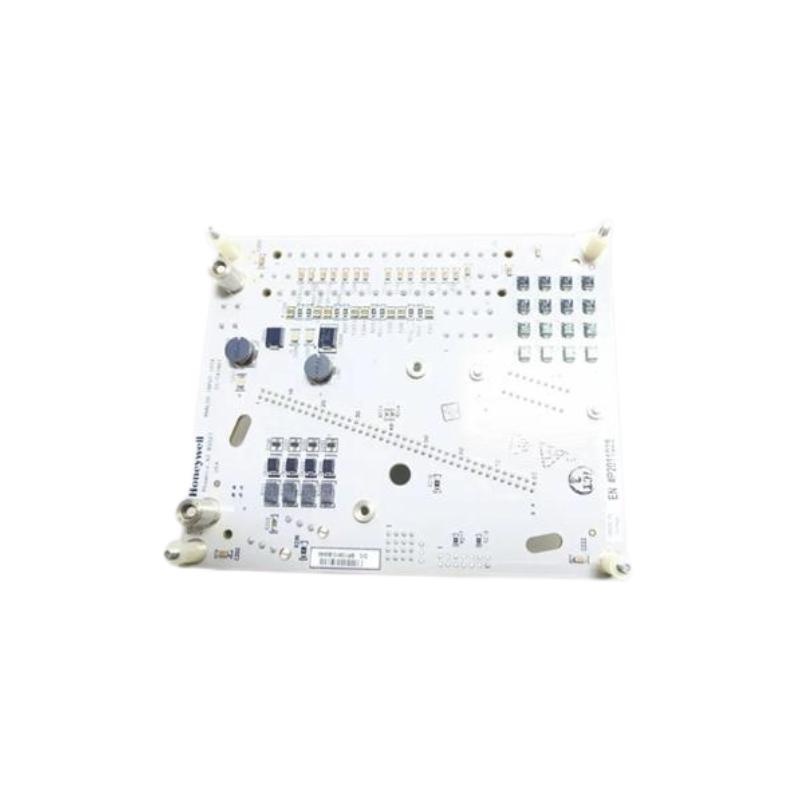

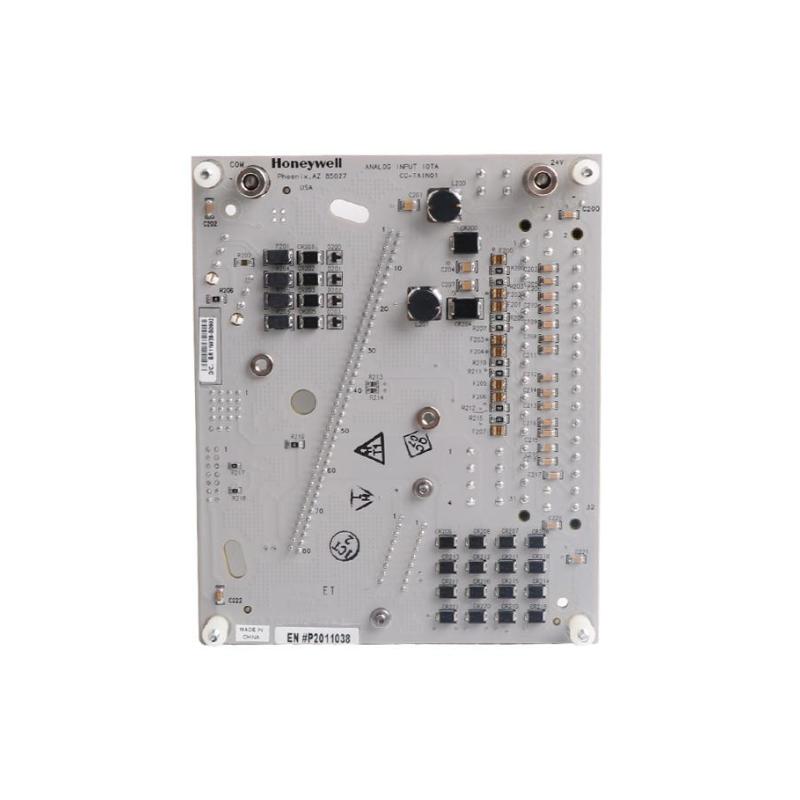

The Honeywell CC‑TAIN01 51306513‑175 Analog Input Module is a high‑precision signal acquisition unit engineered for the Honeywell C300 distributed control system (DCS). This module captures analog signals from field devices—including transmitters, sensors, and industrial instrumentation—and accurately converts them into digital data for real‑time monitoring, process control, and automation logic. Built for industrial reliability, the CC‑TAIN01 ensures consistent performance in plant environments where accurate data acquisition is essential for operational efficiency and safety.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAIN01 (51306513‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω (for current inputs) |
| Resolution | 16‑bit ADC conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
