Introduction

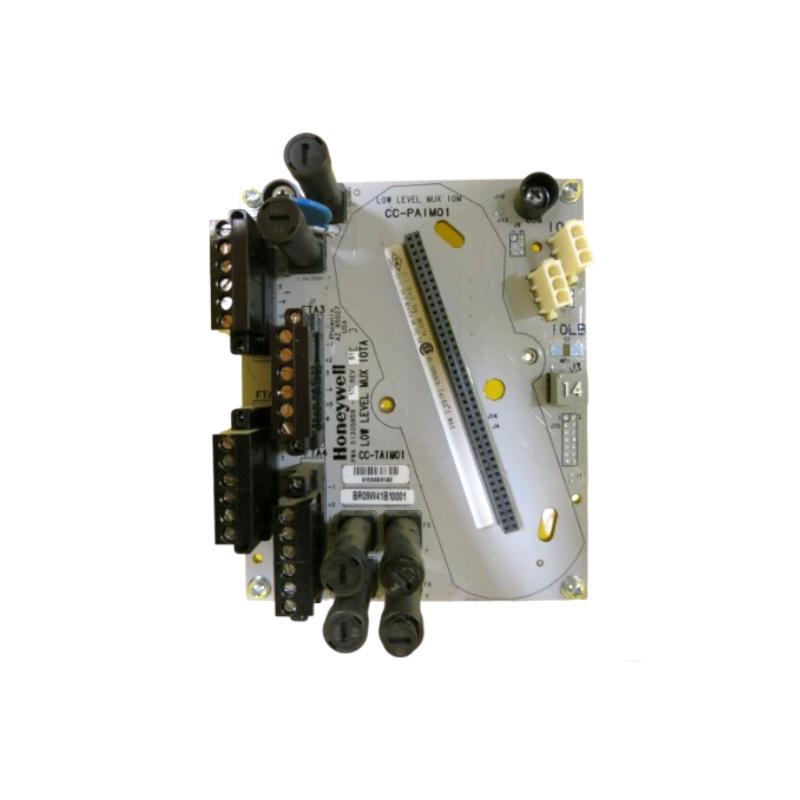

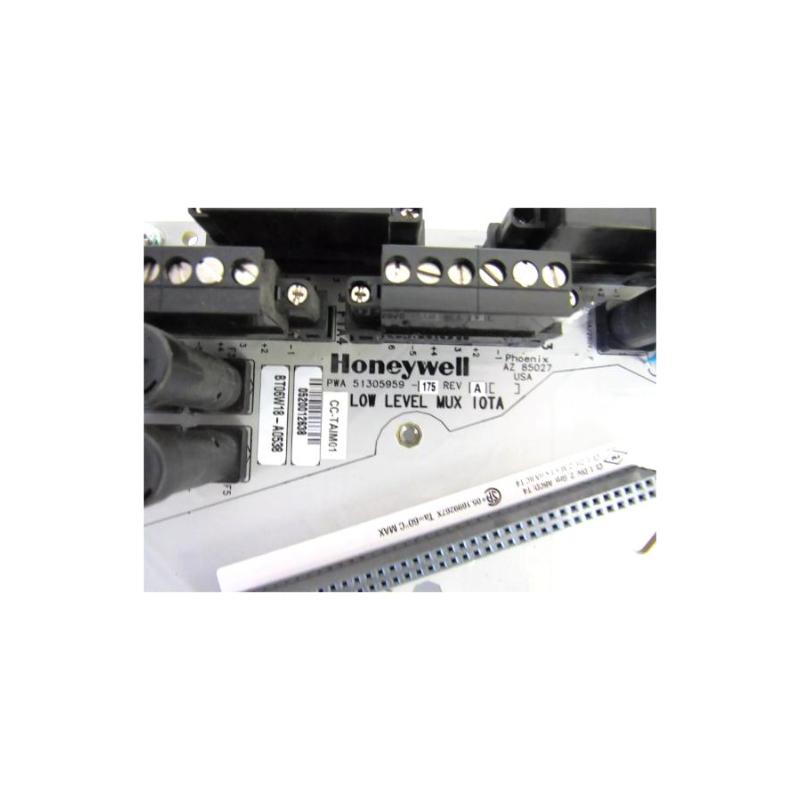

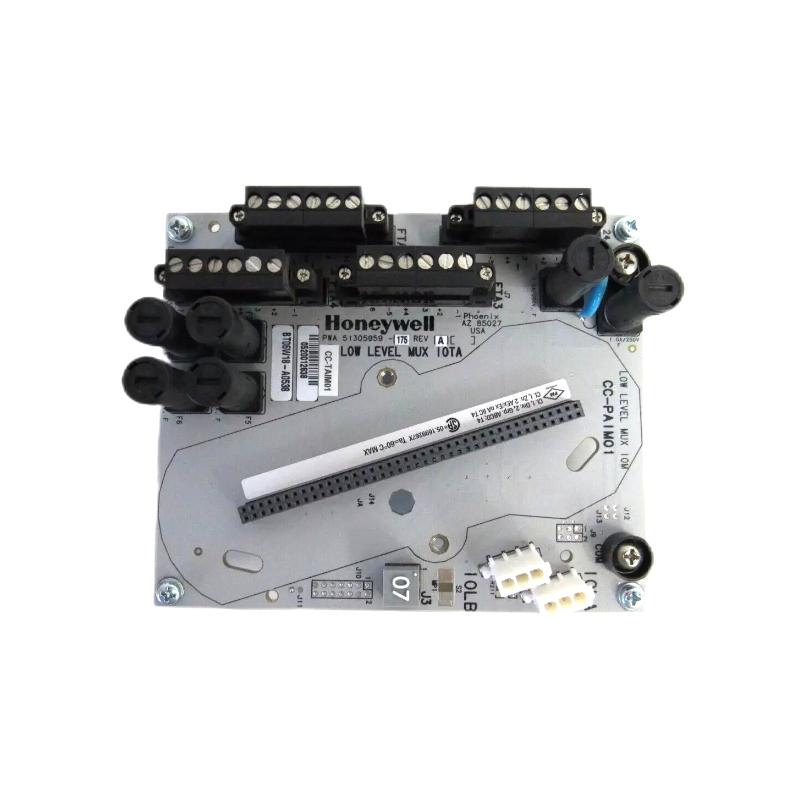

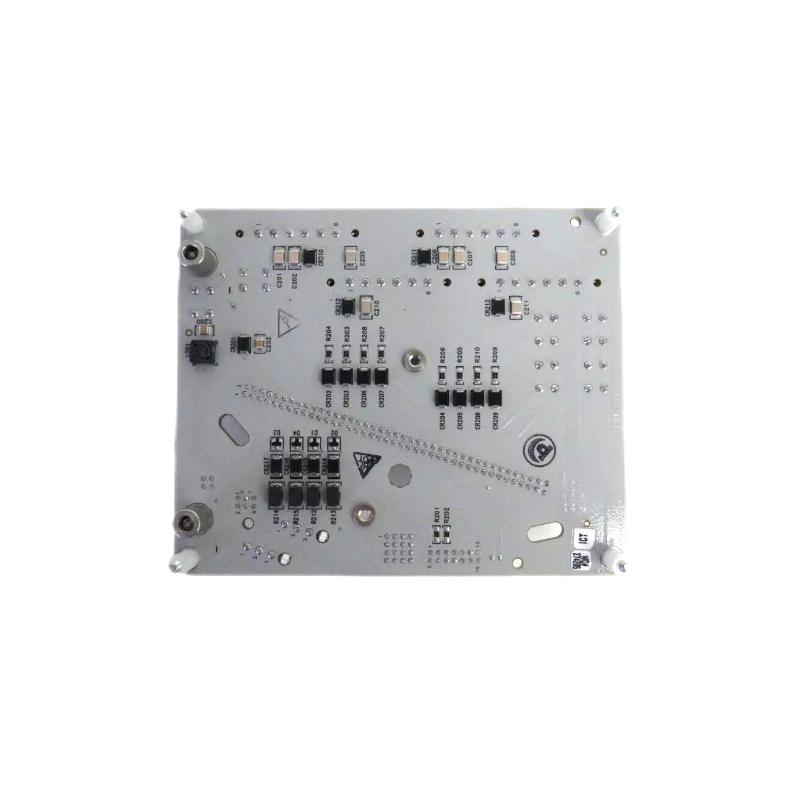

The Honeywell CC‑TAIM01 51305959‑175 Analog Input Module is a precision signal acquisition component designed for the Honeywell C300 distributed control system (DCS). It captures real‑world analog signals from field devices—such as transmitters, sensors, and transducers—and accurately converts them into digital data for monitoring, control logic, and process automation. Built to withstand demanding industrial environments, this module supports reliable measurement and enhances process visibility across critical control loops.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAIM01 (51305959‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω for current inputs |
| Resolution | 16‑bit ADC conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
