Introduction

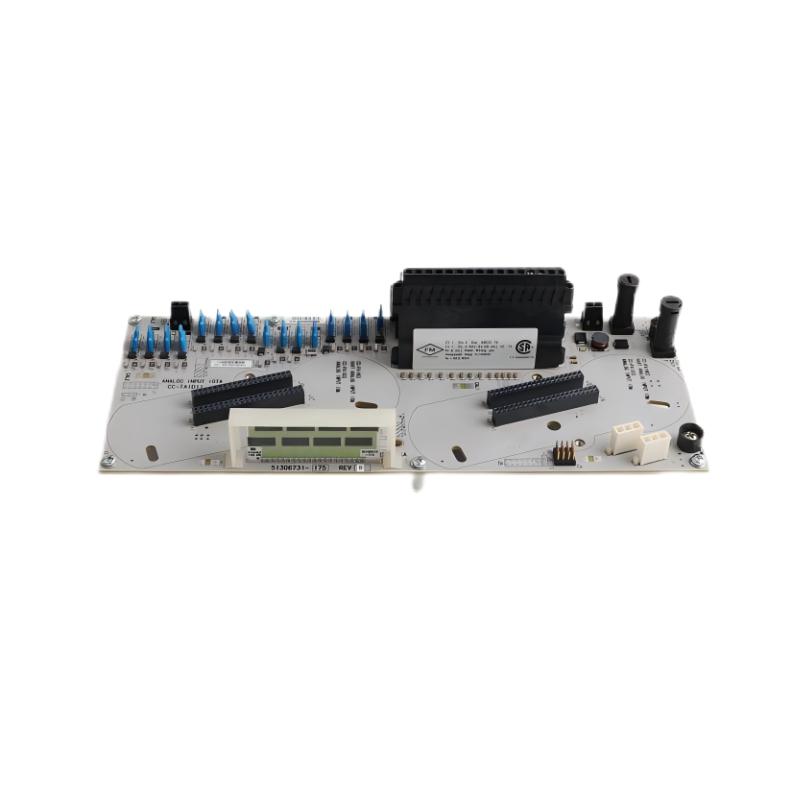

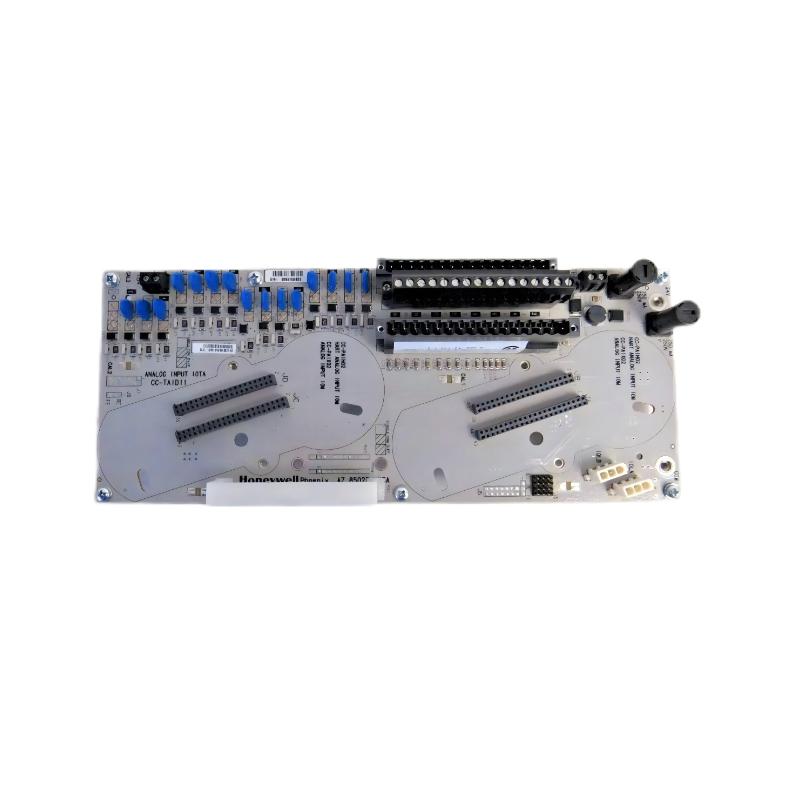

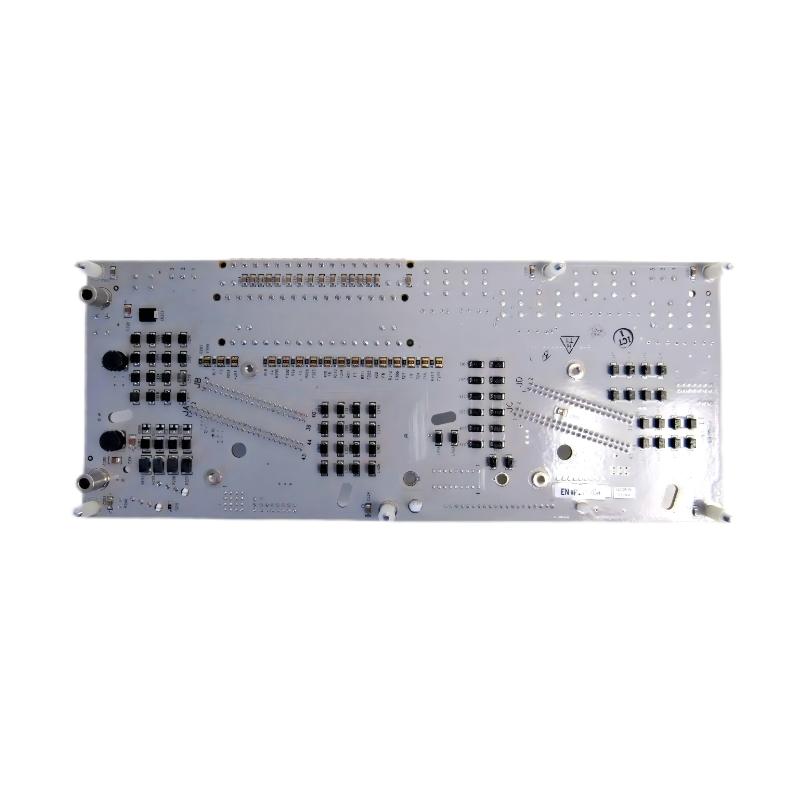

The Honeywell CC‑TAID11 51306731‑175 Analog Input Module is a precision signal acquisition component engineered for the Honeywell C300 distributed control system (DCS). It captures and converts analog signals from field devices into high‑resolution digital data that the controller uses for process monitoring, control logic, and automation strategies. Designed for industrial environments, this module delivers reliable performance under demanding conditions, supporting accurate process measurement and enhancing system responsiveness.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAID11 (51306731‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω for current inputs |
| Resolution | 16‑bit ADC conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
