Introduction

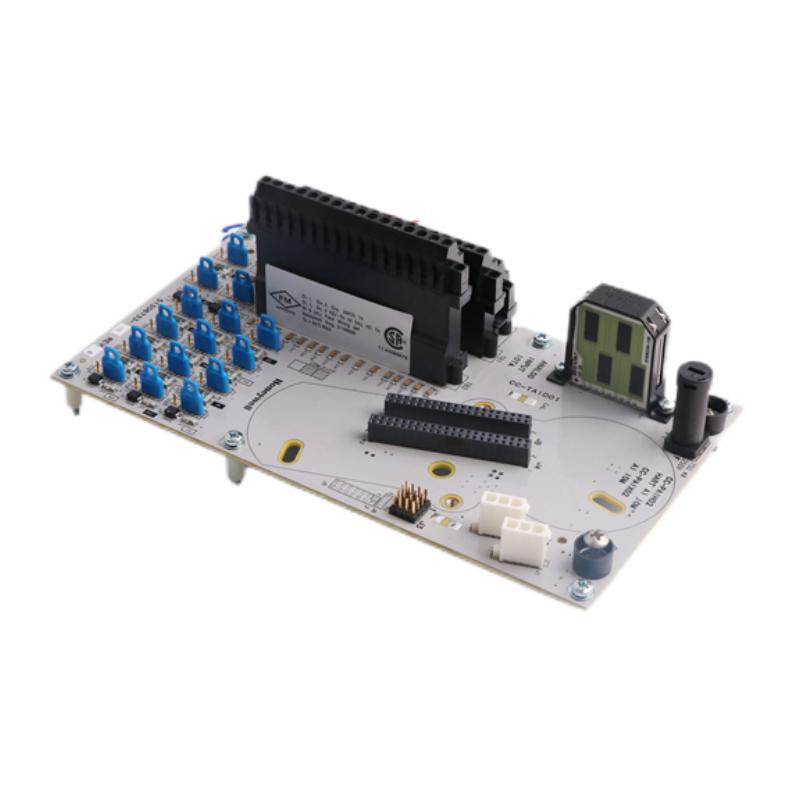

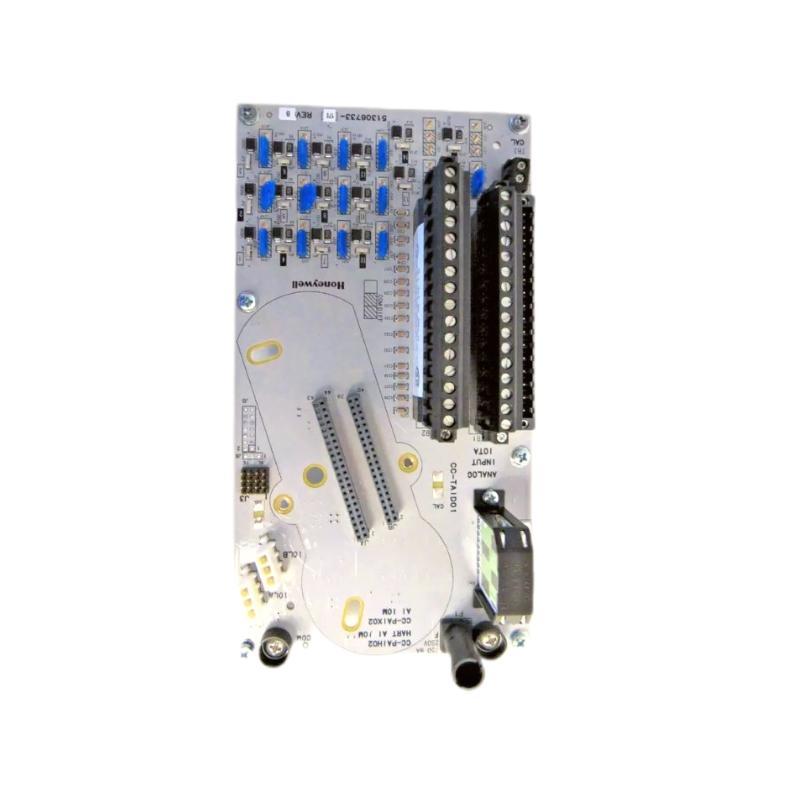

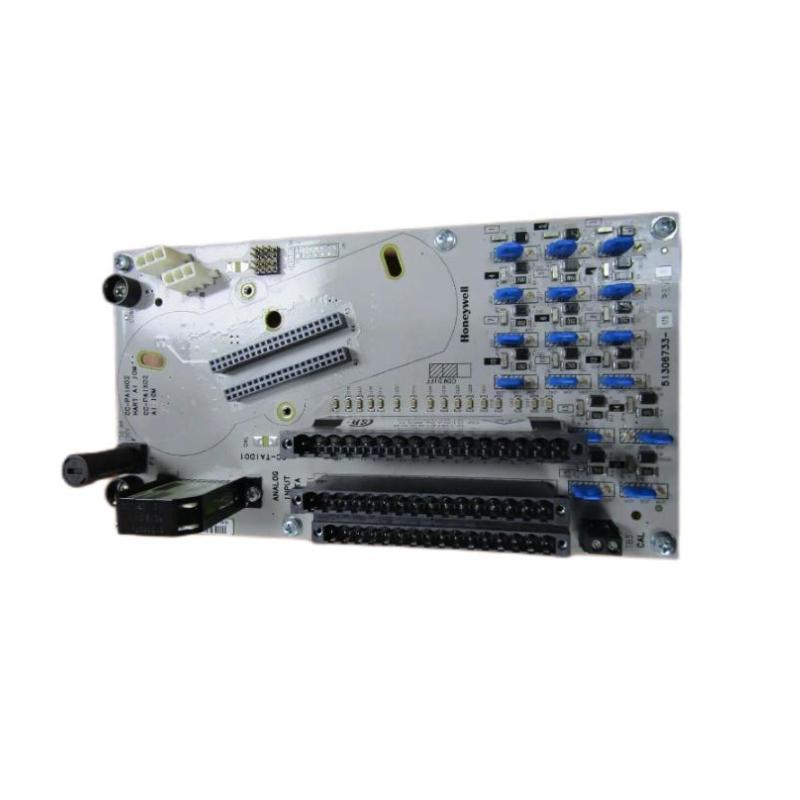

The Honeywell CC‑TAID01 51306733‑175 Analog Input Module is a high‑precision signal acquisition unit designed for the Honeywell C300 distributed control system (DCS). It collects analog signals from field devices such as transmitters, sensors, and industrial instrumentation, accurately converting them into digital data for control and monitoring. Built for demanding industrial environments, this module supports reliable process measurement, control logic, and predictive analytics within plant automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑TAID01 (51306733‑175) |
| Product Type | Analog Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Types | Analog signals (4–20 mA, 0–10 V) |
| Number of Channels | 8 analog input channels |
| Input Impedance | 250 Ω (current inputs) |
| Resolution | 16‑bit ADC conversion |
| Accuracy | ±0.1 % of full scale |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.42 kg |
