Introduction

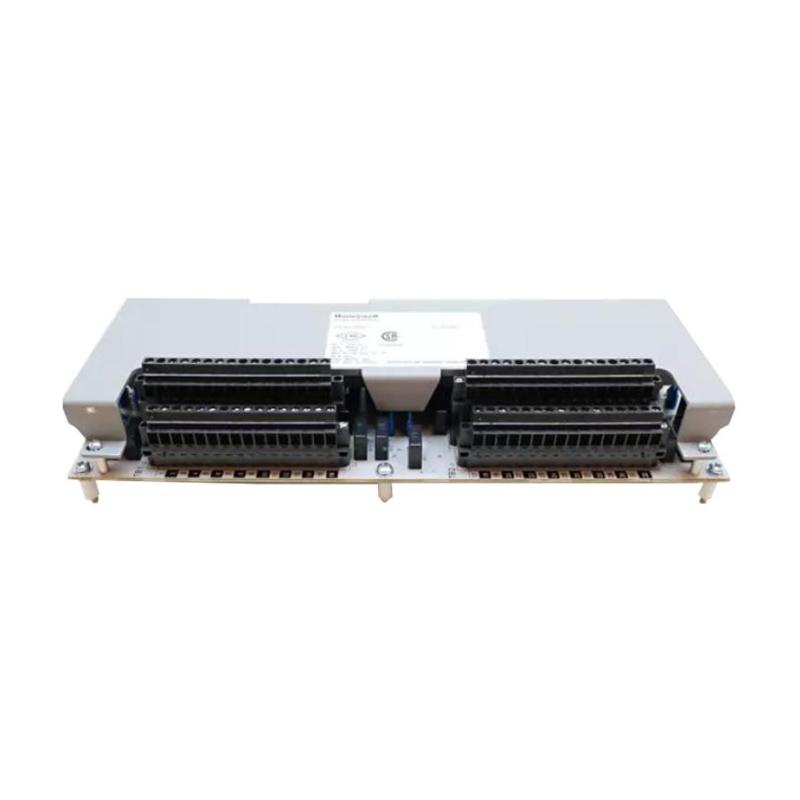

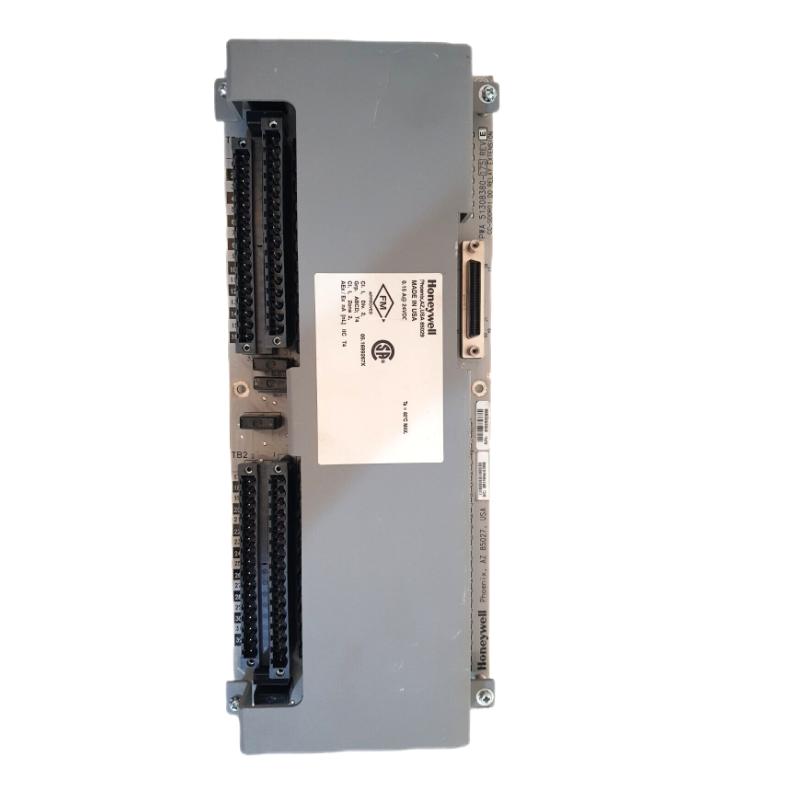

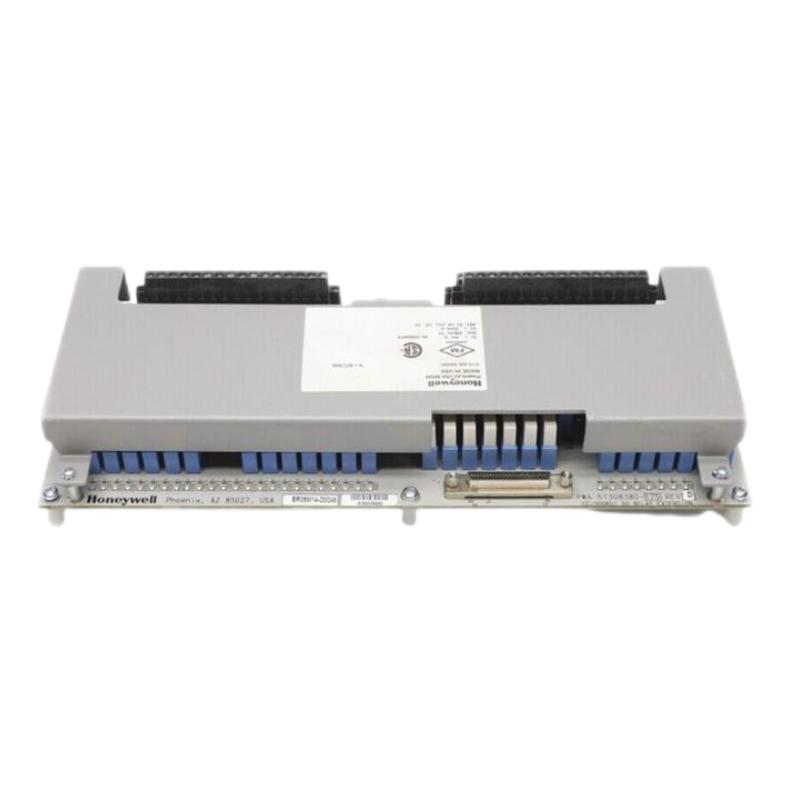

The Honeywell CC‑SDOR01 51308380‑175 Digital Output Relay Extension Module is a versatile interface device designed for the Honeywell C300 distributed control system (DCS). This module provides reliable relay‑driven discrete outputs for controlling external devices such as alarms, indicators, contactors, and solenoid actuators. Engineered for industrial applications, the CC‑SDOR01 enables robust logic output integration and simplifies field device control, enhancing automation and safety functions within process environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC‑SDOR01 (51308380‑175) |
| Product Type | Digital Output Relay Extension Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Output Type | Discrete relay outputs |
| Number of Outputs | 16 relay channels (typically) |
| Output Contact Type | Form C (change‑over) or Form A/B (model dependent) |
| Load Type | Compatible with common industrial loads (inductive/resistive) |
| Operating Voltage | Logic interface from C300 backplane |
| Relay Rating | Contact ratings suitable for field actuators/indicators |
| Isolation | Channel‑to‑system electrical isolation |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non‑condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | Approx. 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.45 kg |
