Honeywell CC-PPIX01 51410089-175 Pulse Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Honeywell CC-PPIX01 51410089-175 Pulse Input Module

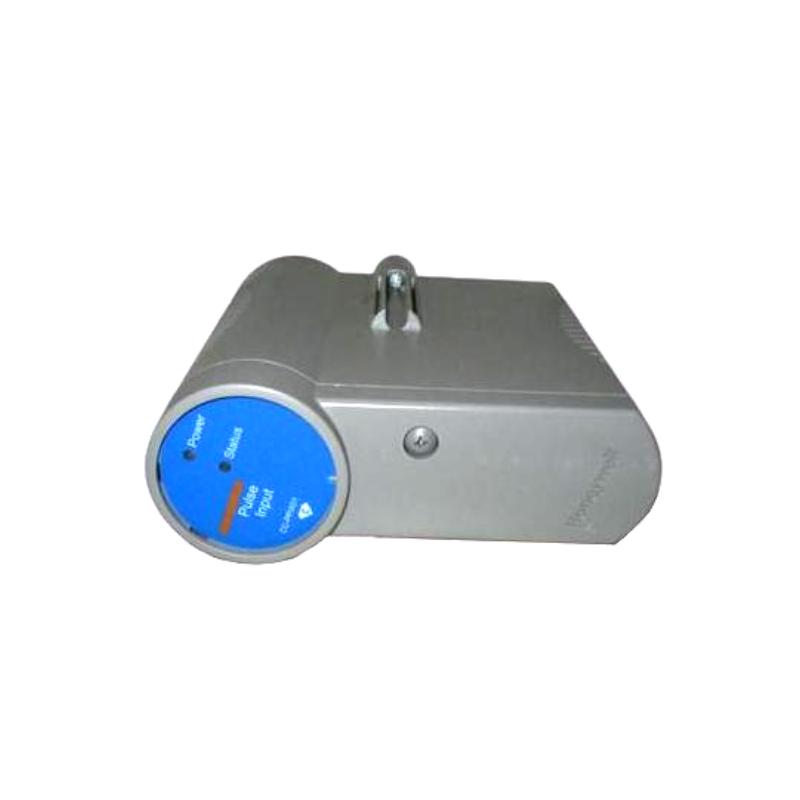

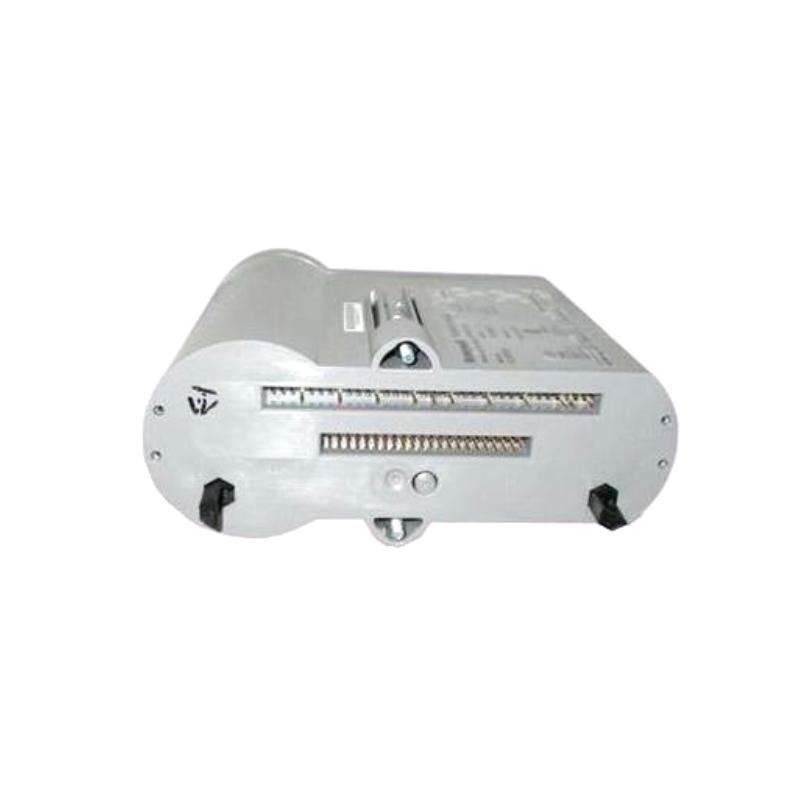

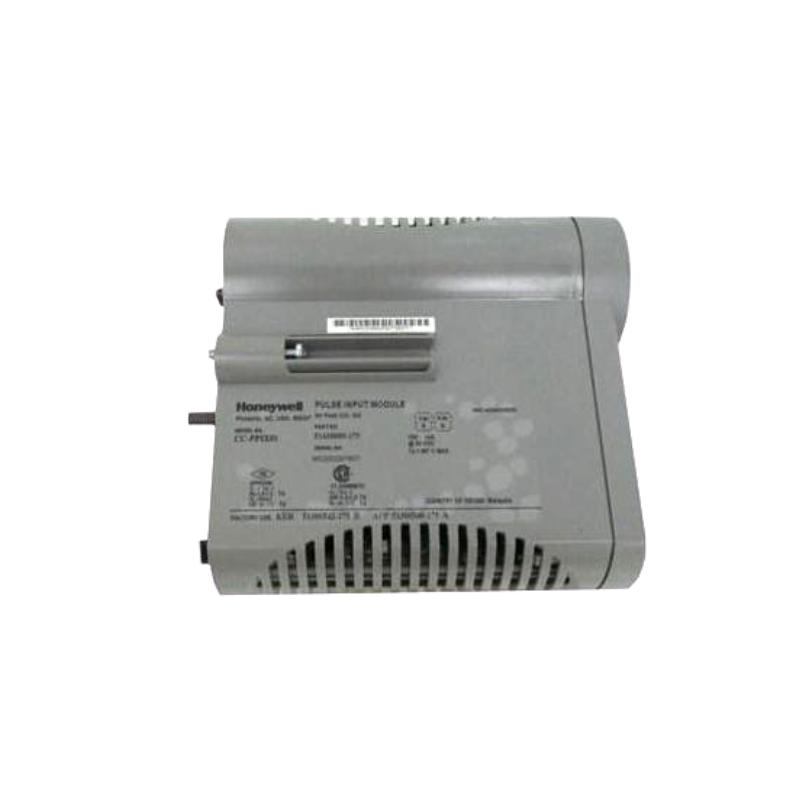

Name: Honeywell CC-PPIX01 51410089-175 Pulse Input Module
Brand: Honeywell DCS
SKU: 1438
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:CC-PPIX01 51410089-175
Product Origin:USA
Product Dimensions:160 mm × 25 mm × 100 mm
Product Weight:0.4kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Honeywell CC-PPIX01 51410089-175 Pulse Input Module is a dedicated interface designed for the Honeywell C300 distributed control system (DCS). It accurately captures high-speed pulse signals from field devices such as flow meters, speed sensors, and totalizers, and converts them into digital data for process monitoring and control. Built for reliable performance in industrial environments, this module supports real-time counting and event tracking, enabling enhanced process visibility and control logic execution.

Technical Specifications

Specification	Details
Model	CC-PPIX01 (51410089-175)
Product Type	Pulse Input Module
System Compatibility	Honeywell C300 Distributed Control Systems
Input Type	Pulse signals from field instruments
Supported Frequencies	High-speed pulse acquisition
Channels	Up to 8-channel pulse inputs (configurable)
Input Voltage Range	Logic-level compatible field pulses
Response Time	Fast edge detection for real-time counting
Isolation	Channel-to-system electrical isolation
Operating Temperature	−20 °C to +70 °C
Humidity Range	5 % to 95 % non-condensing
Mounting	Rack or backplane installation
Dimensions (L × W × H)	160 mm × 25 mm × 100 mm
Weight	Approx. 0.4 kg

Applications

High-speed pulse acquisition from flow meters and totalizers
Monitoring rotational speed inputs and encoder signals
Discrete event counting in industrial automation
Integration with Honeywell C300 DCS for process calculation and control
Supporting production throughput and performance analytics

By converting pulse signals into accurate digital counts, the CC-PPIX01 helps maintain precise process measurement and control.

Advantages

Fast Signal Capture: Optimized for high-frequency pulse detection and counting
Reliable Processing: Electrical isolation ensures accurate input even in noisy environments
Multi-Channel Support: Handles multiple pulse inputs for flexible field device integration
Seamless C300 Integration: Compatible with Honeywell backplanes and C300 system modules
Compact Design: Space-efficient form factor fits high-density installations
Supports Advanced Monitoring: Enables real-time event tracking and logic execution

Technical FAQs

What signals does this module accept?
Pulse inputs from flow meters, speed sensors, encoders, and similar field devices.
How many pulse channels are supported?
Typically up to 8 configurable pulse input channels.
Is it suitable for high-speed pulse acquisition?
Yes, designed for fast edge detection and reliable counting.
What environments is it built for?
Industrial conditions with temperature range −20 °C to +70 °C and high humidity.
Does the module provide input isolation?
Yes, channel-to-system electrical isolation protects signal integrity.
How is this module mounted?
Installed in racks or directly on C300 backplanes.
Which industries commonly use this module?
Power, chemical, water treatment, manufacturing, and process automation sectors.
Can multiple modules be installed together?
Yes, multiple pulse input modules expand system counting and event detection capability.
Does it integrate with process control logic?
Yes, pulse counts can feed control algorithms and performance analytics.
Why choose this module over generic pulse cards?
It is specifically designed for seamless operation within the Honeywell C300 DCS, ensuring precise performance and industrial reliability.
