Introduction

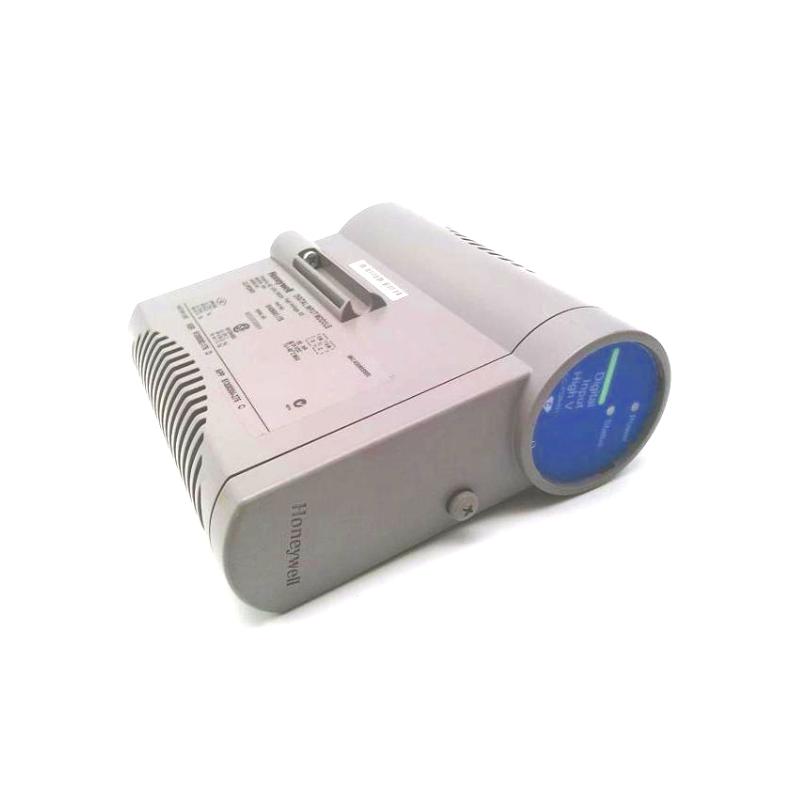

The Honeywell CC-PDIH01 51405041-175 Digital Input Module is a robust, high-reliability component designed for the Honeywell C300 series distributed control system (DCS). It captures discrete digital signals from field devices—such as proximity switches, contact relays, and alarm contacts—and reliably delivers them to the C300 controller for monitoring and control. Built for industrial environments, this module supports precise logic detection, fast response times, and seamless integration into process automation applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CC-PDIH01 (51405041-175) |
| Product Type | Digital Input Module |
| System Compatibility | Honeywell C300 Distributed Control Systems |
| Input Type | Discrete digital signals (e.g., contact closures, logic level inputs) |
| Number of Channels | 16 digital inputs |
| Input Voltage | Logic-level compatible with typical field signals |
| Response Time | Fast detection for real-time control logic |
| Isolation | Channel-to-system electrical isolation |
| Operating Temperature | −20 °C to +70 °C |
| Humidity Range | 5 % to 95 % non-condensing |
| Mounting | Rack or backplane installation |
| Dimensions (L × W × H) | 160 mm × 25 mm × 100 mm |
| Weight | Approx. 0.38 kg |
