Introduction

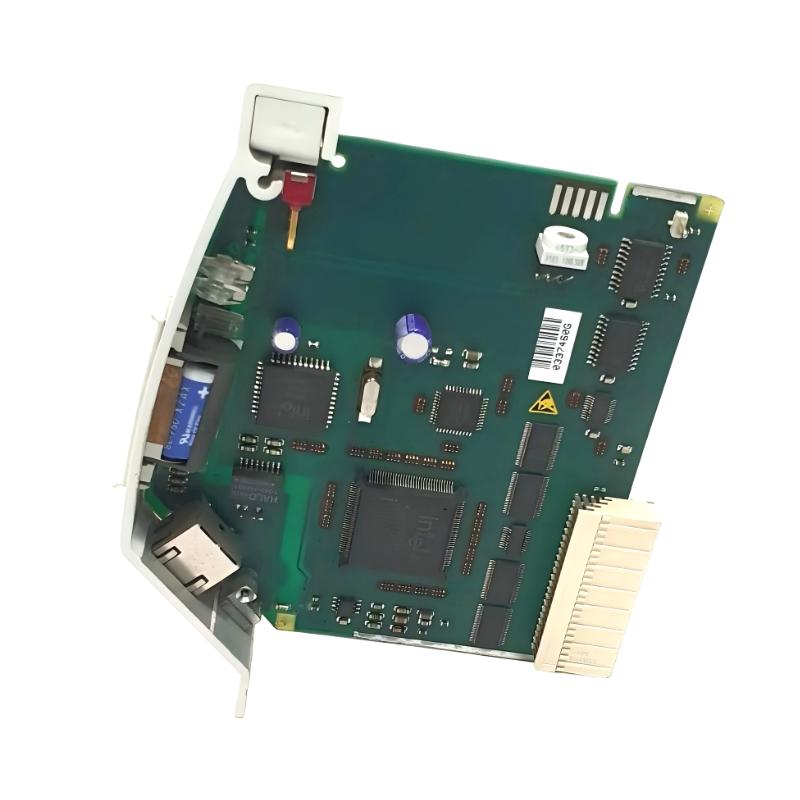

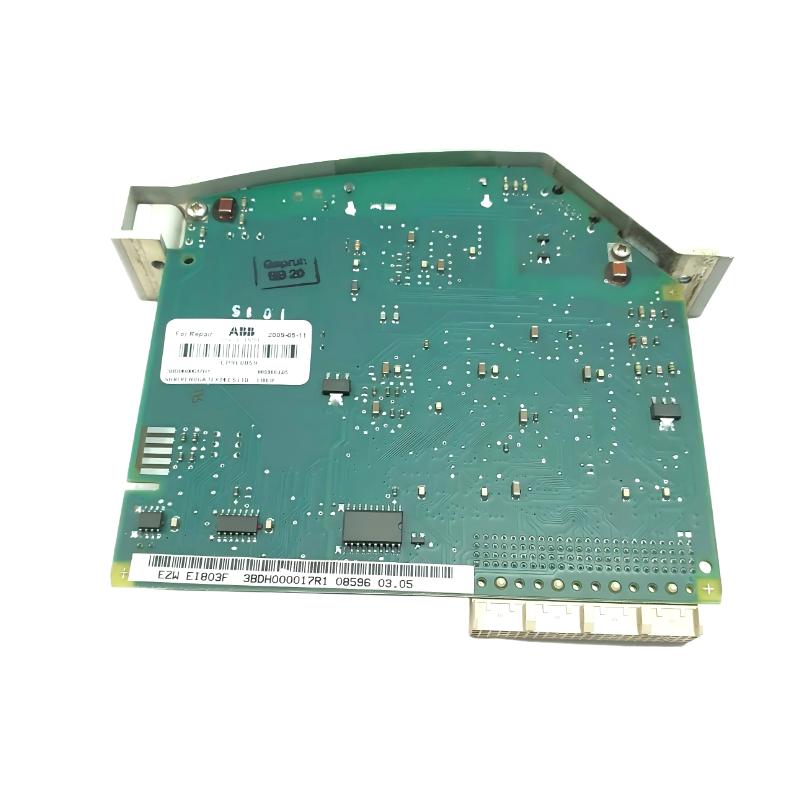

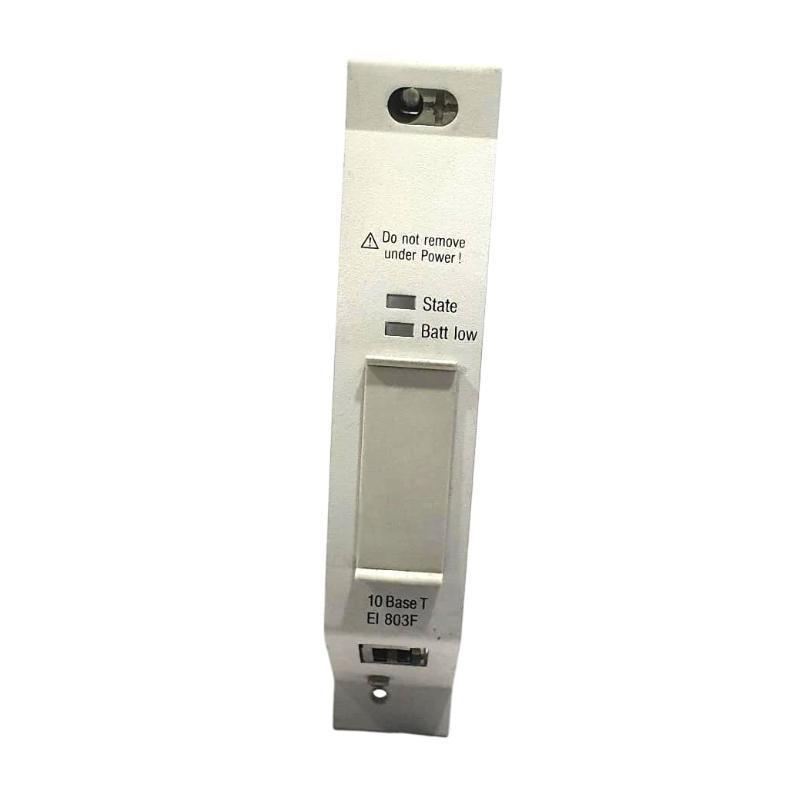

The ABB EI 803F 3BDH000017R1 Ethernet Module is a high-performance module designed for seamless integration into industrial control systems, providing reliable Ethernet communication. This module is ideal for applications where high-speed data transmission and network connectivity are required. It supports both standard Ethernet communication protocols and can be easily integrated into ABB's automation systems for enhanced network connectivity, ensuring smooth and uninterrupted data flow in industrial environments.
Technical Specifications
| Specification | Value |
|---|
| Model | ABB EI 803F 3BDH000017R1 |
| Dimensions | 125 × 155 × 28 mm |
| Weight | 0.15 kg |
| Operating Voltage | 24 VDC ± 20% |
| Temperature Range | -20°C to +60°C |
| Mounting Type | DIN Rail Mounting |
| Communication Ports | Ethernet Port (10/100 Mbps) |
Applications
The ABB EI 803F 3BDH000017R1 module is used in various industrial environments where Ethernet communication is essential for system integration and data exchange:
-
Industrial Automation: It allows seamless communication between control systems, field devices, and monitoring stations, enabling smooth automation processes.
-
Process Control: Provides reliable data transmission between devices and control systems, ensuring real-time process monitoring and control.
-
Energy Management Systems: Facilitates network communication for energy management applications, including real-time monitoring of power consumption and system performance.
-
Oil & Gas: Ensures stable Ethernet connectivity for remote systems and offshore installations where network communication is critical for operational efficiency.
-
Building Management Systems: Used to connect building automation systems for monitoring and controlling HVAC, lighting, and other critical infrastructure.
