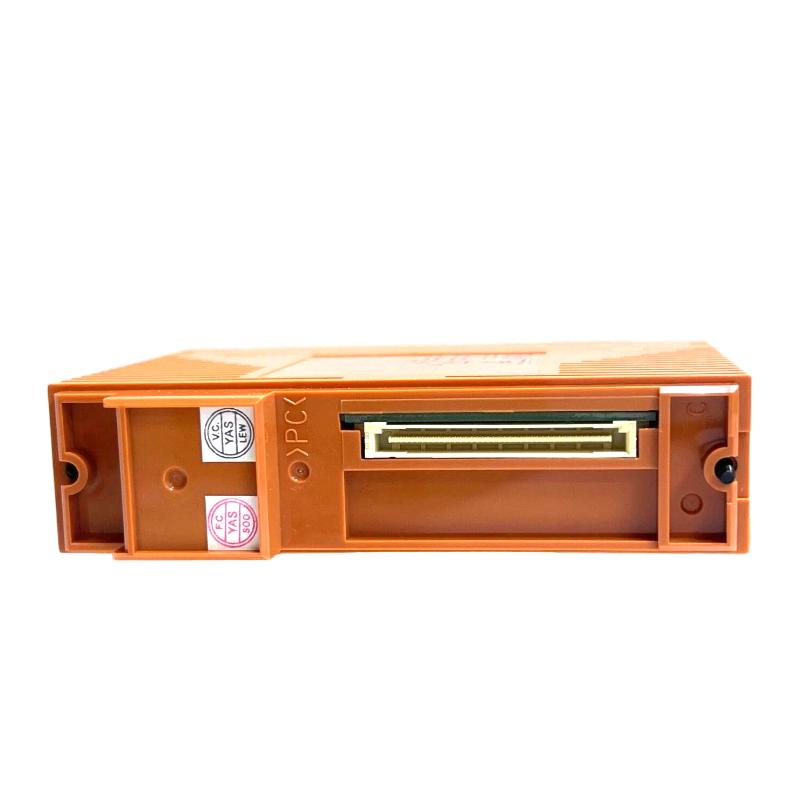

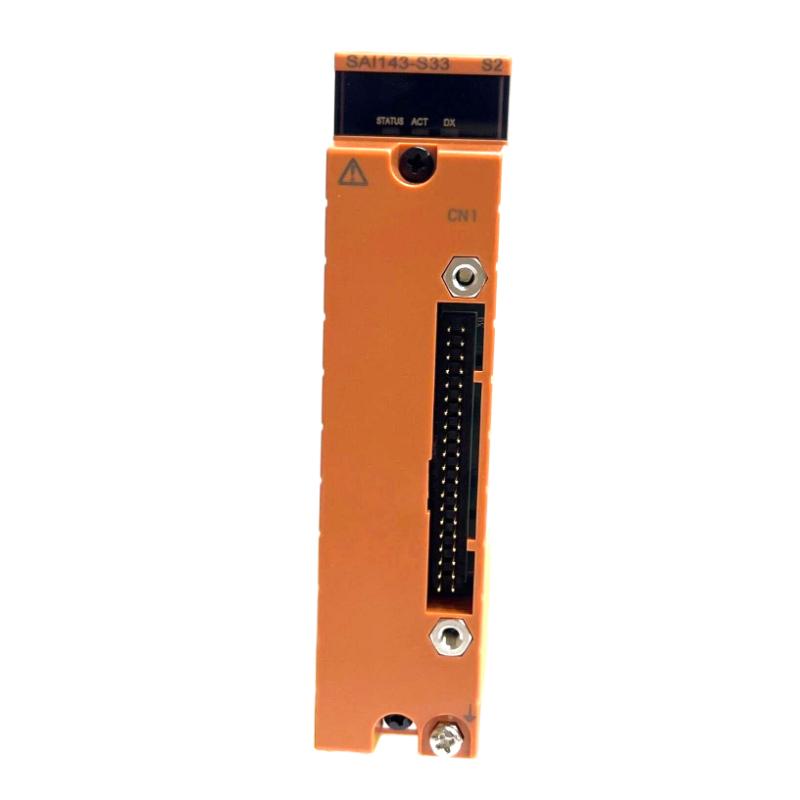

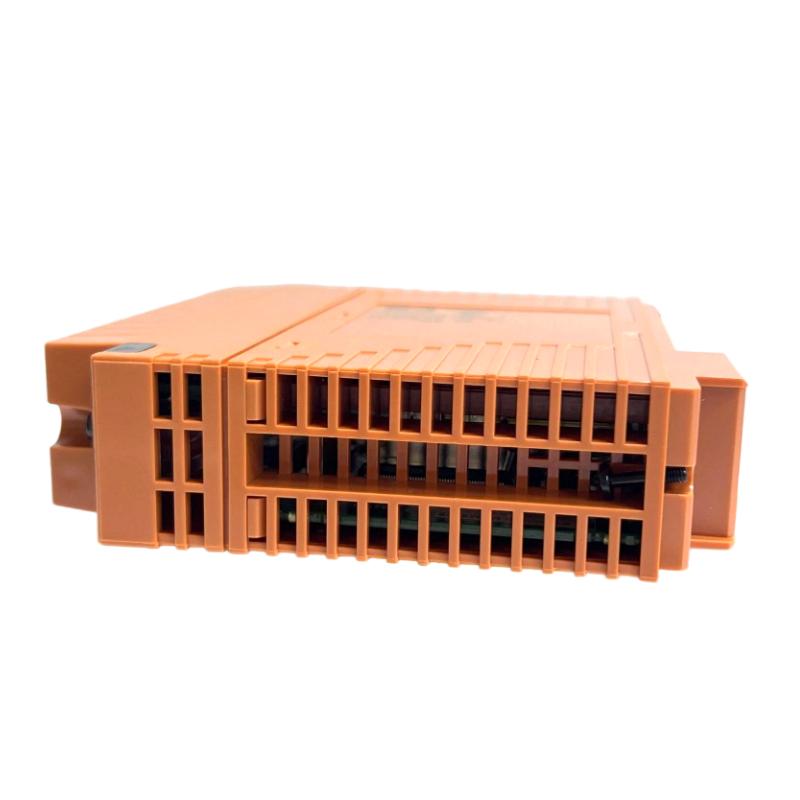

Yokogawa SAI143-S33 Analog Input Module

Brand:Yokogawa Electric
Item No.:SAI143-S33
Product Origin:Japan
Product Dimensions:130 x 107.5 x 32.8 mm
Product Weight:0.34 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Yokogawa SAI143-S33 Analog Input Module is a precision analog input solution designed for accurate signal conversion and data acquisition in industrial automation systems. It provides high-accuracy analog-to-digital conversion for a wide range of analog signals from field devices such as sensors, transmitters, and other analog instruments. The SAI143-S33 is built to handle demanding industrial environments, offering reliable performance for continuous process monitoring, control, and data logging.

With its high resolution and broad compatibility, the SAI143-S33 is an ideal choice for applications in industries such as manufacturing, process control, energy management, and environmental monitoring, where precise analog measurements are essential for effective decision-making and control.

Technical Specifications

SpecificationValue
Input Channels4 (single-ended)
Input Range0–20 mA, 4–20 mA, 0–10 V, 1–5 V
Resolution16-bit
Accuracy±0.1% FS (Full Scale)
Dimensions130 x 107.5 x 32.8 mm
Weight0.34 kg
Power Supply24V DC
Operating Temperature-10°C to 60°C
Mounting TypeDIN Rail Mountable


Applications

The Yokogawa SAI143-S33 Analog Input Module is suitable for a wide range of industrial applications requiring precise analog signal measurement and conversion. Key applications include:

  • Process Control: Provides accurate input for various process control loops, allowing precise monitoring of parameters such as temperature, pressure, and flow.

  • Factory Automation: Interfaces with a variety of analog field devices, offering real-time data to PLCs and control systems to improve production efficiency.

  • Energy Management: Used in energy monitoring systems to acquire data from sensors, helping to track and optimize energy consumption across industrial facilities.

  • Building Automation: Supports HVAC systems, lighting controls, and other building systems that require analog signal monitoring for centralized management.

  • Environmental Monitoring: Facilitates the measurement of environmental parameters such as air quality, temperature, and humidity, assisting in compliance and optimization efforts.


Advantages

  • High-Precision Measurement: With a resolution of 16 bits and an accuracy of ±0.1% FS, the SAI143-S33 ensures highly accurate analog signal conversion for critical industrial applications.

  • Wide Input Range Compatibility: The module supports various input ranges, including 0–20 mA, 4–20 mA, 0–10 V, and 1–5 V, providing flexibility for diverse sensor types and applications.

  • Reliable Performance: Operating in a temperature range of -10°C to 60°C, the module ensures stable performance even in challenging industrial environments.

  • Compact and Efficient Design: The DIN rail mountable design allows for easy installation in control panels and industrial racks, optimizing space usage in automation systems.

  • Low Power Consumption: With a 24V DC power supply requirement, the SAI143-S33 offers low power consumption, making it cost-effective for large-scale implementations.

  • Ease of Integration: The module is fully compatible with Yokogawa’s automation products, simplifying integration into existing systems and enhancing system flexibility.


Technical FAQs

  1. What input signal types are supported by the SAI143-S33?
    The module supports a range of input signal types, including 0–20 mA, 4–20 mA, 0–10 V, and 1–5 V, making it compatible with many field devices.

  2. How accurate is the SAI143-S33?
    The SAI143-S33 offers an accuracy of ±0.1% FS (Full Scale), ensuring reliable and precise analog signal conversion.

  3. What is the resolution of the SAI143-S33?
    The module provides 16-bit resolution, allowing for precise analog signal measurements for critical process monitoring and control.

  4. What is the power supply requirement for the SAI143-S33?
    The SAI143-S33 operates with a 24V DC power supply, which is commonly used in industrial automation systems.

  5. What is the temperature range for the SAI143-S33?
    The module is designed to operate reliably in ambient temperatures ranging from -10°C to 60°C, making it suitable for a wide range of industrial conditions.

  6. How is the SAI143-S33 installed?
    The module is DIN rail mountable, which makes installation quick and easy, especially in control panels and automation systems.

  7. Can the SAI143-S33 be used in energy management systems?
    Yes, the SAI143-S33 is ideal for energy management applications, where it can monitor analog signals from energy meters and sensors.

  8. What industries benefit from the SAI143-S33 module?
    The module is widely used in industries such as process control, factory automation, energy management, building automation, and environmental monitoring.

  9. How does the SAI143-S33 support process control?
    In process control applications, the module measures parameters like temperature, pressure, and flow, providing real-time data to control systems for accurate process regulation.

  10. Is the SAI143-S33 compatible with other Yokogawa automation products?
    Yes, the module integrates seamlessly with other Yokogawa automation systems, providing a comprehensive solution for industrial data acquisition and control.
