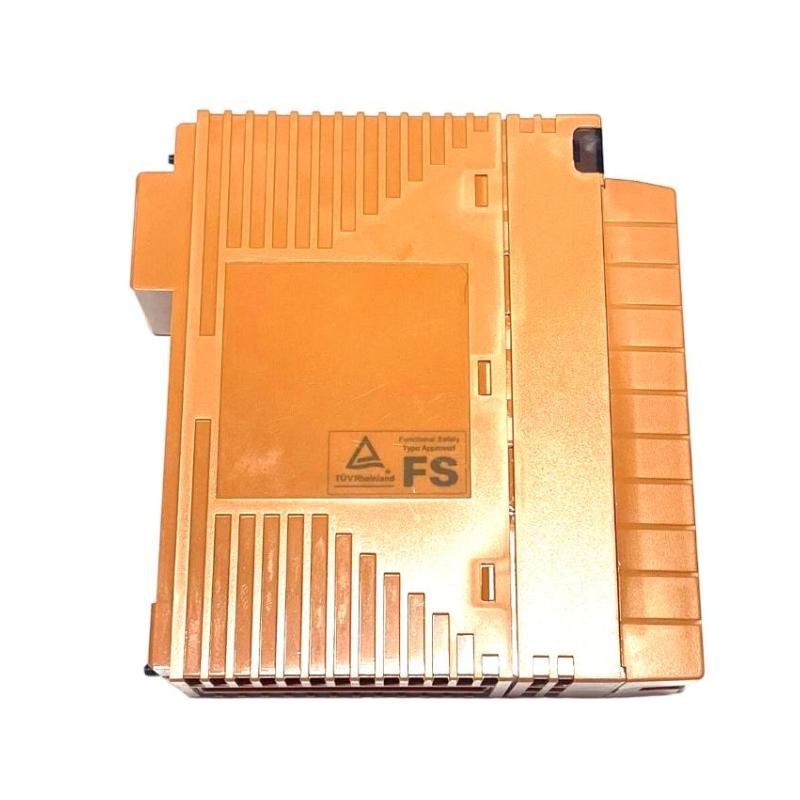

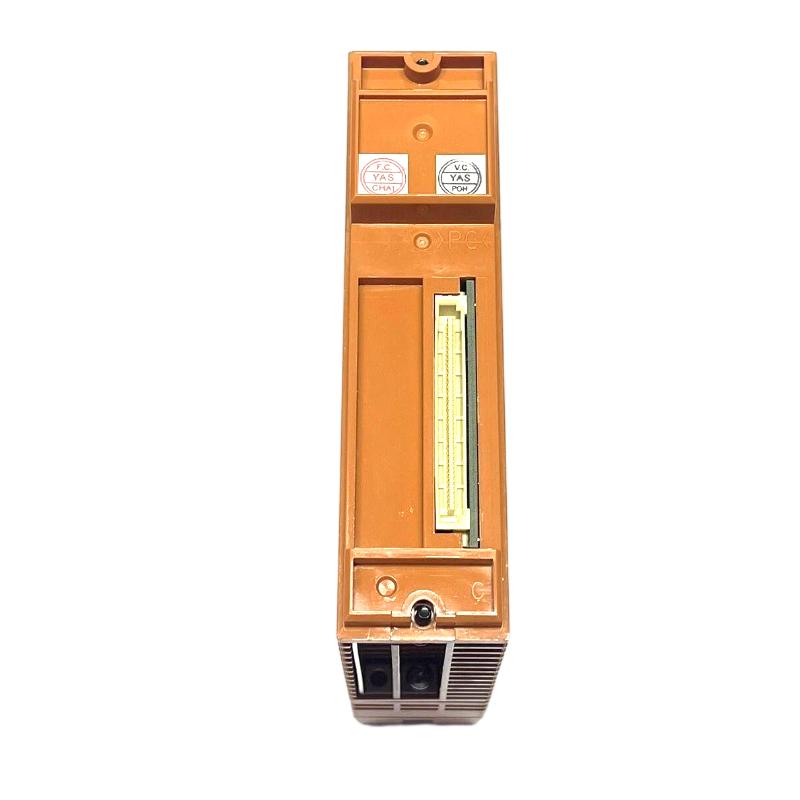

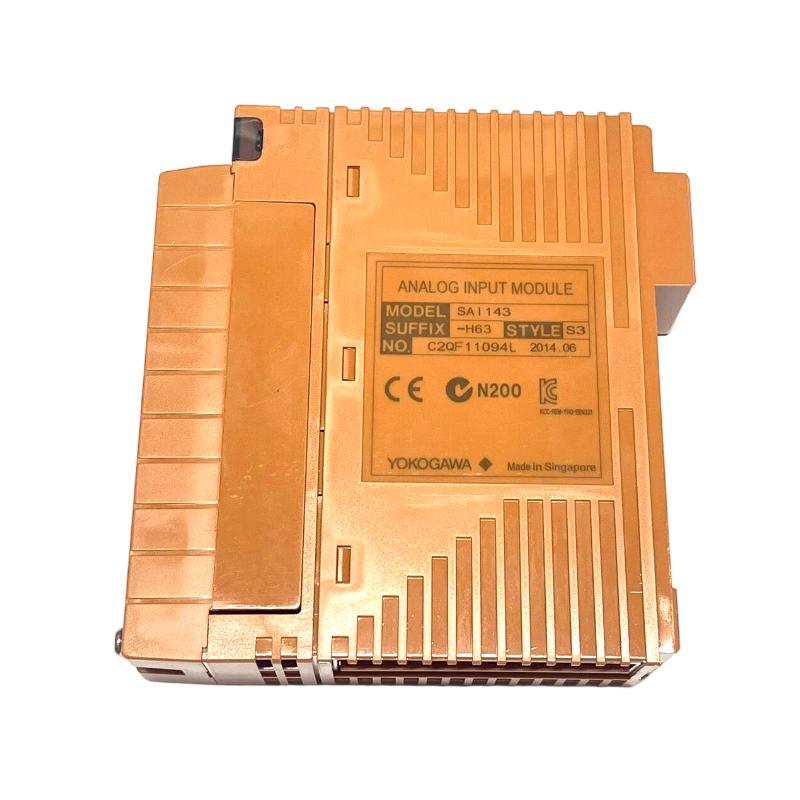

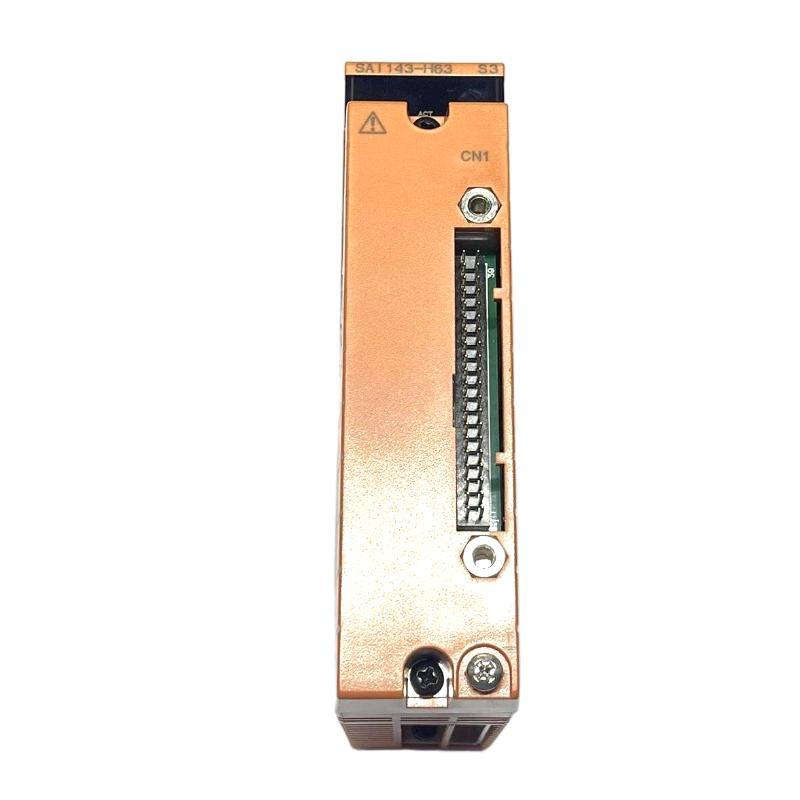

Yokogawa SAI143-H63 Analog Input Module

Brand:Yokogawa Electric
Item No.:SAI143-H63
Product Origin:Japan
Product Dimensions:130 x 107.5 x 32.8 mm
Product Weight:0.39 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Yokogawa SAI143-H63 Analog Input Module is designed to provide high-precision and reliable analog signal conversion for industrial automation systems. This module facilitates the measurement of various analog signals, such as voltage and current, from sensors and field devices, and converts them into a digital format that can be processed by the control system. The SAI143-H63 ensures accurate and stable signal input, which is crucial for monitoring and controlling industrial processes in real-time.

With its robust design and compatibility with Yokogawa’s automation platform, the SAI143-H63 is ideal for industries that require precise data acquisition, such as manufacturing, process control, and energy management.

Technical Specifications

SpecificationValue
Input Channels4 (single-ended)
Input Range0–20 mA, 4–20 mA, 0–10 V, 1–5 V
Resolution16-bit
Accuracy±0.1% FS (Full Scale)
Dimensions130 x 107.5 x 32.8 mm
Weight0.39 kg
Power Supply24V DC
Operating Temperature-10°C to 60°C
Mounting TypeDIN Rail Mountable


Applications

The Yokogawa SAI143-H63 Analog Input Module is suitable for a wide range of industrial applications where precise analog signal measurement is required. Key applications include:

  • Process Control: Provides accurate analog inputs for control loops, enabling precise monitoring of processes like temperature, pressure, and flow.

  • Factory Automation: Interfaces with sensors and field devices to provide real-time data to PLCs and control systems for optimized production processes.

  • Energy Management: Measures signals from energy meters, sensors, and actuators to facilitate energy monitoring, distribution, and optimization.

  • Building Automation: Monitors analog signals from HVAC systems, lighting control, and environmental sensors, contributing to the efficient management of building systems.

  • Water Treatment: Used for real-time monitoring of various parameters, such as water quality, flow, and pressure, in water treatment plants.


Advantages

  • High Accuracy: The SAI143-H63 offers a high level of accuracy with a tolerance of ±0.1% FS, ensuring that the analog signals are faithfully captured and processed.

  • Wide Input Range: The module supports a wide range of input signals, including 0–20 mA, 4–20 mA, 0–10 V, and 1–5 V, providing flexibility for various sensor types.

  • 16-bit Resolution: With a 16-bit resolution, the module offers precise and high-quality measurements for applications that require fine-grained signal data.

  • Reliable Performance: Designed to operate in harsh industrial environments, the SAI143-H63 is built to withstand temperatures from -10°C to 60°C, ensuring stable performance in various conditions.

  • Easy Integration: The module is DIN rail mountable, making it easy to install in control cabinets and automation systems, simplifying system integration and deployment.

  • Low Power Consumption: With a 24V DC power supply requirement, the module offers low power consumption, making it cost-effective for large-scale automation systems.


Technical FAQs

  1. What input signal ranges does the SAI143-H63 support?
    The SAI143-H63 supports 0–20 mA, 4–20 mA, 0–10 V, and 1–5 V input signals, making it versatile for various field devices and sensors.

  2. How accurate is the SAI143-H63 module?
    The module offers an accuracy of ±0.1% FS (Full Scale), ensuring precise analog signal measurement and conversion.

  3. What is the resolution of the SAI143-H63?
    The SAI143-H63 provides a 16-bit resolution, offering high precision in measuring and processing analog signals.

  4. What is the power supply requirement for the SAI143-H63?
    The module operates with a 24V DC power supply, which is common for industrial I/O modules.

  5. Can the SAI143-H63 be used in extreme temperatures?
    Yes, the SAI143-H63 operates reliably in temperatures ranging from -10°C to 60°C, making it suitable for various industrial environments.

  6. How many input channels does the SAI143-H63 have?
    The module has 4 input channels, each capable of handling a wide range of analog signals.

  7. How is the SAI143-H63 mounted?
    The module is DIN rail mountable, making it easy to install in control panels and other industrial systems.

  8. What industries can benefit from using the SAI143-H63?
    The SAI143-H63 is ideal for process control, factory automation, energy management, building automation, and water treatment, where accurate analog signal measurement is required.

  9. What is the typical application of the SAI143-H63 in process control?
    In process control, the SAI143-H63 is used to measure parameters like temperature, pressure, and flow, providing real-time data for accurate control loop adjustments.

  10. Is the SAI143-H63 compatible with Yokogawa's other automation products?
    Yes, the module integrates seamlessly with other Yokogawa automation products, enhancing the overall efficiency and reliability of industrial systems.
