Introduction

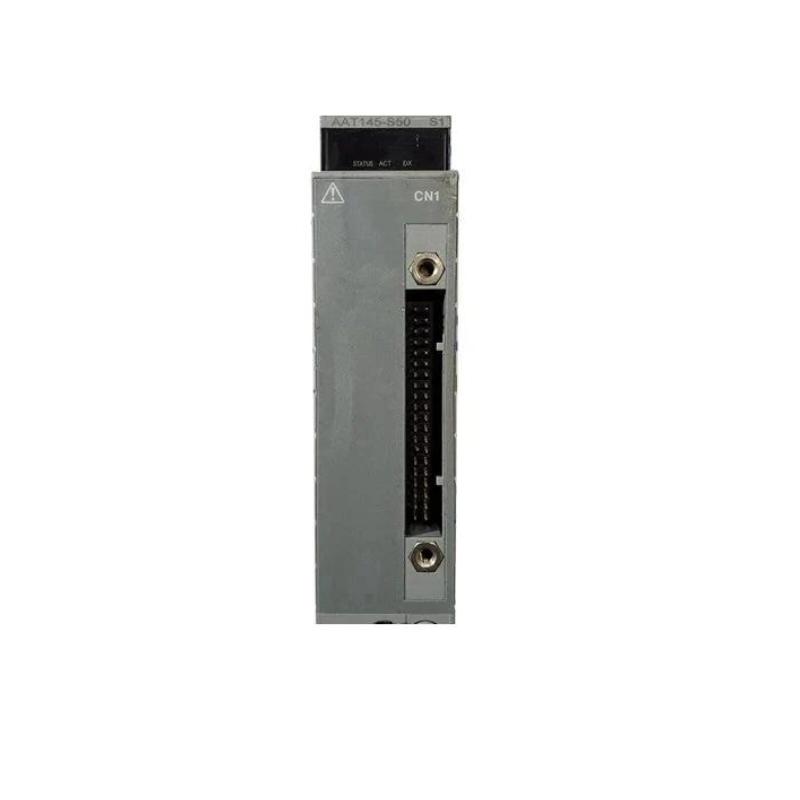

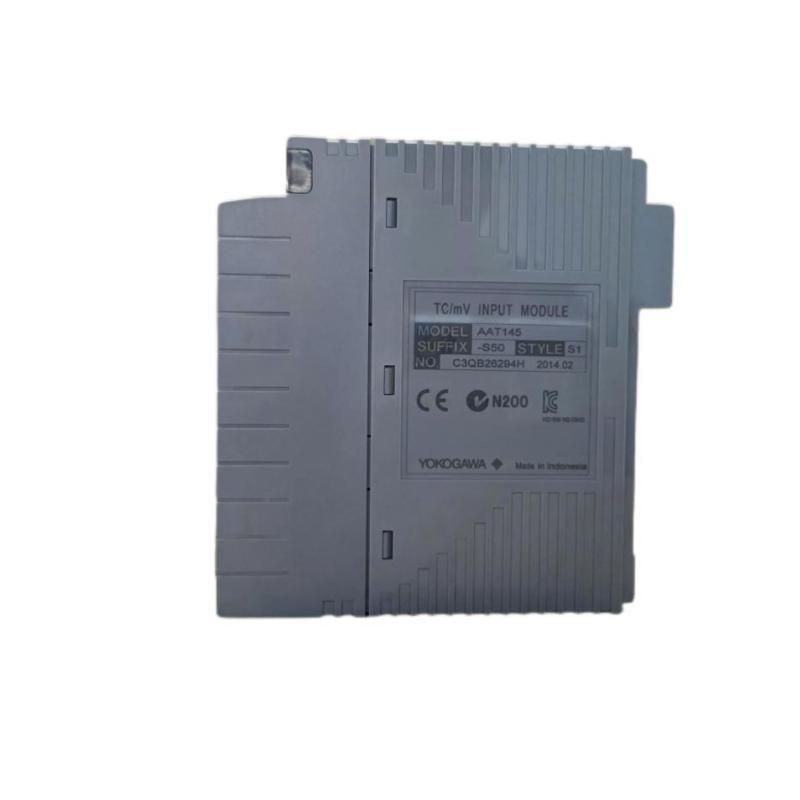

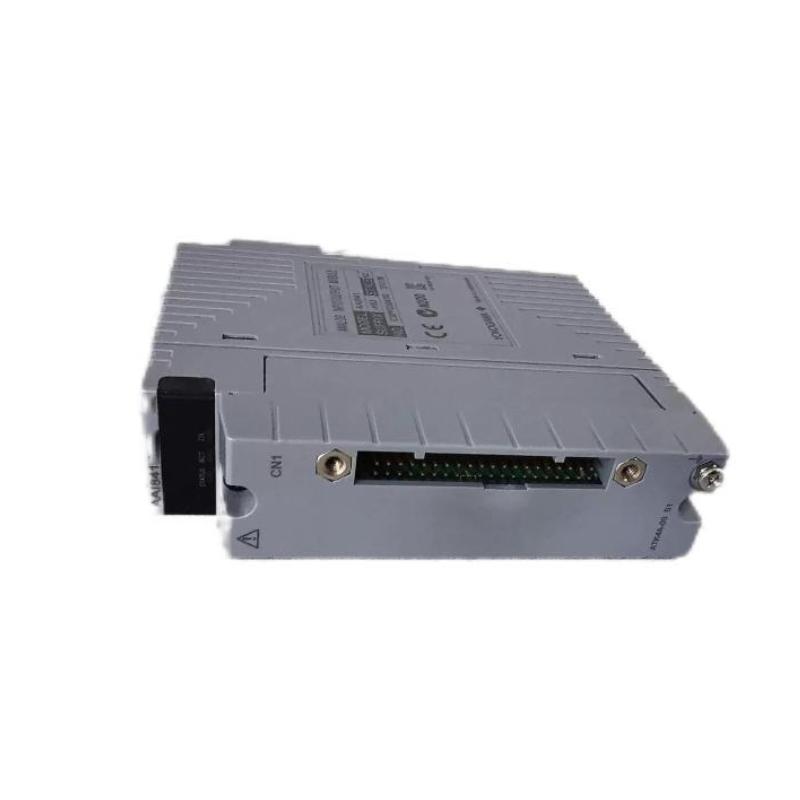

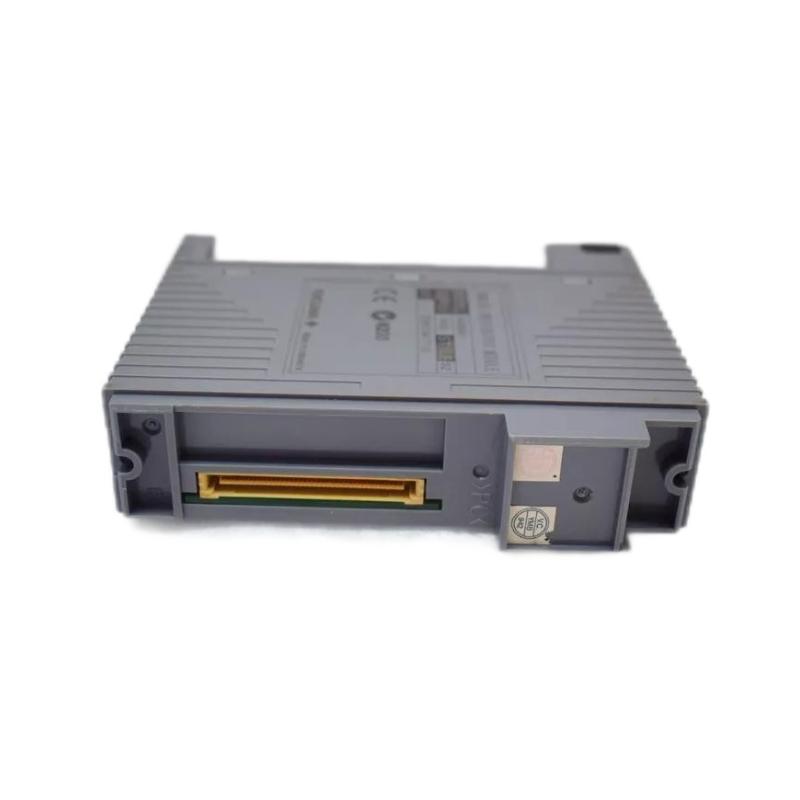

The Yokogawa AAT145-S50 TC/mV Input Module is a high-performance, industrial-grade module designed for precise acquisition of thermocouple (TC) and millivolt (mV) signals in automation and process control systems. It efficiently converts field temperature and low-voltage signals into accurate digital data for Yokogawa AAT series controllers. With robust construction and reliable performance, this module is ideal for temperature monitoring, process automation, energy management, and predictive maintenance applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AAT145-S50 |
| Product Type | TC / mV Input Module |
| Channels | 16 input channels |
| Supported Sensors | Thermocouples (K, J, T, E, R, S, B, N), mV signals |
| Input Range | TC: -200°C to 1800°C; mV: ±75 mV |
| Accuracy | ±0.1% full scale |
| Sampling Rate | Up to 100 ms per channel |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Communication | Compatible with Yokogawa AAT series controllers |
| Dimensions (L×W×H) | 145 mm × 95 mm × 50 mm |
| Weight | 0.55 kg (module), 1.2 kg (shipping) |
