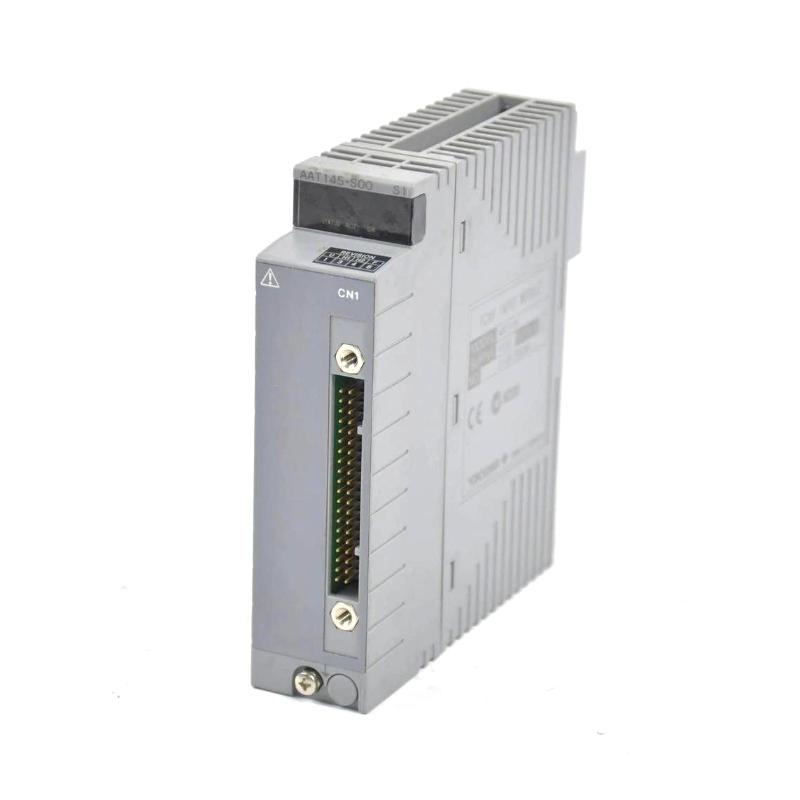

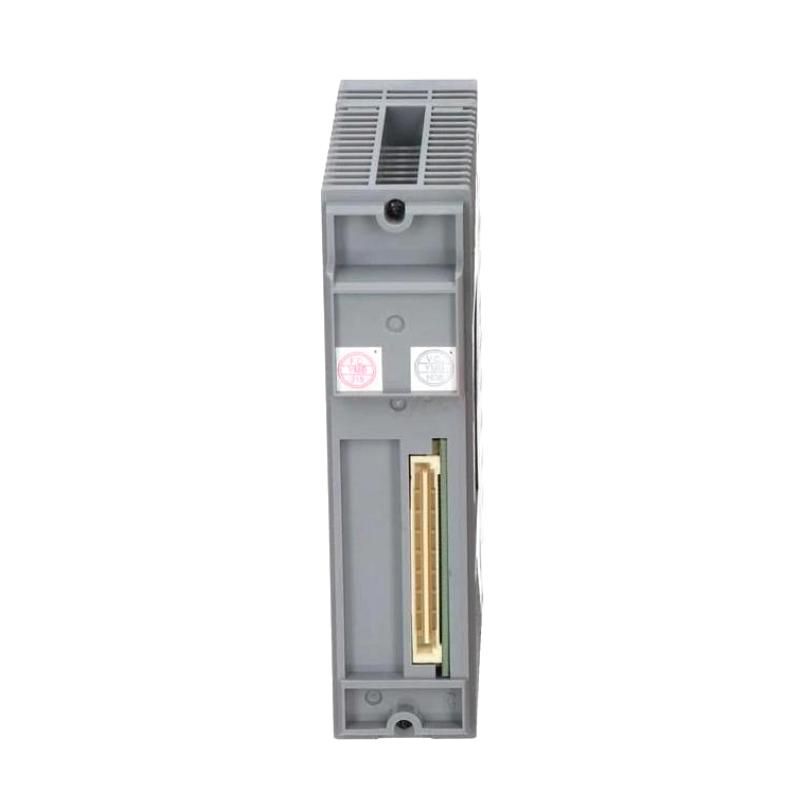

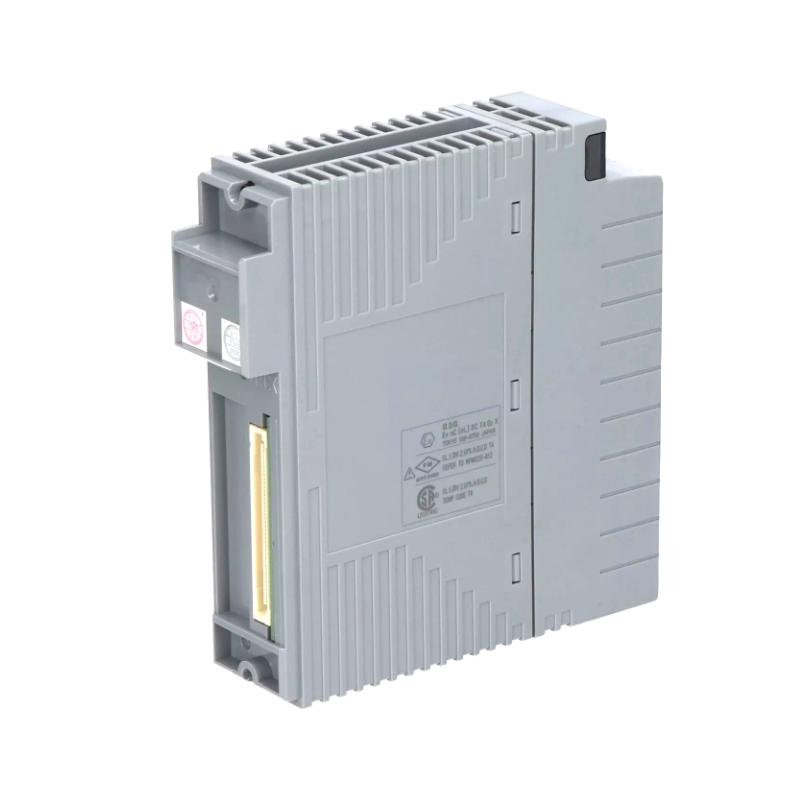

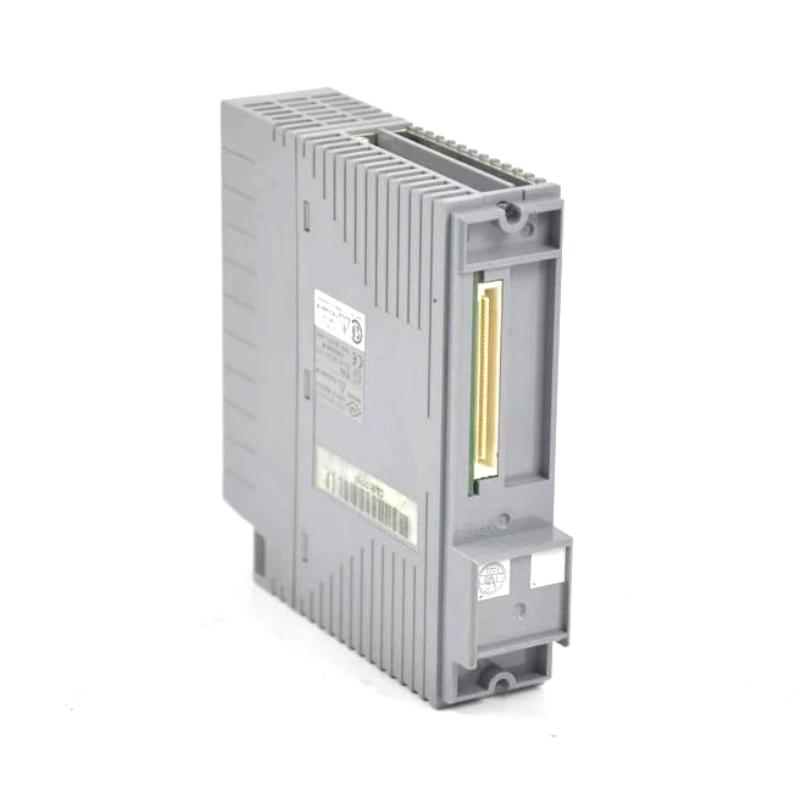

Yokogawa AAT145-S00 TC/mV Input Module

Name: Yokogawa AAT145-S00 TC/mV Input Module
Brand: Yokogawa Electric
SKU: 1273
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAT145-S00
Product Origin:Japan
Product Dimensions:145 mm × 95 mm × 50 mm
Product Weight:0.55kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAT145-S00 TC/mV Input Module is a high-performance module engineered for precise acquisition of thermocouple (TC) and millivolt (mV) signals in industrial automation and process control systems. This module accurately converts field temperature and low-voltage signals into digital data compatible with Yokogawa AAT series controllers. Designed for durability and industrial reliability, the AAT145-S00 is ideal for applications such as process monitoring, temperature measurement, and predictive maintenance.

Technical Specifications

Specification	Details
Model	AAT145-S00
Product Type	TC / mV Input Module
Channels	16 input channels
Supported Sensors	Thermocouples (K, J, T, E, R, S, B, N), mV signals
Input Range	TC: -200°C to 1800°C; mV: ±75 mV
Accuracy	±0.1% full scale
Sampling Rate	Up to 100 ms per channel
Isolation	Channel-to-channel and channel-to-system isolation
Communication	Compatible with Yokogawa AAT series controllers
Dimensions (L×W×H)	145 mm × 95 mm × 50 mm
Weight	0.55 kg (module), 1.2 kg (shipping)

Applications

Multi-channel thermocouple temperature monitoring
Low-voltage (mV) signal acquisition for industrial processes
Integration with Yokogawa AAT series controllers for real-time monitoring
Industrial process automation and control
Energy monitoring and predictive maintenance

The module provides reliable real-time data, enabling efficient process control and operational decision-making.

Advantages

High Accuracy: Captures thermocouple and mV signals with precision.
Wide Sensor Compatibility: Supports multiple thermocouple types and low-voltage inputs.
Industrial Reliability: Resistant to vibration, temperature fluctuations, and electrical noise.
Channel Isolation: Protects signal integrity and prevents interference.
Seamless Integration: Fully compatible with Yokogawa AAT series controllers.
Compact & Robust: Lightweight, easy to install in control panels or modular racks.

Technical FAQs

What is the primary function of this module?
To acquire thermocouple and millivolt signals and deliver precise data to process control systems.
How many channels does it support?
16 input channels.
Which thermocouple types are compatible?
K, J, T, E, R, S, B, and N types.
What is the measurement range?
Thermocouples: -200°C to 1800°C; mV signals: ±75 mV.
What is the module’s accuracy?
±0.1% full scale.
Is it suitable for harsh industrial environments?
Yes, designed to withstand vibration, temperature swings, and electrical noise.
Does it provide channel isolation?
Yes, both channel-to-channel and channel-to-system isolation.
Can it integrate with Yokogawa AAT controllers?
Yes, fully compatible with AAT series systems.
What is the sampling rate per channel?
Up to 100 ms.
Why choose this module over other input modules?
Offers multi-channel high-precision thermocouple and mV measurement in a compact, industrial-grade module.
