Yokogawa AAT141-S00 TC/mV Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

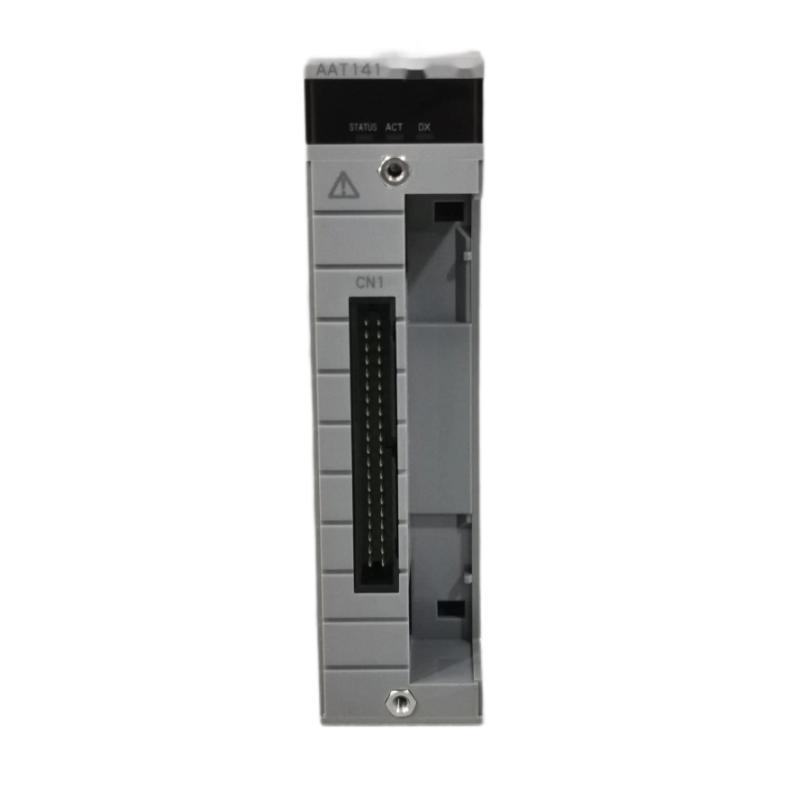

Yokogawa AAT141-S00 TC/mV Input Module

Name: Yokogawa AAT141-S00 TC/mV Input Module
Brand: Yokogawa Electric
SKU: 1269
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAT141-S00
Product Origin:Japan
Product Dimensions:145 mm × 95 mm × 50 mm
Product Weight:0.55kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAT141-S00 TC/mV Input Module is a high-performance interface designed for precise temperature and low-voltage signal acquisition in industrial automation and process control systems. Supporting multiple thermocouple and millivolt channels, this module converts raw field signals into accurate, real-time data for Yokogawa AAT series controllers. Its durable, industrial-grade design ensures dependable performance in challenging environments, making it ideal for process monitoring, energy management, and predictive maintenance applications.

Technical Specifications

Specification	Details
Model	AAT141-S00
Product Type	TC / mV Input Module
Channels	16 input channels
Supported Sensors	Thermocouples (K, J, T, E, R, S, B, N), mV signals
Input Range	TC: -200°C to 1800°C; mV: ±75 mV
Accuracy	±0.1% full scale
Sampling Rate	Up to 100 ms per channel
Isolation	Channel-to-channel and channel-to-system isolation
Communication	Compatible with Yokogawa AAT series controllers
Dimensions (L×W×H)	145 mm × 95 mm × 50 mm
Weight	0.55 kg (module), 1.2 kg (shipping)

Applications

Multi-channel thermocouple temperature monitoring
Low-voltage (mV) signal acquisition for process control
Integration with Yokogawa AAT series controllers for real-time monitoring
Industrial automation and process measurement
Energy monitoring and predictive maintenance

The AAT141-S00 provides accurate, real-time data, enabling improved operational efficiency and system reliability.

Advantages

High Accuracy: Captures thermocouple and mV signals with precision.
Wide Sensor Compatibility: Supports multiple thermocouple types and low-voltage inputs.
Industrial Durability: Resistant to vibration, temperature fluctuations, and electrical noise.
Channel Isolation: Maintains signal integrity across all channels.
Seamless Integration: Fully compatible with Yokogawa AAT series controllers.
Compact & Lightweight: Easy installation in control panels or modular racks.

Technical FAQs

What is the primary function of this module?
To acquire thermocouple and millivolt signals and deliver accurate data to process control systems.
How many channels are supported?
16 input channels.
Which thermocouple types are compatible?
K, J, T, E, R, S, B, and N types.
What is the measurement range?
Thermocouples: -200°C to 1800°C; mV signals: ±75 mV.
What is the module’s accuracy?
±0.1% full scale.
Is it suitable for harsh industrial conditions?
Yes, designed for vibration, temperature changes, and electrical interference.
Does it provide channel isolation?
Yes, both channel-to-channel and channel-to-system isolation.
Can it integrate with Yokogawa AAT controllers?
Yes, fully compatible with AAT series systems.
What is the sampling rate per channel?
Up to 100 ms.
Why choose this module over other input modules?
It combines high-precision thermocouple and mV measurement with robust industrial design and multi-channel capability.
