Introduction

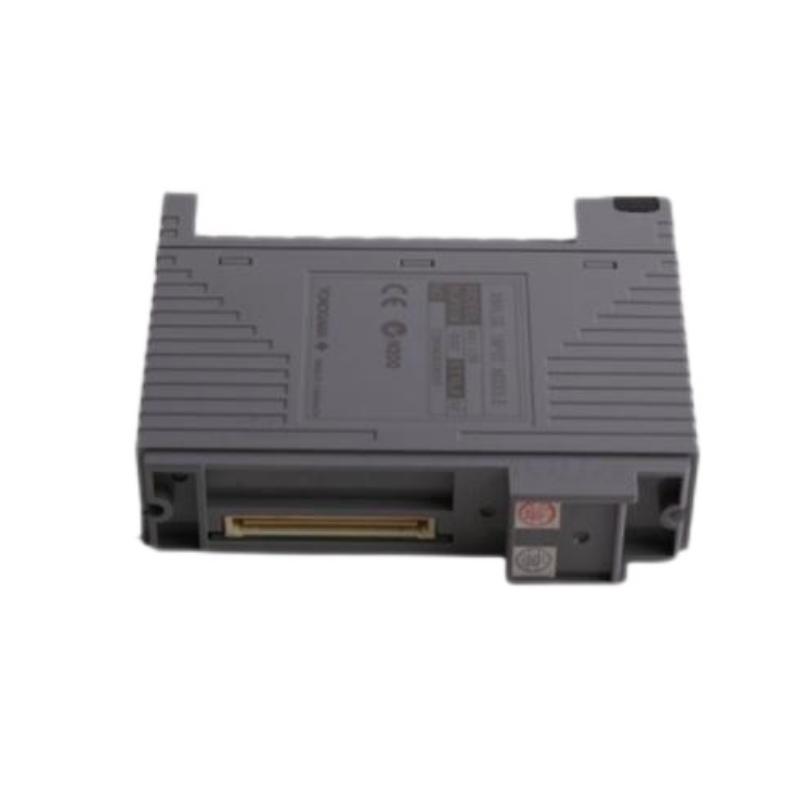

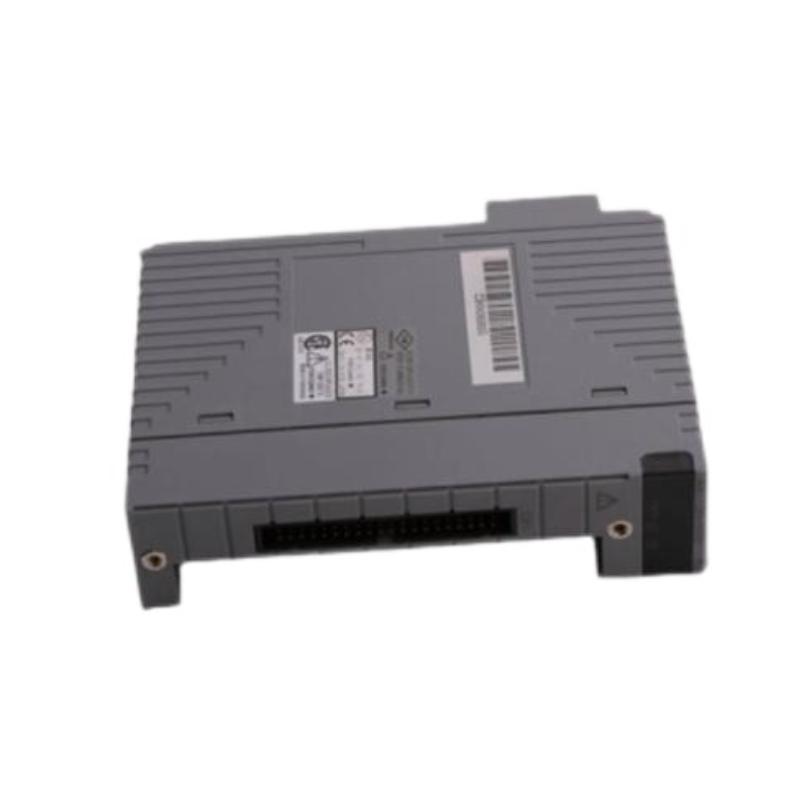

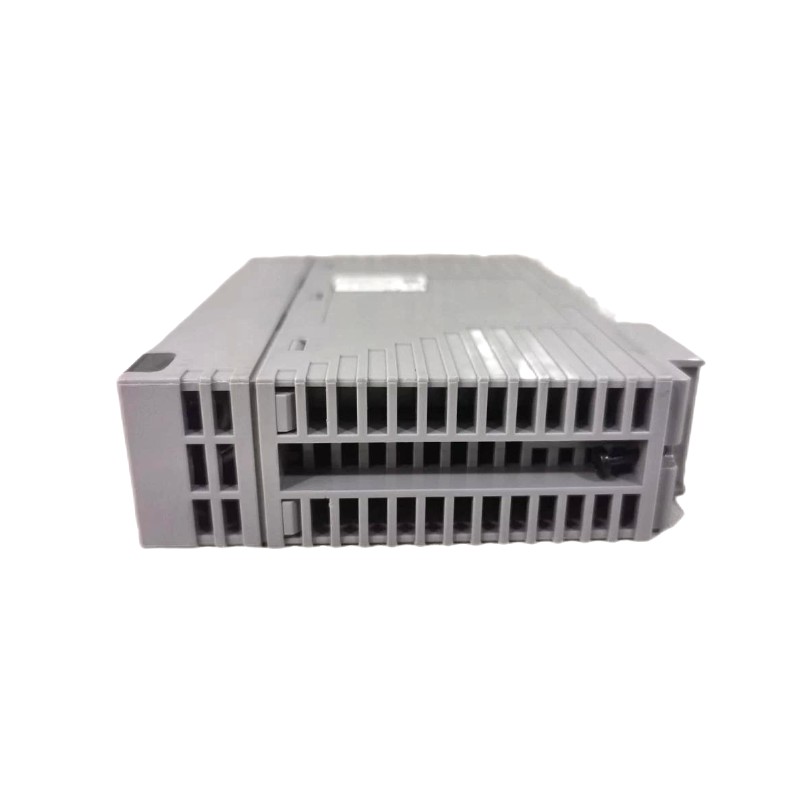

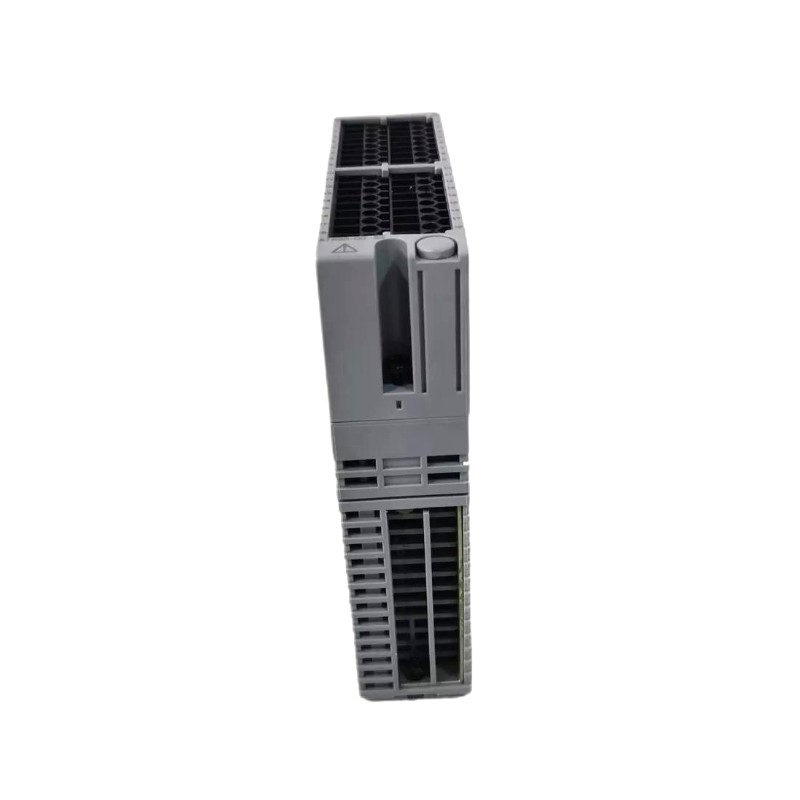

The Yokogawa AAR181-S50 RTD Input Module is a high-precision, multi-channel module designed for accurate temperature measurement in industrial automation and process control systems. Supporting multiple RTD inputs, it reliably collects temperature data and transmits it to Yokogawa AAR series controllers. Its rugged construction ensures stability and longevity in harsh industrial environments, making it an ideal choice for process monitoring, energy management, and predictive maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AAR181-S50 |
| Product Type | RTD Input Module |
| Channels | 8 RTD input channels |
| Supported Sensors | RTD (Pt100, Pt1000) |
| Input Range | -200°C to 850°C |
| Accuracy | ±0.1% full scale |
| Sampling Rate | Up to 100 ms per channel |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Communication | Compatible with Yokogawa AAR series controllers |
| Dimensions (L×W×H) | 160 mm × 100 mm × 50 mm |
| Weight | 0.6 kg (module), 1.3 kg (shipping) |
