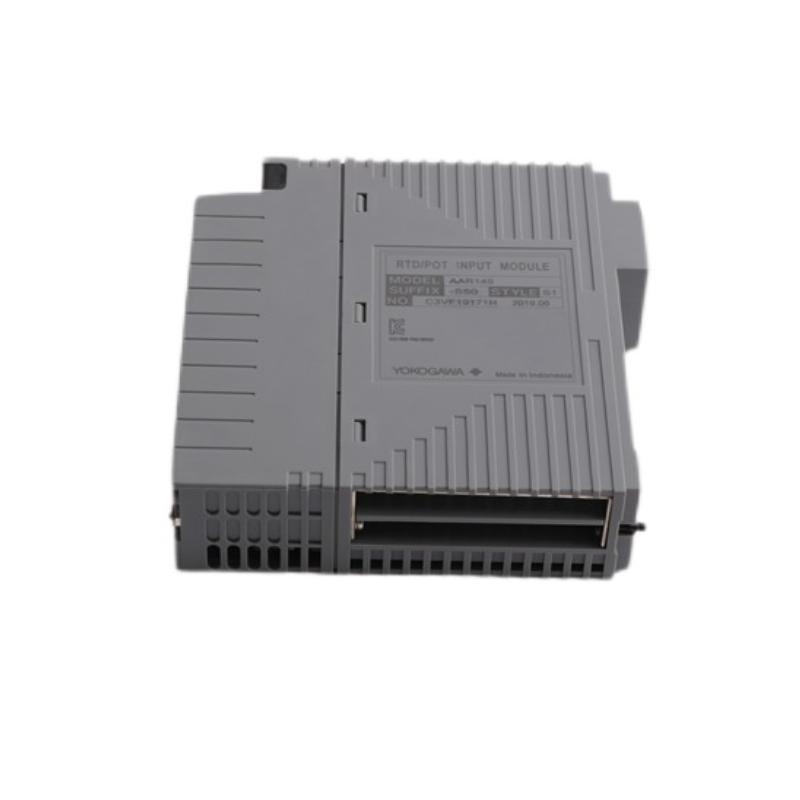

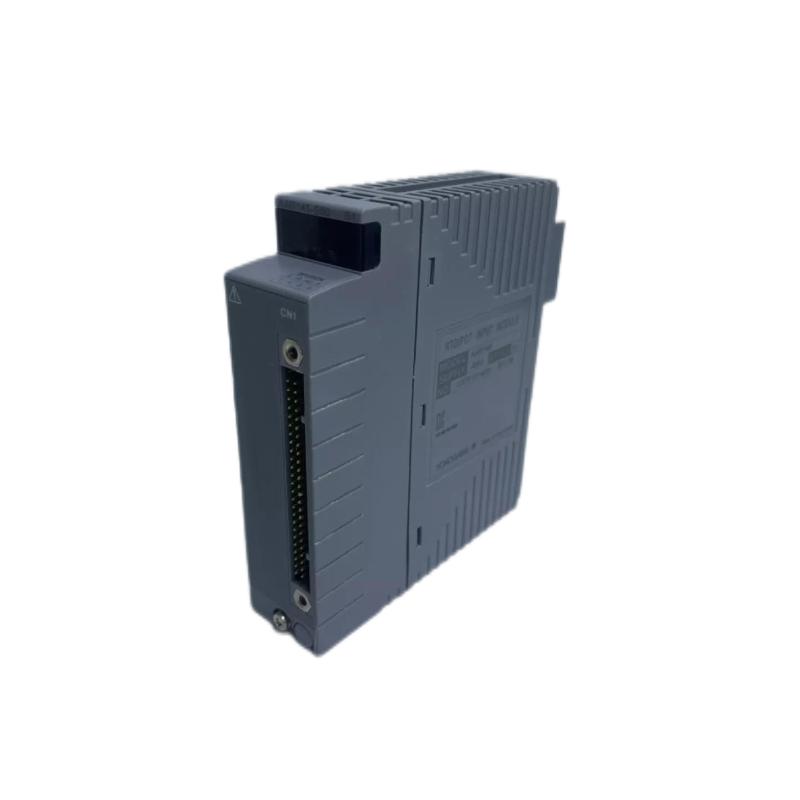

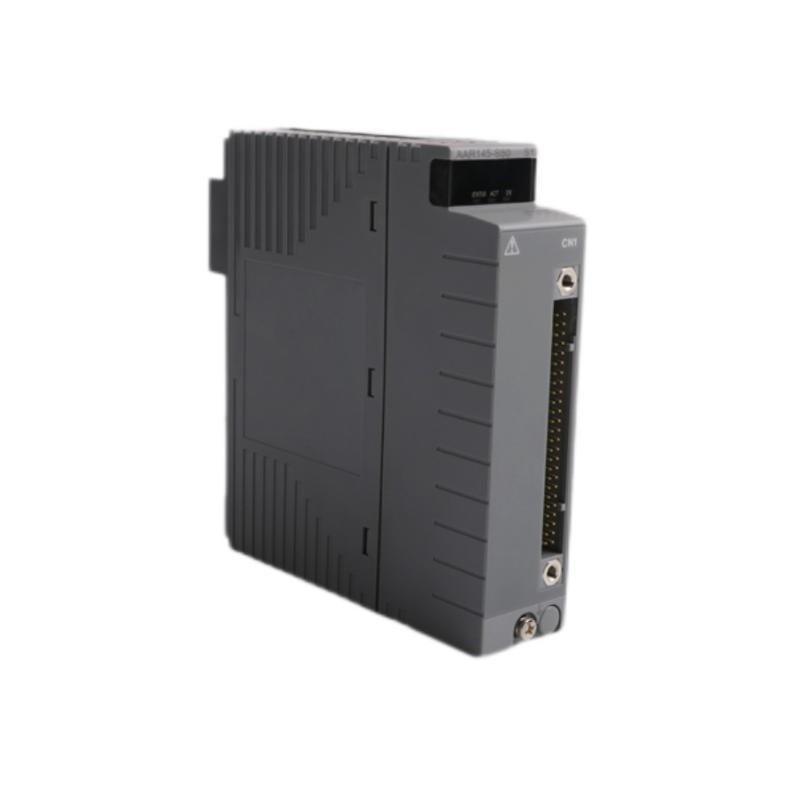

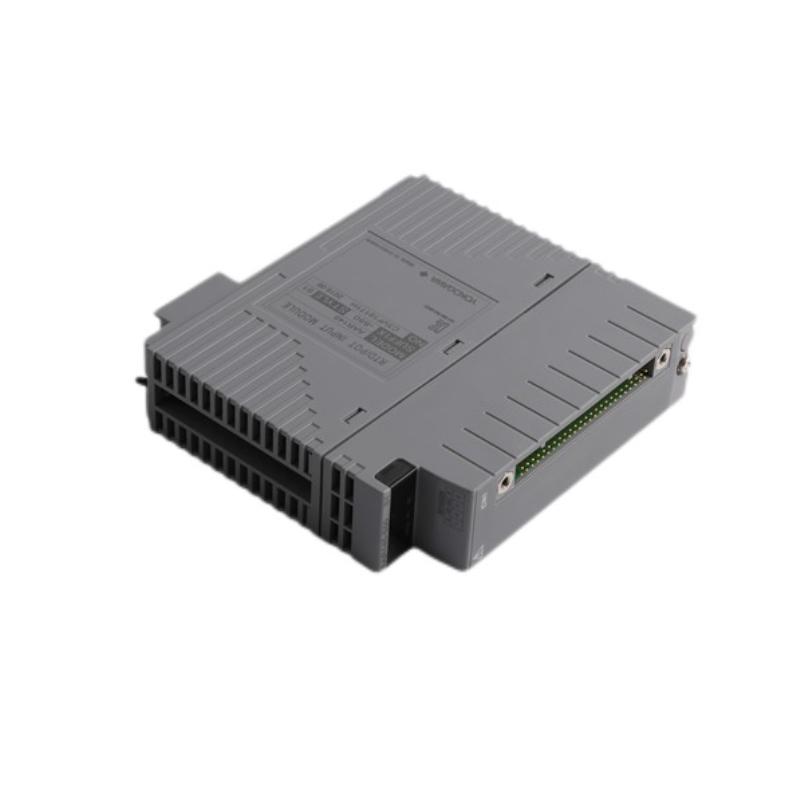

Yokogawa AAR145-S50 RTD/POT 16-Channel Input Module

Name: Yokogawa AAR145-S50 RTD/POT 16-Channel Input Module
Brand: Yokogawa Electric
SKU: 1263
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAR145-S50
Product Origin:Japan
Product Dimensions:160 mm × 100 mm × 50 mm
Product Weight:0.65kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAR145-S50 RTD/POT 16-Channel Input Module is a high-performance, multi-channel interface designed for accurate temperature and resistance measurement in industrial control systems. Supporting 16 channels, it allows simultaneous acquisition from RTD sensors and potentiometers, providing precise, reliable data to Yokogawa AAR series controllers. Its robust industrial construction ensures dependable operation in harsh environments, making it ideal for process control, energy management, and predictive maintenance applications.

Technical Specifications

Specification	Details
Model	AAR145-S50
Product Type	RTD / POT Input Module
Channels	16 input channels
Supported Sensors	RTD (Pt100, Pt1000), Potentiometers
Input Range	RTD: -200°C to 850°C; POT: 0–10 kΩ
Accuracy	±0.1% full scale
Sampling Rate	Up to 100 ms per channel
Isolation	Channel-to-channel and channel-to-system isolation
Communication	Compatible with Yokogawa AAR series controllers
Dimensions (L×W×H)	160 mm × 100 mm × 50 mm
Weight	0.65 kg (module), 1.4 kg (shipping)

Applications

Multi-channel RTD temperature monitoring
Potentiometer signal acquisition for process measurement
Integration with Yokogawa AAR series controllers for real-time monitoring
Industrial process automation and control
Energy and utility monitoring
Predictive maintenance and system optimization

The module ensures high-quality, real-time data collection to enhance operational efficiency and support informed decision-making.

Advantages

High Channel Density: Supports up to 16 RTD or potentiometer inputs.
Accurate and Reliable: Provides precise measurement and stable performance across all channels.
Industrial Robustness: Resistant to vibration, temperature fluctuations, and electrical noise.
Channel Isolation: Ensures signal integrity between inputs and the control system.
Seamless Integration: Fully compatible with Yokogawa AAR series controllers.
Compact Design: Lightweight and easy to install in control panels or modular racks.

Technical FAQs

What is the primary function of this module?
To capture RTD and potentiometer signals for accurate process monitoring.
How many channels does it support?
16 input channels.
Which sensors are compatible?
RTDs (Pt100, Pt1000) and potentiometers (0–10 kΩ).
What is the measurement accuracy?
±0.1% full scale.
Is it suitable for harsh industrial environments?
Yes, designed for vibration, temperature changes, and electrical noise.
Does it provide channel isolation?
Yes, both channel-to-channel and channel-to-system isolation.
Can it be integrated with Yokogawa AAR controllers?
Yes, fully compatible with AAR series systems.
What is the sampling rate?
Up to 100 ms per channel.
How is it installed?
Mounted in control panels or modular racks using standard module slots.
Why choose this module over others?
Offers high channel density, precision measurement, and reliable industrial performance in one compact module.
