Technical FAQs

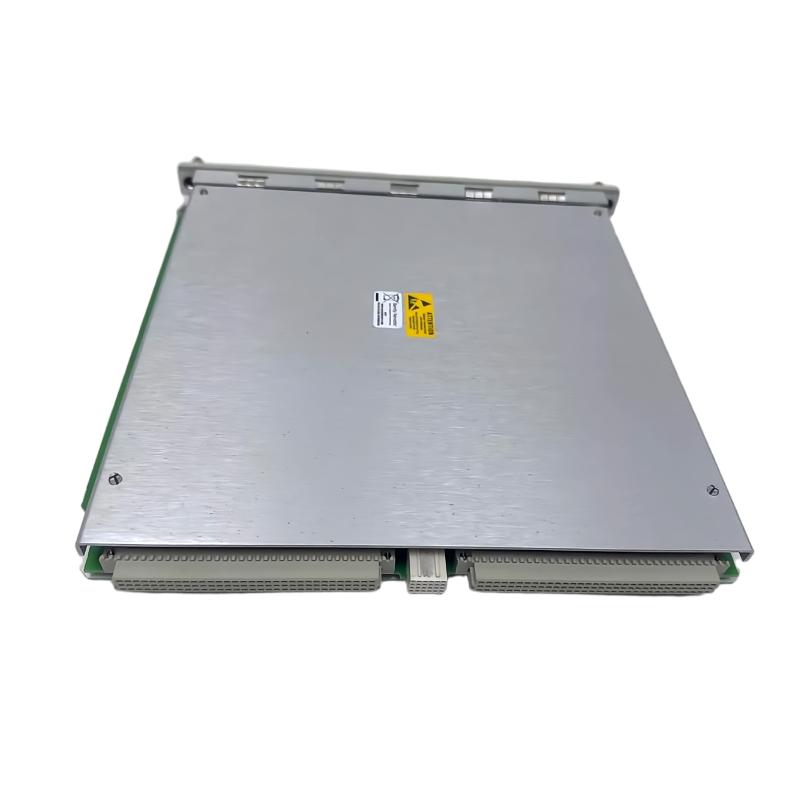

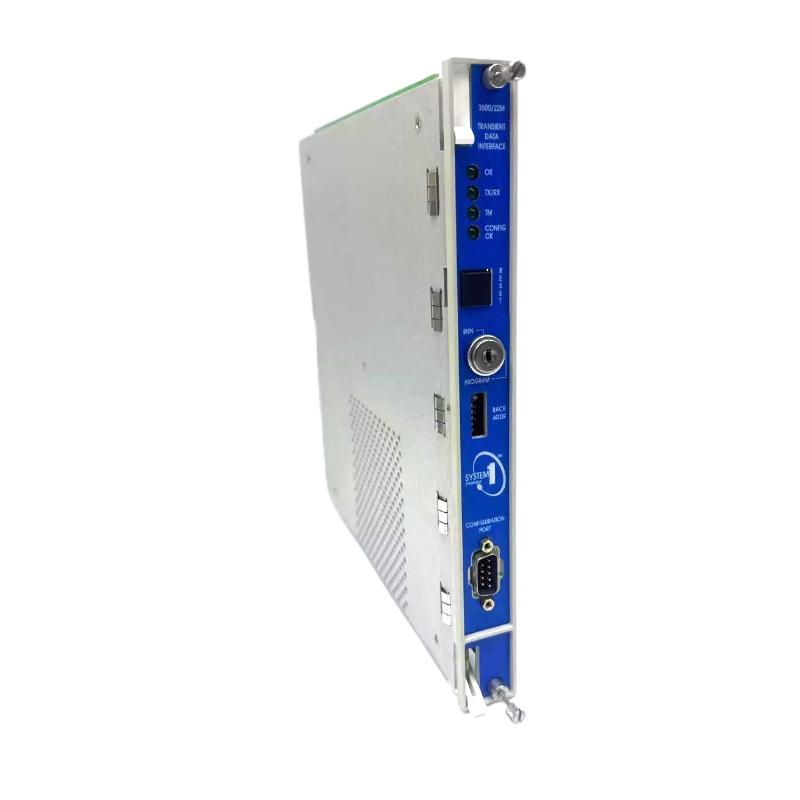

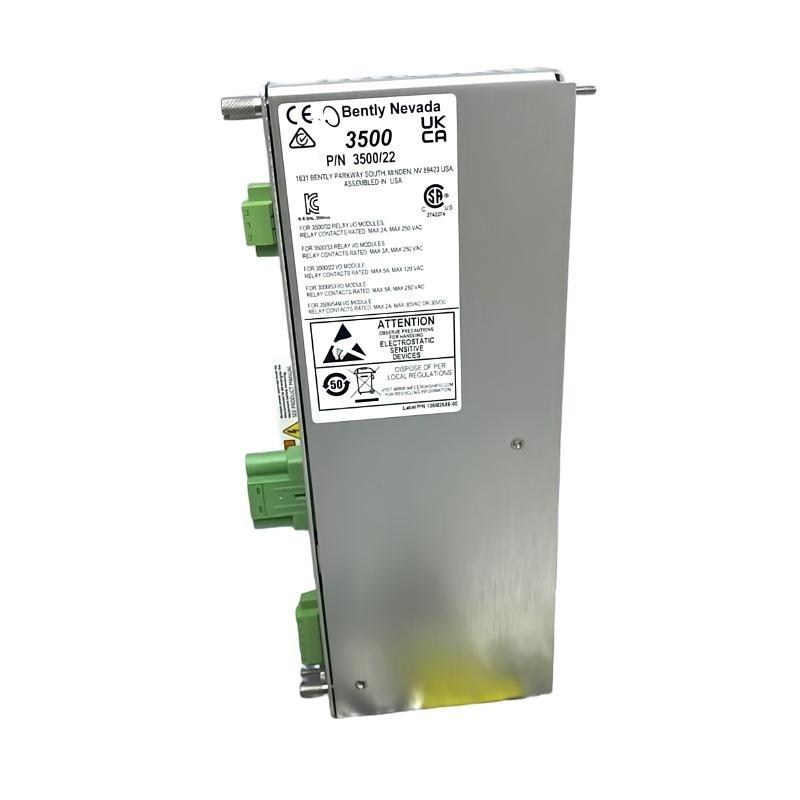

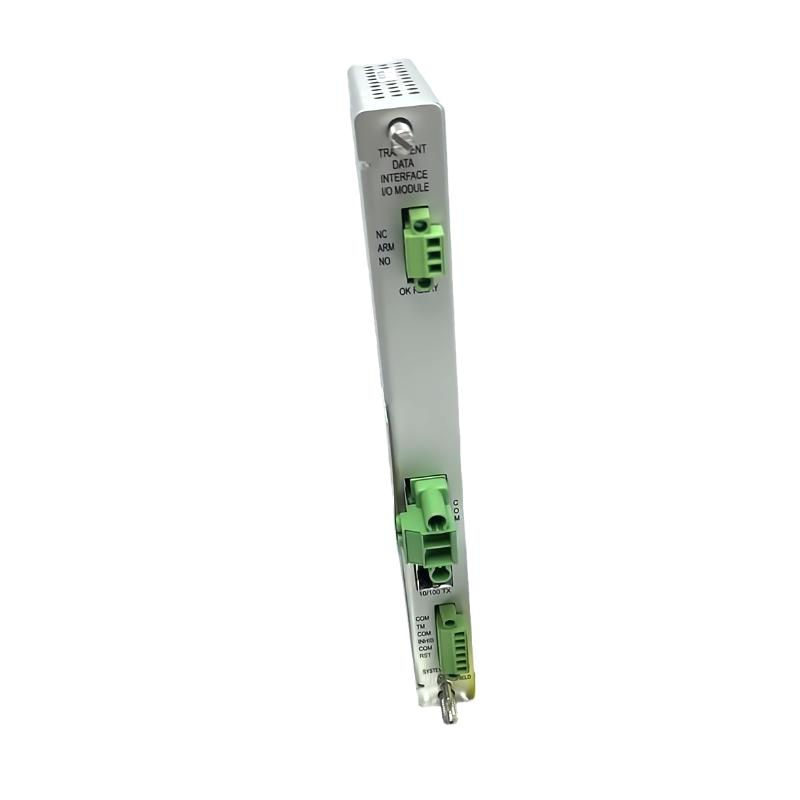

1. What is the purpose of the Bently Nevada 3500/22 138607-01 + 146031-01 modules?

   • These modules work together to provide transient data acquisition and I/O management for machinery monitoring, allowing for real-time data collection and fault detection in rotating machinery.

2. How many input channels do the modules support?

   • The modules support 16 differential input channels, enabling them to interface with a variety of field sensors and devices for comprehensive data collection.

3. What is the power consumption of the 3500/22 modules?

   • The combined power consumption of the two modules is 10 W, ensuring efficient operation while maintaining continuous monitoring.

4. What communication protocol do the modules use?

   • The modules use RS-485 serial communication, ensuring reliable and stable data transmission between system components, even in challenging industrial environments.

5. How do the modules help in detecting transient faults?

   • The transient data interface module captures transient events such as spikes in vibration or temperature, which are indicative of potential machinery faults. This helps to detect problems before they escalate.

6. Are the Bently Nevada 3500/22 modules suitable for use in harsh industrial environments?

   • Yes, the modules are designed to withstand harsh conditions, with an operating temperature range from -40°C to 70°C and a robust construction that ensures reliability in demanding environments.

7. What industries benefit from using the Bently Nevada 3500/22 modules?

   • These modules are used across industries such as power generation, oil & gas, manufacturing, and process control, where continuous monitoring of machinery health is essential.

8. How do the modules integrate with other Bently Nevada 3500 components?

   • The modules are designed for seamless integration with other Bently Nevada 3500 Series components, such as I/O modules, rack interface modules, and field sensors, providing a complete monitoring solution.

9. Can these modules be used for both vibration and temperature monitoring?

   • Yes, the modules can be used to monitor a variety of parameters, including vibration, temperature, and pressure, providing comprehensive insights into machinery performance.

10. How are faults and alarms indicated on the modules?

• The modules have built-in LED indicators that clearly display faults and alarm conditions, enabling operators to quickly identify and address any issues.
