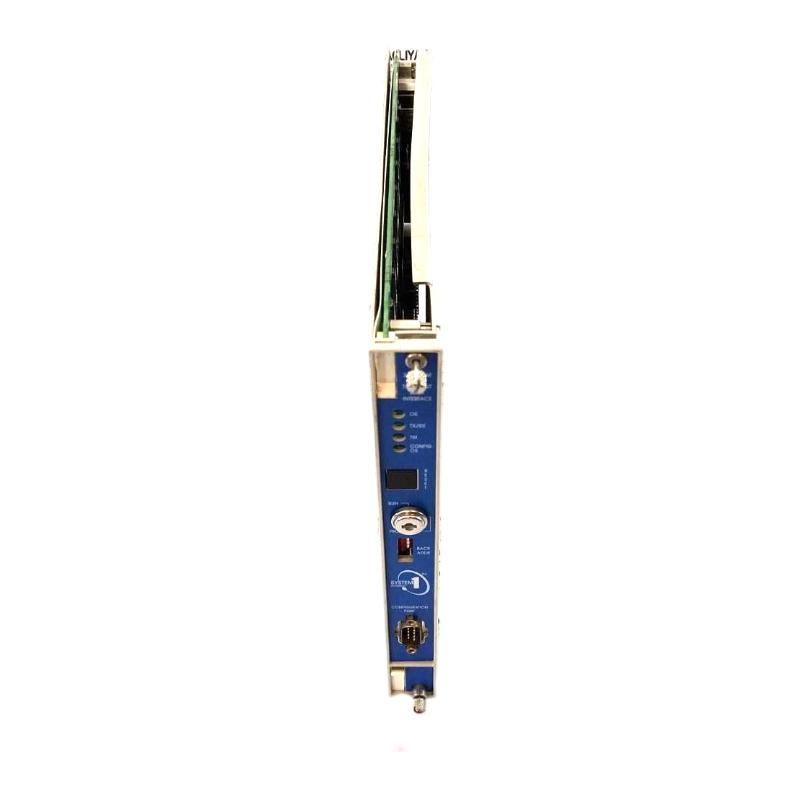

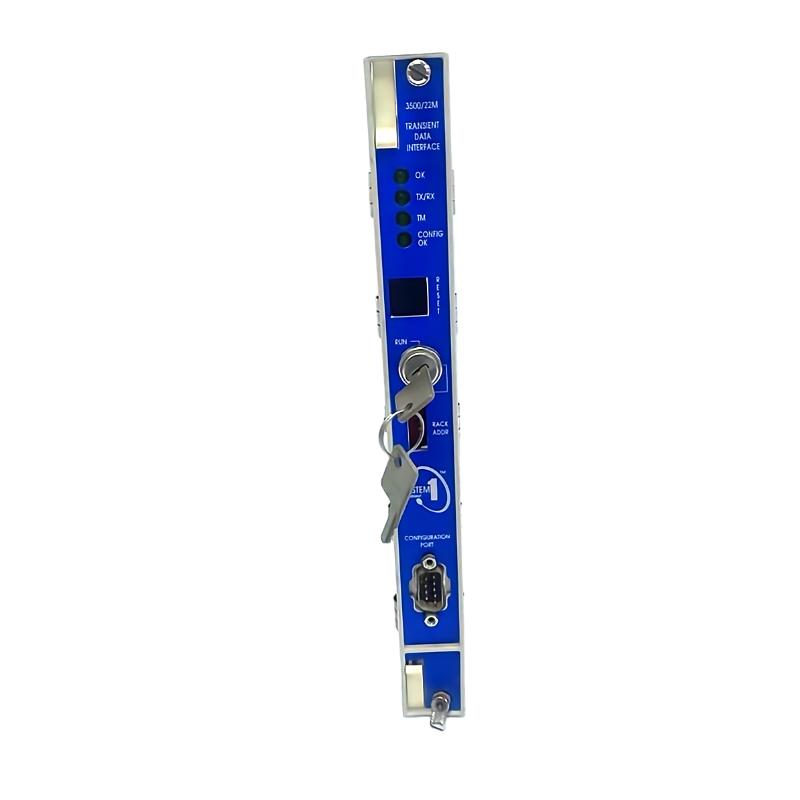

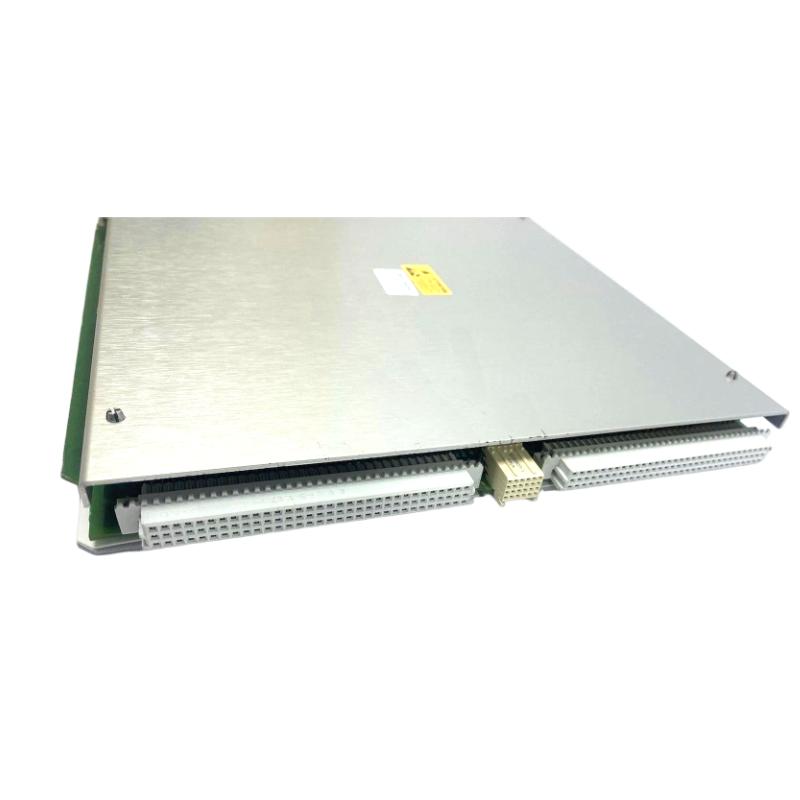

Bently Nevada 3500/22 138607-01 Transient Data Interface Module

Brand:Bently Nevada PLC
Item No.:3500/22
Product Origin:USA
Product Dimensions:241.3 x 24.4 x 241.8 mm
Product Weight:0.91 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Bently Nevada 3500/22 138607-01 Transient Data Interface Module is an integral part of the Bently Nevada 3500 Series machinery monitoring and protection system, designed to provide transient data acquisition for monitoring rotating machinery in industrial environments. This module offers a crucial interface for collecting, processing, and transmitting transient data from various field devices such as vibration sensors, accelerometers, and temperature sensors.

Widely used in industries such as power generation, oil and gas, manufacturing, and process industries, the 3500/22 Transient Data Interface Module allows for detailed analysis of machinery performance, identifying any transient faults or anomalies that could lead to equipment failure. By continuously monitoring equipment, this module plays a vital role in predictive maintenance, extending the lifespan of critical assets, and reducing unplanned downtime.

Technical Specifications

SpecificationValue
Model3500/22 138607-01
Module TypeTransient Data Interface Module
Dimensions (W x H x D)241.3 x 24.4 x 241.8 mm
Weight0.91 kg
Input Voltage24 VDC (Nominal)
Power Consumption7 W
Operating Temperature-40°C to 70°C
MountingRack Mounting
Communication ProtocolRS-485 Serial Communication
Data Acquisition Channels16 Differential Input Channels
Alarm IndicatorsLED Indicators for Faults/Alarms


Applications

The Bently Nevada 3500/22 138607-01 Transient Data Interface Module is widely used in various industrial applications where real-time transient data acquisition and fault detection are critical:

  • Rotating Machinery Protection: The module monitors rotating machinery like turbines, motors, pumps, and compressors, helping detect transient events like spikes in vibration or temperature that could indicate early-stage failures.

  • Power Generation: In power plants, the module helps monitor the health of turbines, generators, and other key equipment, providing early warning of any potential issues that could disrupt plant operations.

  • Oil & Gas: On oil rigs, refineries, and pipelines, the module ensures that critical equipment such as pumps, compressors, and gas turbines are continuously monitored, providing valuable data to improve operational safety and efficiency.

  • Manufacturing: The module is used to monitor critical manufacturing machinery, such as conveyor systems, CNC machines, and robotic arms, to prevent unexpected breakdowns and increase productivity.

  • Process Industries: In industries such as chemicals and petrochemicals, the module provides detailed insights into the operation of reactors, pumps, and heat exchangers, supporting the maintenance of complex systems that are vital to production.


Advantages

  • High-Accuracy Transient Data Acquisition: The 3500/22 module is capable of capturing high-resolution transient data, providing precise and immediate insights into machinery conditions.

  • Enhanced Fault Detection: By identifying transient faults early, the module helps prevent catastrophic failures, ensuring that maintenance actions can be taken before severe damage occurs.

  • Versatile Communication: The module uses RS-485 serial communication, ensuring reliable data transmission between system components, even in harsh industrial environments.

  • Energy Efficient: With a power consumption of just 7 W, the module is designed to operate efficiently, minimizing energy costs in large-scale monitoring systems.

  • Wide Temperature Range: The 3500/22 module can function in a wide range of temperatures, from -40°C to 70°C, making it suitable for extreme industrial conditions.

  • Seamless Integration: This module easily integrates into existing Bently Nevada 3500 Series systems, ensuring flexibility and scalability for future system expansions.

  • Reliable Alarm Indicators: The built-in LED indicators provide clear, real-time fault and alarm notifications, enabling quick identification of any issues requiring immediate attention.


Technical FAQs

  1. What is the role of the Bently Nevada 3500/22 138607-01 Transient Data Interface Module?

    • This module is designed to collect and transmit transient data from sensors to the monitoring system, providing real-time fault detection and detailed diagnostics for rotating machinery.

  2. How many input channels does the 3500/22 module support?

    • The module supports 16 differential input channels, allowing it to interface with a wide range of field devices for data acquisition.

  3. What is the power consumption of the 3500/22 module?

    • The module consumes 7 W of power, making it energy-efficient for continuous use in industrial environments.

  4. What communication protocol does the module use?

    • The 3500/22 module uses RS-485 serial communication, ensuring stable and reliable data transfer between system components.

  5. Can this module detect transient faults in machinery?

    • Yes, the module is specifically designed to capture transient data, helping to identify any anomalies or spikes in machinery performance that could indicate potential failures.

  6. Is the Bently Nevada 3500/22 module suitable for use in harsh environments?

    • Yes, with its robust construction and wide operating temperature range, the module is well-suited for use in demanding industrial environments, including those with high temperatures and electromagnetic interference.

  7. What industries benefit from using the 3500/22 module?

    • The module is commonly used in industries such as power generation, oil & gas, manufacturing, and process industries, where real-time monitoring of machinery is essential.

  8. How does the module integrate with other Bently Nevada 3500 components?

    • The module seamlessly integrates with other components of the Bently Nevada 3500 Series, such as I/O modules, rack interface modules, and sensors, enabling comprehensive machinery monitoring and protection.

  9. What type of sensors can be used with the 3500/22 module?

    • The module supports a variety of field sensors, including vibration sensors, accelerometers, and temperature sensors, providing flexibility for different machinery monitoring applications.

  10. How are alarms and faults indicated in the 3500/22 module?

  • The module has built-in LED indicators that clearly display fault and alarm conditions, providing operators with real-time feedback on system status.
