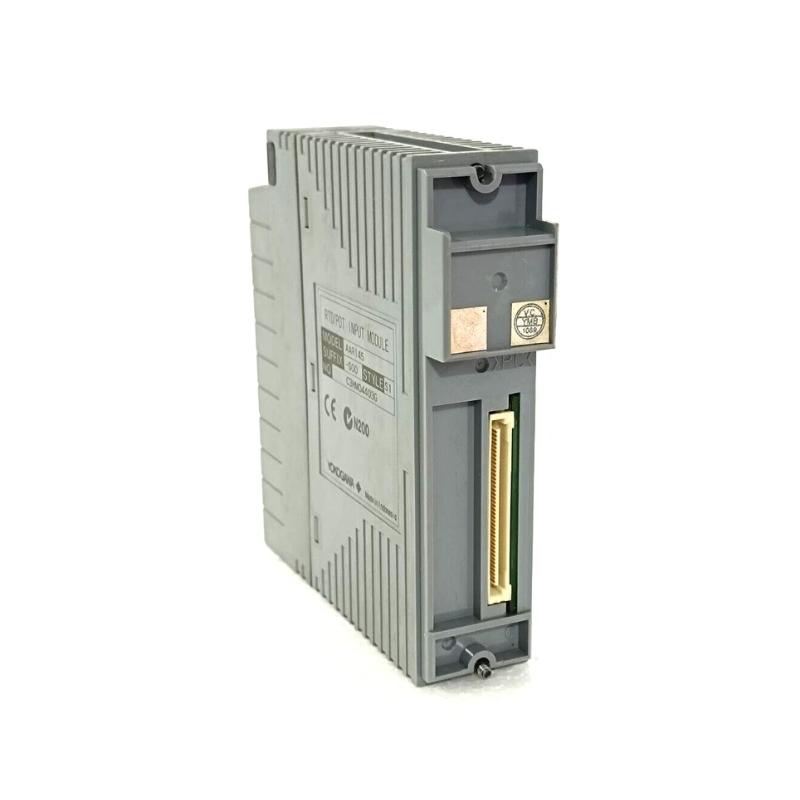

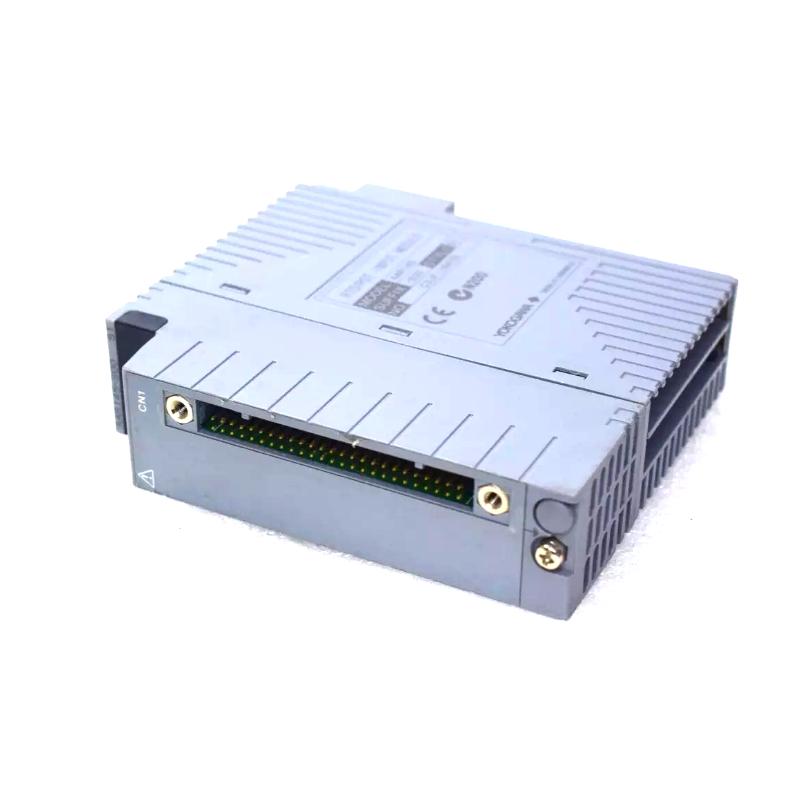

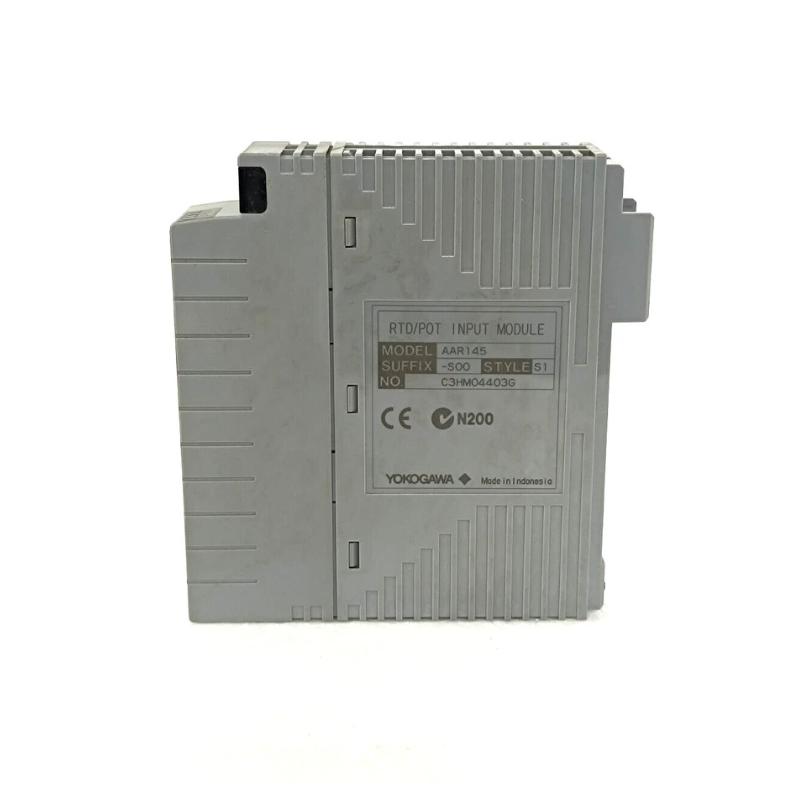

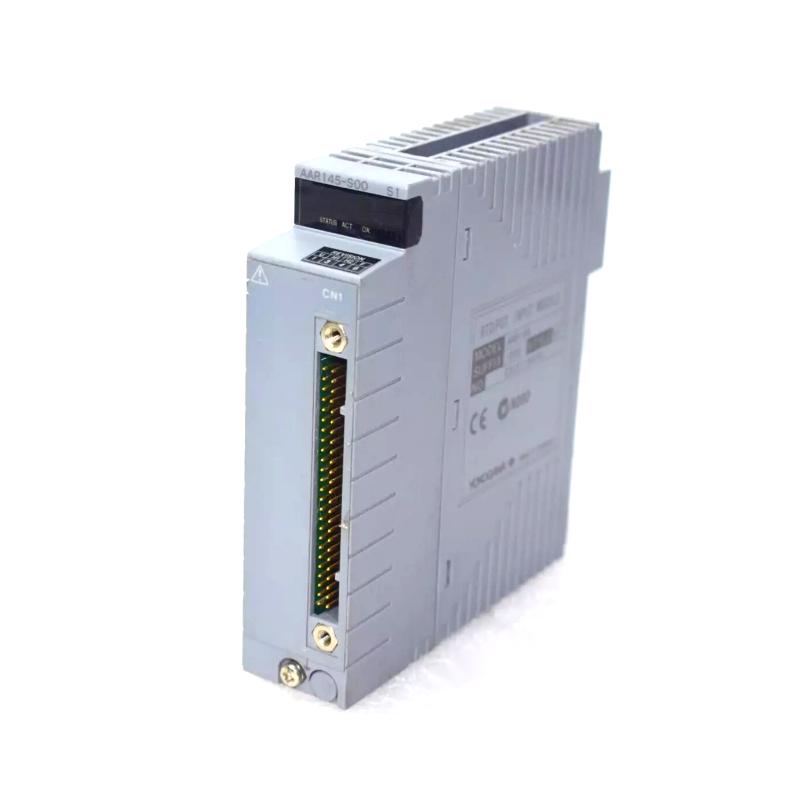

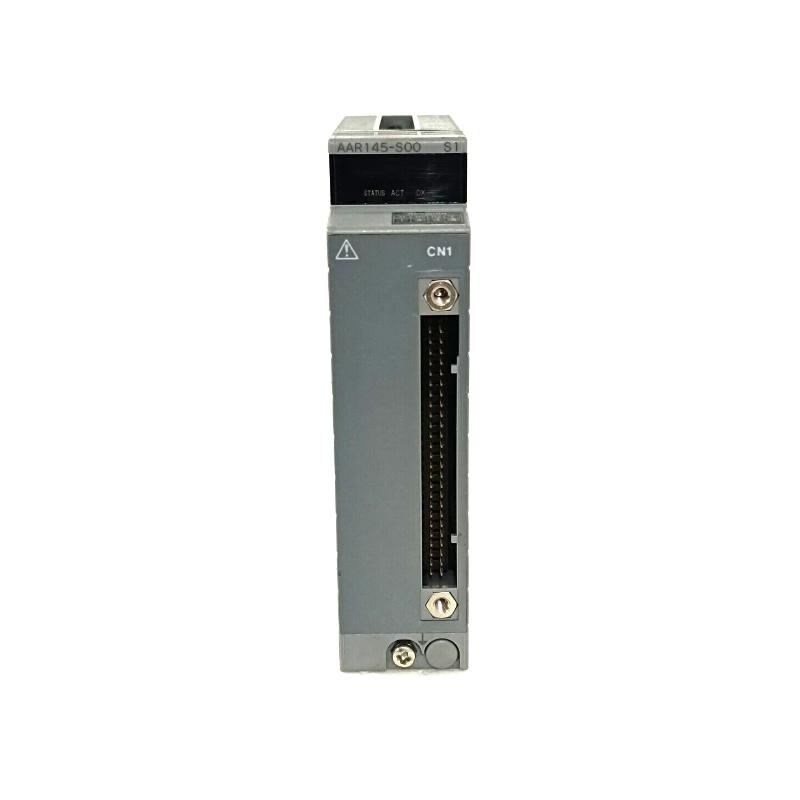

Yokogawa AAR145-S00 S1 RTD/POT 16-Channel Input Module

Name: Yokogawa AAR145-S00 S1 RTD/POT 16-Channel Input Module
Brand: Yokogawa Electric
SKU: 1234
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAR145-S00 S1
Product Origin:Japan
Product Dimensions:160 mm × 100 mm × 50 mm
Product Weight:0.65kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAR145-S00 S1 RTD/POT 16-Channel Input Module is a high-precision interface module designed for comprehensive temperature and resistance measurement in industrial automation systems. Supporting up to 16 channels, it allows simultaneous monitoring of RTD sensors and potentiometers, delivering reliable, high-fidelity data to Yokogawa control systems. Built for industrial robustness, this module ensures accurate measurement and seamless integration, making it ideal for process control, energy management, and predictive maintenance applications.

Technical Specifications

Specification	Details
Model	AAR145-S00 S1
Product Type	RTD / POT Input Module
Channels	16 input channels
Supported Sensors	RTD (Pt100, Pt1000), Potentiometers
Input Range	RTD: -200°C to 850°C; POT: 0–10 kΩ
Accuracy	±0.1% full scale
Sampling Rate	Up to 100 ms per channel
Isolation	Channel-to-channel and channel-to-system isolation
Communication	Compatible with Yokogawa AAR series controllers
Dimensions (L×W×H)	160 mm × 100 mm × 50 mm
Weight	0.65 kg (module), 1.4 kg (shipping)

Applications

Multi-channel temperature monitoring using RTDs
Potentiometer signal acquisition for process control
Industrial automation and process management
Energy monitoring and measurement systems
Integration into Yokogawa AAR series controllers for real-time control and predictive maintenance

This module provides accurate and reliable input data, enabling efficient process management and system optimization.

Advantages

High Channel Density: Monitors up to 16 RTD or POT inputs simultaneously.
Precise Measurement: High accuracy and stability for critical process data.
Industrial Reliability: Designed for vibration, temperature fluctuations, and electrical noise.
Channel Isolation: Minimizes interference between inputs and protects system integrity.
Seamless Integration: Fully compatible with Yokogawa AAR series controllers.
Compact Form Factor: Lightweight and easy to install in control panels or racks.

Technical FAQs

What is the primary function of this module?
To capture signals from RTD sensors and potentiometers for process monitoring and control.
How many channels does it support?
16 input channels.
Which sensors are compatible?
RTDs (Pt100, Pt1000) and potentiometers (0–10 kΩ).
What is the measurement accuracy?
±0.1% full scale.
Is it suitable for industrial environments?
Yes, built to withstand vibration, temperature variations, and electrical noise.
Does it provide channel isolation?
Yes, both channel-to-channel and channel-to-system isolation.
Can it integrate with Yokogawa AAR series controllers?
Yes, fully compatible for seamless process control.
What is the sampling rate?
Up to 100 ms per channel.
How is it installed?
Mounted in control panels or modular racks using standard slots.
Why choose this module over other input modules?
Offers high channel density, precise measurement, and reliable industrial performance in one compact module.
