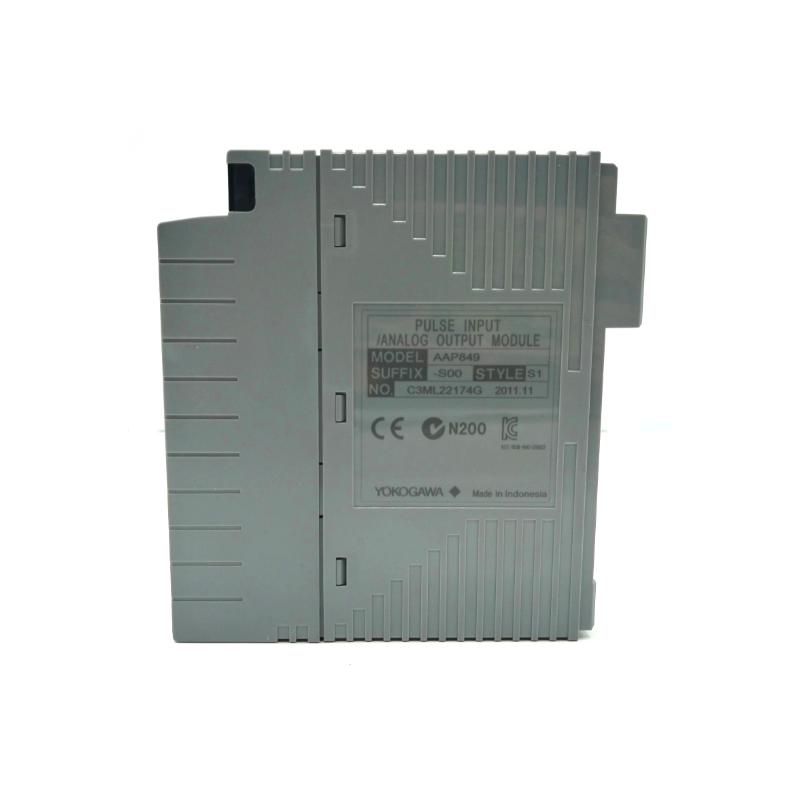

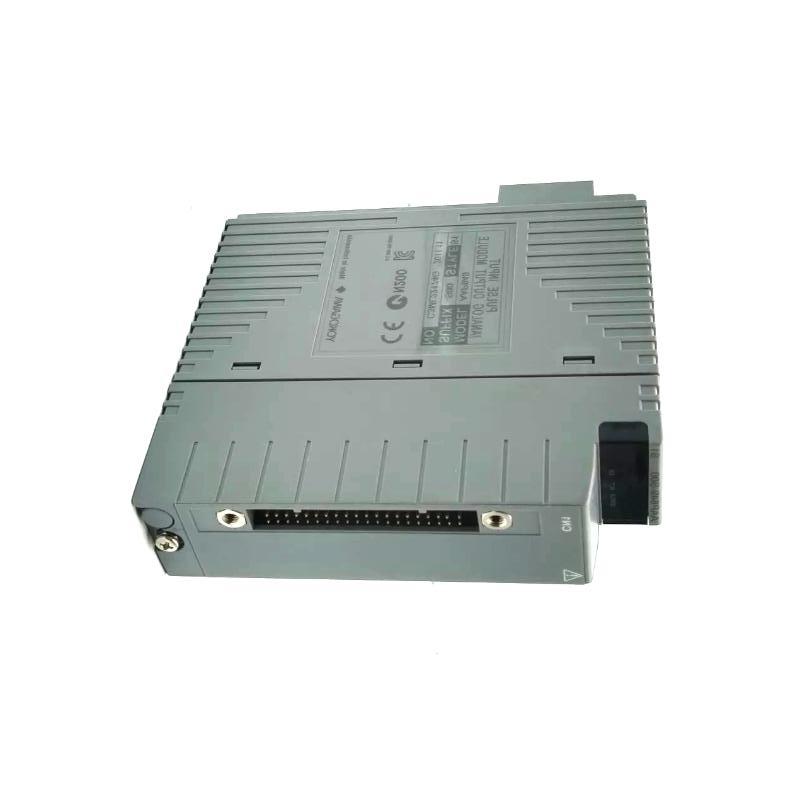

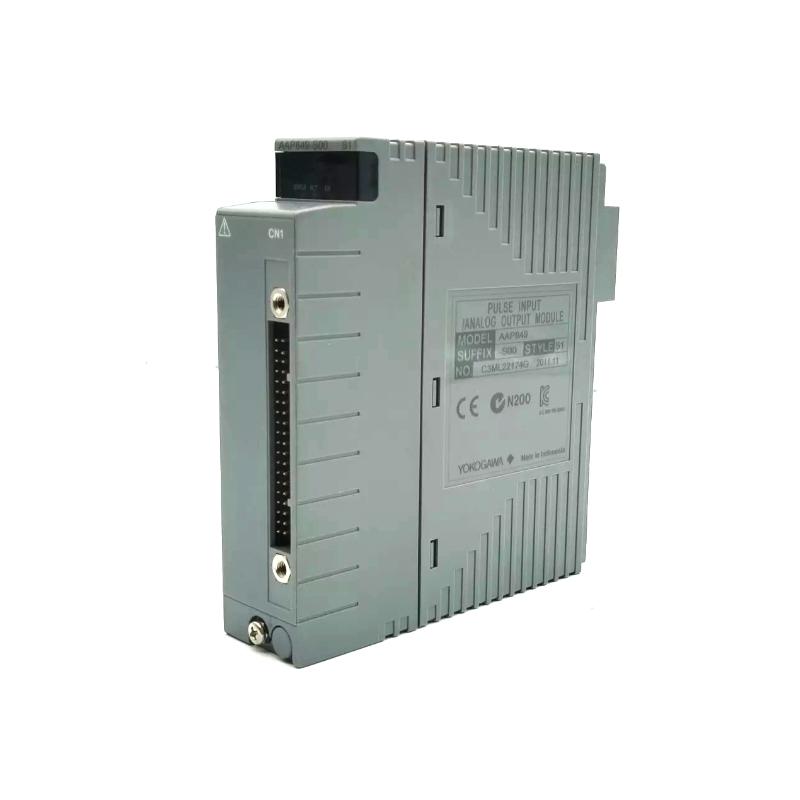

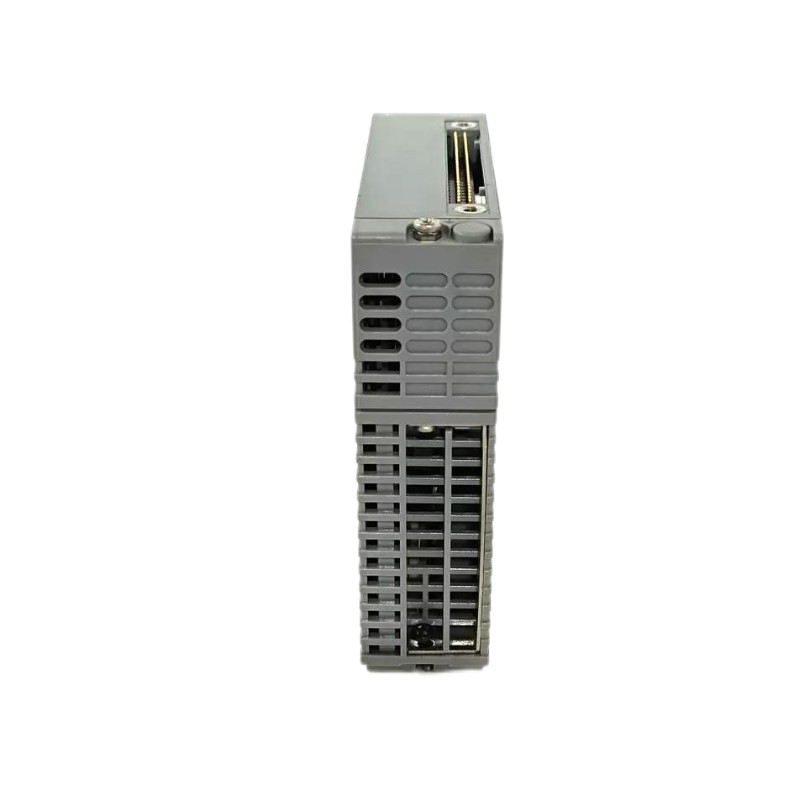

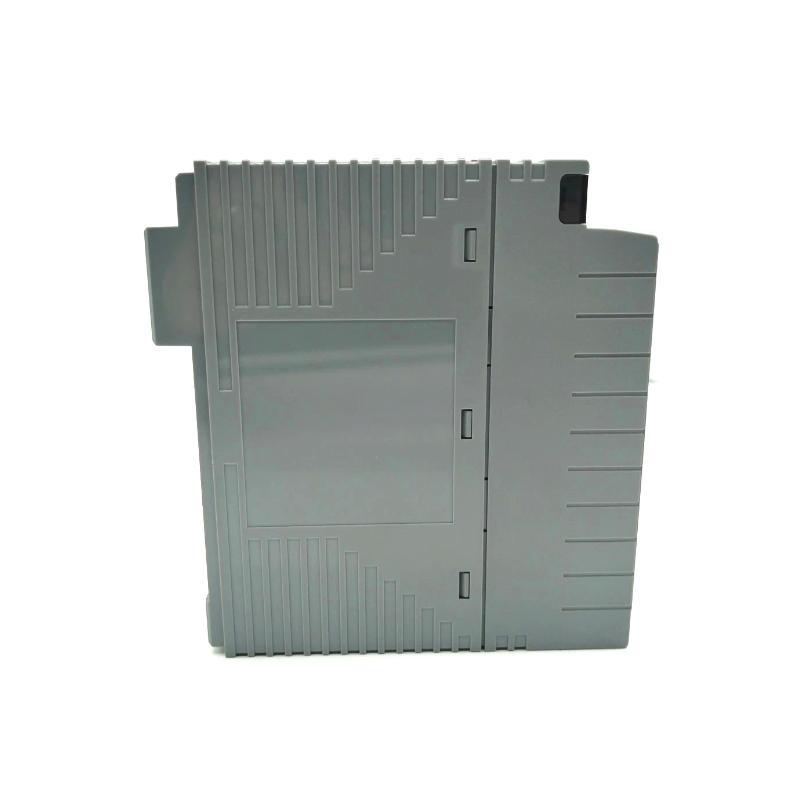

Yokogawa AAP849-S00 Pulse Input/analog Output Module

Name: Yokogawa AAP849-S00 Pulse Input/analog Output Module
Brand: Yokogawa Electric
SKU: 1232
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAP849-S00
Product Origin:Japan
Product Dimensions:145 mm × 95 mm × 50 mm
Product Weight:0.65kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Yokogawa AAP849-S00 Pulse Input/Analog Output Module is a versatile, high-performance interface designed for seamless integration in industrial automation and process control systems. This module captures pulse signals from field devices, converts them into precise analog output signals, and delivers them to Yokogawa control systems for real-time monitoring and automation. Its durable design ensures reliability and accuracy in challenging industrial environments, making it ideal for flow monitoring, process measurement, and energy management applications.

Technical Specifications

Specification	Details
Model	AAP849-S00
Product Type	Pulse Input / Analog Output Module
Function	Captures pulse signals and converts them to analog output
Input Type	Digital pulse (contact or open collector)
Maximum Input Frequency	10 kHz
Output Type	4–20 mA analog signal
Input Voltage Range	5–24 VDC
Isolation	Channel-to-channel and channel-to-system isolation
Communication	Compatible with Yokogawa AAP series control systems
Dimensions (L×W×H)	145 mm × 95 mm × 50 mm
Weight	0.6 kg (module), 1.3 kg (shipping)

Applications

Converting pulse signals from flow meters, counters, and encoders into analog outputs
Industrial process control and automation
Energy and utility measurement systems
Data acquisition and integration with Yokogawa AAP series controllers
Real-time monitoring and predictive maintenance

The module ensures precise signal conversion and reliable data delivery, supporting efficient process management and system control.

Advantages

Dual Functionality: Captures pulse signals and converts them to accurate 4–20 mA analog outputs.
High Precision: Maintains reliable measurement accuracy across a wide range of input frequencies.
Industrial-Grade Reliability: Built to withstand vibration, temperature variations, and electrical noise.
Channel Isolation: Ensures signal integrity and protection against interference.
Seamless Integration: Fully compatible with Yokogawa AAP series automation systems.
Compact & Easy to Install: Lightweight design simplifies panel and rack installation.

Technical FAQs

What is the primary function of this module?
To capture pulse signals and convert them into analog 4–20 mA outputs for process control systems.
Which field devices are compatible?
Flow meters, counters, encoders, and other digital pulse-generating sensors.
What is the maximum input frequency?
Up to 10 kHz.
What voltage range can it handle?
5–24 VDC input signals.
Is it suitable for harsh industrial environments?
Yes, designed for vibration, temperature extremes, and electrical noise resistance.
Does it provide channel isolation?
Yes, both channel-to-channel and channel-to-system isolation is included.
Can it integrate with Yokogawa AAP series controllers?
Yes, fully compatible for seamless process automation.
How is it installed?
Mounted in control panels or modular racks using standard module slots.
Does it support real-time monitoring?
Yes, it converts pulse inputs into real-time analog signals for process control.
Why choose this module over a standard pulse input module?
It offers dual functionality—pulse capture and analog output—providing versatility, reliability, and integration with Yokogawa systems.
