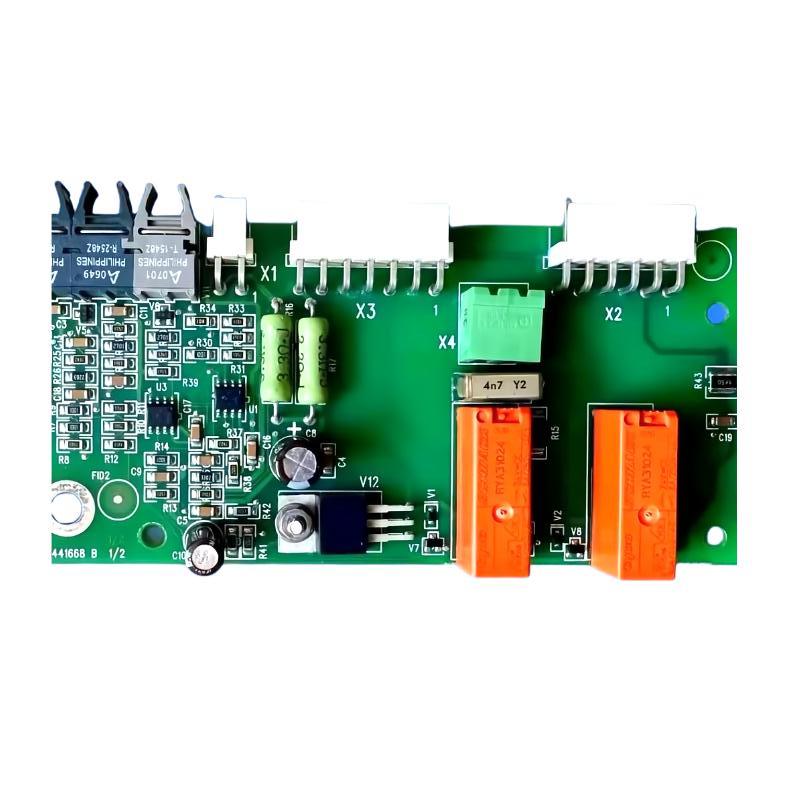

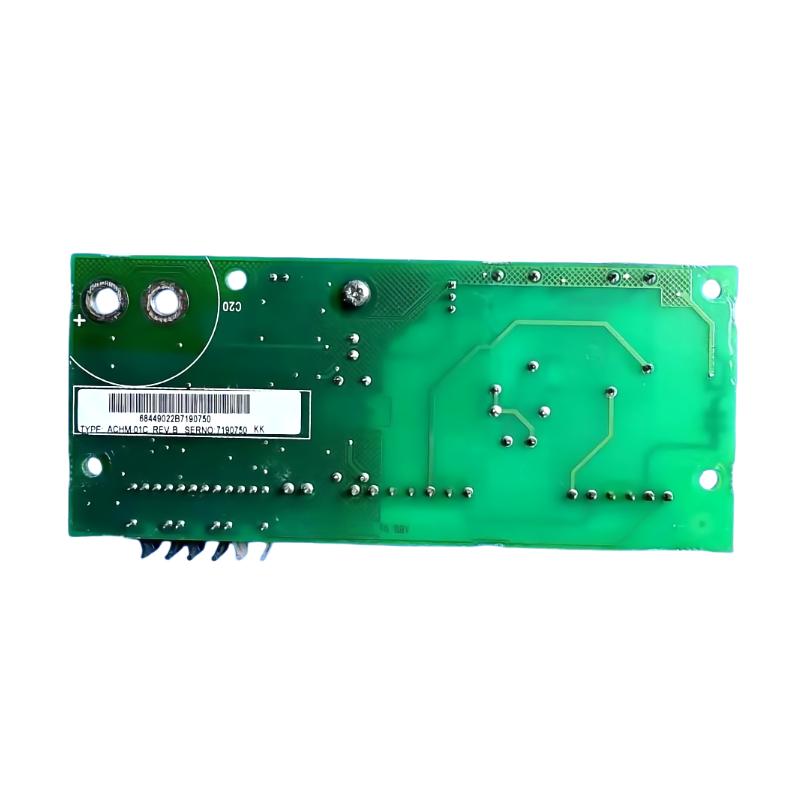

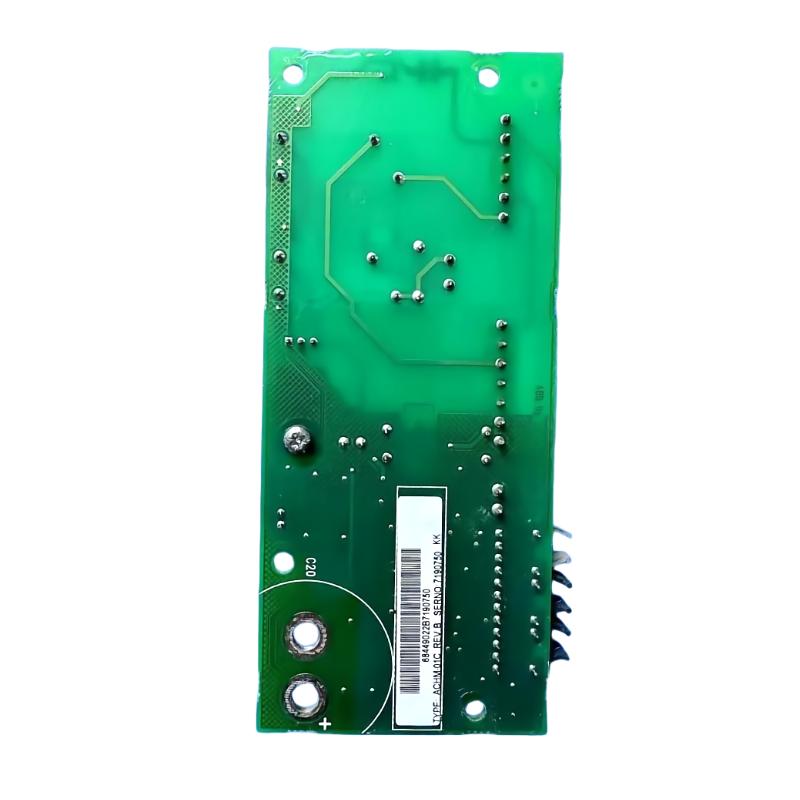

ABB ACHM-01C 68449022 Charging Controller Board

Brand:ABB PLC
Item No.:ACHM-01C
Product Origin:Sweden (SE)
Product Dimensions:60 x 140 mm
Product Weight:0.1 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The ABB ACHM-01C 68449022 Charging Controller Board is designed to provide precise and reliable charging control for various industrial applications. It regulates the charging of batteries, ensuring energy efficiency, safety, and optimal performance. The ACHM-01C is used in systems such as electric vehicles (EVs), industrial battery setups, and energy storage solutions. It plays a key role in maximizing battery life and efficiency by ensuring that charging cycles are conducted in a controlled and safe manner.

Technical Specifications

SpecificationValue
ModelACHM-01C 68449022
Module TypeCharging Controller Board
Dimensions (W x H x D)60 x 140 mm
Weight0.1 kg
Input Voltage24V DC
Current Control Range0-10 A
Power Consumption2 W
Temperature Range-10°C to 60°C
MountingDIN Rail Mounting


Applications

The ABB ACHM-01C Charging Controller Board is ideal for managing the charging process in various battery-powered systems:

  • Electric Vehicle Charging: Used in electric vehicles, this board optimizes the battery charging process, ensuring safe energy transfer and improving battery longevity.

  • Industrial Battery Systems: In industrial applications, the ACHM-01C manages charging cycles for large battery banks, enhancing battery performance and system reliability.

  • Energy Storage Solutions: Integrated into energy storage systems, the ACHM-01C ensures that energy storage devices are charged efficiently, improving the overall performance of grid storage or renewable energy installations.

  • UPS Systems: The board also controls the charging process in uninterruptible power supplies, ensuring that backup batteries are ready when needed during power outages.


Advantages

  • Precise Charging Control: The ACHM-01C provides accurate regulation of the charging current, ranging from 0 to 10 A, which is crucial for preventing overcharging and extending battery life.

  • Energy Efficiency: With only 2 W of power consumption, this board is highly energy-efficient, making it suitable for continuous operation in various systems.

  • Wide Operating Temperature Range: The ACHM-01C operates effectively in environments with temperatures ranging from -10°C to 60°C, ensuring reliability in diverse conditions.

  • Easy Installation: Designed for DIN rail mounting, the ACHM-01C can be easily integrated into control panels or industrial systems, streamlining installation and maintenance.

  • Versatility: This charging controller is compatible with a wide range of battery types, including lithium-ion and lead-acid, offering flexibility for various applications.

  • Reliable Performance: The board ensures efficient charging control, contributing to improved battery performance and longer life in energy-sensitive systems.


Technical FAQs

  1. What is the current control range of the ACHM-01C?

    • The ACHM-01C allows precise control of charging current, ranging from 0 to 10 A, ensuring optimal charging for various types of batteries.

  2. What voltage does the ACHM-01C require?

    • The ACHM-01C operates with a 24V DC input, compatible with many industrial charging systems.

  3. What power consumption does the ACHM-01C have?

    • The board consumes only 2 W, making it energy-efficient for long-term operation.

  4. What temperature conditions can the ACHM-01C handle?

    • The ACHM-01C can operate in a temperature range of -10°C to 60°C, ensuring reliable performance in different industrial environments.

  5. What applications is the ACHM-01C used for?

    • It is used in electric vehicle charging, industrial battery systems, energy storage solutions, and UPS systems, providing efficient charging management for these applications.

  6. How is the ACHM-01C mounted?

    • The ACHM-01C is designed for DIN rail mounting, making it easy to integrate into various industrial systems.

  7. Is the ACHM-01C compatible with lithium-ion batteries?

    • Yes, it is compatible with lithium-ion batteries, as well as other types of rechargeable batteries such as lead-acid.

  8. How does the ACHM-01C ensure optimal battery charging?

    • The ACHM-01C regulates the current and charging cycles, ensuring that batteries are charged safely and efficiently, which helps extend battery life.

  9. Can the ACHM-01C be used in large-scale energy storage systems?

    • Yes, the ACHM-01C is well-suited for use in energy storage systems, managing the charging of large-scale battery installations in grid storage and renewable energy applications.

  10. What are the key benefits of the ACHM-01C?

    • Key benefits include precise current control, energy efficiency, broad temperature tolerance, and compatibility with various battery types, making it ideal for energy-sensitive applications.
