Introduction

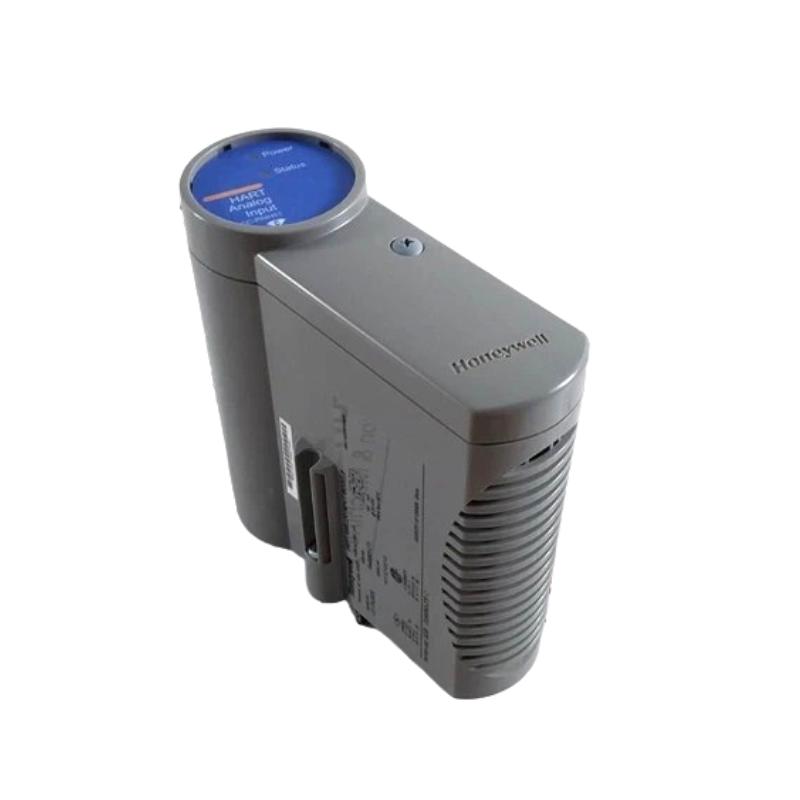

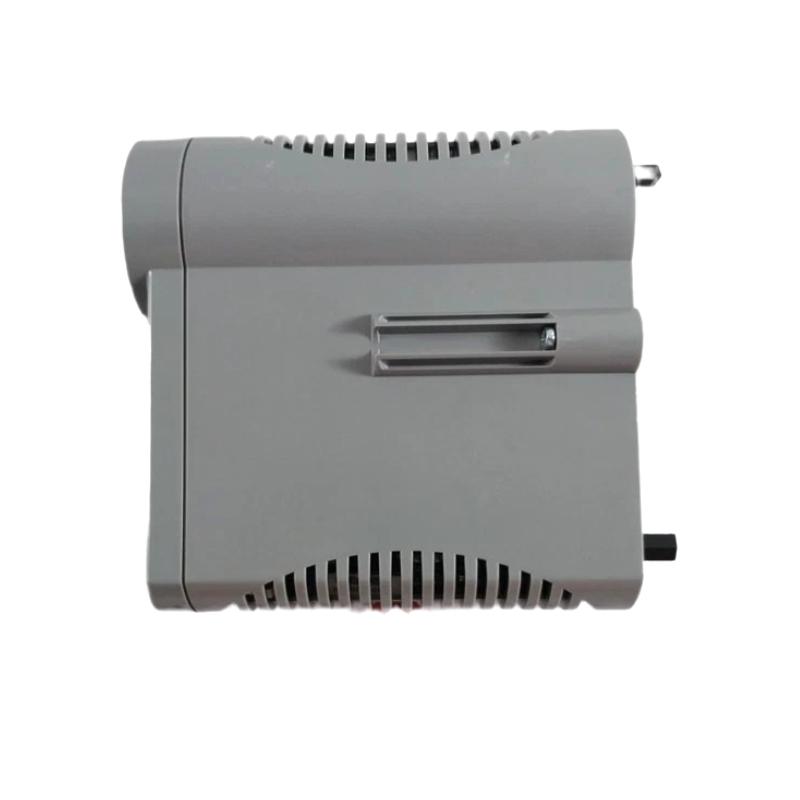

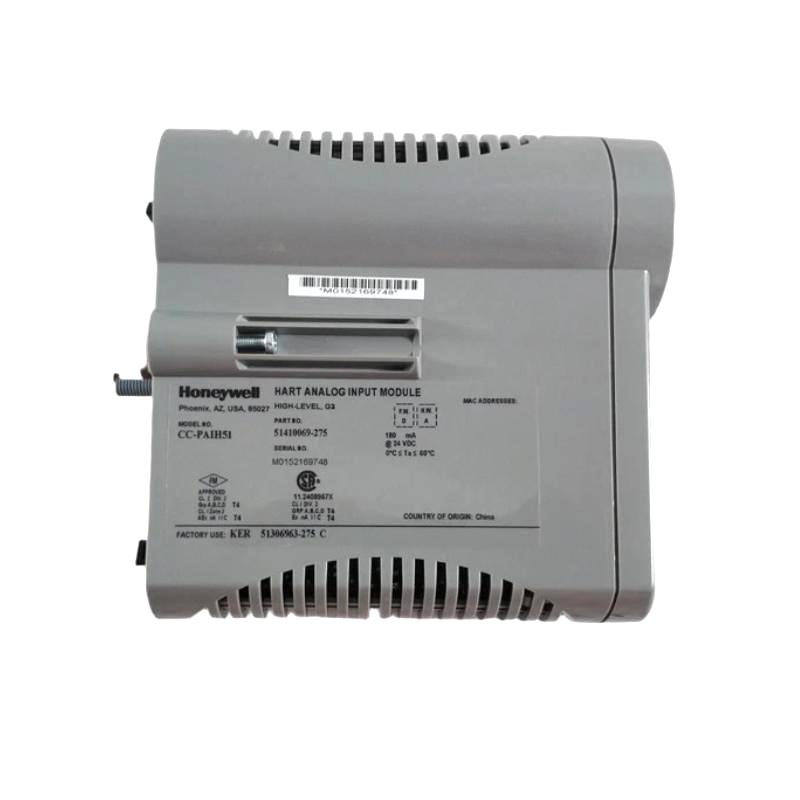

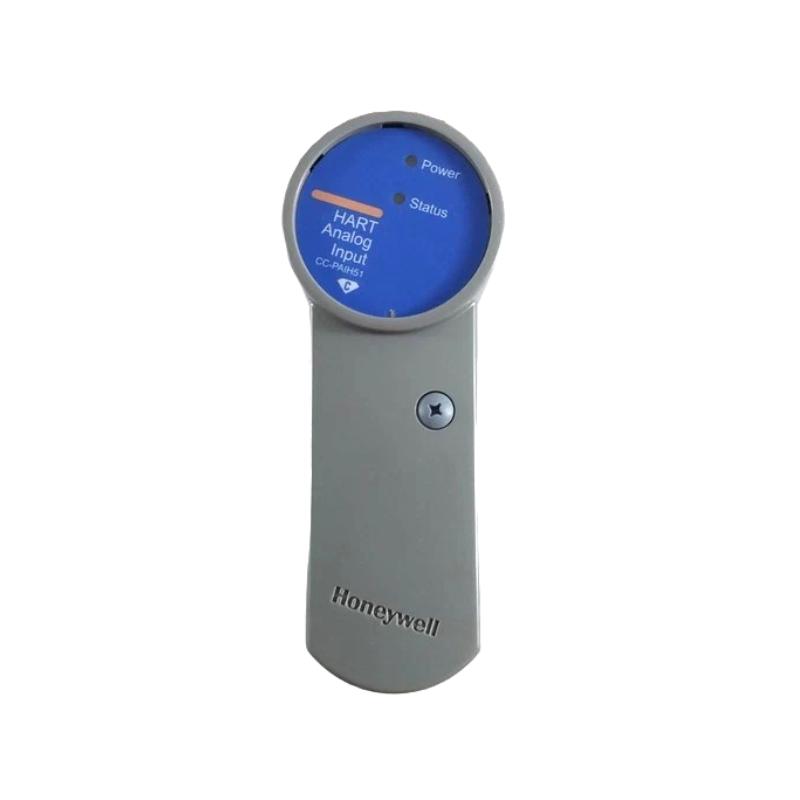

The Honeywell CC-PAIH51 51410069-275 Analog Input Module is engineered for high-precision signal acquisition in industrial automation systems. It converts analog signals from field devices—such as temperature, pressure, and flow sensors—into accurate digital data for process monitoring and control. Optimized for Honeywell control platforms, this module ensures minimal signal interference, stable operation, and reliable performance in continuous-duty industrial environments.
It is ideal for applications requiring precise analog input data and seamless integration into Honeywell Distributed Control Systems (DCS).
Technical Specifications
| Item | Description |
|---|
| Module Type | Analog Input Module |
| Input Signal | 4–20 mA, 0–10 V, or other industry-standard analog signals |
| Channels | Multi-channel analog input capability |
| Resolution | High-resolution conversion for accurate measurement |
| Protection Features | Electrical isolation, surge protection |
| Mounting | Rack-mounted or panel-mounted within control cabinets |
| Dimensions | 63.5 × 124.46 × 307.34 mm (H x W × D) |
| Weight | 0.299 kg |
Technical FAQs
1. What types of signals can the CC-PAIH51 51410069-275 module process?
It supports 4–20 mA, 0–10 V, and other standard analog signals.
2. How many input channels are available?
It provides multiple channels for simultaneous analog signal acquisition.
3. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
4. How does it maintain signal accuracy?
Through high-resolution conversion and electrical isolation to minimize interference.
5. Can it integrate with Honeywell DCS systems?
Yes, it is fully compatible with Honeywell Distributed Control Systems.
6. Is it built for harsh industrial environments?
Yes, it withstands vibration, temperature variations, and electrical noise.
7. How is the module mounted?
It can be mounted on a rack or within a control panel.
8. Does it include protection against electrical faults?
Yes, it features surge protection and channel-to-system isolation.
9. Can it be used for process optimization applications?
Yes, precise analog input supports advanced control and optimization.
10. What does the 51410069-275 designation indicate?
It specifies the exact Honeywell part number and revision for reliable performance and compatibility within Honeywell control systems.
