Introduction

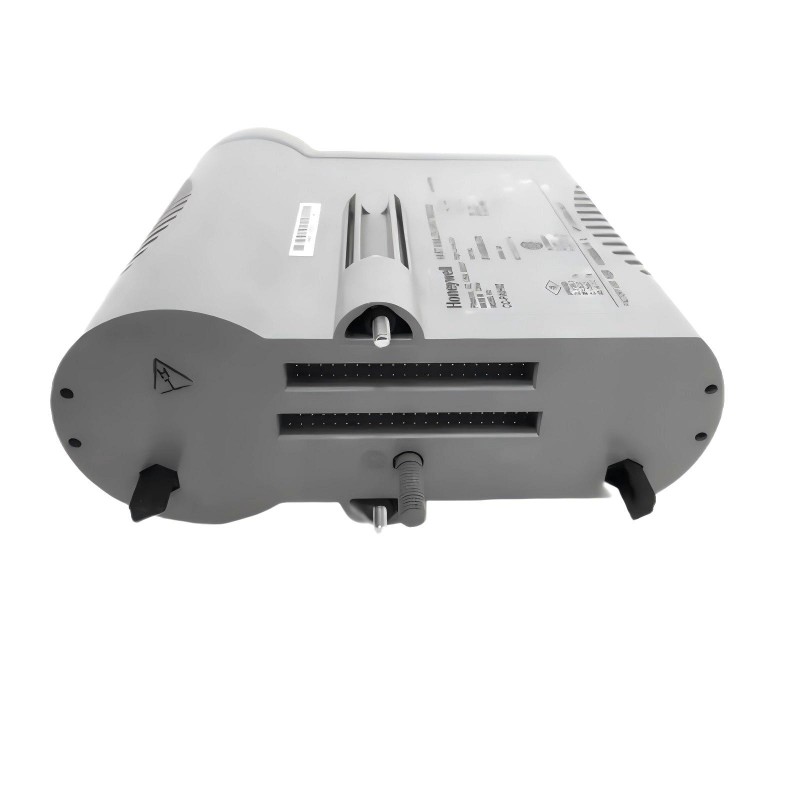

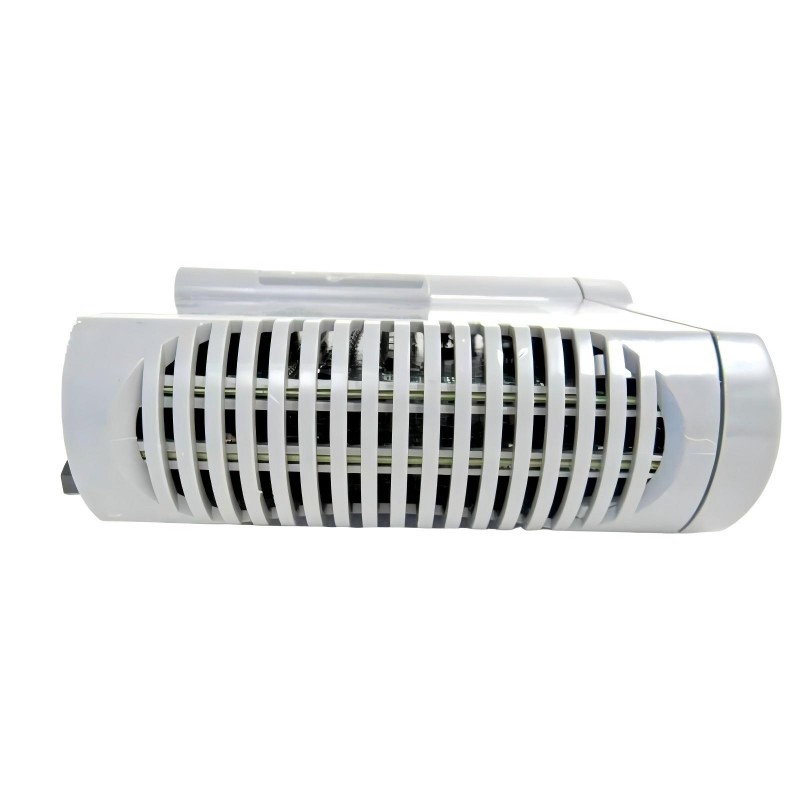

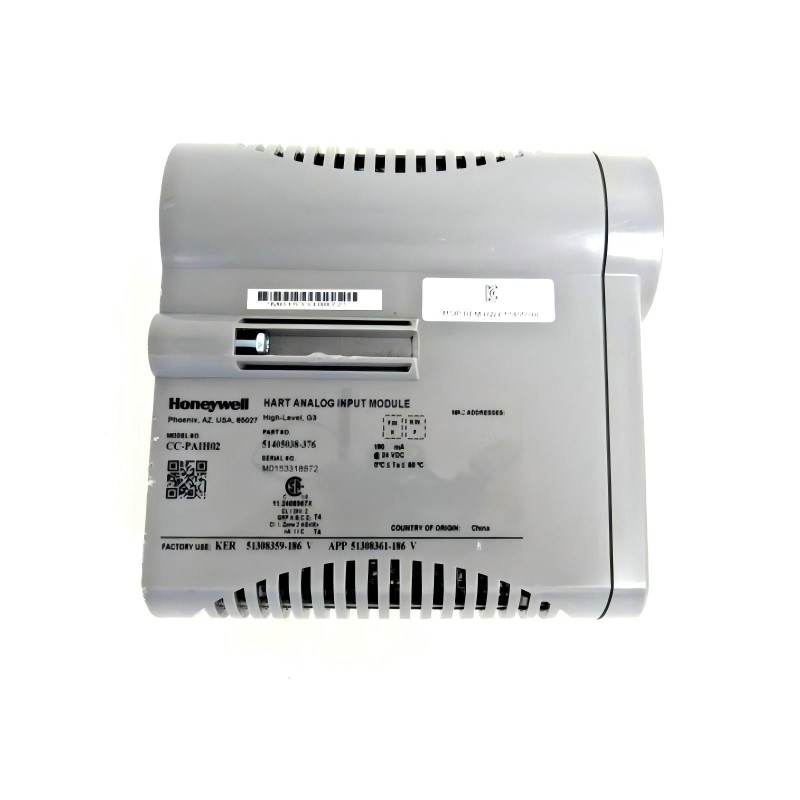

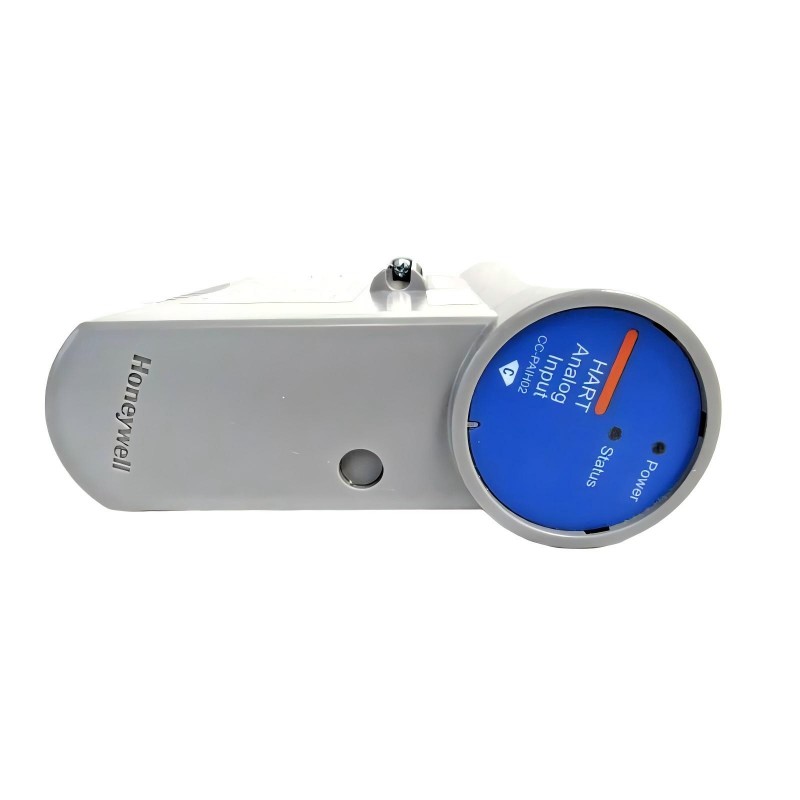

The Honeywell CC-PAIH02 51405038-376 Analog Input Module is designed for precise acquisition of analog signals in industrial control systems. It provides high-resolution input processing for sensors and field devices, enabling accurate measurement of process variables such as temperature, pressure, and flow. Engineered for Honeywell’s control platforms, this module ensures stable signal conversion, minimal noise interference, and reliable performance in continuous-duty environments.
This module is ideal for applications requiring precise analog input and consistent integration with Honeywell control systems.
Technical Specifications
| Item | Description |
|---|
| Module Type | Analog Input Module |
| Input Signal | 4–20 mA, 0–10 V, or other industry-standard analog signals |
| Channels | Multi-channel analog input capability |
| Resolution | High-resolution signal acquisition |
| Protection Features | Electrical isolation, surge protection |
| Mounting | DIN rail or rack-mounted within control cabinet |
| Dimensions | 159 × 50 × 160 mm (H x W × D) |
| Weight | 0.8 kg |
Technical FAQs
1. What types of signals does the CC-PAIH02 module accept?
It supports 4–20 mA, 0–10 V, and other standard analog signals.
2. How many input channels does it support?
It provides multiple channels for simultaneous analog input acquisition.
3. Is the module suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
4. How does it maintain signal accuracy?
Through high-resolution conversion and electrical isolation to minimize noise.
5. Can it integrate with Honeywell DCS systems?
Yes, it is fully compatible with Honeywell control platforms.
6. Is it suitable for harsh industrial environments?
Yes, it is designed to withstand typical industrial conditions including vibration and electrical noise.
7. How is the module mounted?
It can be DIN rail-mounted or installed in a rack within control cabinets.
8. Does it provide protection against electrical faults?
Yes, it features surge protection and channel-to-system isolation.
9. Can it be used for process optimization applications?
Yes, accurate analog input enables advanced process control and optimization.
10. What does the 51405038-376 designation indicate?
It identifies the specific Honeywell part number and revision for compatibility and reliable operation within Honeywell control systems.
