Introduction

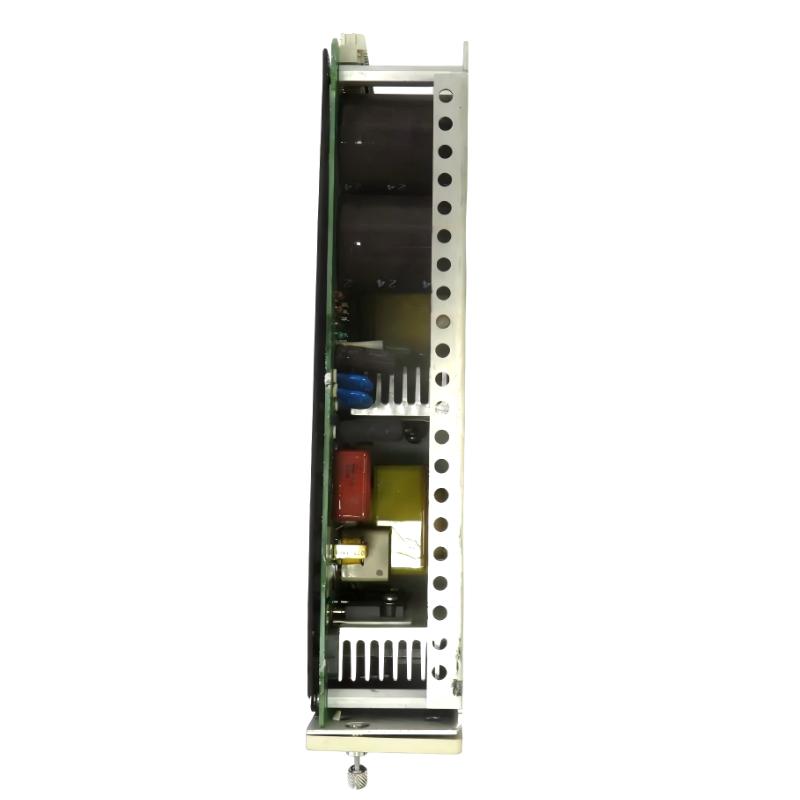

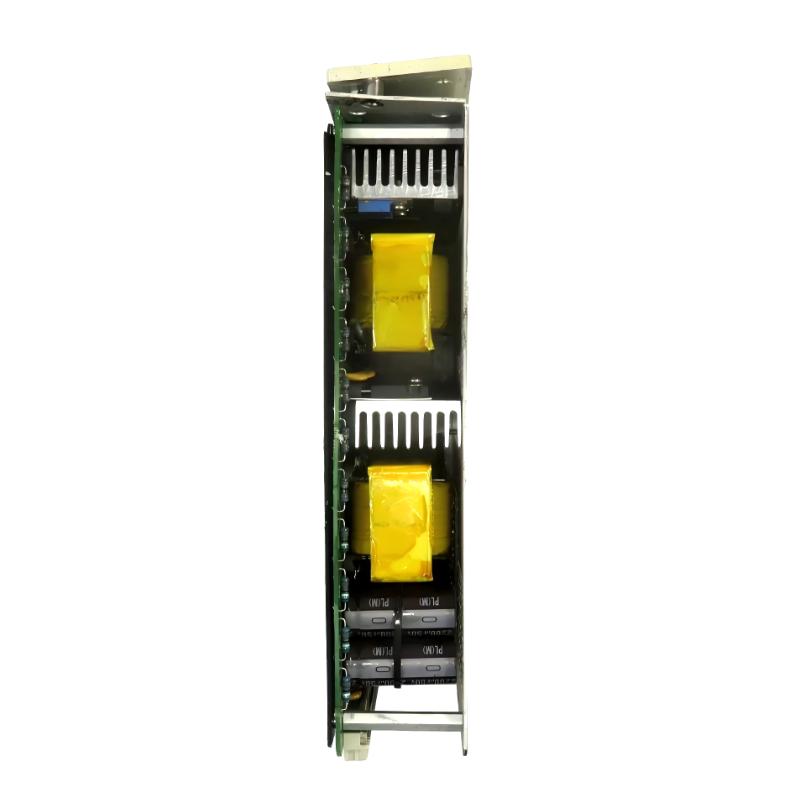

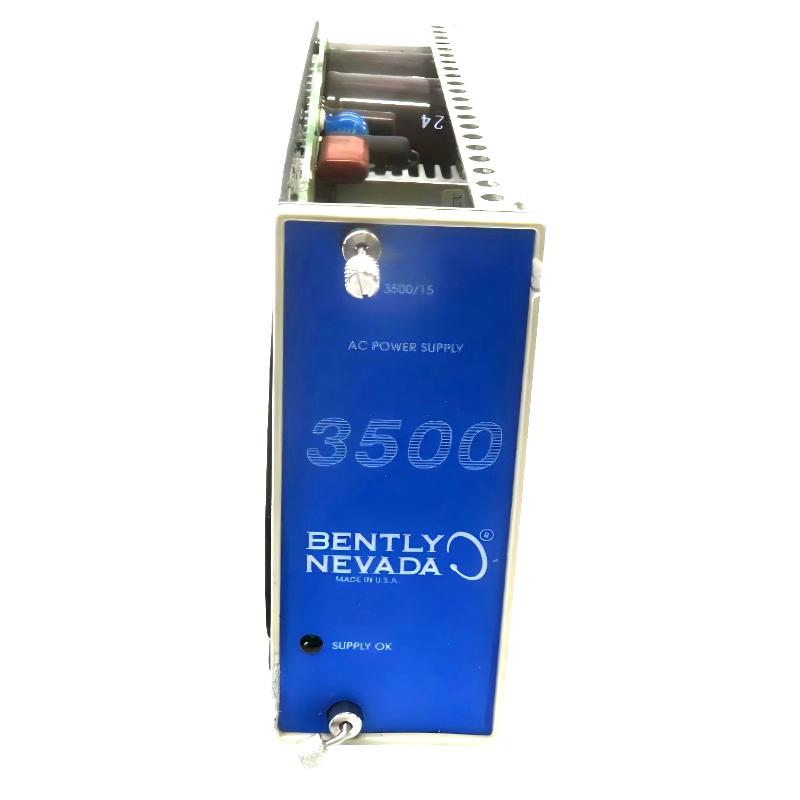

The Bently Nevada 3500/15 114M5335-01 Power Supply Module is designed to provide consistent and reliable DC power to the 3500 Series vibration monitoring system. It delivers filtered, regulated power to connected modules, supporting continuous operation of machinery protection and condition monitoring systems. Engineered for industrial environments, this module prioritizes long-term reliability, fault tolerance, and seamless integration within the 3500/15 chassis.
The 114M5335-01 configuration ensures stable performance and is tailored for critical rotating equipment monitoring applications.
Technical Specifications
| Item | Description |
|---|
| Module Type | Power Supply Module |
| Output Voltage | Regulated DC for 3500 Series modules |
| Function | Provides continuous, stable, and filtered power to system modules |
| Protection Features | Overcurrent, short-circuit, and thermal protection |
| Mounting | Rack-mounted within 3500/15 chassis |
| Dimensions | 120.7 × 50.8 × 251.5 mm (H x W x D) |
| Weight | 1.39 kg |
Technical FAQs
1. What is the primary function of the 114M5335-01 module?
It provides stable, regulated DC power to all connected 3500 Series monitoring modules.
2. Can it operate continuously 24/7?
Yes, it is designed for uninterrupted industrial operation.
3. What protection features does it include?
Overcurrent, short-circuit, and thermal protection.
4. Which equipment is typically supported by this module?
Turbines, compressors, motors, and other critical rotating machinery.
5. Is it compatible with all 3500 Series modules?
Yes, it is designed specifically for integration within the 3500/15 chassis.
6. Can it be replaced without shutting down the system?
Depending on system configuration, hot-swappable replacement may be supported.
7. How does it maintain output stability?
Through internal regulation circuitry and filtered DC output.
8. Is it suitable for harsh industrial environments?
Yes, it is designed to withstand vibration, temperature variations, and other industrial conditions.
9. How is the module mounted?
It is rack-mounted within the 3500/15 chassis.
10. What does the 114M5335-01 designation indicate?
It identifies the specific module model and revision for reliable performance and compatibility within the Bently Nevada 3500/15 system.
