Introduction

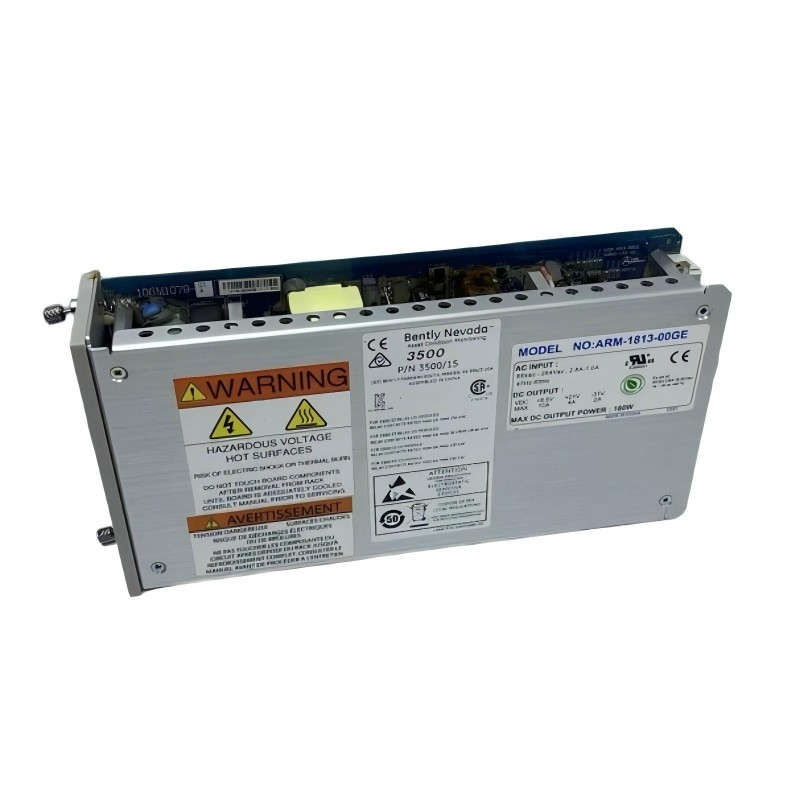

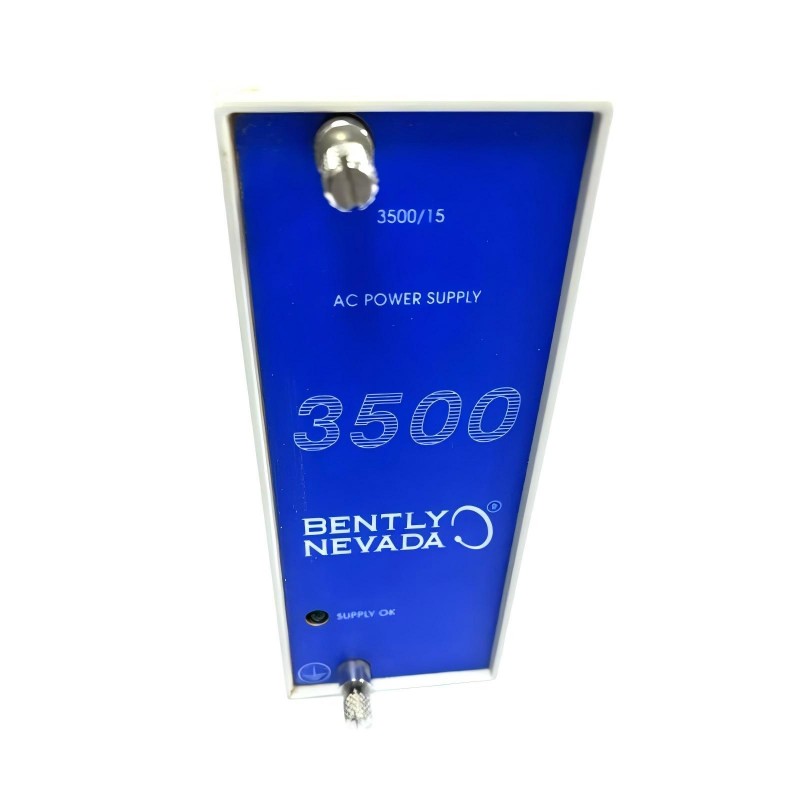

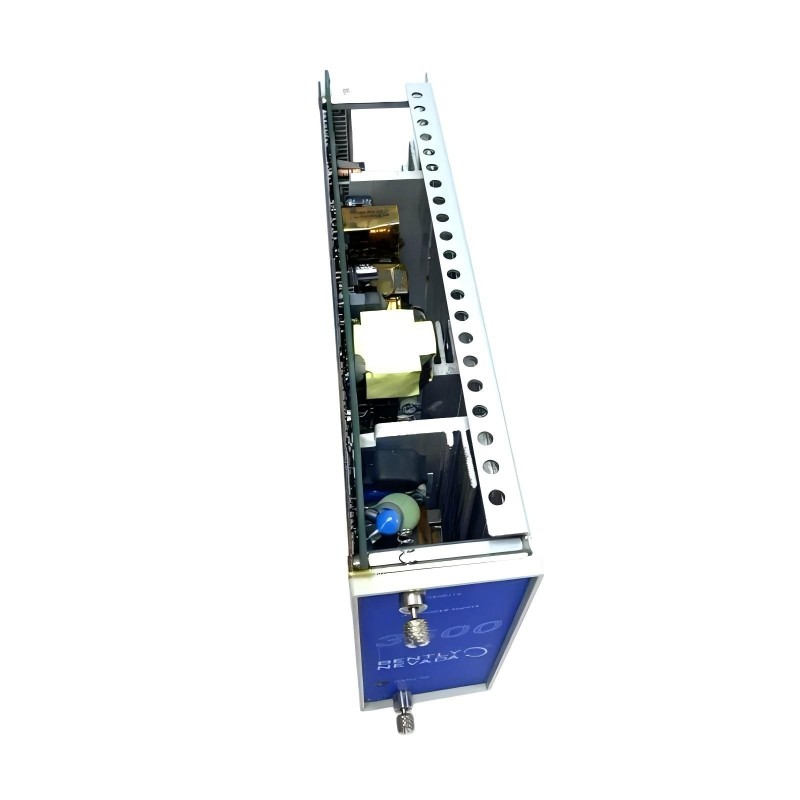

The Bently Nevada 3500/15 114M5330-01 Power Supply Module is designed to provide reliable and continuous DC power to the 3500 Series vibration monitoring system. This module ensures stable, filtered, and regulated power delivery to all connected modules, supporting uninterrupted operation of machinery protection and condition monitoring systems. Built for demanding industrial environments, it emphasizes robustness, fault tolerance, and long-term operational stability.
The 114M5330-01 model represents a standard configuration optimized for high reliability and seamless integration within the 3500/15 chassis.
Technical Specifications
| Item | Description |
|---|
| Module Type | Power Supply Module |
| Output Voltage | Regulated DC for 3500 Series modules |
| Function | Provides continuous, stable, and filtered power to connected modules |
| Protection Features | Overcurrent, short-circuit, and thermal protection |
| Mounting | Rack-mounted within 3500/15 chassis |
| Dimensions | 120.7 × 50.8 × 251.5 mm (H x W x D) |
| Weight | 1.39 kg |
Technical FAQs
1. What is the primary function of the 114M5330-01 module?
It delivers stable, regulated DC power to all connected 3500 Series monitoring modules.
2. Can it support continuous operation?
Yes, it is designed for uninterrupted 24/7 industrial use.
3. What protection features are included?
It incorporates overcurrent, short-circuit, and thermal protection.
4. Which equipment does it typically support?
Turbines, compressors, motors, and other critical rotating machinery.
5. Is it compatible with all 3500 Series modules?
Yes, it is specifically designed for integration within the 3500/15 chassis.
6. Can the module be replaced without shutting down the system?
Depending on system configuration, hot-swappable replacement may be possible.
7. How is output voltage stabilized?
Through internal regulation circuitry and filtered DC output.
8. Is it suitable for harsh industrial environments?
Yes, it is designed to withstand vibration, temperature fluctuations, and industrial operating conditions.
9. How is the module mounted?
It is installed rack-mounted within the 3500/15 chassis.
10. What does the 114M5330-01 designation indicate?
It specifies the particular model and revision, ensuring compatibility and reliable performance within the Bently Nevada 3500/15 system.
