Introduction

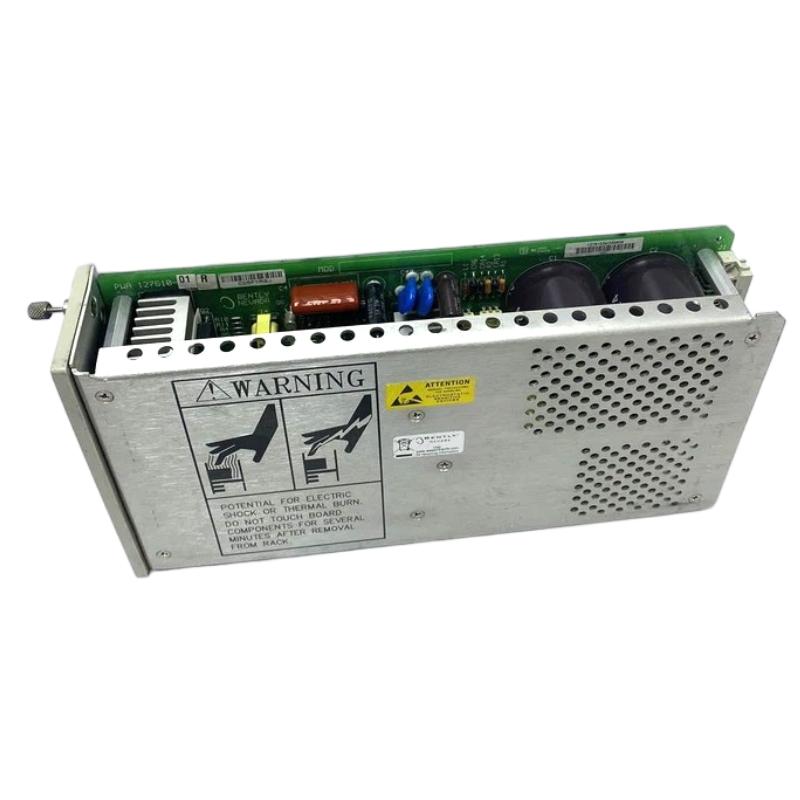

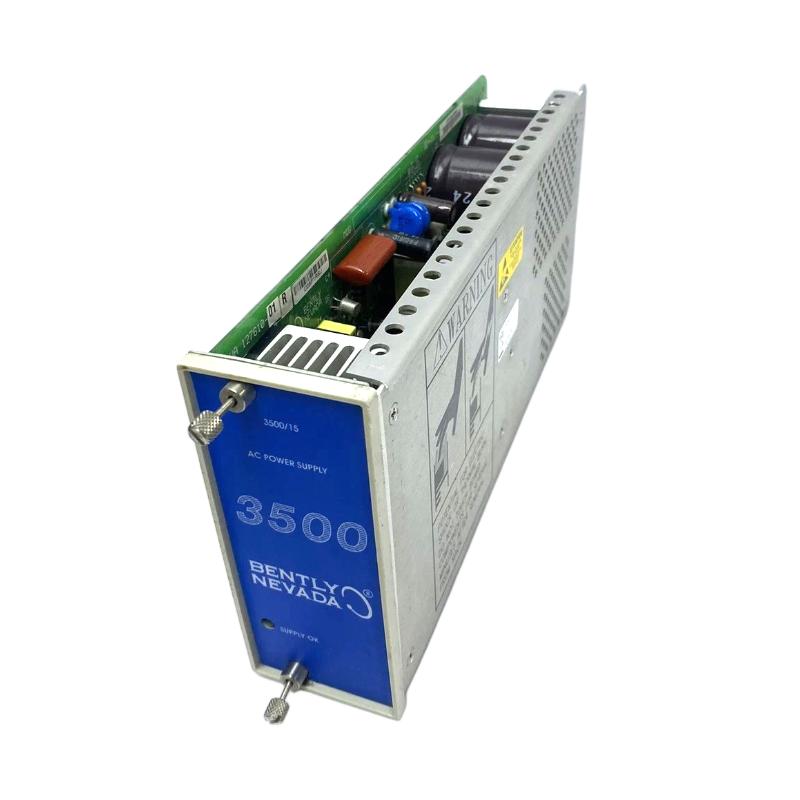

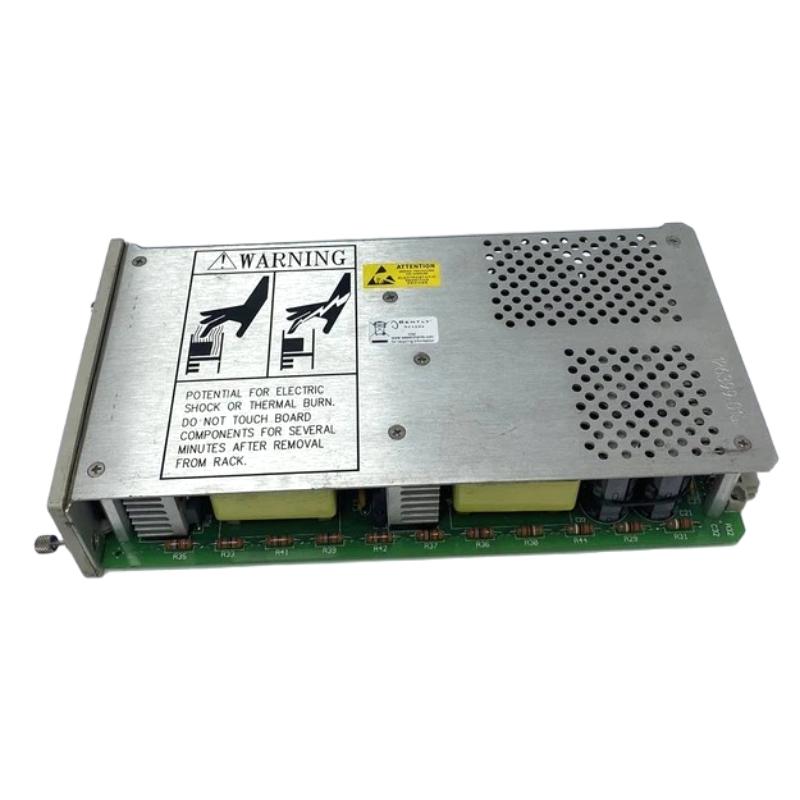

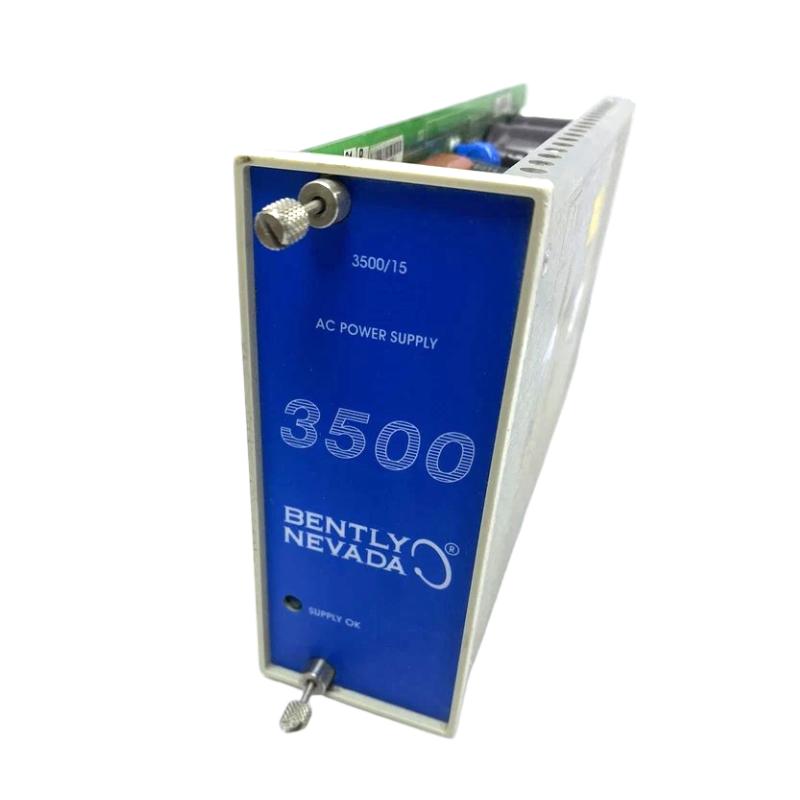

The Bently Nevada 3500/15 106M2686-00+127610-01 Power Supply Module is engineered to deliver stable and reliable DC power to the 3500 Series vibration monitoring system. It ensures continuous, filtered, and regulated power to all connected modules, supporting uninterrupted operation of machinery protection and condition monitoring systems. Designed for high-availability industrial environments, this module emphasizes durability, fault tolerance, and long-term reliability.
The 106M2686-00+127610-01 configuration represents a specific variant optimized for seamless integration and dependable performance within the 3500/15 chassis.
Technical Specifications
| Item | Description |
|---|
| Module Type | Power Supply Module |
| Output Voltage | Regulated DC for 3500 Series modules |
| Function | Provides continuous, filtered, and stable power to connected system modules |
| Protection Features | Overcurrent, short-circuit, and thermal protection |
| Mounting | Rack-mounted within 3500/15 chassis |
| Dimensions | 120.7 × 50.8 × 251.5 mm (H x W × D) |
| Weight | 1.39 kg |
Technical FAQs
1. What is the main function of this power supply module?
It provides stable and regulated DC power to all 3500 Series modules within the 3500/15 chassis.
2. Is it suitable for continuous operation?
Yes, it is designed for 24/7 uninterrupted industrial operation.
3. What protection features does it include?
Overcurrent, short-circuit, and thermal protection are built-in.
4. Which types of equipment does it typically support?
Turbines, compressors, motors, and other critical rotating machinery.
5. Is it compatible with all 3500 Series modules?
Yes, it is designed specifically for use within the 3500/15 chassis.
6. Can it be replaced without shutting down the system?
Hot-swappable options may be available depending on the system configuration.
7. How is output voltage stabilized?
Through internal regulation circuitry and filtered DC output.
8. Is it designed for harsh industrial environments?
Yes, it withstands vibration, temperature fluctuations, and other industrial conditions.
9. How is the module mounted?
It is rack-mounted within the 3500/15 chassis.
10. What does the 106M2686-00+127610-01 designation signify?
It identifies the specific hardware configuration and revision, ensuring compatibility and reliable performance within the Bently Nevada 3500/15 system.
