Introduction

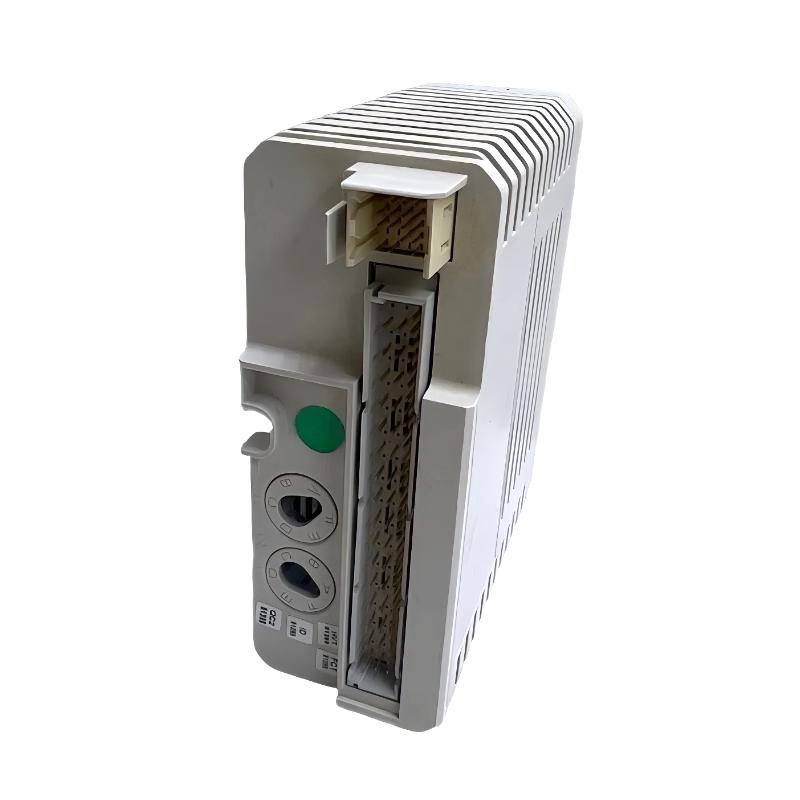

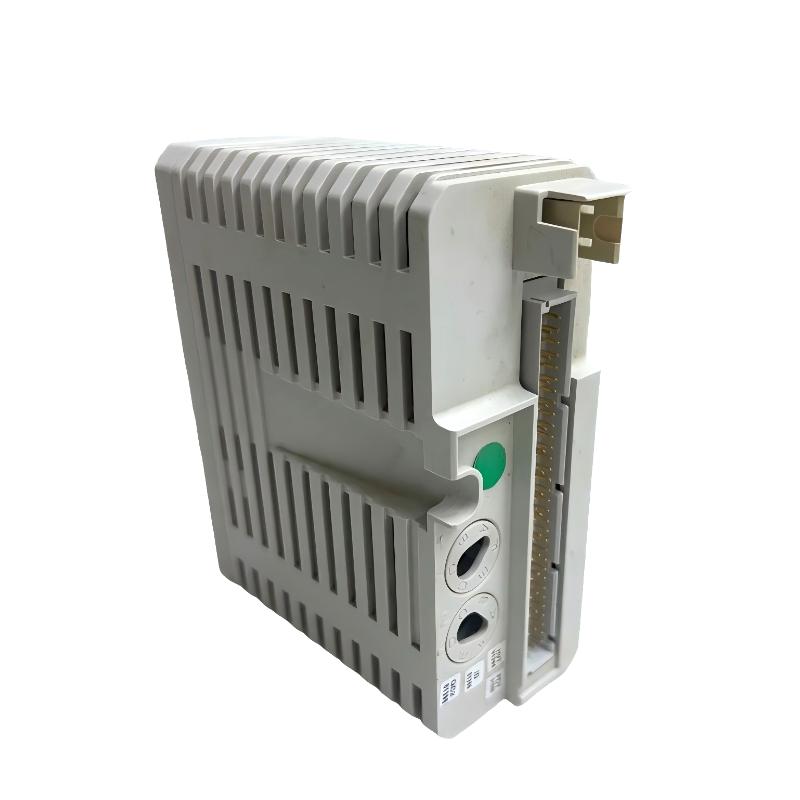

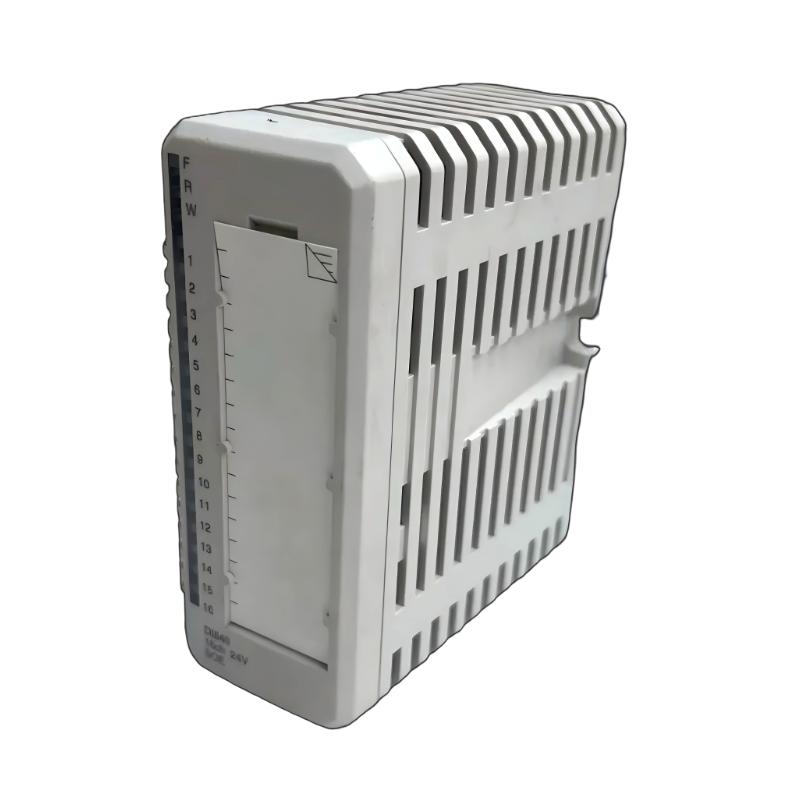

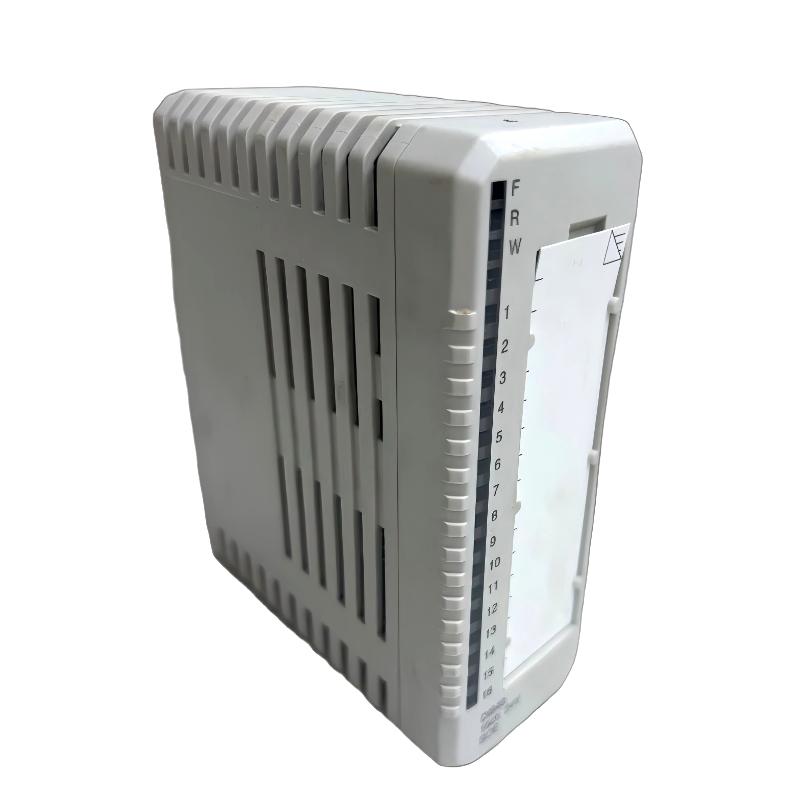

The ABB DI840 3BSE020836R1 Digital Input Module is designed for precise and reliable acquisition of discrete field signals in industrial automation systems. It provides a robust interface between binary field devices and the control system, ensuring accurate recognition of on/off states under continuous operating conditions. Developed according to ABB’s industrial I/O standards, the DI840 emphasizes signal integrity, operational stability, and long service life.
This module is particularly suitable for applications where dependable digital input performance and consistent system availability are required.
Technical Specifications
| Item | Description |
|---|
| Module Type | Digital Input Module |
| Signal Type | Discrete / On–Off inputs |
| Input Function | Field signal acquisition |
| Electrical Isolation | Channel-to-system isolation |
| Installation Method | DIN rail / rack-mounted I/O |
| Dimensions | 45 × 102 × 119 mm (H x W x D) |
| Weight | 0.15 kg |
Technical FAQs
1. What is the main function of the DI840 module?
It reads digital on/off signals from field devices and transmits their status to the control system.
2. Which types of field devices are typically connected?
Push buttons, limit switches, proximity sensors, and relay contacts.
3. Is this module suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
4. How does the module ensure reliable signal detection?
Through robust input circuitry and effective electrical isolation.
5. Can it operate in electrically noisy environments?
Yes, it is engineered to maintain stable performance in industrial noise conditions.
6. Does it support standard industrial switching speeds?
It reliably processes typical digital input transitions used in automation systems.
7. How is configuration performed?
Configuration is handled through ABB’s engineering and control tools.
8. Is the module suitable for interlock applications?
Yes, it is commonly used for interlock and permissive signal monitoring.
9. Can it be integrated into system expansions?
Yes, its standardized design allows straightforward integration into expanded I/O systems.
10. What does the 3BSE020836R1 designation represent?
It identifies the specific ABB part number and revision, ensuring compatibility and consistent performance within ABB automation platforms.
