Introduction

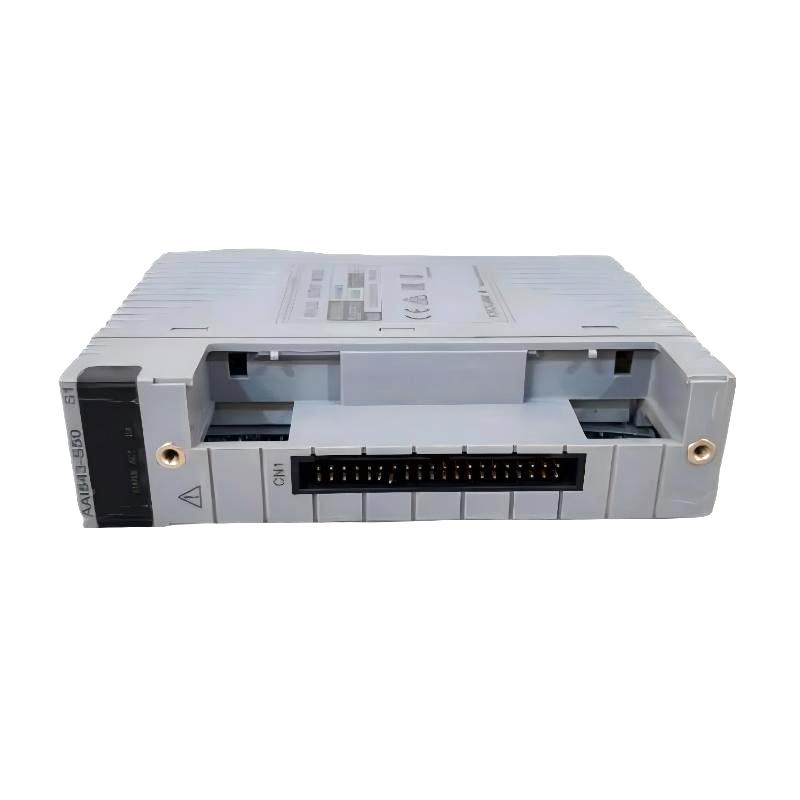

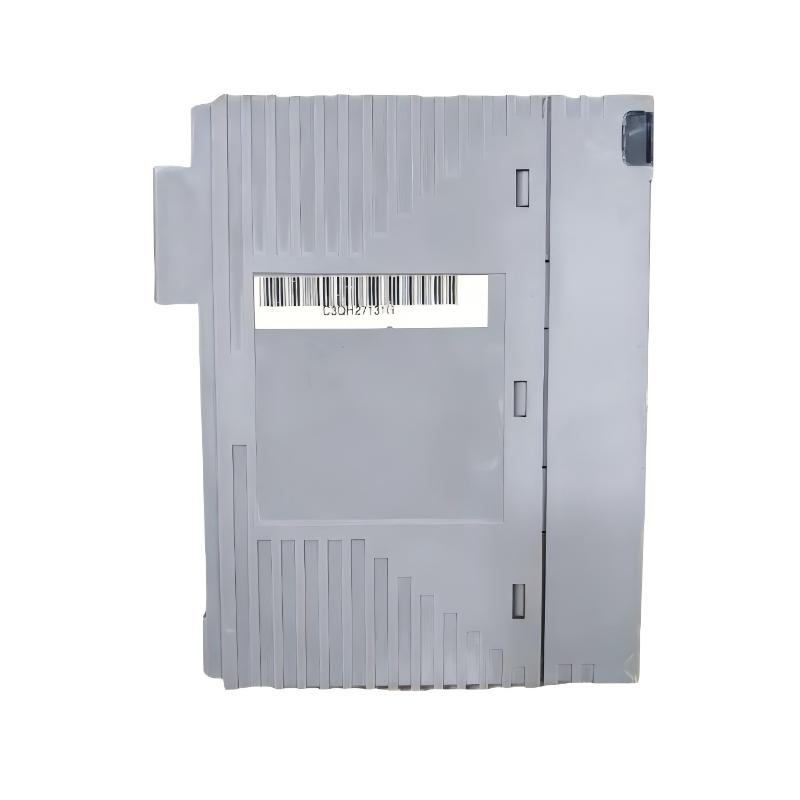

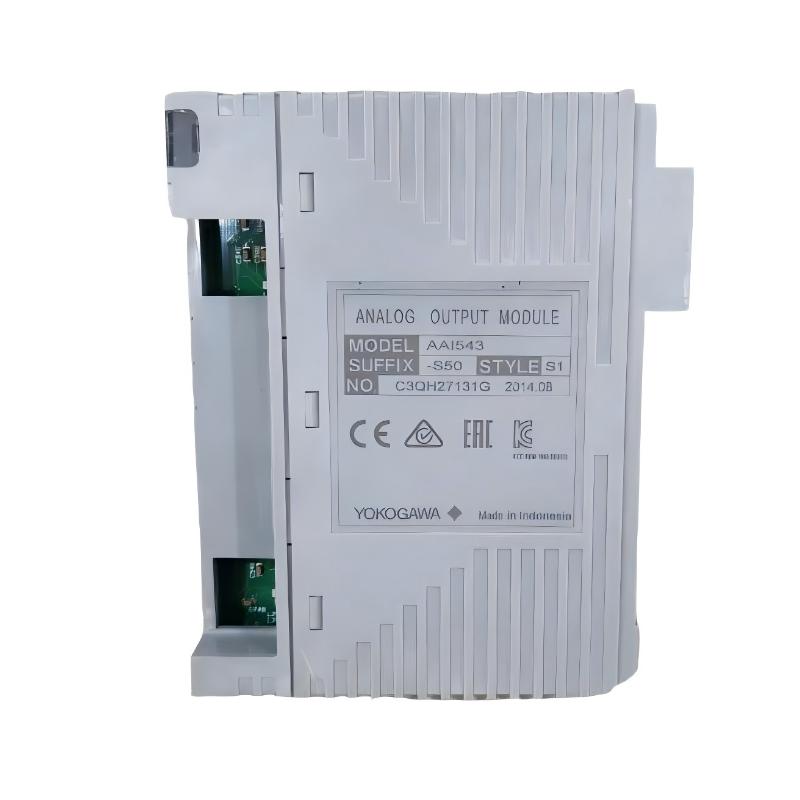

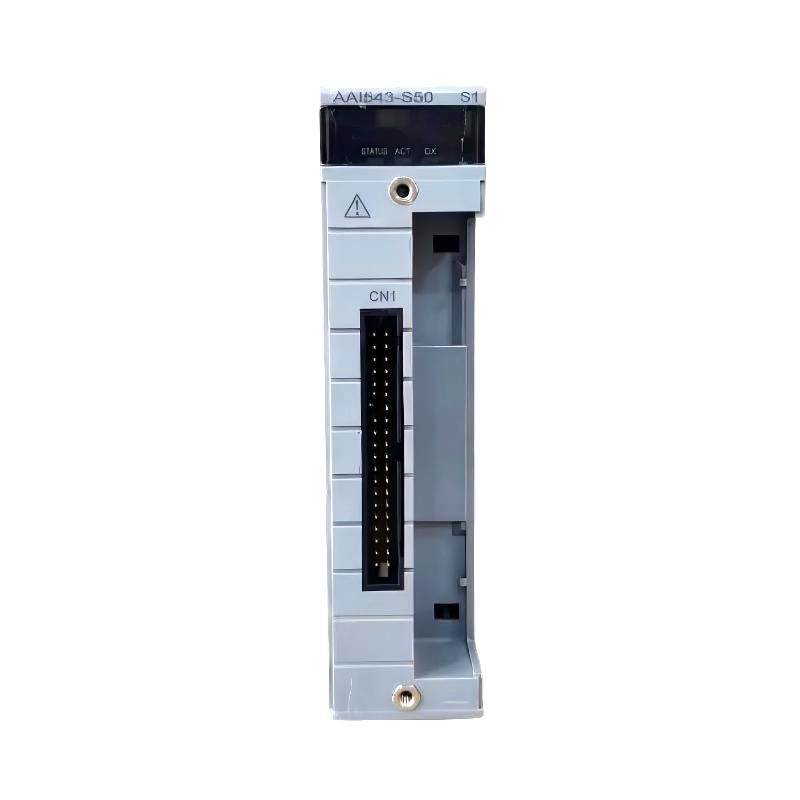

The Yokogawa AAI543-S50 S1 Analog Output Module is designed for industrial control systems requiring high-precision analog outputs. It acts as the interface between controllers and field devices, translating control commands into stable analog signals that drive actuators, valves, and other equipment. Built for durability and long-term operation, this module ensures reliable performance in continuous industrial processes where signal accuracy and consistency are critical.
The S1 variant emphasizes standardized hardware and dependable performance across diverse industrial applications.
Technical Specifications
| Item | Description |
|---|
| Module Type | Analog Output Module |
| Output Function | Industrial standard analog output |
| Channel Design | Multi-channel configuration |
| Electrical Isolation | Field-to-system isolation |
| Installation | Rack-mounted I/O module |
| Dimensions | 107.5 × 32.8 × 130 mm (H x W × D) |
| Weight | 0.4 kg |
Applications
The AAI543-S50 S1 is suitable for applications requiring precise and stable analog output:
-
Control valve and actuator modulation
-
Continuous chemical, petrochemical, and pharmaceutical processes
-
Power generation and utility systems
-
Oil and gas processing plants
-
Large-scale DCS-controlled manufacturing environments
Technical FAQs
1. What is the primary function of this module?
It converts controller output signals into precise analog outputs for field devices.
2. Which devices are typically connected?
Commonly connected devices include control valves, actuators, and I/P converters.
3. Is the module suitable for continuous industrial operation?
Yes, it is designed for 24/7 operation in demanding industrial environments.
4. How is output stability ensured?
Stable internal reference circuits and field-to-system isolation maintain consistent output.
5. Can it operate in electrically noisy environments?
Yes, noise suppression and isolation measures ensure reliable performance.
6. Does the module require frequent calibration?
Routine recalibration is generally unnecessary under normal conditions.
7. How is configuration handled?
Configuration is performed through Yokogawa’s host engineering and control tools.
8. Is it suitable for critical control loops?
Yes, it provides reliable output for precise and stable loop control.
9. Can it be integrated into expanded systems?
Yes, its standardized design supports seamless integration into larger systems.
10. What does the S1 designation signify?
It indicates a standardized hardware variant with consistent performance within the AAI543-S50 series.
