Introduction

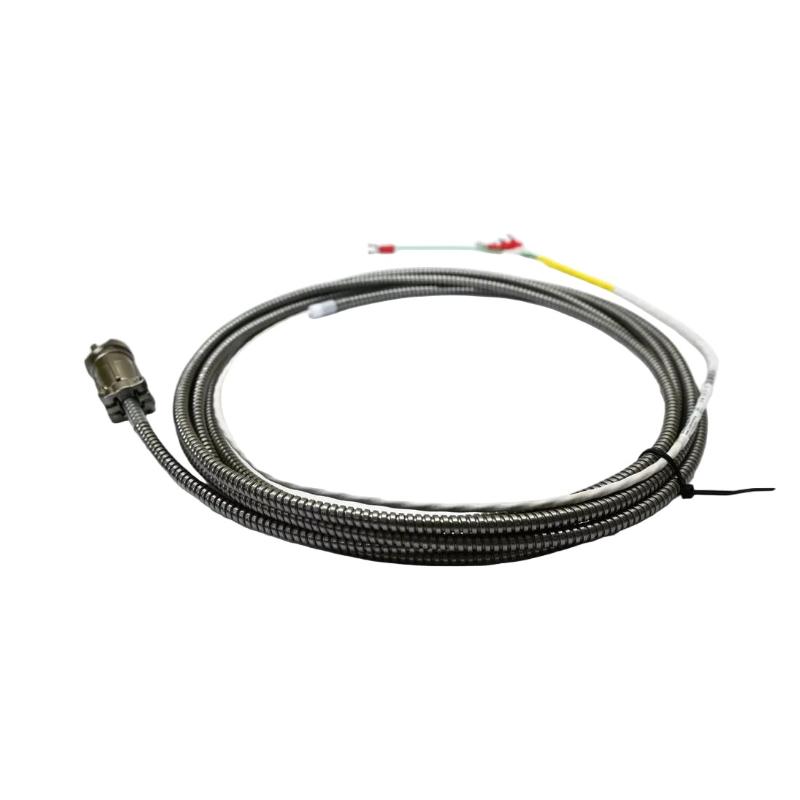

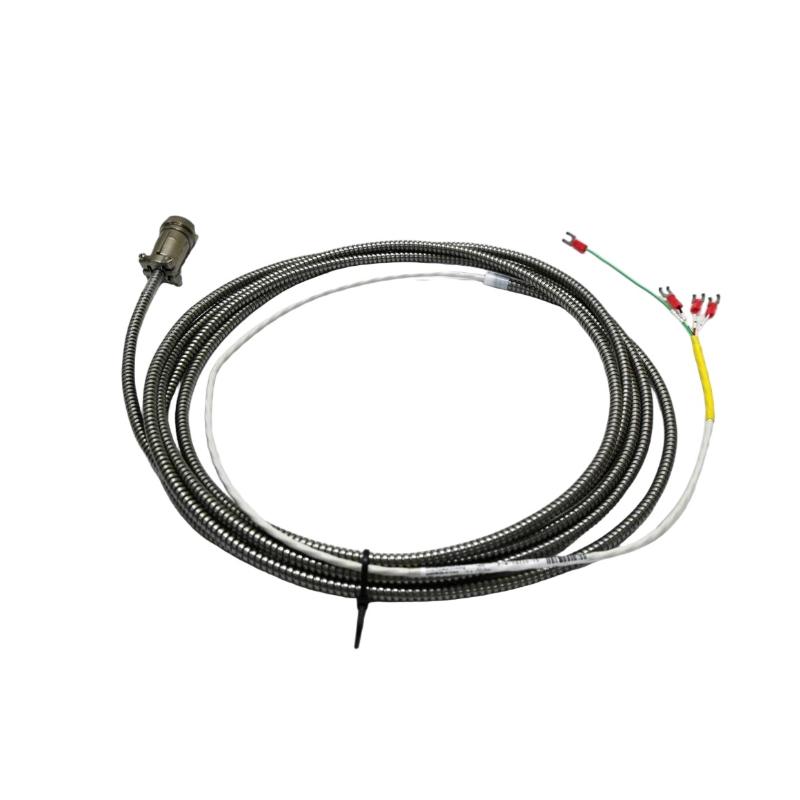

The Bently Nevada 16710-15 Interconnect Cable is a high-quality industrial connection solution designed for reliable performance in vibration monitoring and machinery protection systems. Engineered for challenging environments, this cable provides precise signal transmission and exceptional durability. With reinforced shielding and robust armoring, the 16710-15 ensures continuous operation while reducing the risk of downtime in critical industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Interconnect Cable |
| Model Number | 16710-15 |
| Cable Length | 15 ft (4.6 m) |
| Conductor Count | 3-conductor shielded |
| Wire Gauge | 22 AWG (0.5 mm²) |
| Shielding | Foil shield with drain wire |
| Armoring | Yes – mechanical protection |
| Connector Type | 3-socket plug & terminal lugs |
| Relay Configuration | 2 Normally Open (NO) circuits |
| Additional Outputs | 2 solid-state outputs |
| Voltage Rating | Up to 300 V |
| Operating Temperature | −40 °C to +85 °C |
| Approx. Dimensions (HxWxD) | 28.0 × 2.6 × 13.5 cm |
| Approx. Weight | 1.22 kg |
